Pauliil1948 · Jan 21, 2018

hi guys , 2006 Freelander td4 , one off the hoses is burst not sure what one order as looking under bonnet left hand side it's a rubber hose ,any help would be good thanks ,

freelance · Jan 21, 2018

Turbo to inter cooler hose, or inter cooler to inlet manifold hose, probably best to replace both with silicon ones

Nodge68 · Jan 21, 2018

You want this http://www.island-4x4.co.uk/interco...or-mount-0306-britpart-pnh500190-p-25526.html.
Or fit a full set of aftermarket silicone replacements, which is what most owners do.

Arctic2 · Jan 22, 2018

Intercooler hose which goes to the EGR through the top plastic air intake, I fitted these below to my TD4 when I had it.
https://www.ebay.co.uk/itm/LAND-ROV...hash=item43cbde39a4:m:miMrYYVDLbJblIZP4h9v2ew

teddywood1 · Jan 22, 2018

i had mine from DPH and I have had 2 sets as I left my old car with them on but they seem not to want to listen to me I did phone them the one that comes of the egr and goes to the inlet system is actually to big for the end that goes onto the inlet it is about 4mm difference to the egr end

Arctic2 · Jan 22, 2018

teddywood1 said:
i had mine from DPH and I have had 2 sets as I left my old car with them on but they seem not to want to listen to me I did phone them the one that comes of the egr and goes to the inlet system is actually to big for the end that goes onto the inlet it is about 4mm difference to the egr end

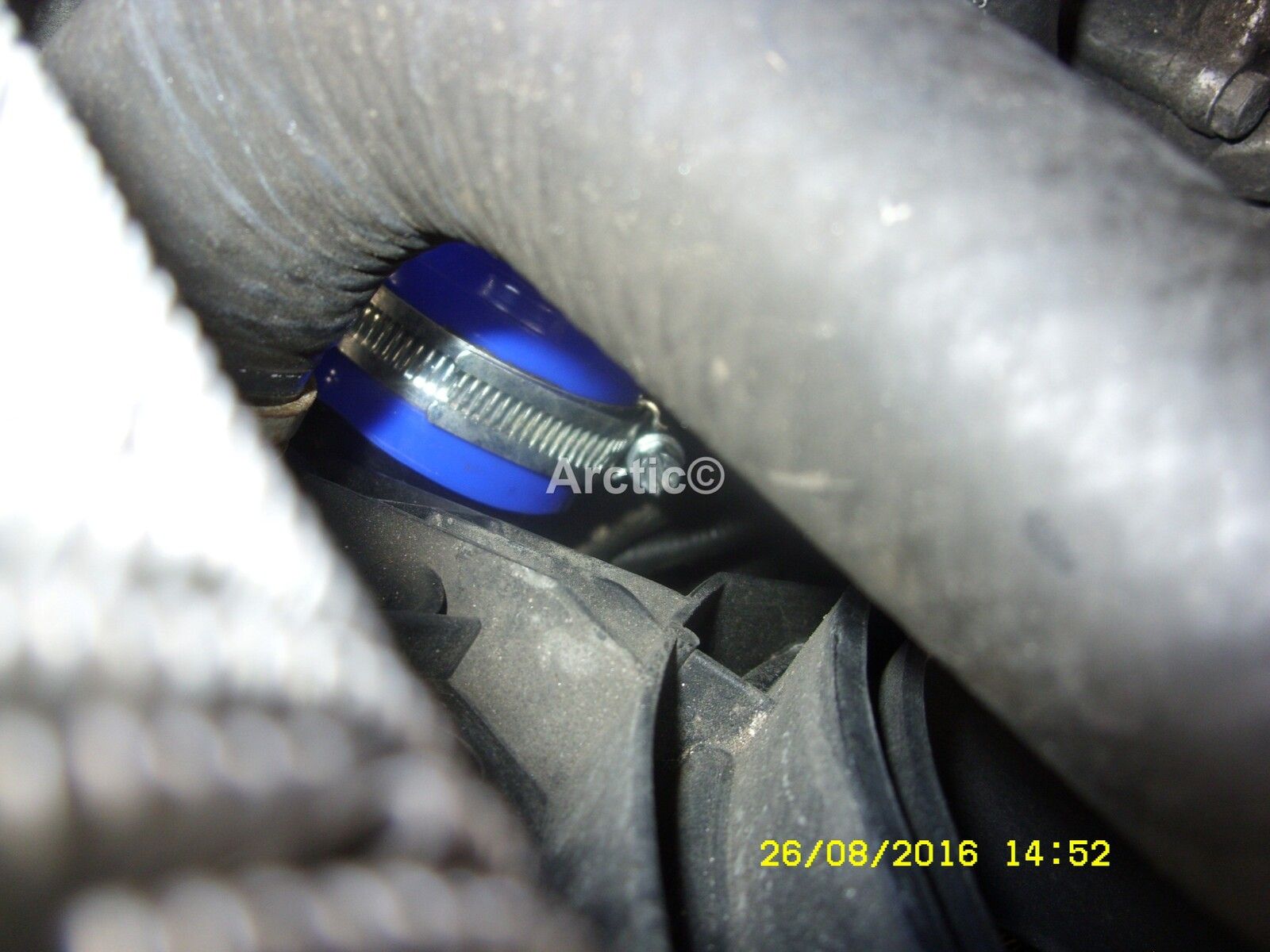

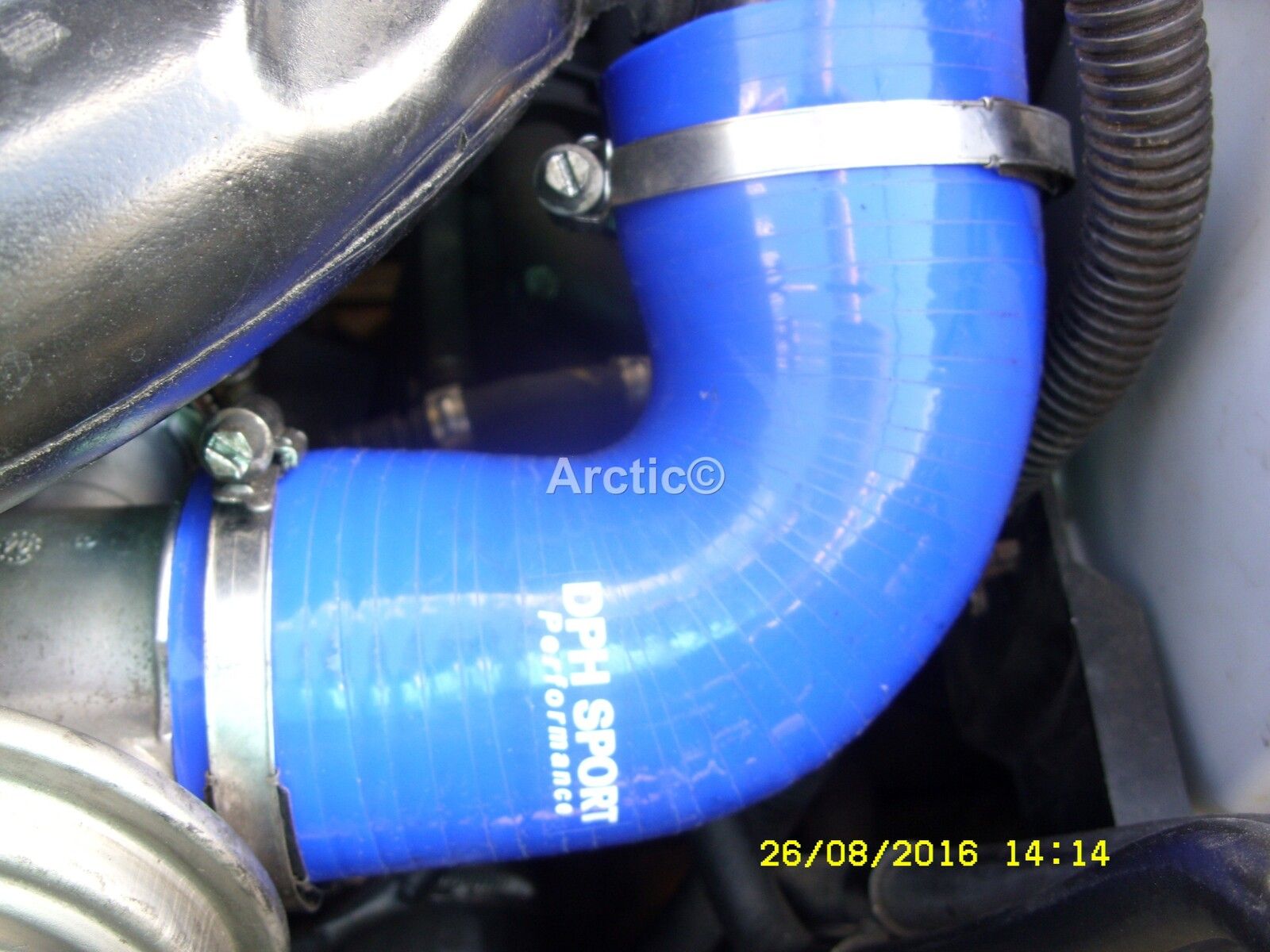

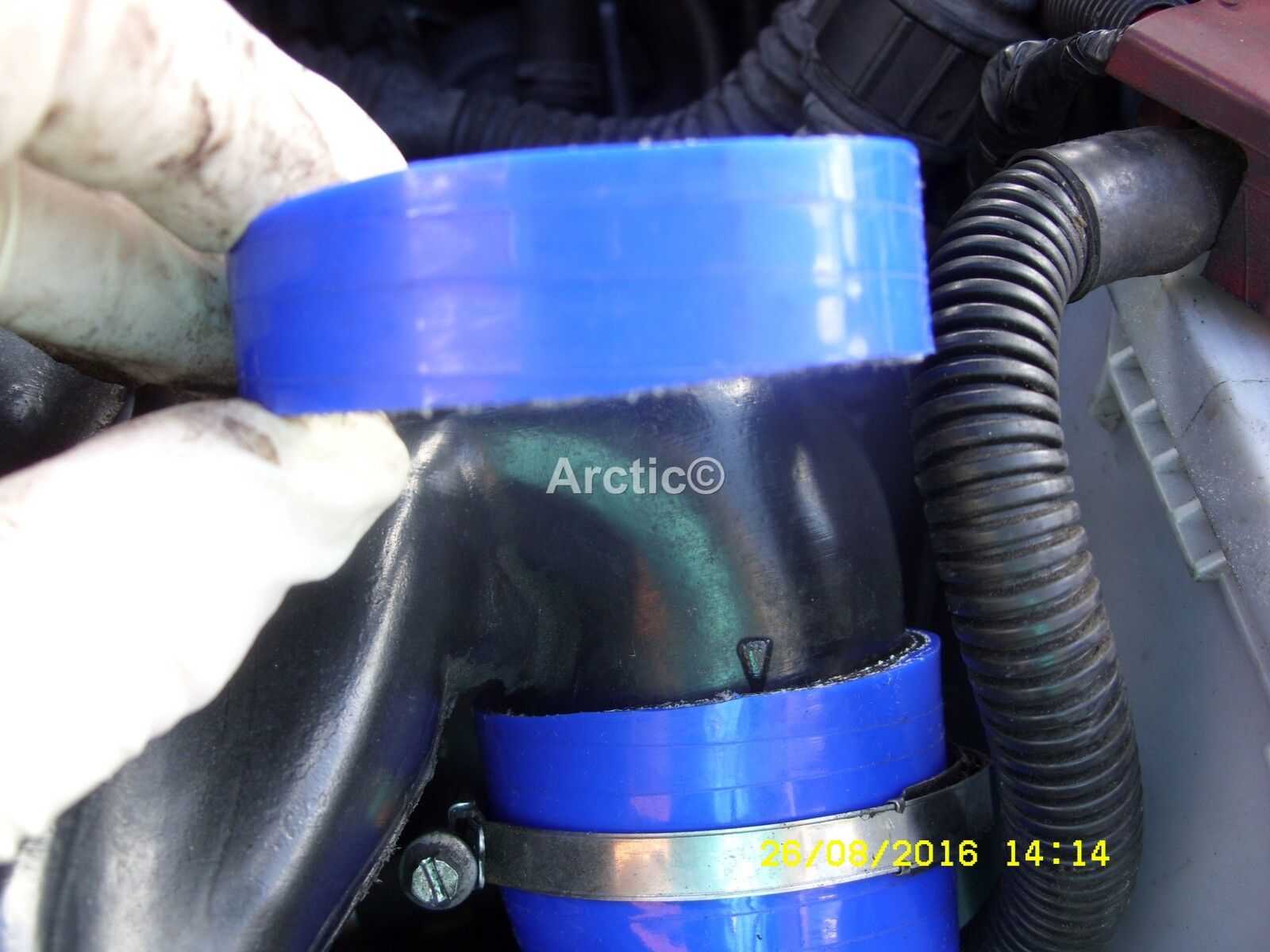

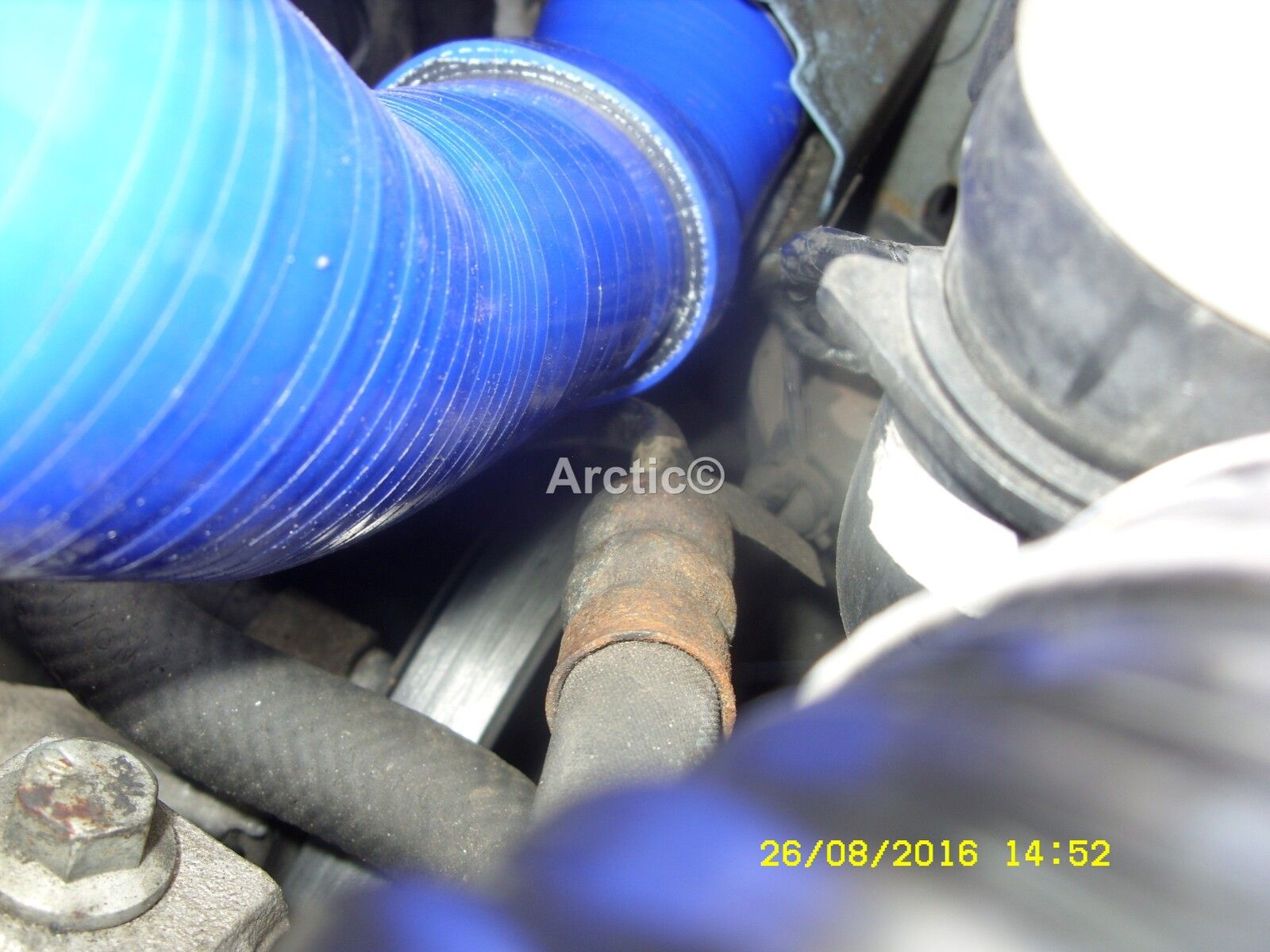

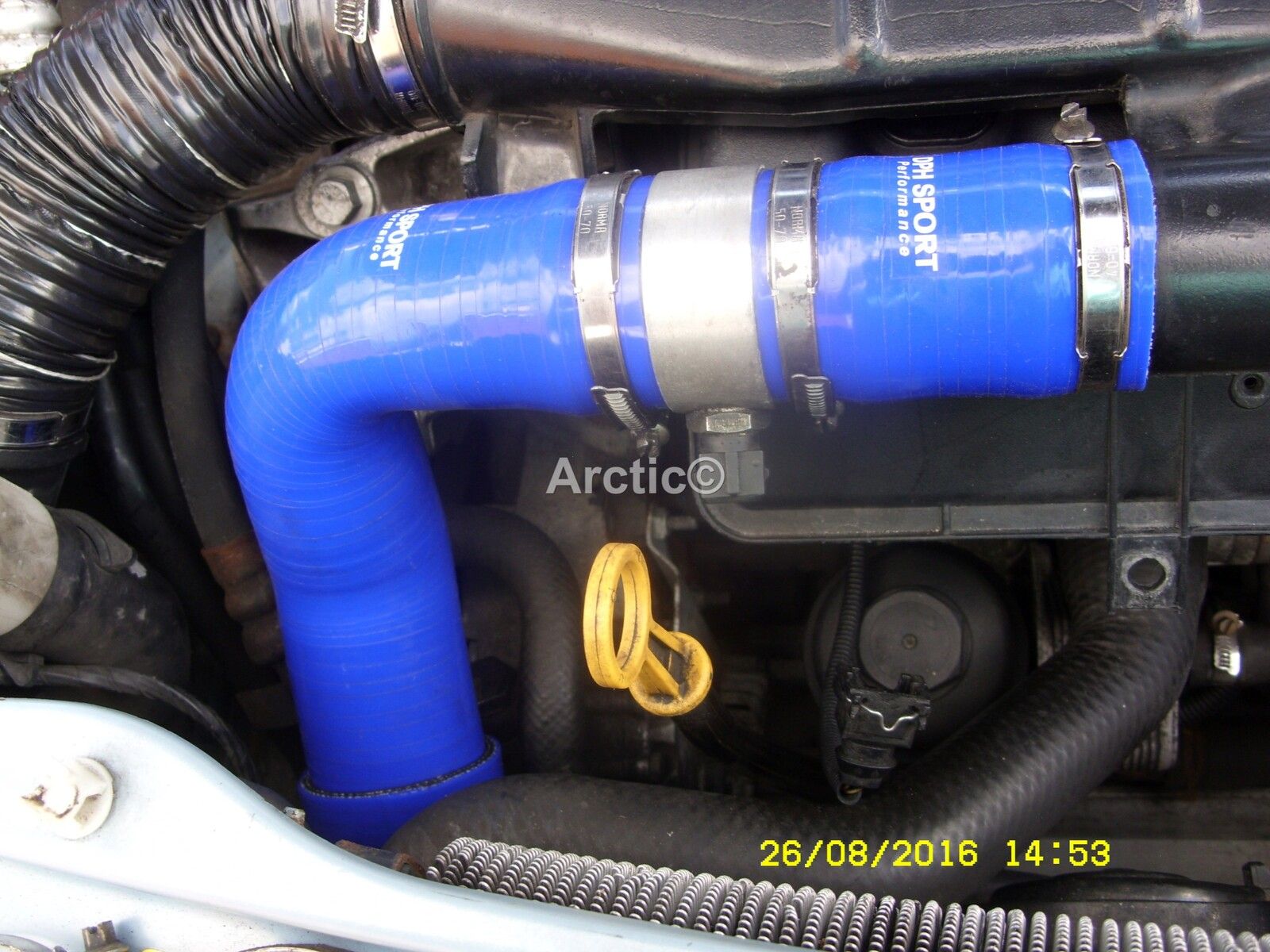

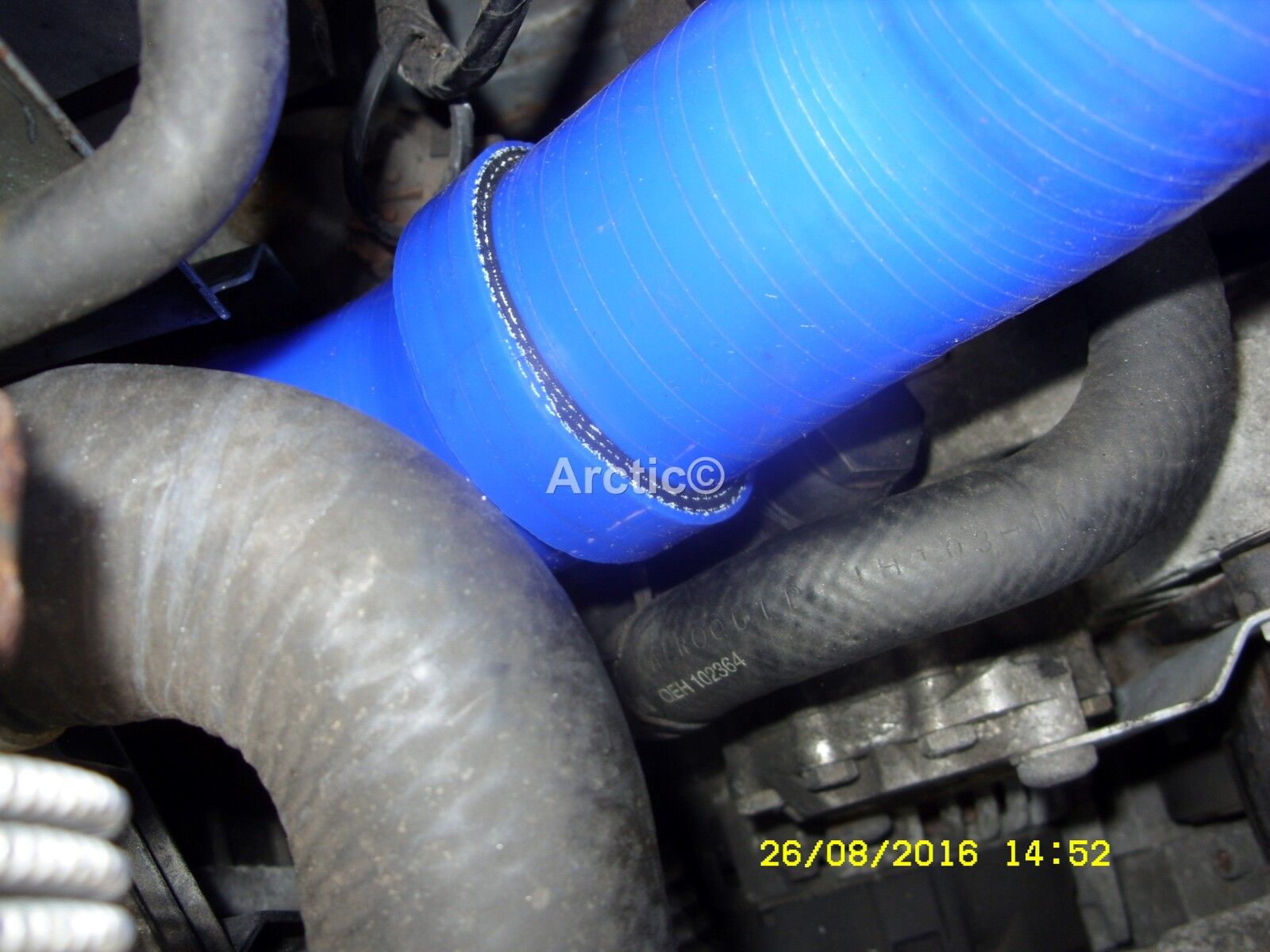

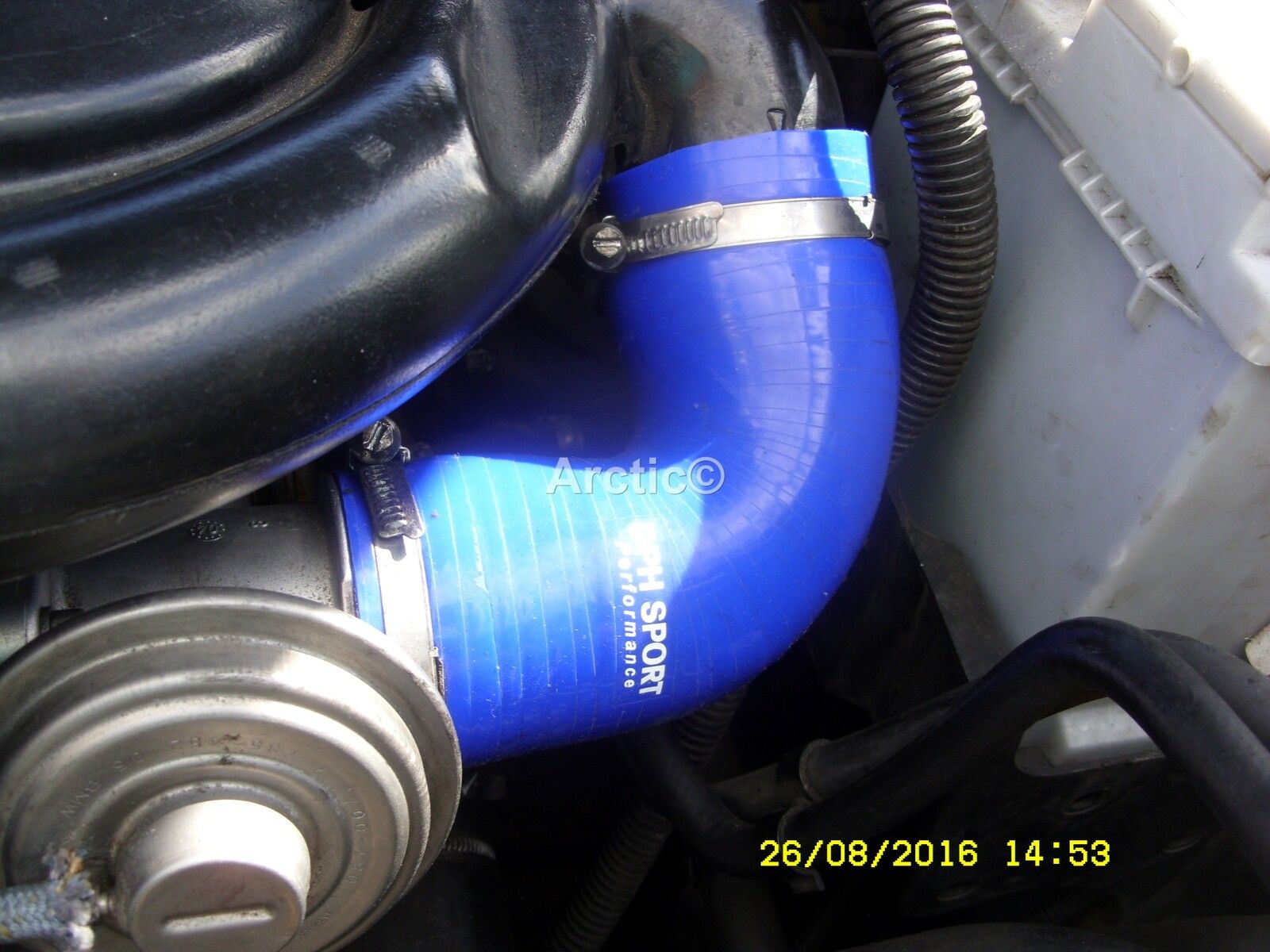

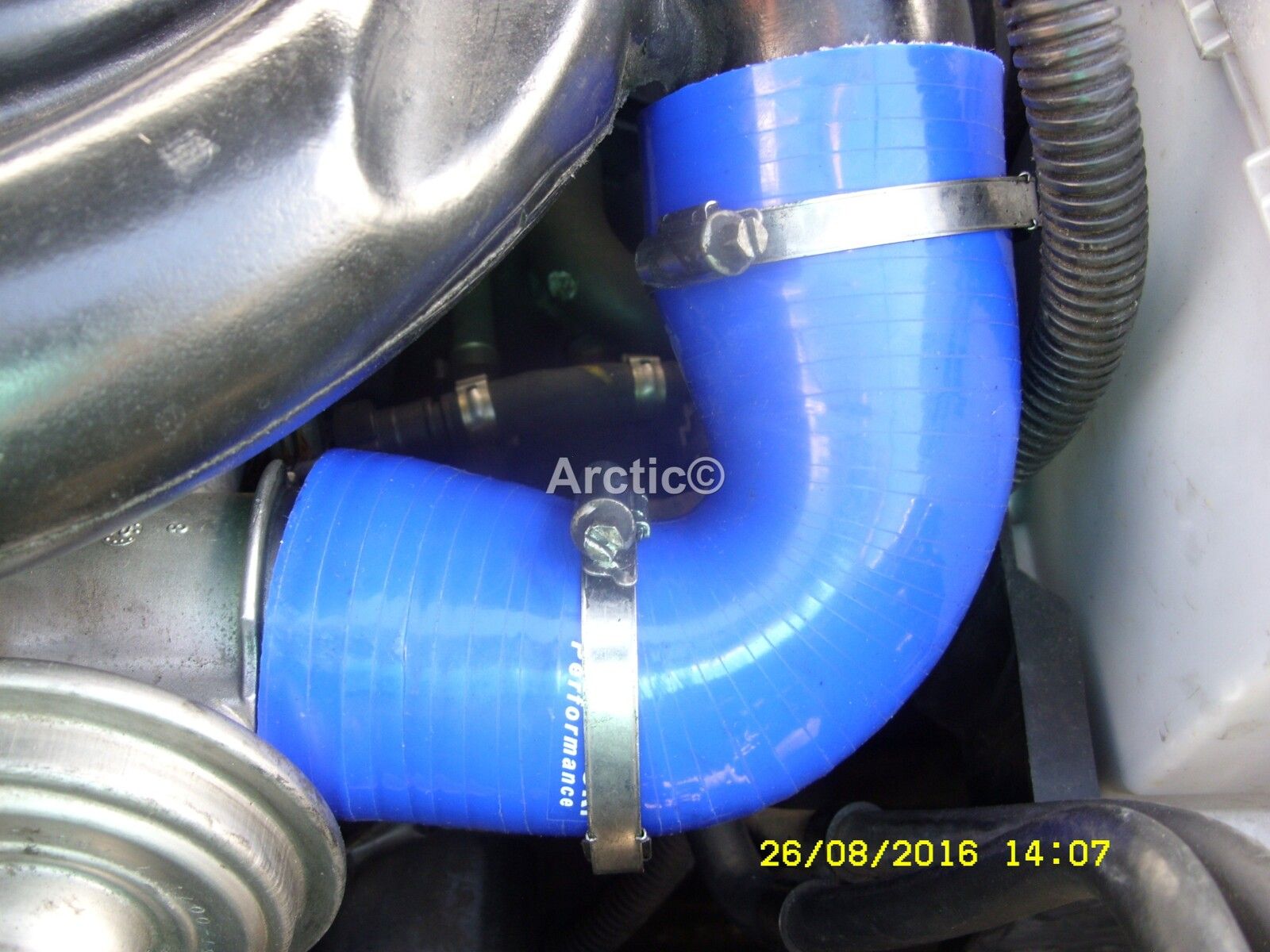

It is also a little long therefore if you cut it back a bit as in the photo's below it fits perfect, I used the cut off to put over the intercooler pipe to stop it rubbing on another pipe /hose
