Since removing battery to charge, the message Fuse failure has came on. When I've opened the fuse box it looks like I've got 3 fuses marked 9. The only things I can see that's affected are the front windows, anybody know which fuse I should remove? I've tried removing them by hand but they're very tight, do I need long nosed pliers?
Marshall8hp
Well-Known Member

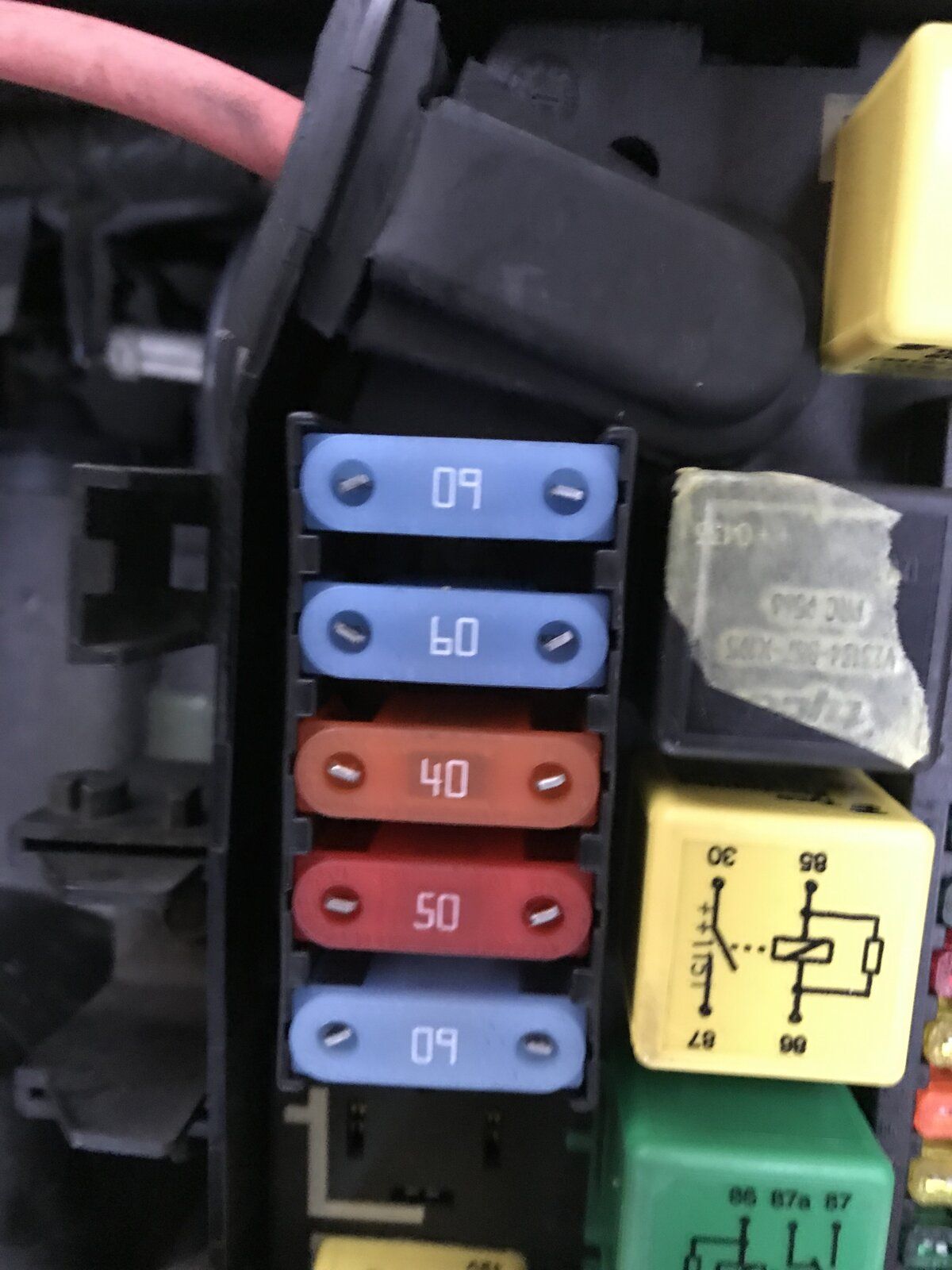

Your fuses marked 9 are of course maxi fuses marked 60(Amp). Long nose pliers will do the job.
Flossie
Well-Known Member
Oh...the big ones...couldn't get them out with the puller thing kept in the fusebox, only the little standard ones.
RangeRoller dt
Well-Sprung Member
Fronts door windows are fuse 22 (the last one bottom right) in the drivers seat fusebox - 30amp
tomcat59alan
Well-Known Member
Long nosed pliers or a big nammer.
Noticed today that mirrors are not working either, would that be the same fuse? If it's saying fuse 9 has blown, what's that for?
RangeRoller dt
Well-Sprung Member
Fuse 9 is also in drivers seat compartment, controls front audio amplifiers and front doors.
Maybe there’s condensation in doors/outstation connectors groggy.
No record of wing mirrors but I do have elec ones - wiring is close though, I’d chance there’s water seeping in.
Maybe there’s condensation in doors/outstation connectors groggy.
No record of wing mirrors but I do have elec ones
- wiring is close though, I’d chance there’s water seeping in.
It's a 2000 Gems 4.6 petrol. I've just been out and had a look under the drivers door and where there should be a light, there's just two wires sticking out of the hole. Further investigation required in daylight!What flavour of P38 and year cos fuse boxes changed as too what slots were used.
Have you actually looked in the lid
J
Thanks for that, I've removed No 9 fuse and it is blown. I'll tape up the two door light wires, change the fuse and see what happens.Fuse 9 is also in drivers seat compartment, controls front audio amplifiers and front doors.
Maybe there’s condensation in doors/outstation connectors groggy.
No record of wing mirrors but I do have elec ones
That sounds like a winner.
cornishboater
Well-Known Member
Bare wires have an uncanny way of blowing fuses (and sometimes setting fire to stuff.........)
New engine?!
tomcat59alan
Well-Known Member
New old engine?
Of course you're right. It's a Bosch.
