border · Apr 10, 2020

Hope Everyone is Well.
Asked this technically before in different posts, so starting a new thread on it.

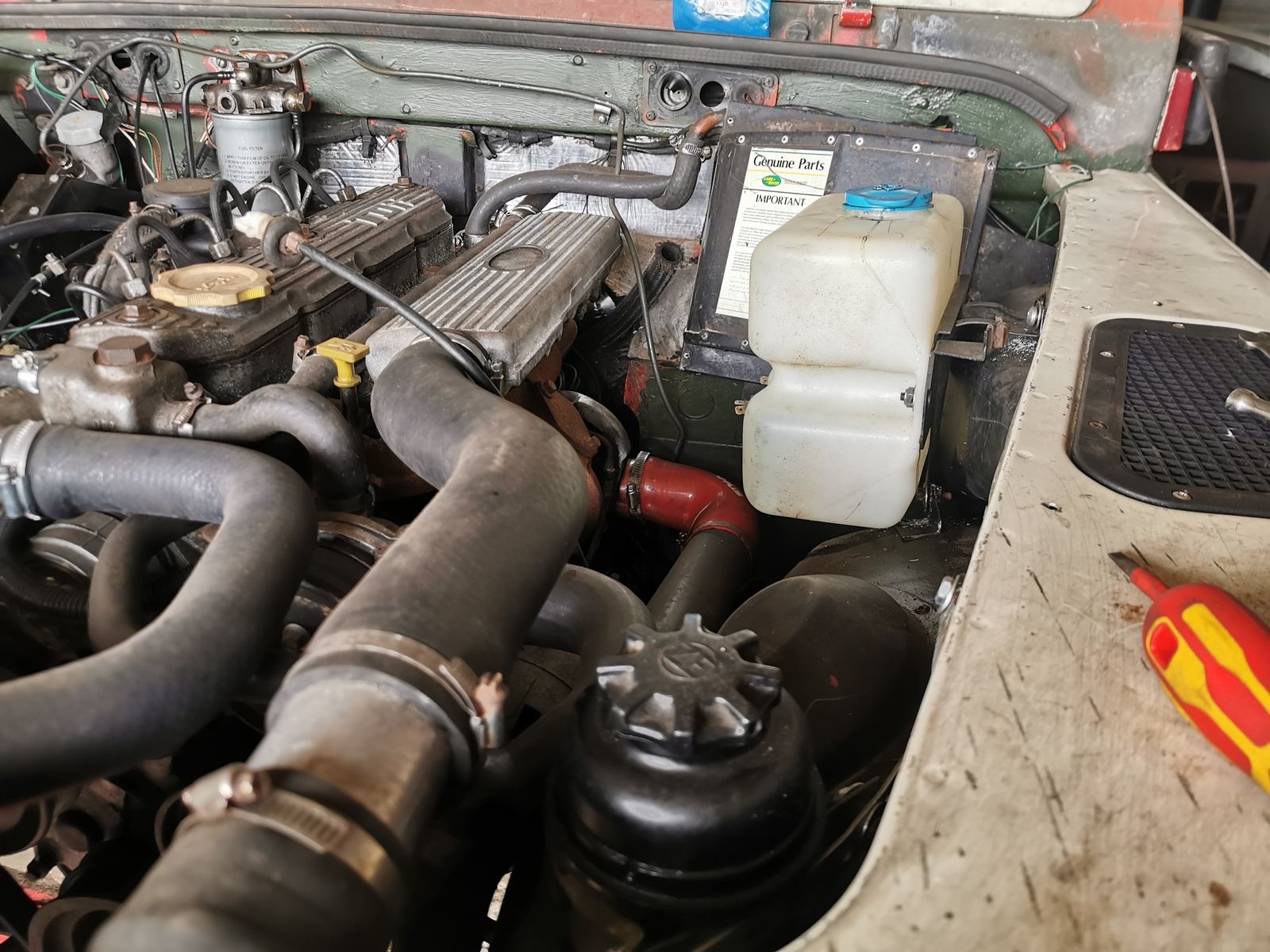

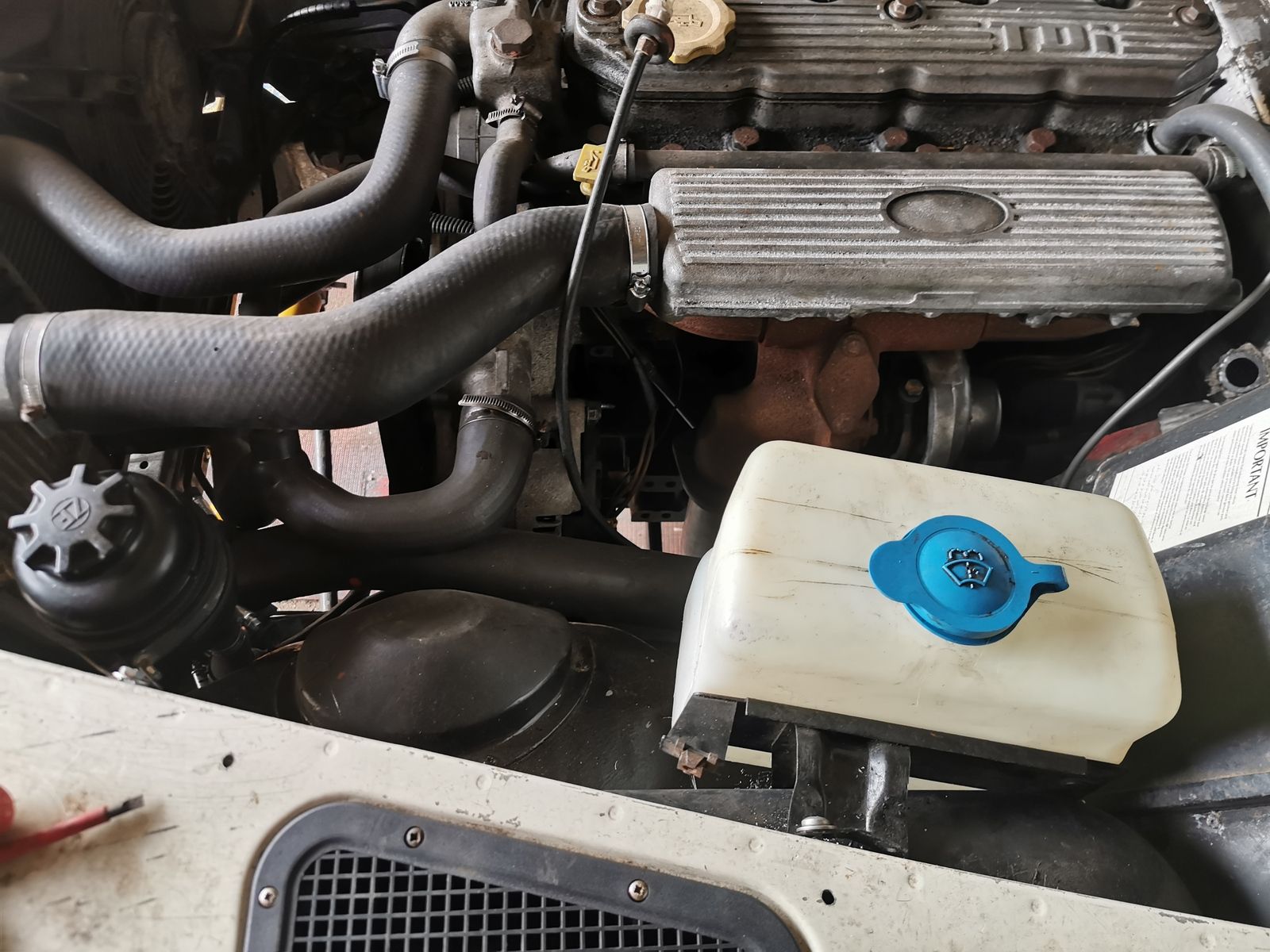

My rebuild is Disco 300tdi in to Defender 110. Just about got everything in engine now, apart from Air filter housing. I have just fitted washer bottle today and there just aint enough room on that side to fit one in, I have both the round one from Defender and Square one from Disco. Think I might have to look at the other side as there is plenty room but not got a clue where to fit it. Need to go back and look at pics I've saved and study it again.

neilly · Apr 10, 2020

Yeah,

on mine it is over the other side on a cradle.

Cheers

Lief Zpring · Apr 10, 2020

Mine is on the other side. It's held in cradle which is bolted to the cylinder head. I post you some photos tomorrow.

Hicap phill · Apr 10, 2020

This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box

have you got the air filter that goes onto the air con bolts(off side of engine

neilly · Apr 10, 2020

border · Apr 10, 2020

Lief Zpring said:
Mine is on the other side. It's held in cradle which is bolted to the cylinder head. I post you some photos tomorrow.

Thanks .

Hicap phill said:
This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box

have you got the air filter that goes onto the air con bolts(off side of engine

No Mate its RHD, Ive seen pics of a few with it there.

neilly said:

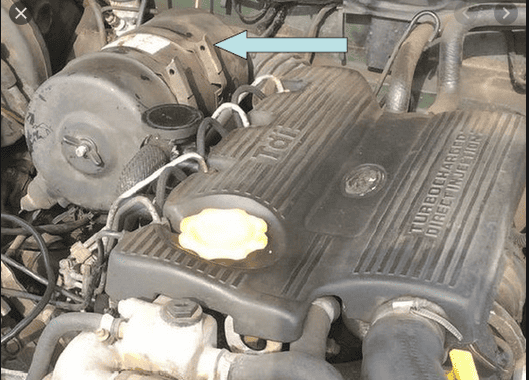

View attachment 205254

Thanks Mate did you make the Cradle,or is it a Part ?

neilly · Apr 10, 2020

border said:
Thanks .

No Mate its RHD, Ive seen pics of a few with it there.

Thanks Mate did you make the Cradle,or is it a Part ?

That is a photo off the interweb, but mine is similar. Normal 300tdi air filter fitting.

Cheers

Litch · Apr 10, 2020

"This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box"

Not on a 300TDi, on that it sits on the N/S as in his photo.

First photo is standard Defender 300TDi layout however if the donor was a Disco then yes, some adaptation will be required.
To mount the Defender airbox you will also need the mounting bracket which you can make out in the second photo.

border · Apr 10, 2020

Litch said:
"This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box"

Not on a 300TDi, on that it sits on the N/S as in his photo.

First photo is standard Defender 300TDi layout however if the donor was a Disco then yes, some adaptation will be required.
To mount the Defender airbox you will also need the mounting bracket which you can make out in the second photo.

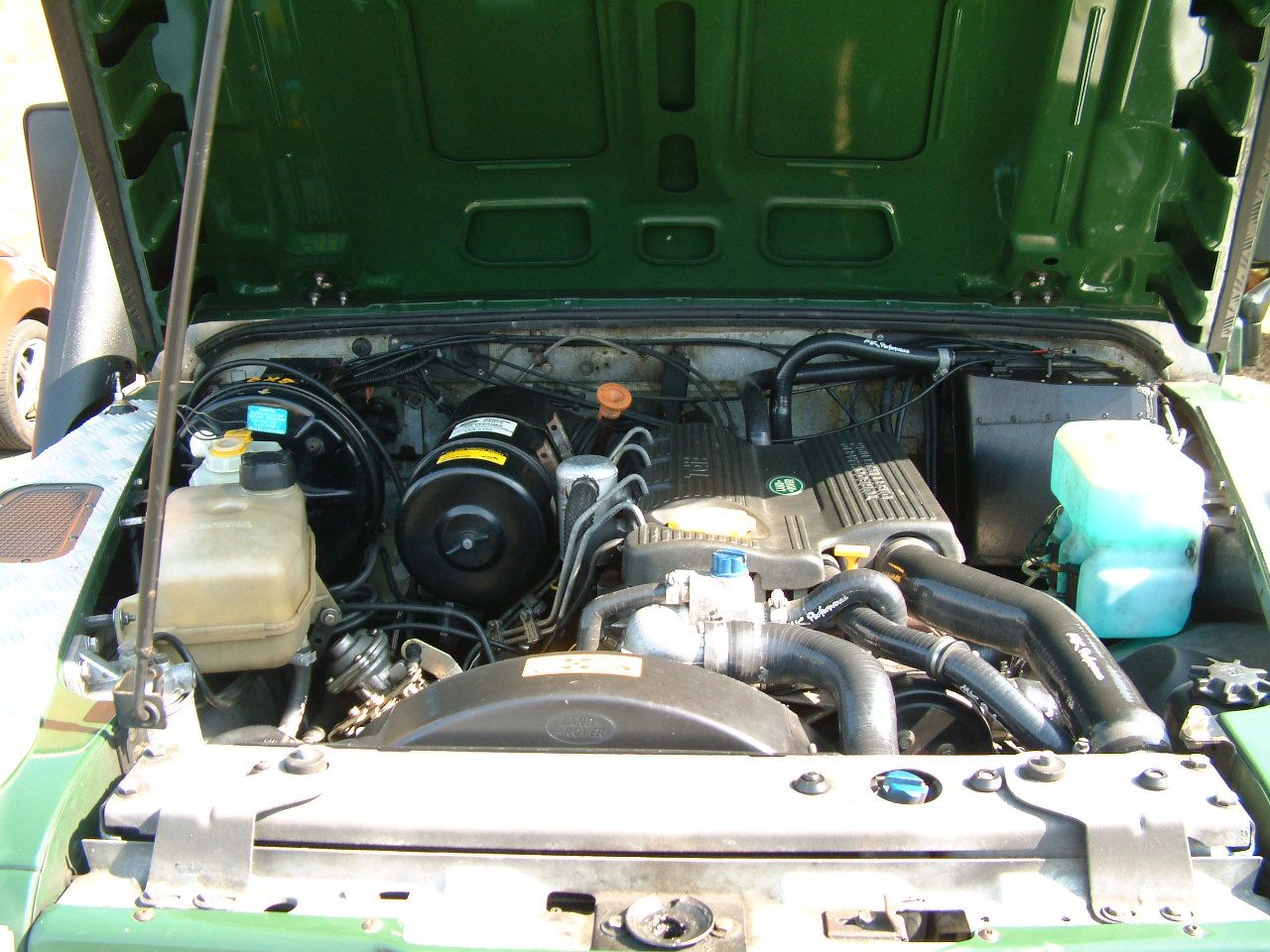

View attachment 205262

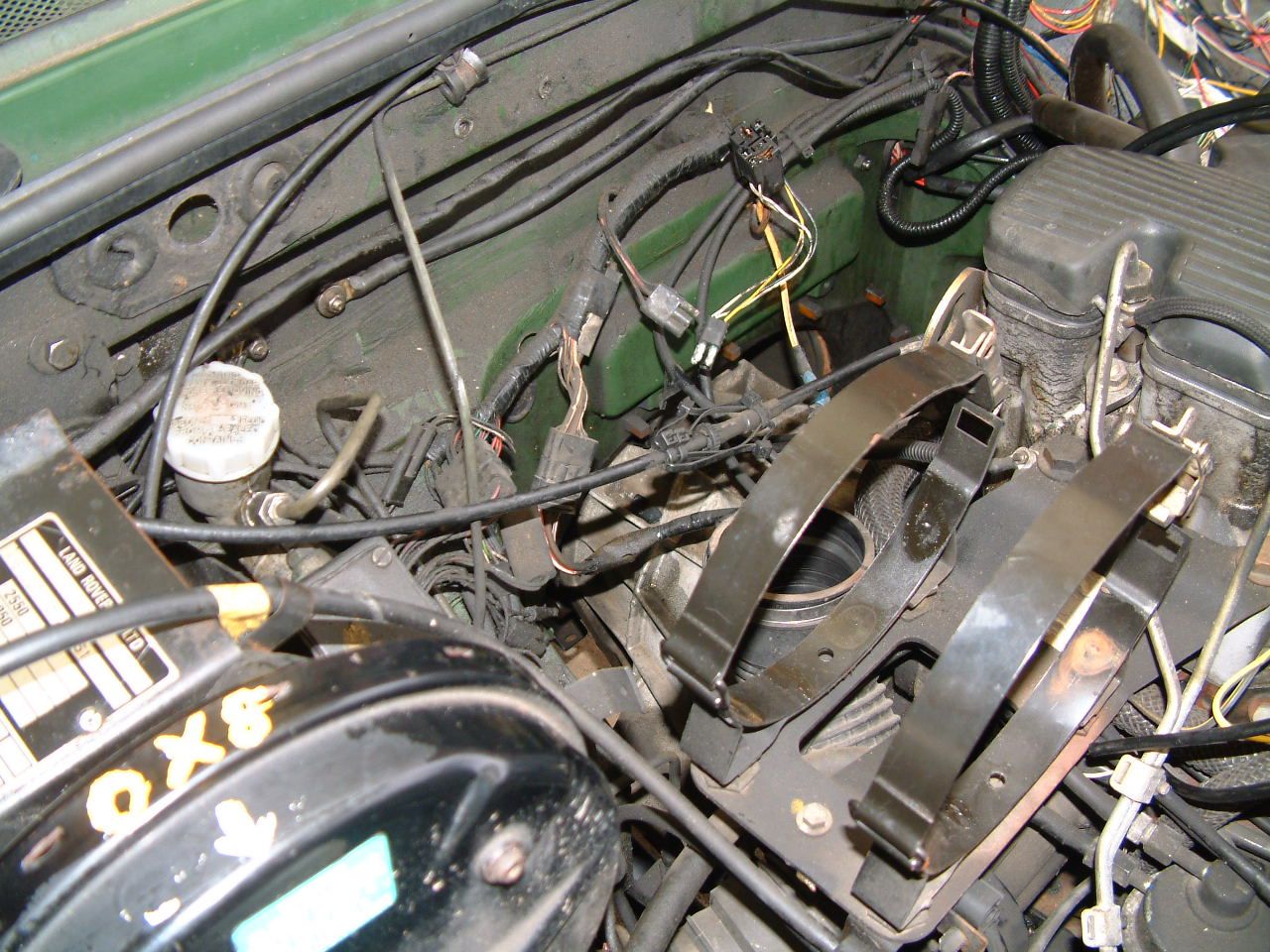

View attachment 205263

Thanks Is there a Part Number for Mounting Bracket or is it a D I Y job ??

Litch · Apr 10, 2020

I am sure there is a part number but when I bought mine it had a few other bits attached...………...

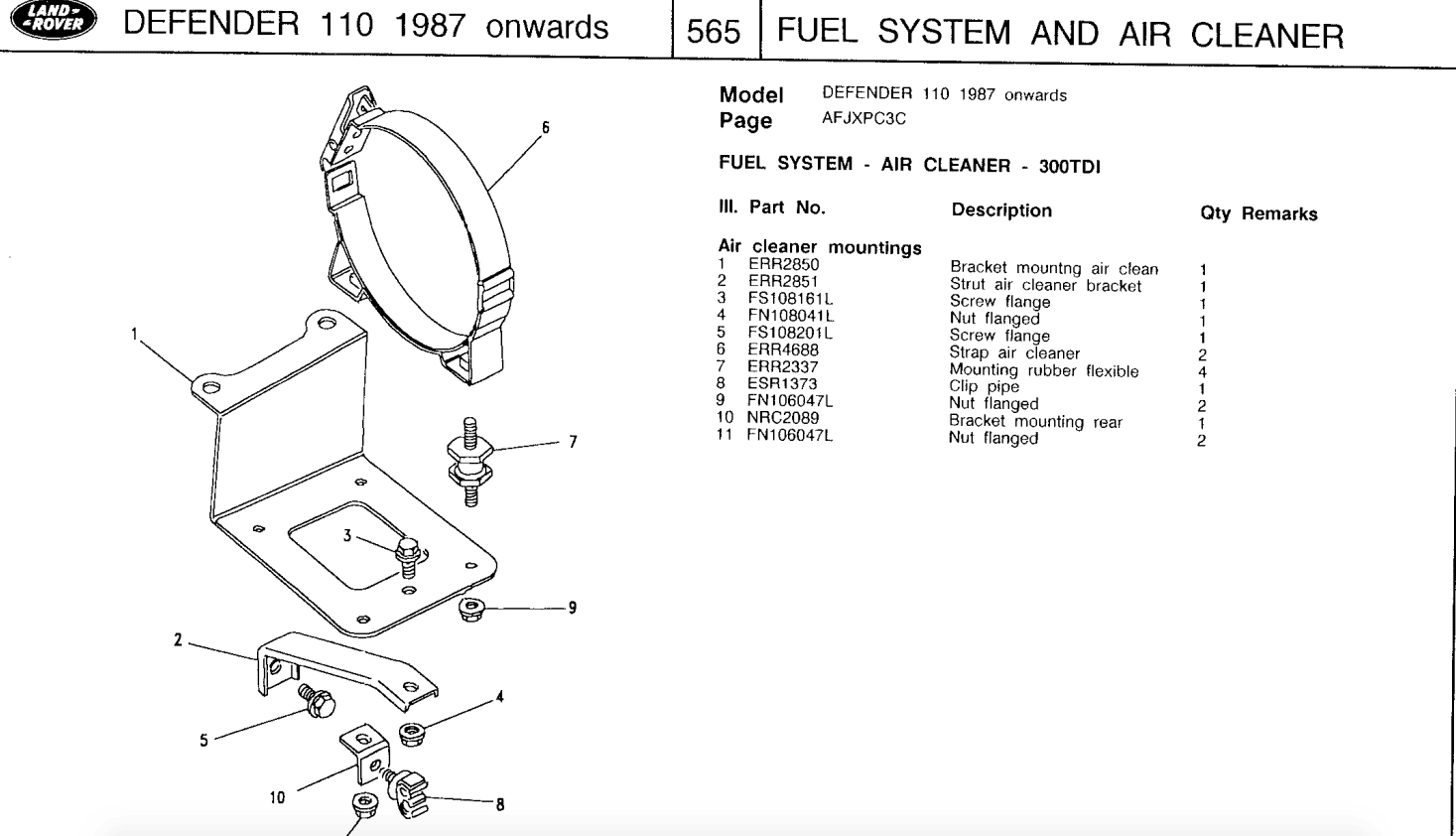

Just did a quick search and came up with ERR2850, would need to check if that is the only part required.

jamesmartin · Apr 10, 2020

border said:
Thanks Is there a Part Number for Mounting Bracket or is it a D I Y job ??

comes as several parts your engine maybe to close to the bulk head worth checking before purchasing

border · Apr 10, 2020

Litch said:
I am sure there is a part number but when I bought mine it had a few other bits attached...………...

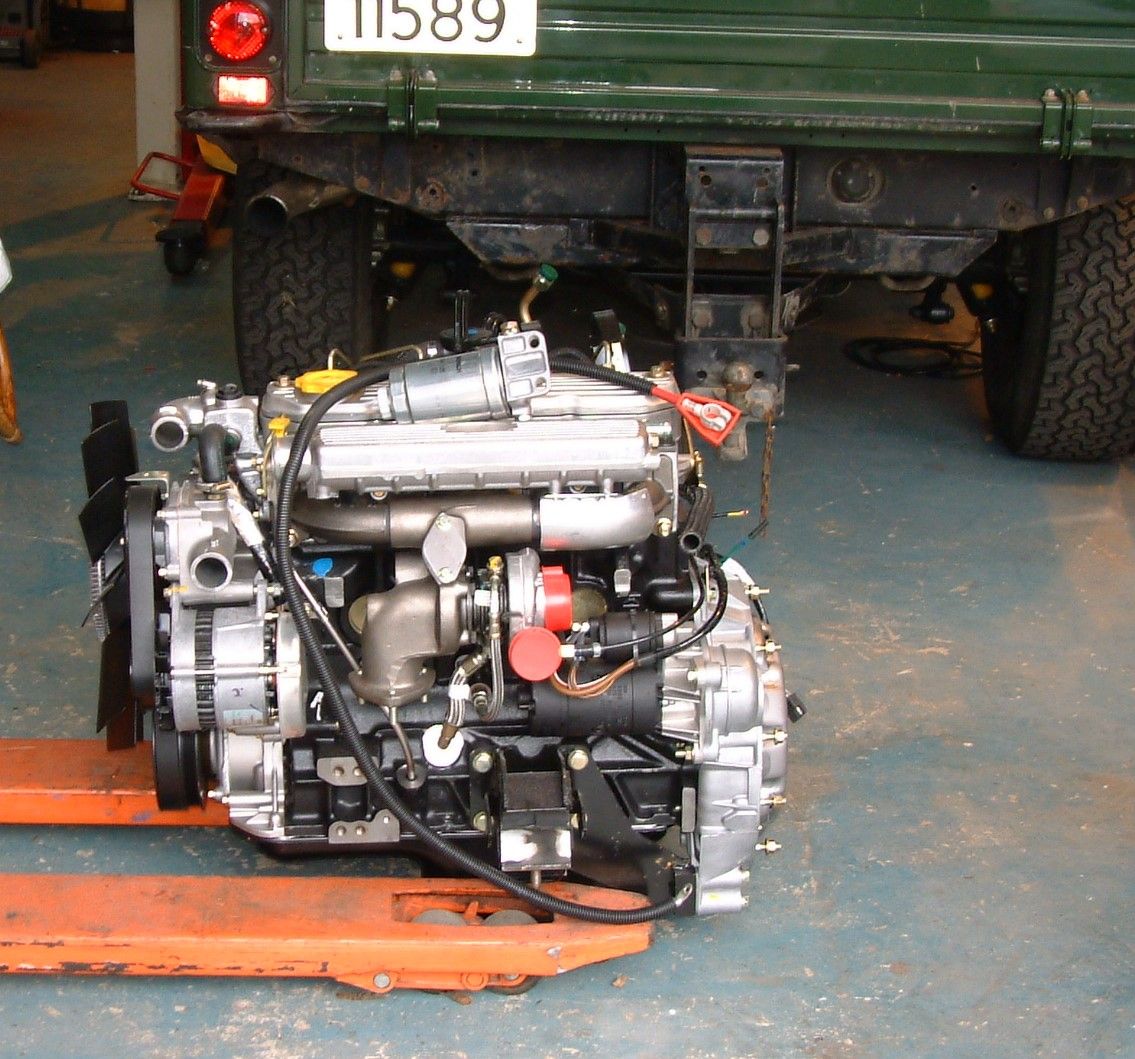

View attachment 205264

Just did a quick search and came up with ERR2850, would need to check if that is the only part required.

Cheers Did the pipes reach round from other side ?

jamesmartin said:
comes as several parts your engine maybe to close to the bulk head worth checking before purchasing

Think My engine is around 7 inches further back towards Bulkhead

owas · Apr 10, 2020

You won't have the space behind the engine to route the air tube, (I'm assuming it goes behind on a standard 300tdi?)

Mine is just bungee corded next to the windscreen washer bottle

border · Apr 10, 2020

owas said:
You won't have the space behind the engine to route the air tube, (I'm assuming it goes behind on a standard 300tdi?)

Mine is just bungee corded next to the windscreen washer bottle

Got Any pics Mate.

owas · Apr 10, 2020

border said:
Got Any pics Mate.

You can see it in this one,
It's a bodge tbh, I was supposed to come up with better solution but it's worked fine

lynall · Apr 11, 2020

tottot · Apr 11, 2020

I do not like that bracket, if you need to remove it to work below you have to remove two head bolts. Not sure if that is a problem but does not seam right.

border · Apr 11, 2020

This Bracket wont fit mine as Engine is to far Back. Wondering if I could get it to fit on the bit where Air Con goes with some kind of bracket, as mine has none.

tottot · Apr 11, 2020

That looks like a good spot, the problem then is getting the pipe to the turbo, possible perhaps to go over the top of engine like series landys ?

lynall · Apr 11, 2020

border said:
This Bracket wont fit mine as Engine is to far Back. Wondering if I could get it to fit on the bit where Air Con goes with some kind of bracket, as mine has none.

Mate did that, it kept cracking, so will need adequate support.
