So my Defender 110's driver's door won't open from the inside.

I've taken the door card off and looked to see what the problem is. It looks two part. Firstly the latch is a bit stiff and doesn't spring back like it should - hopefully easily solved with some WD40.

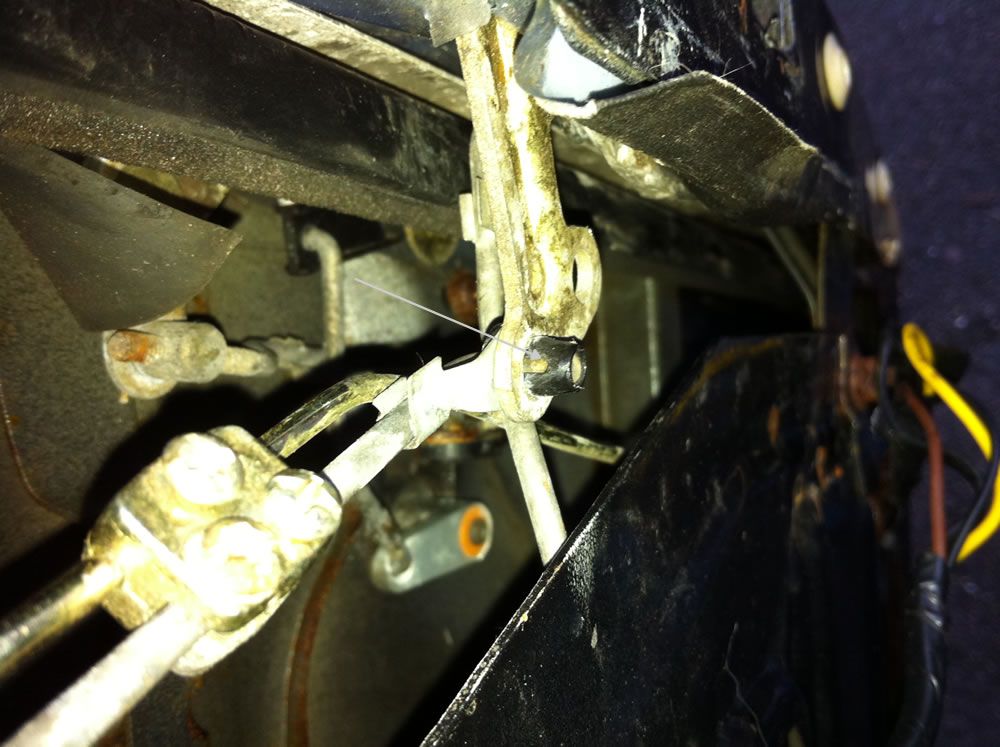

But secondly, the bar that goes from the pull handle to the latch itself, is no longer connected to the latch. I've pushed it back into its correct hole but it won't stay in because it's missing the plastic retaining clip like in the attached image.

If I knew what this clip was called I'd buy one but I have no clue.

Can anyone help?



Attachments

•

  100.1 KB · Views: 216

bustersbus

Well-Known Member

• Jan 16, 2011

• #2

Ah'm wondering if it's the bottom half of one of these..

CRC1250L PIPE CLIP VARIOUS APPLICATIONS | shop | www.lrseries.com | L. R. Series

?



bustersbus

Well-Known Member

• Jan 16, 2011

• #3

forget that last one. Ah think this is what ye're lookin' fur....

BFP1265L CLIP ANTI RATTLE | shop | www.lrseries.com | L. R. Series



H

HairyArse

New Member

• Jan 16, 2011

• #4

Buster bus - that's it exactly. It still has the metal bit but not the plastic bit.

Thanks a lot.



bustersbus

Well-Known Member

• Jan 16, 2011

• #5

HairyArse said:

Buster bus - that's it exactly. It still has the metal bit but not the plastic bit.

Thanks a lot.

Click to expand...

Nae wurries



H

HairyArse

New Member

• Jan 16, 2011

• #6

Ordered!

I have another parts request too if you could be so kind.

I have a 1995 Defender whose dash has been upgraded to the 2003 spec. All buttons were converted by the previous owner except for the Rear Wiper and Rear Screen Wash.

I bought buttons for these two function from Simmonites and now want to fix the wires from my old buttons into the back of these new button. However I can't seem to find the plastic connector blocks anywhere.

I know they're a TYCO Multiplock 5 pin adapter but can't source them. The TYCO reference numbers are 347477-3 and 347477-2 - I can find them on the TYCO site, but can't find anyone to actually supply them.



bustersbus

Well-Known Member

• Jan 16, 2011

• #7

Don't think ah can help ye with that one (can't picture the connectors). But ye might find summit in this...

Vehicle Wiring Products Ltd. Suppliers of auto electrical parts.
