gil

Active Member

• Apr 3, 2013

• #1

After finally getting there on sorting the disco for mot, I have just found this leak. Please don't say this is serious of expensive!

Cheers
Steve



the_wolf

Well-Known Member

• Apr 3, 2013

• #2

Is there supposed to be oil in the manifold



gil

Active Member

• Apr 3, 2013

• #3

No, I'm assuming that there is a seal gone somewhere



jamesmartin

Well-Known Member

• Apr 3, 2013

• #4

gaskets not sealing ,but does engine breath heavy if you remove filler cap



gil

Active Member

• Apr 3, 2013

• #5

No, I'm assuming that there is a seal gone somewhere



gil

Active Member

• Apr 3, 2013

• #6

jamesmartin said:

gaskets not sealing ,but does engine breath heavy if you remove filler cap

Click to expand...

How do you mean



gil

Active Member

• Apr 3, 2013

• #7

It appears to have stopped now?? It hasn't run out of oil to leak lol



jamesmartin

Well-Known Member

• Apr 3, 2013

• #8

gil said:

No, I'm assuming that there is a seal gone somewhere

Click to expand...

oil is either running down from rocker cover ,inlet manifold , or if coming from within the exhaust manifold ,it would be smoking somewhat ,



dv8i

Member

• Apr 3, 2013

• #9

i had a similar leak, my turbo was fecked and filled the exhaust with oil..but it was smokey as feck for a few days before i coped on. proably not what you wanted to hear.

cheers gary



gil

Active Member

• Apr 3, 2013

• #10

dv8i said:

i had a similar leak, my turbo was fecked and filled the exhaust with oil..but it was smokey as feck for a few days before i coped on. proably not what you wanted to hear.

cheers gary

Click to expand...

That's what I thought it was going to be, I just didn't want to believe my self. What was wrong with your turbo?



Grit Valve

2000 4.6 Vouge

• Apr 3, 2013

• #11

gil said:

That's what I thought it was going to be, I just didn't want to believe my self. What was wrong with your turbo?

Click to expand...

I think its your turbo you can clearly see it comming out of the gasket not dripping on the manifold the turbine inside that spins should have no play there is a big o ring type seal in there if that leaks oil goes into the system .



gil

Active Member

• Apr 3, 2013

• #12

Right off with the turbo tomorrow it its



dv8i

Member

• Apr 5, 2013

• #13

my turbo was done, the seals and bearings were all fecked. i was trying to ingore it but the smoke behind me was too much in the end, i bought a replacement core of ebay (latvia) and rebuilt it.

cheers gary



Grit Valve

2000 4.6 Vouge

• Apr 5, 2013

• #14

dv8i said:

my turbo was done, the seals and bearings were all fecked. i was trying to ingore it but the smoke behind me was too much in the end, i bought a replacement core of ebay (latvia) and rebuilt it.

cheers gary

Click to expand...

I been looking at those good then??

Did you remember to get the clip it doesn't come with the turbine does it ??



gil

Active Member

• Apr 5, 2013

• #15

Cheers mate, just bought another one off ebay.



gil

Active Member

• Apr 5, 2013

• #16

So it looks like its my piston rings that have gone



jamesmartin

Well-Known Member

• Apr 5, 2013

• #17

gil said:

So it looks like its my piston rings that have gone

Click to expand...

what makes you come to that conclusion?



gil

Active Member

• Apr 5, 2013

• #18

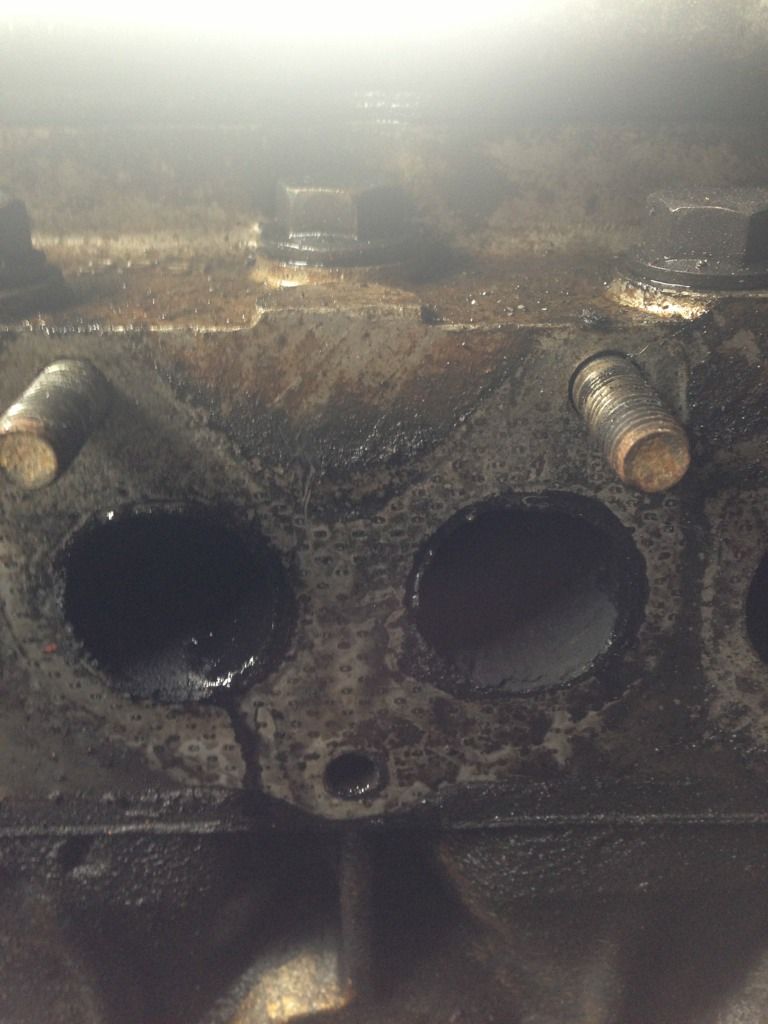

Just took the exhaust manifold off and found a lot of oil in it. Just ran it up with it off and there was oil pouring out of the exhaust ports

Am I right that its the piston rings?



jamesmartin

Well-Known Member

• Apr 5, 2013

• #19

either rings/worn bores , if its just no 1 with oil coming out could be head gasket ,



gil

Active Member

• Apr 5, 2013

• #20

It's all of them. I'm going to whip the head off, what signs can I look for once its off?

Steve
