2004 HSE 134500k

Hello to all!!!

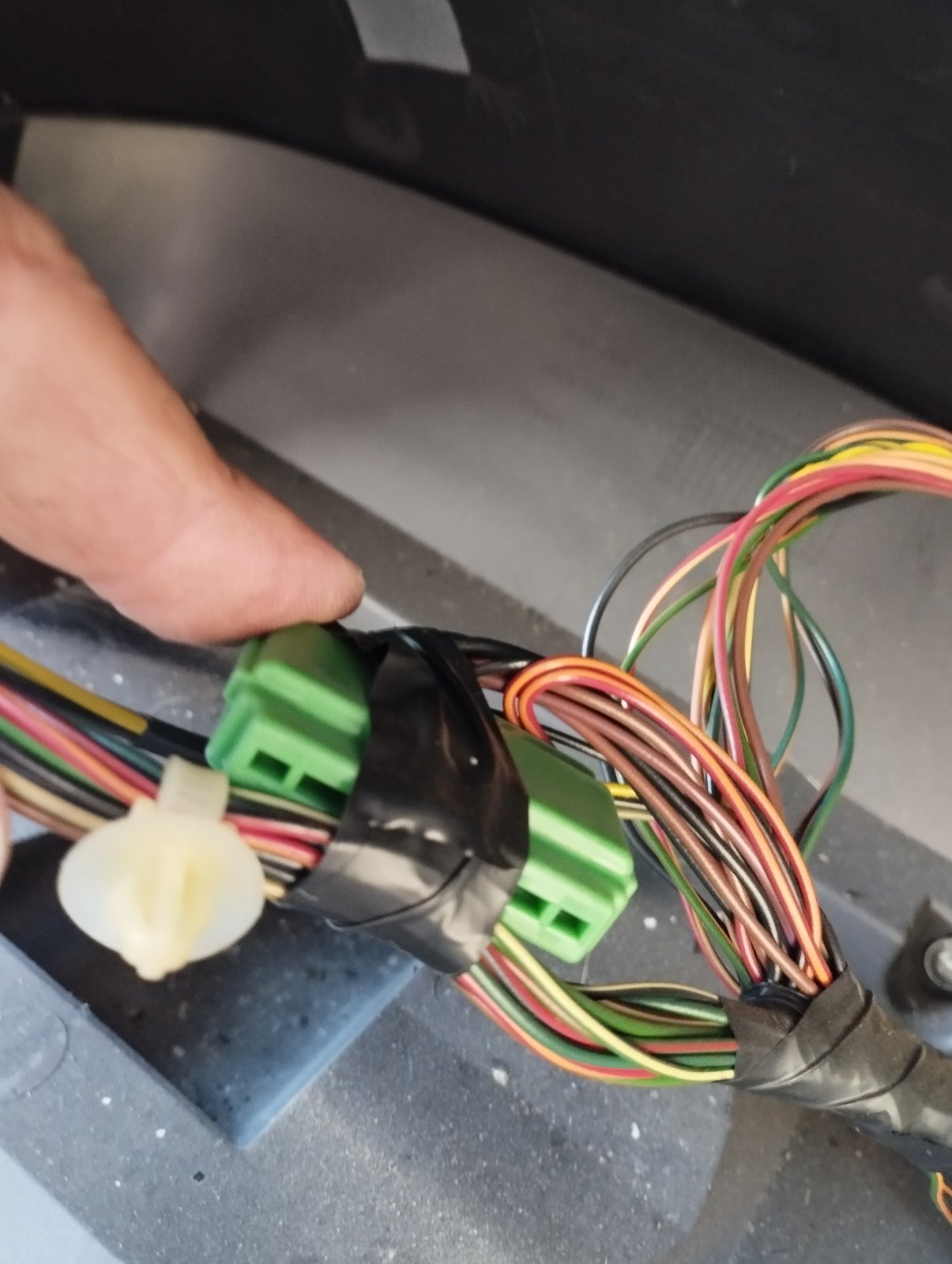

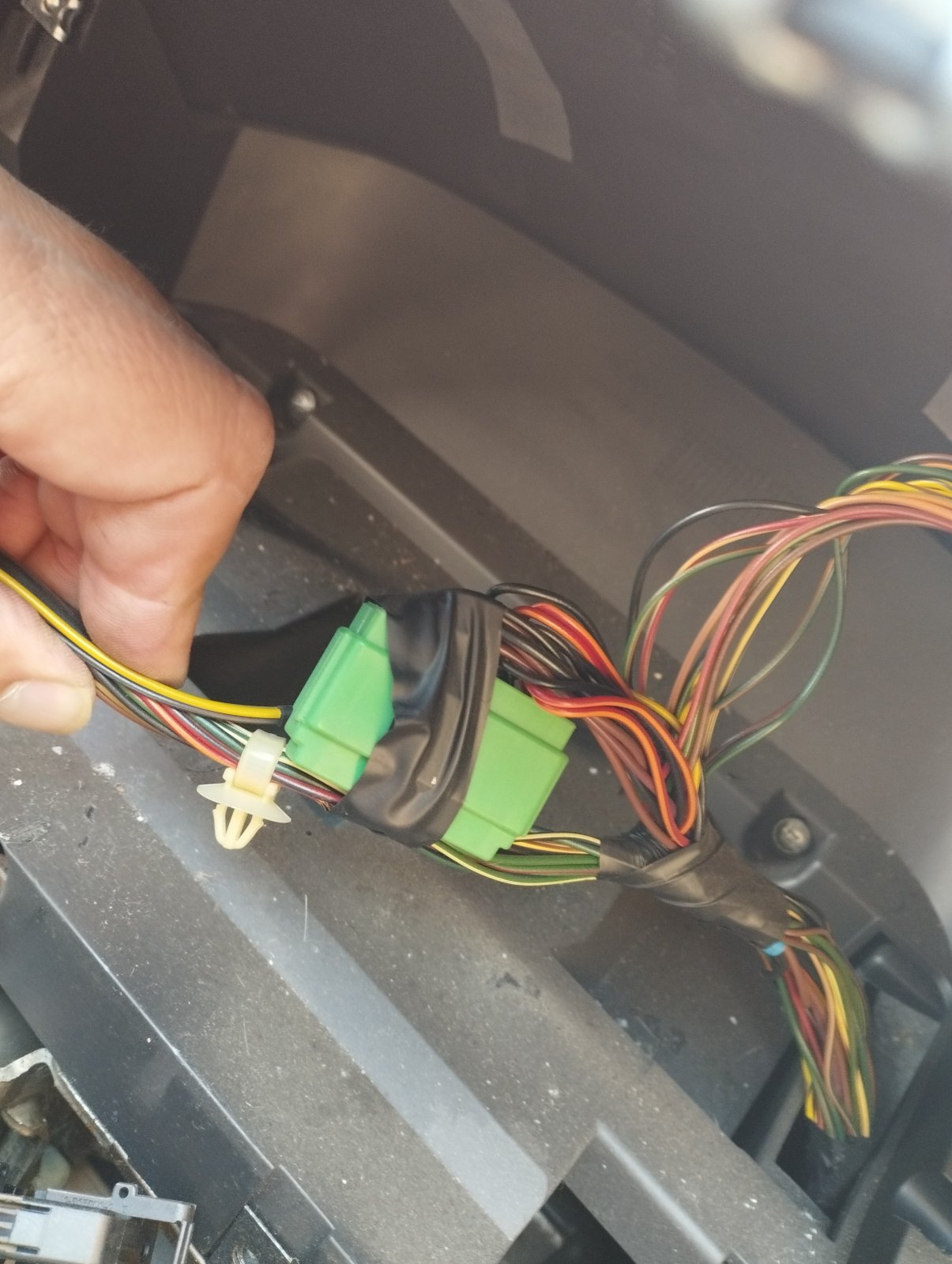

Today I have removed my instrument cluster and I found this plug !!!
Any one know what is for?
Many Thanks



Attachments

•

  229.9 KB · Views: 113
•

  204.5 KB · Views: 114

saxavordian

Well-Known Member

• Jun 30, 2023

• #2

Think this the overload relay for hairdryers for mobile hairdresser. It sends a audible warning to an internal hidden speaker, Saying way too many clients dear.



Nodge68

Well-Known Member

• Jun 30, 2023

• #3

anubis757 said:

2004 HSE 134500k

Hello to all!!!
Today I have removed my instrument cluster and I found this plug !!!
Any one know what is for?
Many Thanks

Click to expand...

Where is it located in the vehicle?



anubis757

Active Member

• Jul 2, 2023

• #4

Behiind the instrument panel
The cable is the one that connects to it..but it has that plug ....



Nodge68

Well-Known Member

• Jul 2, 2023

• #5

anubis757 said:

Behiind the instrument panel
The cable is the one that connects to it..but it has that plug ....

Click to expand...

I think its a link point, where various wires are joined together.



anubis757

Active Member

• Jul 2, 2023

• #6

Very strange behind the panel...you should think that those link should be in a easy to reach area!!!



Alibro

Well-Known Member

• Jul 2, 2023

• #7

It looks like a junction for linking cables. I'm stripping wires out of the Nissan Leaf loom for my project and there are loads of similar connectors for linking ground wires.



Nodge68

Well-Known Member

• Jul 2, 2023

• #8

anubis757 said:

Very strange behind the panel...you should think that those link should be in a easy to reach area!!!

Click to expand...

They are part of the harness for assembly purposes only. Different models require slightly different harnesses, and the additions needed for some models are simply spliced in to an existing lower spec model harnesses. This saves manufactures from making loads of completely different harnesses, when a few with some modifications on the production line work just as well.



anubis757

Active Member

• Jul 3, 2023

• #9

Thats what i though. But i wanted to be sure.
