bankz5152

Well-Known Member

• Aug 11, 2017

• #1

As above really, rubber hose on the top half of the airbox below the AAP sensor, runs over to the solenoids on the front left of the engine bay.

What is it/what is it used for?

Cheers



neilly

Well-Known Member

• Aug 11, 2017

• #2

Piccie?

Cheers



neilly

Well-Known Member

• Aug 11, 2017

• #3

Do not know, I aint got one.............only hose in that area is the open end of the exp tank overpressure leak pipe

Cheers



Tim4x4

Well-Known Member

• Aug 11, 2017

• #4

Hose-modulator valve to air cleaner,200MM
https://www.landroverworkshop.com/parts/PNH101670



neilly

Well-Known Member

• Aug 11, 2017

• #5

@Tim4x4


Would that not be going to the turbo wastgate modulator? which as his is a fender I am not sure he has. @bankz5152 says his pipe goes to solenoids on the other side of the engine. Only thing on mine is a small diameter connector tube ( part of the airbox) approx 20mm long from the airbox just below and to the front of the AAP, but it does not have anything attached to it. This is on a D2 TD5 15P 03MY.

Cheers



bankz5152

Well-Known Member

• Aug 11, 2017

• #6

Got a pic but cant upload via mobile gimmie a min



bankz5152

Well-Known Member

• Aug 11, 2017

• #7

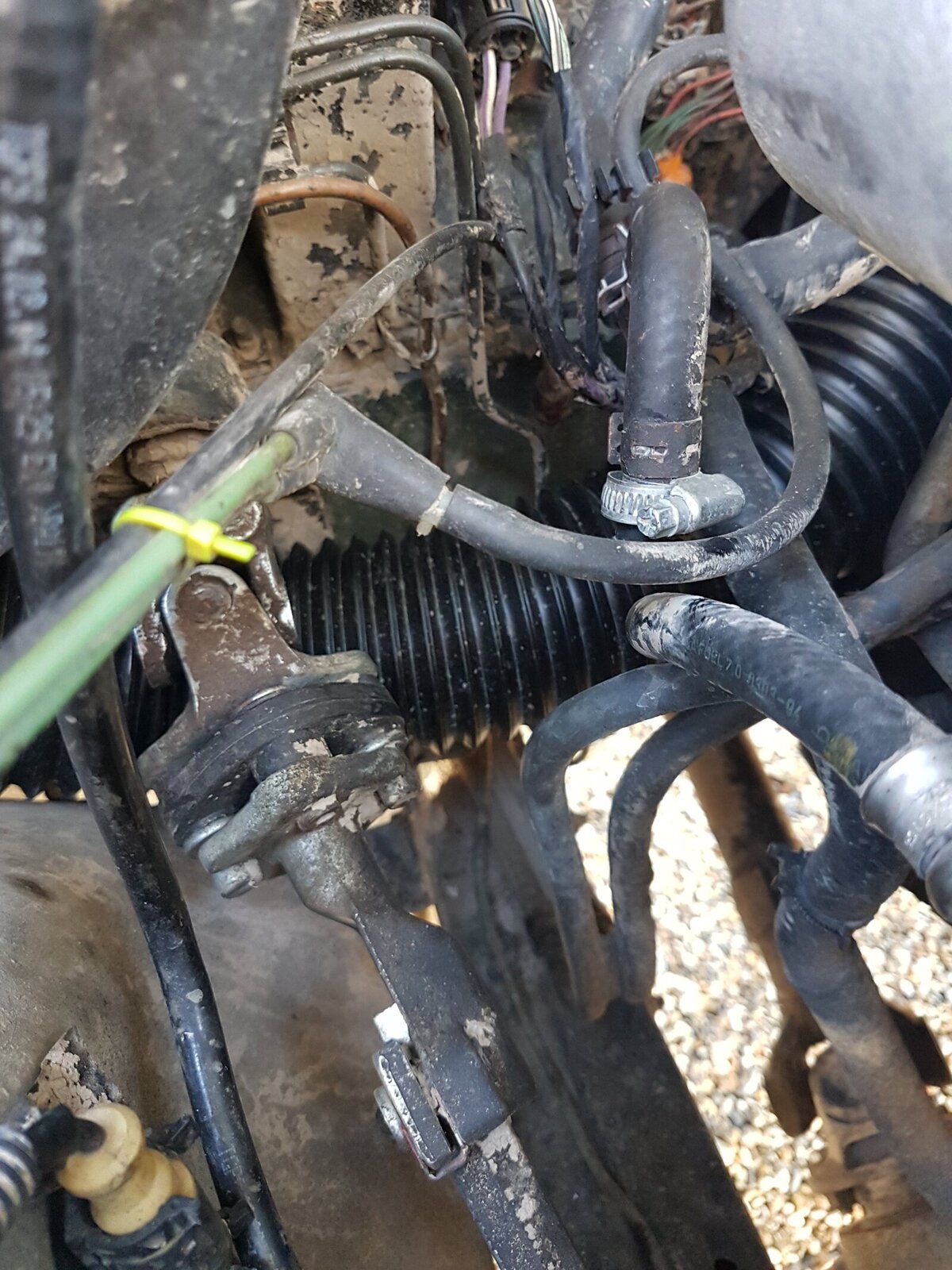

Rubber hose (center) in the air box below the AAP

Plugs into the green solid plastic hoses



neilly

Well-Known Member

• Aug 11, 2017

• #8

So where do the green pipes go?

Cheers



bankz5152

Well-Known Member

• Aug 11, 2017

• #9

Both go into the solenoids on the left lf the engine bay infront of the pas pump



sierrafery

Well-Known Member

• Aug 11, 2017

• #10

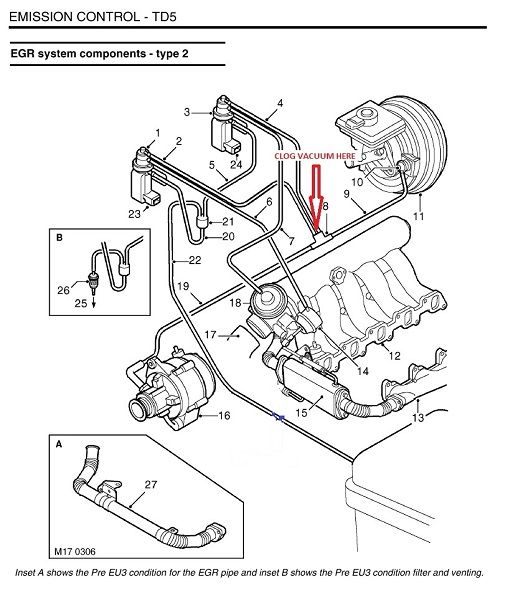

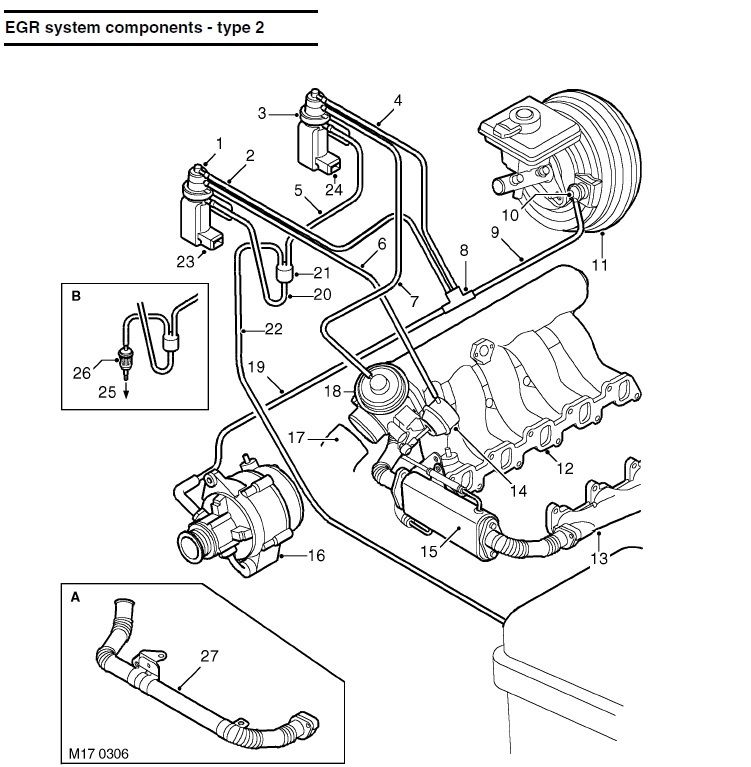

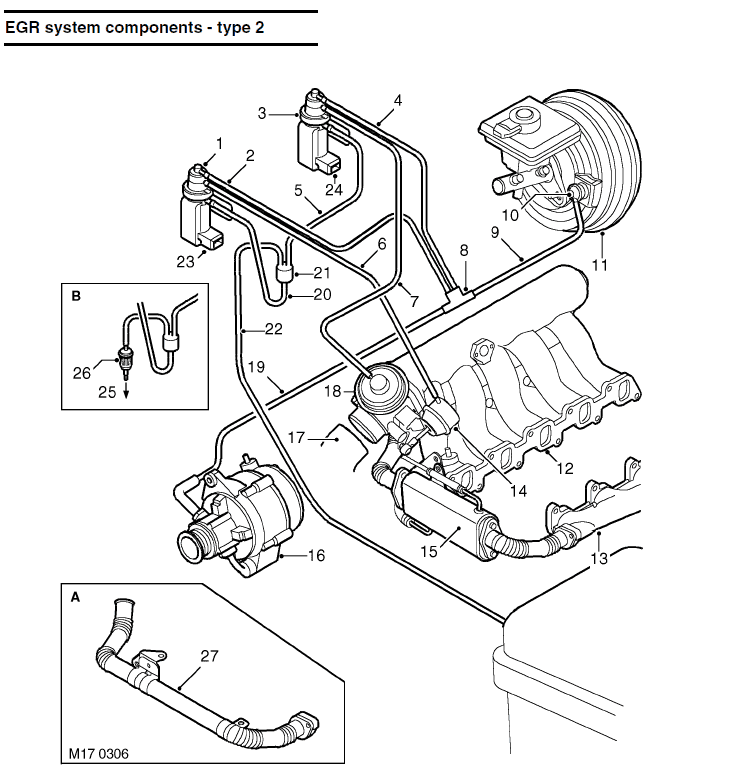

To be more clear, it's nr 22, a ventilation hose as the modulators need that in order to release some vacuum supplied to the EGR and ILT valves during modulation and as vacuum release means sucction the air must be filtered..irf the EGR was bypassed this one can be binned and the port on the airbox blanked with rubber



Attachments

•

  38.3 KB · Views: 408

bankz5152

Well-Known Member

• Aug 11, 2017

• #11

Ahh cheers! So i can blank that off and blank off those green hoses too?



sierrafery

Well-Known Member

• Aug 11, 2017

• #12

Yes, you can also bin the whole modulator cos if it's plugged in it puts unnecessary load on the MAF's circuit and blank where it's pointed in the pic



bankz5152

Well-Known Member

• Aug 11, 2017

• #13

Bloody hell ok lots to remove! My job for tomorrow, gotta be careful not to disconect off the wrong one!



O

ozzyboydeano

Well-Known Member

• Aug 14, 2017

• #14

bankz5152 said:

As above really, rubber hose on the top half of the airbox below the AAP sensor, runs over to the solenoids on the front left of the engine bay.

What is it/what is it used for?

Cheers

Click to expand...

it acts as an exhaust...... to exhaust air from the egr so the actuators can return home
normally when you purchase a blanking kit ......some kits include 2 rubber plugs one for the Tpeice and the other is for the air box



sierrafery

Well-Known Member

• Aug 14, 2017

• #15

ozzyboydeano said:

it acts as an exhaust...... to exhaust air from the egr so the actuators can return home

Click to expand...

i must contradict that... it's the other way around as i said before, it lets air in as to reduce the vacuum when it's needed



O

ozzyboydeano

Well-Known Member

• Aug 15, 2017

• #16

sierrafery said:

i must contradict that... it's the other way around as i said before, it lets air in as to reduce the vacuum when it's needed

Click to expand...

I stand corrected
its been 3 years since I removed mine I knew it was some sort of vent or exhaust
