elameed elaneed · Jun 6, 2016

my car freelander 2004 KV6
i need to make my car little height so i decide to change all tires
now i have 215/65R16

some people advice me to change to (225/70R16) or (225/75R16)

now you are professional people, tell me your advice ?

Nodge68 · Jun 6, 2016

The largest practical diameter is around 29 inches, keeping width to 225, maybe 235.
I have a set of 225/60/17 on my SE auto which fit ok. I'd run into clearance problems if I went bigger though.

elameed elaneed · Jun 6, 2016

Nodge68 said:
The largest practical diameter is around 29 inches, keeping width to 225, maybe 235.
I have a set of 225/60/17 on my SE auto which fit ok. I'd run into clearance problems if I went bigger though.

I don't need to change my rims it 16inch, only need tire

elameed elaneed · Jun 8, 2016

can I change to
225/75/R16
this size is suitable to my car

Nodge68 · Jun 8, 2016

elameed elaneed said:
can I change to
225/75/R16
this size is suitable to my car

At 29.3 inches in diameter, I'd say it might hit the spring cups. You might need spacers on the hubs to give you extra clearance.

wammers · Jun 8, 2016

elameed elaneed said:
can I change to
225/75/R16
this size is suitable to my car

Your speedo would under read by 2.5 MPH at 30 and 5.1 MPH at 60 with those fitted. Don't know about regs where you are, but here it would be illegal.

elameed elaneed · Jun 9, 2016

Nodge68 said:
At 29.3 inches in diameter, I'd say it might hit the spring cups. You might need spacers on the hubs to give you extra clearance.

I think there is big distance to spring cup

elameed elaneed · Jun 11, 2016

Nodge68 said:
At 29.3 inches in diameter, I'd say it might hit the spring cups. You might need spacers on the hubs to give you extra clearance.

wammers said:
Your speedo would under read by 2.5 MPH at 30 and 5.1 MPH at 60 with those fitted. Don't know about regs where you are, but here it would be illegal.

thanks for helping me
today I fixed my new tire and I check almost size and found best one for travel for long distance 235/60/R16
no friction and fit

Nodge68 · Jun 11, 2016

elameed elaneed said:
thanks for helping me
today I fixed my new tire and I check almost size and found best one for travel for long distance 235/60/R16
no friction and fit

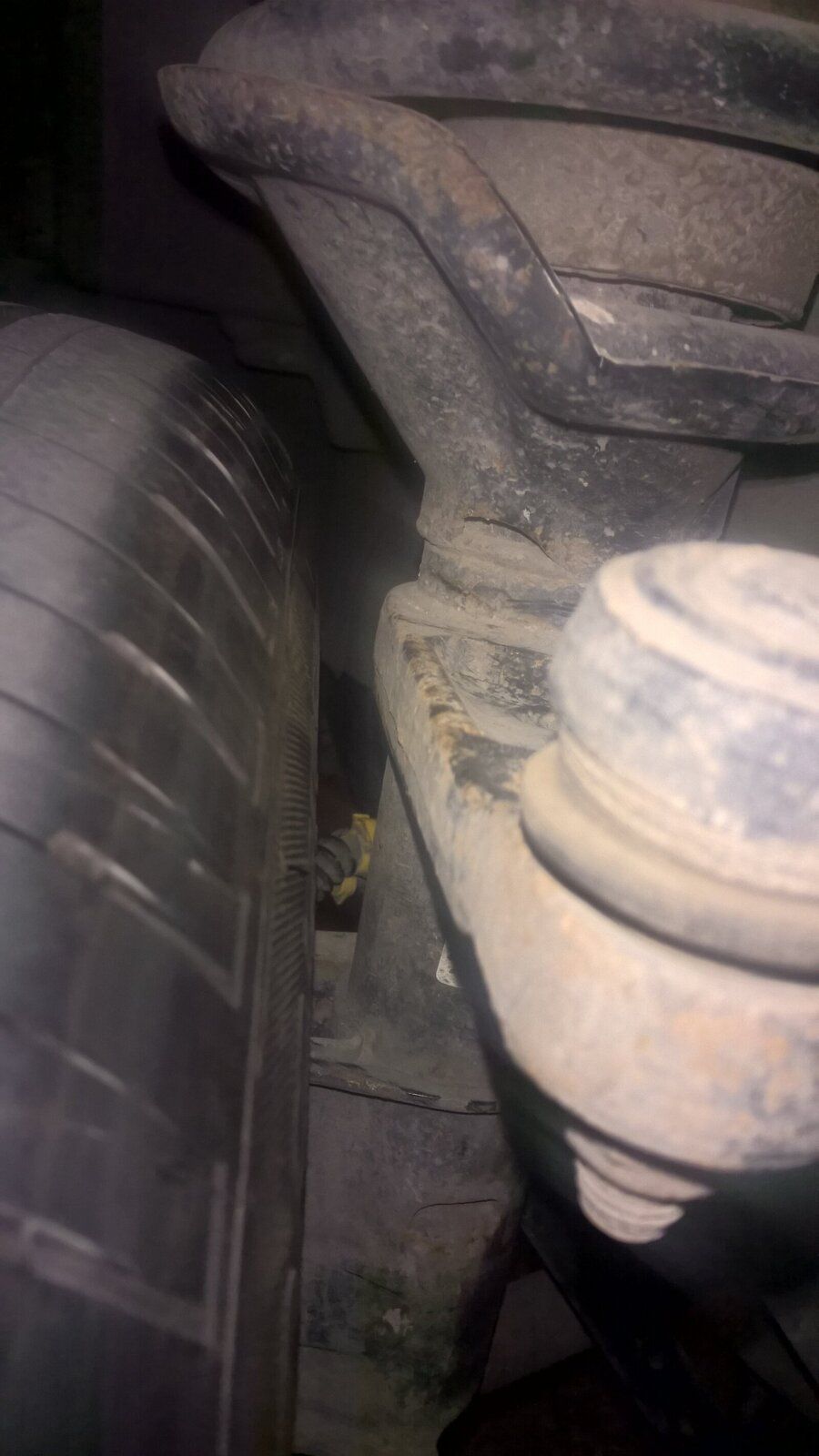

View attachment 102102 View attachment 102102

That size equates to about 27.1 inches which will fit without any fuss.

elameed elaneed · Jun 12, 2016

Nodge68 said:
That size equates to about 27.1 inches which will fit without any fuss.

tire fit with tire area with out any nose and frictions,I test this up to 140km nothing happened

HenrikN · May 22, 2022

Can I fit 225/75 R16 under my freelander 2006?

Jayridium · May 22, 2022

I can't comment on FL2's but I've personally ran both 235/70/16 & 225/75/16 on standard 16" alloys on my 2002 FL1. It's widely accepted that anything that gives you a 29" diameter tire is the limit, soYou are perilously close to the underside of the spring seat with those tyres, spacers would buy you more room for larger diameter, but you'd need to be mindful of body work clearance going for bigger overall diameter tyres with wheel spacers.

Nodge68 · May 22, 2022

HenrikN said:
Can I fit 225/75 R16 under my freelander 2006?

Is it a Freelander 1 or 2?

HenrikN · May 22, 2022

Nodge68 said:
Is it a Freelander 1 or 2?

Its a 2006 prob a 1

Nodge68 · May 22, 2022

HenrikN said:
Its a 2006 prob a 1

Not necessarily, the Freelander 2 was released in 2006.
If the rear door opens sideways, it's a FL1, if it lifts up then it's a FL2.

HenrikN · May 22, 2022

Then its a Freelander 1

Nodge68 · May 22, 2022

HenrikN said:
Then its a Freelander 1

There are several owners with 225/65/17 tyres fitted, which are 28.5" in diameter, and clear the spring cups ok.

So any tyre with a similar width and diameter under 29" will also fit.
215/75/16 = 28.7" diameter.
225/70/16 = 28.4" diameter.
235/65/16 = 28" diameter.
So using 225/75/16 would likely depend on the actual tyres chosen, as that's getting right to the limit of what will fit.

Remember, the wider you go, the smaller the diameter has to be, or the tyres hit the spring cups, and you can't really go wider than 245 on the standard wheels, or the side walls contact the strut tube.

Jayridium · May 23, 2022

Nodge68 said:
There are several owners with 225/65/17 tyres fitted, which are 28.5" in diameter, and clear the spring cups ok.

So any tyre with a similar width and diameter under 29" will also fit.
215/75/16 = 28.7" diameter.
225/70/16 = 28.4" diameter.
235/65/16 = 28" diameter.
So using 225/75/16 would likely depend on the actual tyres chosen, as that's getting right to the limit of what will fit.

Remember, the wider you go, the smaller the diameter has to be, or the tyres hit the spring cups, and you can't really go wider than 245 on the standard wheels, or the side walls contact the strut tube.

I ran 225.75/16 Kumho kl71 tyres, fitted brand new to standard alloys, without spacers.KL71's are insanely aggressive, starting life with like 22mm tread blocks, these were admittedly precariously clost to the spring seats, but they do fit.

HenrikN · Jun 29, 2022

Jayridium said:
I ran 225.75/16 Kumho kl71 tyres, fitted brand new to standard alloys, without spacers.KL71's are insanely aggressive, starting life with like 22mm tread blocks, these were admittedly precariously clost to the spring seats, but they do fit.

Im going for
BFGOODRICH
ALL Terrain T / A KO2 225/75 r16

J_D · Jun 29, 2022

HenrikN said:
Im going for
BFGOODRICH
ALL Terrain T / A KO2 225/75 r16

Pictures, before and after if possible to give good comparison
