monomatic · Jan 9, 2018

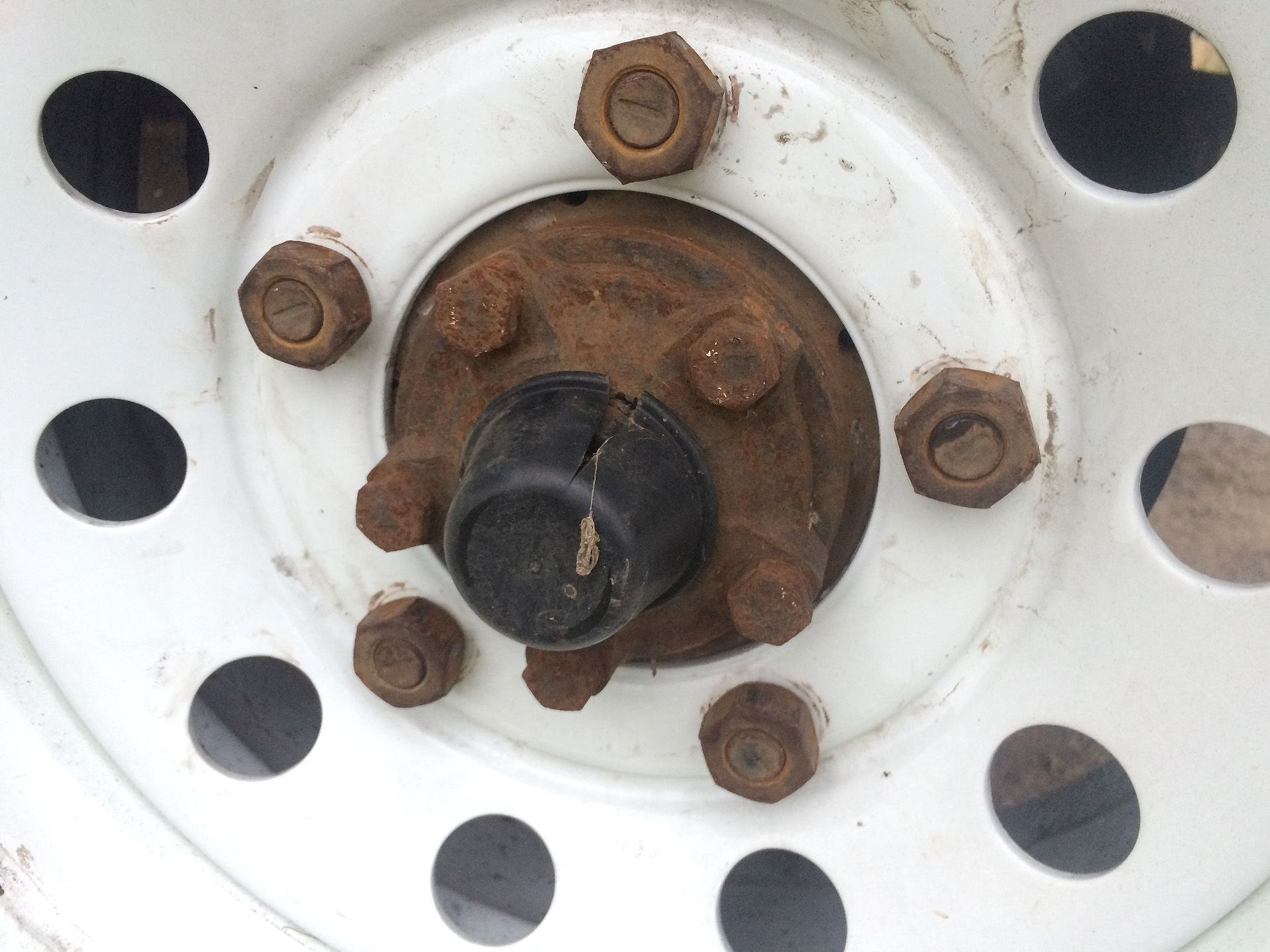

I have picked up some steel Weller wheels to put on the defender, but I have found that the centre hole is larger than the hub:

I thought all defender & D1 wheels were the same, maybe not?

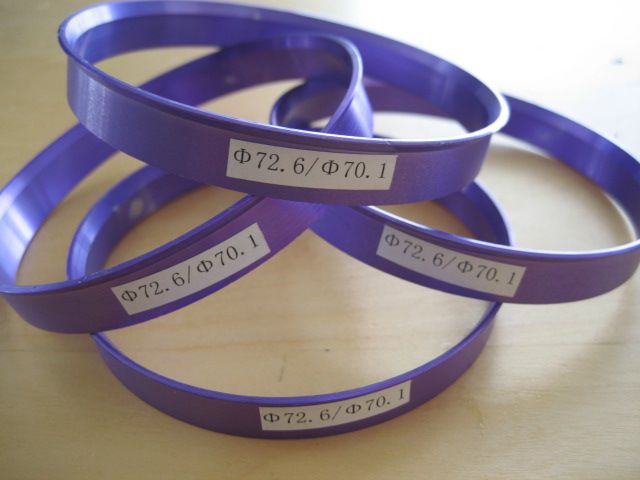

Can I just add some alloy spigot rings like these on eBay?
(link just an example, haven't measured what exact size I'd need)

https://www.ebay.co.uk/itm/Land-Rov...d=121879369332&_trksid=p2047675.c100005.m1851

neilly · Jan 9, 2018

monomatic said:
I have picked up some steel Weller wheels to put on the defender, but I have found that the centre hole is larger than the hub:

Mine are the same, they centralise by using the angle on the front edge of the nut.

Cheers

Oldseadog · Jan 9, 2018

I'd be inclined to replace the hub end grease cap before doing anything else!

dag019 · Jan 9, 2018

They look like my modulars, they are not centered by the hub but instead by the conical wheel nuts, as neilly says

monomatic · Jan 9, 2018

Oldseadog said:
I'd be inclined to replace the hub end grease cap before doing anything else!

fair point. he's been bit neglected, but I'm making up for that now.

monomatic · Jan 9, 2018

Excellent, thanks for the reassurance everyone.

TheQ · Jan 9, 2018

Early 110s and 90s had a larger centre to the front hub. I've just had the opposite problem making sure I had the larger hole with my new alloys. You can't fit the later wheels on the early hubs without spacers. Or some doubtful wheel surgery.

Disco1BFG · Jan 9, 2018

Oldseadog said:
I'd be inclined to replace the hub end grease cap before doing anything else!

+1

monomatic said:
fair point. he's been bit neglected, but I'm making up for that now.

Cool, but try and sort that ASAP, ..... when the drive shaft seizes into the drive flange - it can be something of an issue to get it out

- ask me how I know

nobber · Jan 10, 2018

TheQ said:
Early 110s and 90s had a larger centre to the front hub. I've just had the opposite problem making sure I had the larger hole with my new alloys. You can't fit the later wheels on the early hubs without spacers. Or some doubtful wheel surgery.

Who told you this?

K14 · Jan 10, 2018

Steel wheels locate on conical nuts not the hub, you don't want a snug hub fit with steel wheels.

TheQ · Jan 11, 2018

This forum informed me of the difference, just type in "110 early hub" in the search and all will be revealed...
+ Last week the tyre place fitted my new tyres to the wrong wheels which would not fit...( I was having a free coffee at the time.
