Evening,

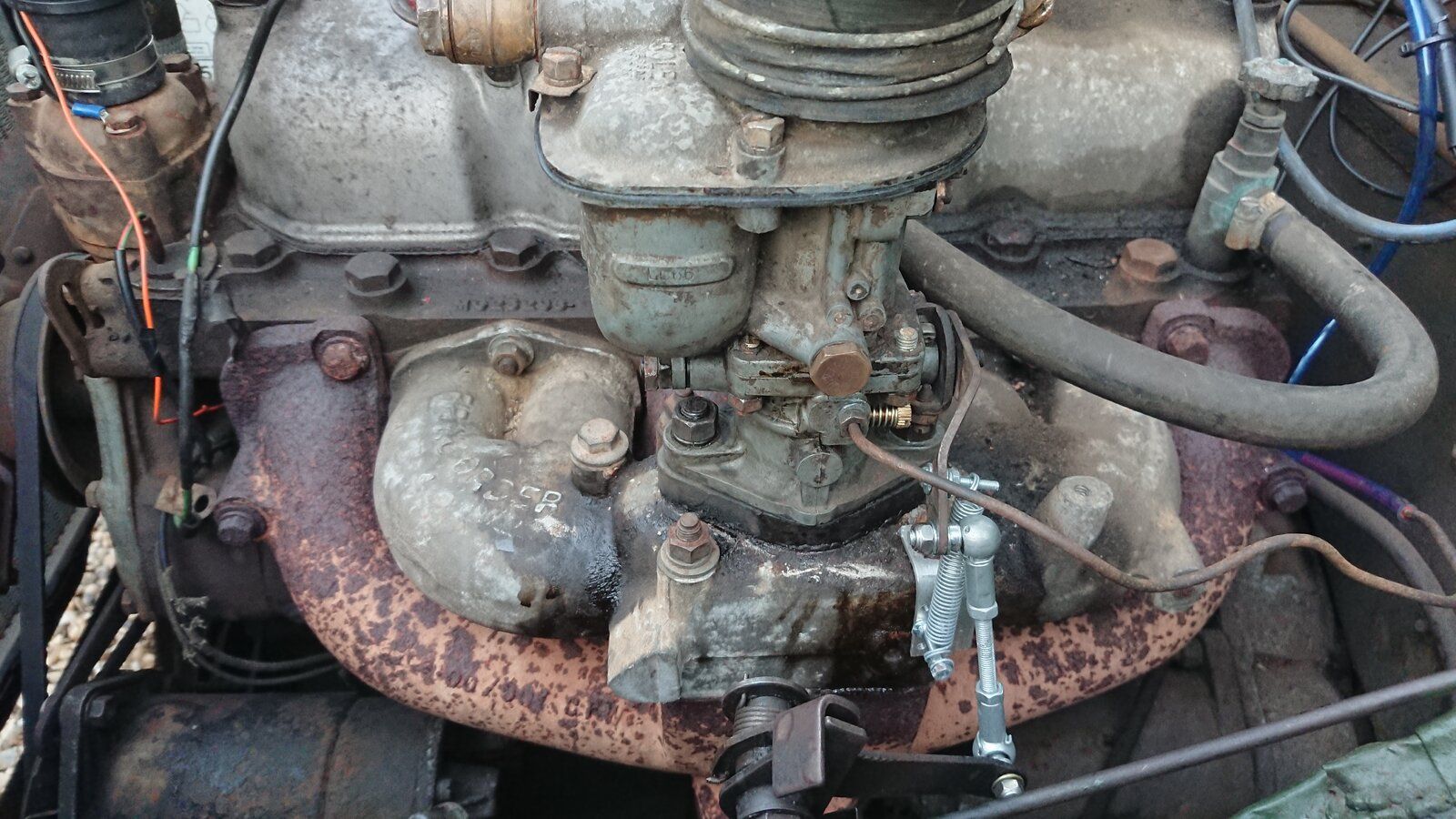

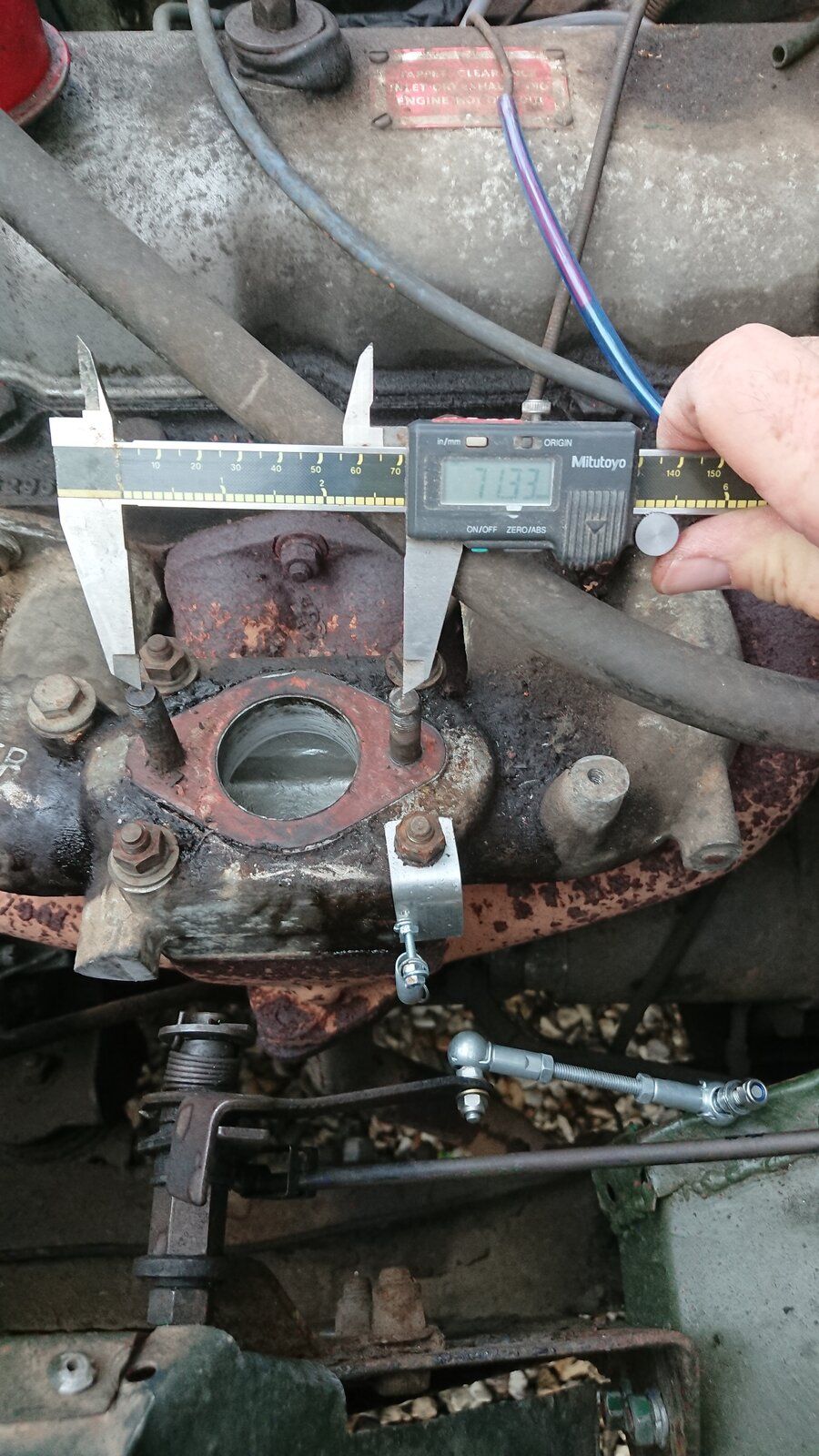

Ordered a Weber carburettor from John Craddocks to replace the worn out Solex on my series 2a 2.25, went to fit it tonight and the stud holes in the webber are too small and too close together to fit on the manifold.


Have I got an odd ball intake manifold or am I missing something simple?



Attachments

•

  266.7 KB · Views: 168
•

  259.1 KB · Views: 148

TheMegaMan

Well-Known Member

• Aug 10, 2020

• #2

Doesn't a webber need a 90 degree adapter to fit it? That might also correct the mounting stud/hole position problem.



marjon

Well-Known Member

Full Member

• Aug 10, 2020

• #3

Think you may need an adaptor. But may be wrong but looking at your pics and comparing a quick google.

https://www.britishautoparts.com.au/inc/sdetail/37131

[URL]http://www.glencoyne.co.uk/carbs.htm[/URL]
https://www.britishautoparts.com.au/inc/sdetail/37131

More research needed.

good luck.

J



tottot

Well-Known Member

• Aug 10, 2020

• #4

Need adaptor, thought they came with the carb.



Eieio

New Member

• Aug 10, 2020

• #5

Ahh, didn't realise i needed an adaptor! nice easy fix, many thanks for your swift replies.



TheMegaMan

Well-Known Member

• Aug 10, 2020

• #6

TheMegaMan said:

Doesn't a webber need a 90 degree adapter to fit it? That might also correct the mounting stud/hole position problem.

Click to expand...

Either ERC2974 or 554175. Not quite sure of the details. I have something like this on mine, and the webber dropped straight on.
