Just a quick one is it possible to replace the gasket between the turbo and manifold without removing everything. If i undo the 13mm will it pull over far enough to slide it in. Just wondered so i know how much time i need to fit one as last owner i just bought it off forgot to put one in and it screamssss

Thanks in advance...



Stanleysteamer

Well-Known Member

Full Member

• Jan 30, 2021

• #2

yes.



Jgp2004

Member

• Jan 30, 2021

• #3

Thank you ill get it fitted in morning



Stanleysteamer

Well-Known Member

Full Member

• Jan 30, 2021

• #4

The flexible pipe allows you to move it enough, I'd a said.
But getting the lower bolt undone and done up again involves a long thin 3/8" extension. And fiddling around with the old fingers!



Jgp2004

Member

• Jan 30, 2021

• #5

Hopefully it all goes to plan as i cant take much more of the exhaust fumes and screaming



Stanleysteamer

Well-Known Member

Full Member

• Jan 30, 2021

• #6

By the way, ensure the screaming isn't coming from a warped exhaust manifold, as they do this eventually and it is a whole mess of murder taking it off, getting it skimmed flat again, sorting out the broken and/missing studs.

Guess how i know!



L

lynall

Well-Known Member

Full Member

• Jan 30, 2021

• #7

Pretty rare for that gasket to fail tbh on any engine.
What engine is it?



Jgp2004

Member

• Jan 30, 2021

• #8

Theres no gasket in there he forgot to replace it when refitting the manifold after having it skimmed thats how i know thats the issue.
You can also see the black building up around the joint



Jgp2004

Member

• Jan 30, 2021

• #9

Also its the td5



L

lynall

Well-Known Member

Full Member

• Jan 30, 2021

• #10

Jgp2004 said:

Theres no gasket in there he forgot to replace it when refitting the manifold after having it skimmed thats how i know thats the issue.
You can also see the black building up around the joint

Click to expand...

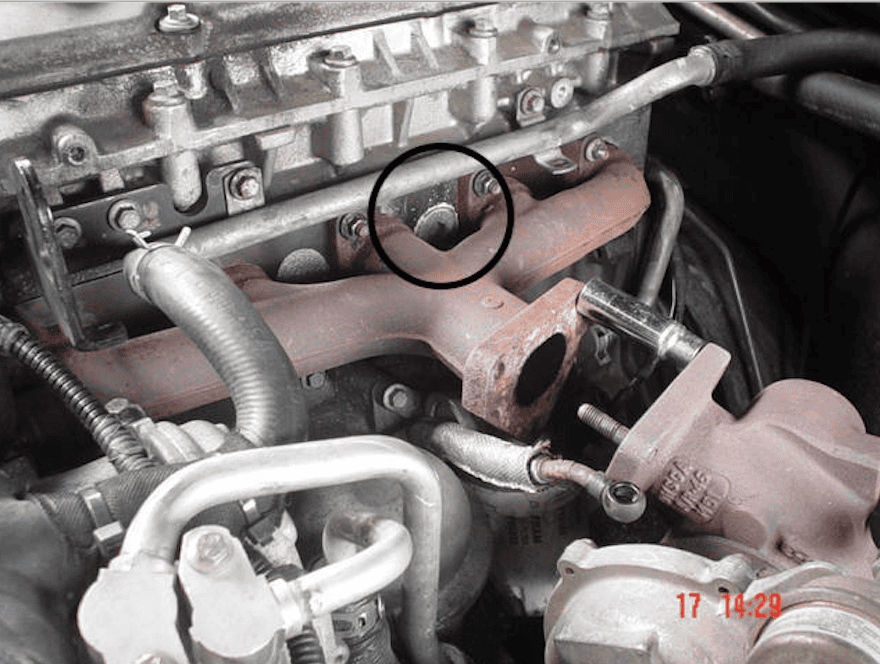

In that case yes its an easy job, see pic.
Looks like I had to remove oil feed banjo.
Ignore black circle that was to point to a coolant leak point.



Jgp2004

Member

• Jan 30, 2021

• #11

Ahhh thats sound. Ill get some new gaskets for the banjo just incase i have to remove it



L

lynall

Well-Known Member

Full Member

• Jan 31, 2021

• #12

Jgp2004 said:

Ahhh thats sound. Ill get some new gaskets for the banjo just incase i have to remove it

Click to expand...

Most likely only copper washers, remove them both and heat them red hot (with plumbing gas torch) and allow to cool and they can be used again.
If the are dowtys seals they will go again no issues.
