Seaswood · May 2, 2024

Is the transfer case rear seal transmission brake same as front seal?
Seems I needed to fit a sleeve on the front transfer case output flange to stop the leak a few years back.
It is a 22 DC can you tell ratio’s from other numbers or where would I look?

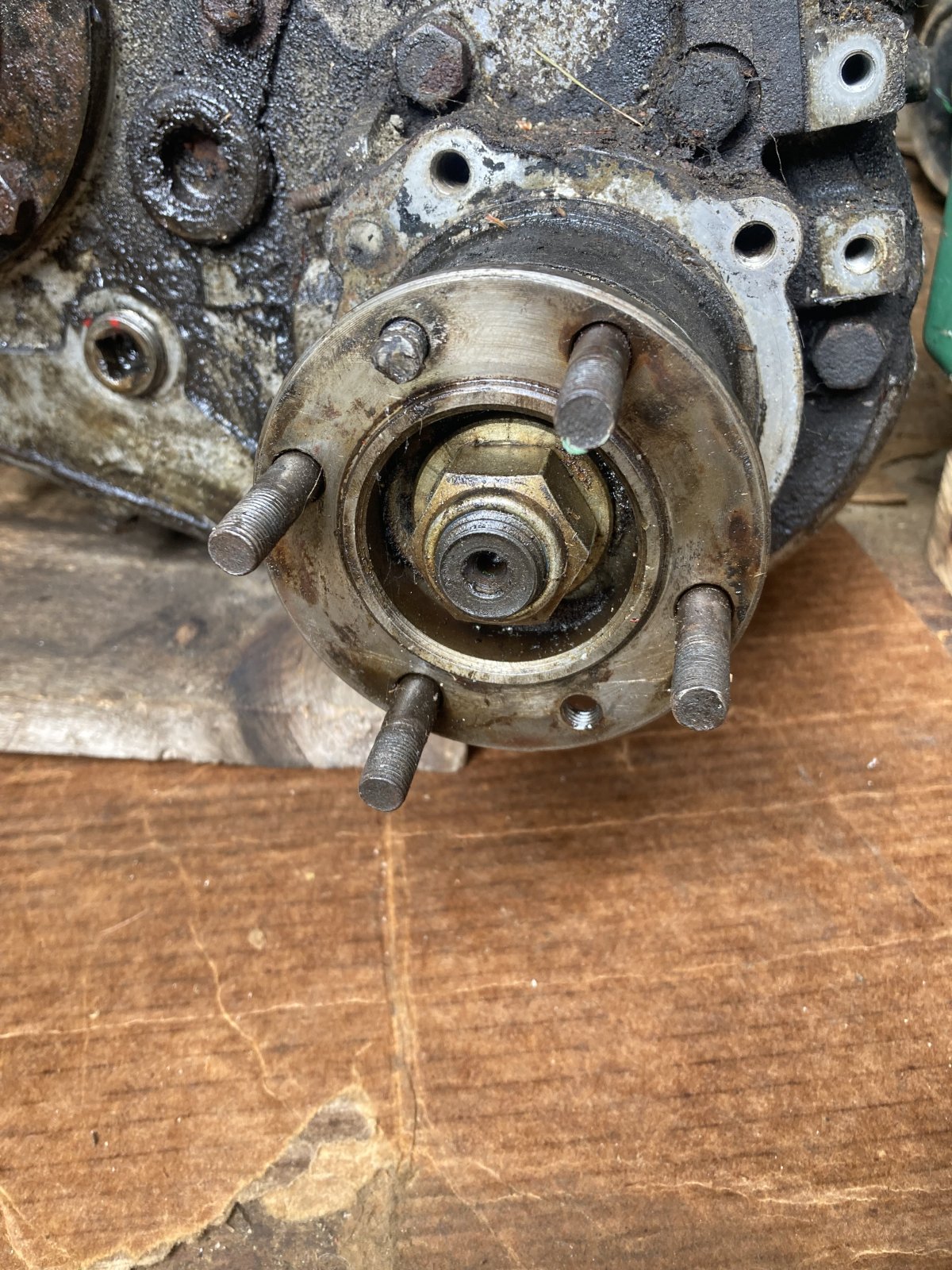

This flange, (spare in shed)

tottot · May 3, 2024

Same seal.

miktdish · May 3, 2024

12D = 1.667
13D = 1.410
14D = 1.003
15D = 1.192
20D = 1.667
22D = 1.410
25D = 1.410
26D = 1.003
27D = 1.192
28D = 1.222
29D = 1.192
32D = 1.222
36D = 1.211
38D = 1.211
40D = 1.211
41D= 1.211
43D = 1.410
47D = 1.667
57D = 1.410
59D = 1.211
61D = 1.211
62D = 1.211
68D = 1.211
69D = 1.211
70D = 1.211

v8250 · May 3, 2024

miktdish said:
12D = 1.667
13D = 1.410
14D = 1.003
15D = 1.192
20D = 1.667
22D = 1.410
25D = 1.410
26D = 1.003
27D = 1.192
28D = 1.222
29D = 1.192
32D = 1.222
36D = 1.211
38D = 1.211
40D = 1.211
41D= 1.211
43D = 1.410
47D = 1.667
57D = 1.410
59D = 1.211
61D = 1.211
62D = 1.211
68D = 1.211
69D = 1.211
70D = 1.211

How long did that lot take to write?

miktdish · May 3, 2024

v8250 said:
How long did that lot take to write?

Copy'n'paste. These new fangled computery things are great.

Cut, copy, and paste - Wikipedia

en.wikipedia.org

Seaswood · May 3, 2024

I did look for that on Ashcroft did not find it?
Also checked the fiche there is a seal & mud shield there.
Thnx
