Good day all I am looking for the cylinder head torque settings for my 2¼ series 2 and the pattern for torque please



kermit_rr

Very

Full Member

• Mar 5, 2023

• #2

head bolts on the S2 engine are 65lbf ft, should be 1/2 UNF



kermit_rr

Very

Full Member

• Mar 5, 2023

• #3

kermit_rr said:

head bolts on the S2 engine are 65lbf ft, should be 1/2 UNF

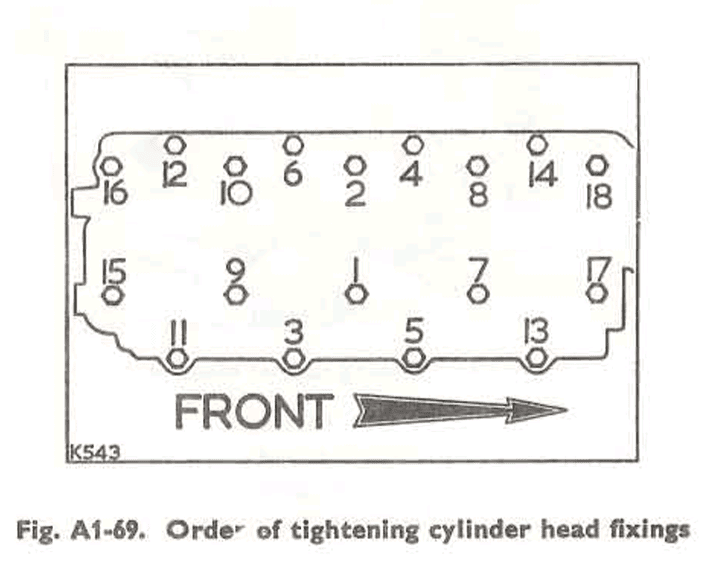

View attachment 283922

Click to expand...

For the diesel, it's 75lbf ft.

Don't forget the 1/2in rocker bolts are done at the same time
The 5/16 bolts are only done to 12lbf ft



G

Greesemonkeyzim

New Member

• Mar 5, 2023

• #4

Thank you so much for the info will get started on it tomorrow morning
