Rockingit

Active Member

• Feb 19, 2024

• #1

Does anyone have (does one even exist?!) a fairly comprehensive list of the correct torque values for re-tightening? You occasionally find values for specific items mentioned or maybe on a YouTube but I can't seem to find anywhere that those came from.

I'm particularly interested right now in suspension, drive shaft and brakes as that's what I'm about to reassemble on my 2004 4.4p



marjon

Well-Known Member

Full Member

• Feb 19, 2024

• #2

This is from my 2007-2010 manual
Cant find it in the 2005 manual.

J



Attachments

• Rear sus torques.pdf

  44.6 KB · Views: 252
• rear brake torques.pdf

  335 KB · Views: 221
• Rear halfshaft.pdf

  117.9 KB · Views: 211

brianp38dse

Well-Known Member

• Feb 19, 2024

• #3

Dont forget to do the tightening of the suspension arms when there is the weight of the car on them.



pwood999

Well-Known Member

Full Member

• Feb 19, 2024

• #4

4.4 V8 is covered in the "RAVE All Models" version.



Rockingit

Active Member

• Feb 19, 2024

• #5

pwood999 said:

4.4 V8 is covered in the "RAVE All Models" version.

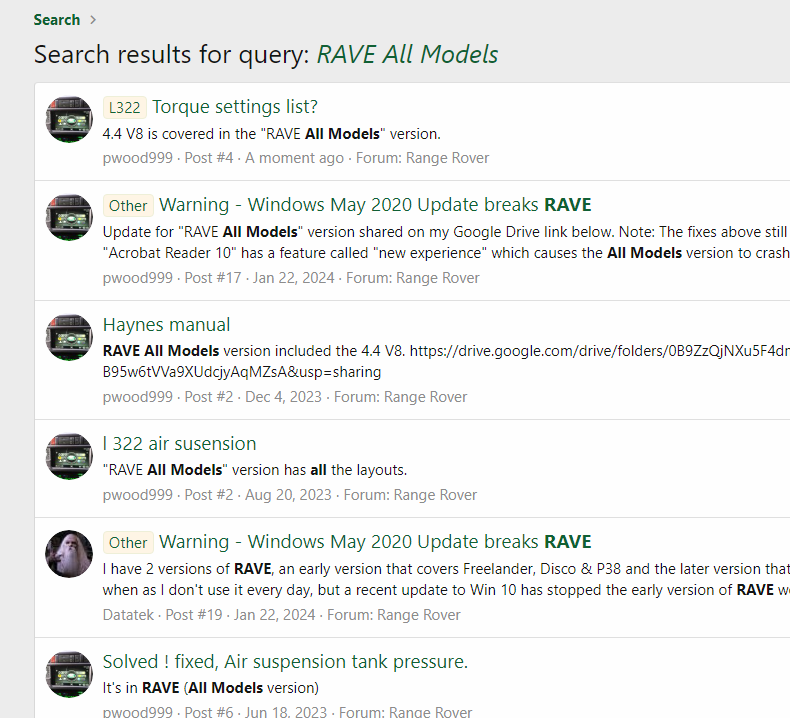

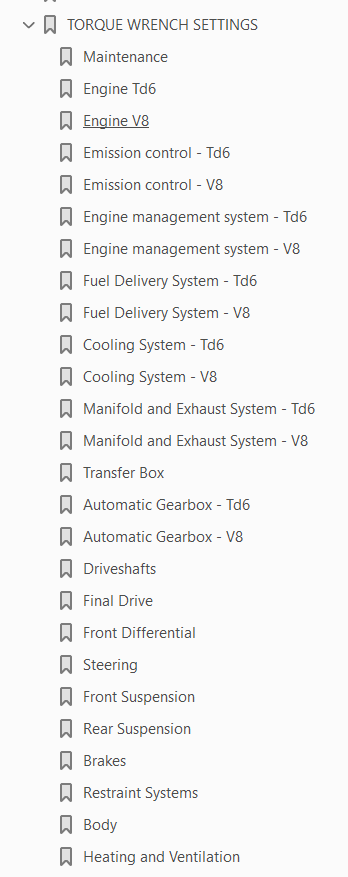

View attachment 310800View attachment 310801

Click to expand...

OK - everyday is a school day - what's RAVE?



brianp38dse

Well-Known Member

• Feb 19, 2024

• #6

Rave is the JLR workshop manual like a haynes but on steroids its a freed download, you will find it on here somewhere.



backinblack

Well-Known Member

Full Member

• Feb 19, 2024

• #7

brianp38dse said:

Dont forget to do the tightening of the suspension arms when there is the weight of the car on them.

Click to expand...

Or before you start measure from the hub centre to the wheel arch then jack the hub up to normal road height and tighten it with the wheel off. Assuming you're doing this on the drive and not on a 2/4 post lift.
