MBrown

Active Member

• Sep 8, 2011

• #1

Hi all,

For some reason my 2.5 n/a petrol 4c doesn't have any timing markers, can anyone provide a pic and show me what I'm missing/ what they should be on/what parts I need etc.

Many thanks!



jamesmartin

Well-Known Member

• Sep 8, 2011

• #2

usually have a pointer for marks on front pulley at 1 oclock ish you need to watch rockers or rotor arm to know when its tdc on compression on number1



MBrown

Active Member

• Sep 9, 2011

• #3

Is this the pointer you were on about? I have had a look and can't see how it secures on, I will take a pic/find a pic of the pulleys and put it on here, thanks for the help



Attachments

•
  Timings 2.jpg

  47 KB · Views: 299

jamesmartin

Well-Known Member

• Sep 9, 2011

• #4

thats it supposed to be on your engine,two front cover bolts with spacer tubes approx 15mm -20mm its a good idea to mark the line on pulley edge with white paint or marker



MBrown

Active Member

• Sep 9, 2011

• #5

Sorry this is a bad pic, but its the best I have to hand, I take it it fits around 1 oclock on the bottom pulley? I have found one of the spacers, just to find the other now.

Many thanks



Attachments

•

  90.8 KB · Views: 897

jamesmartin

Well-Known Member

• Sep 9, 2011

• #6

not alot of help that picture put offer it up to front cover bolts a 1 oclockish it should line up with twp bolts that need pulley forward to remove bolts use spacers to put pointer over pulley which should have faint mark acroos edge



MBrown

Active Member

• Sep 9, 2011

• #7

Perfect thank you, I'll take a look in day light tomorrow, thanks again



MBrown

Active Member

• Sep 16, 2011

• #8

Hi again all, I can't believe I am posting about this again, sorry all

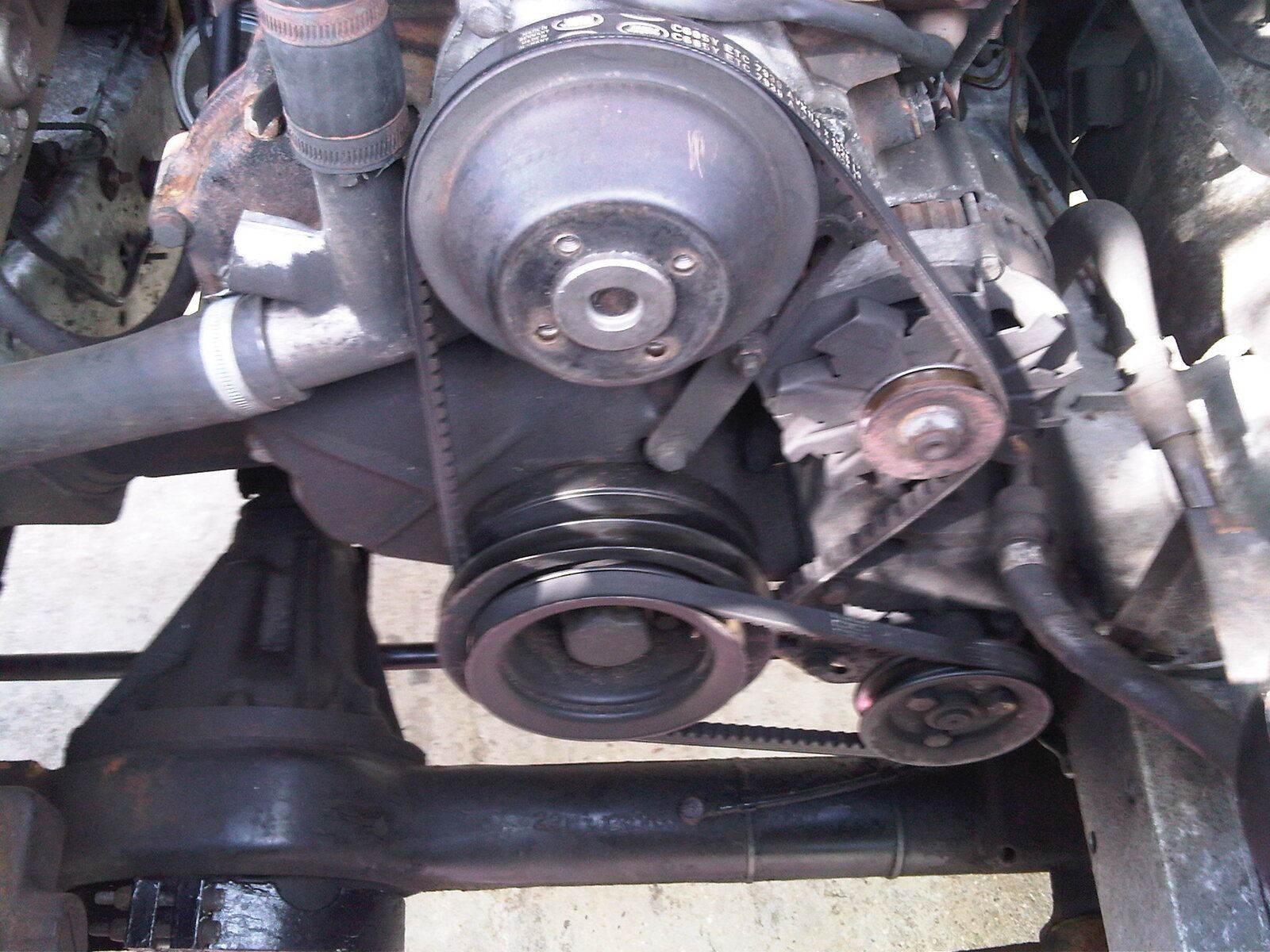

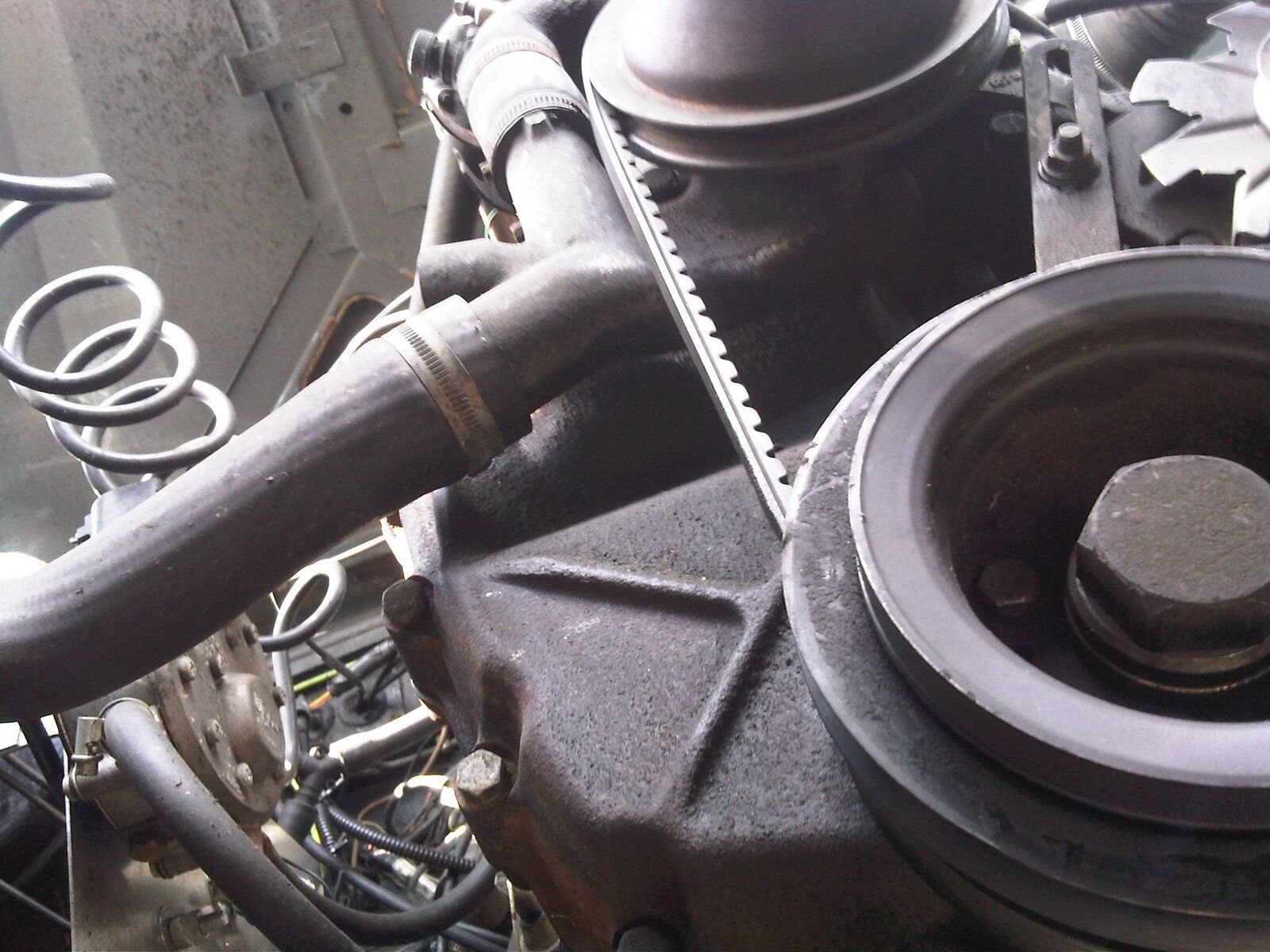

I spoke to LR who stated I only needed the one spacer and that it connect to the side of the timing case. So I am looking for 1 bolt set back further than another still spaced in the same distance apart as the piece. I cannot find any? I have taken some pics can anyone help the mechanically hopeless me?

Many thanks



Attachments

•

  290.2 KB · Views: 308
•

  277.4 KB · Views: 316
•

  251.2 KB · Views: 306

jamesmartin

Well-Known Member

• Sep 16, 2011

• #9

on rh(alternator side) side when looking at front of engine 2nd and 3rd timing case securing bolts from bottom



MBrown

Active Member

• Sep 16, 2011

• #10

Brilliant thank you, have put the fan and cowl on as had to go for a drive but will go and have another look, thanks again



MBrown

Active Member

• Sep 16, 2011

• #11

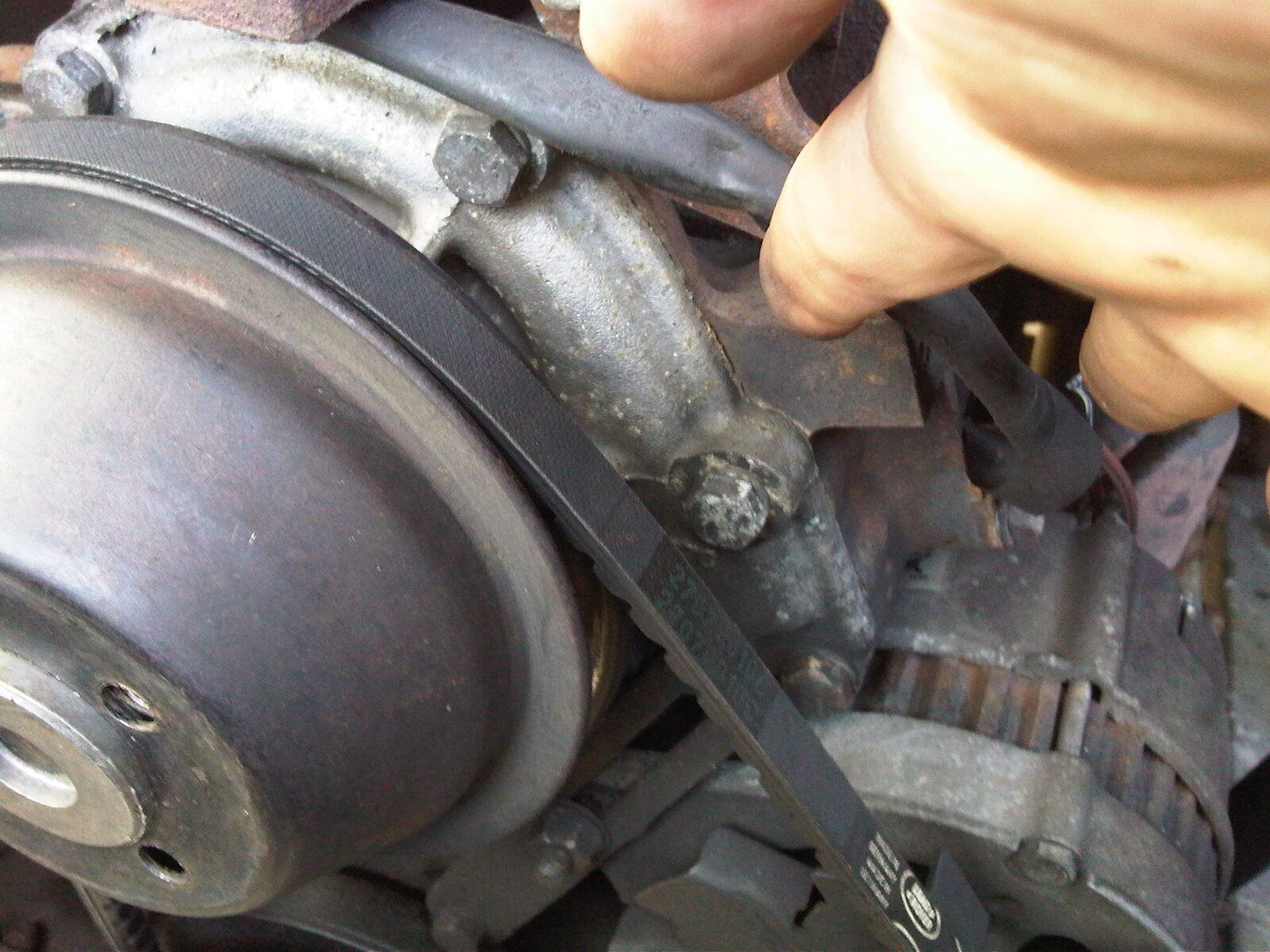

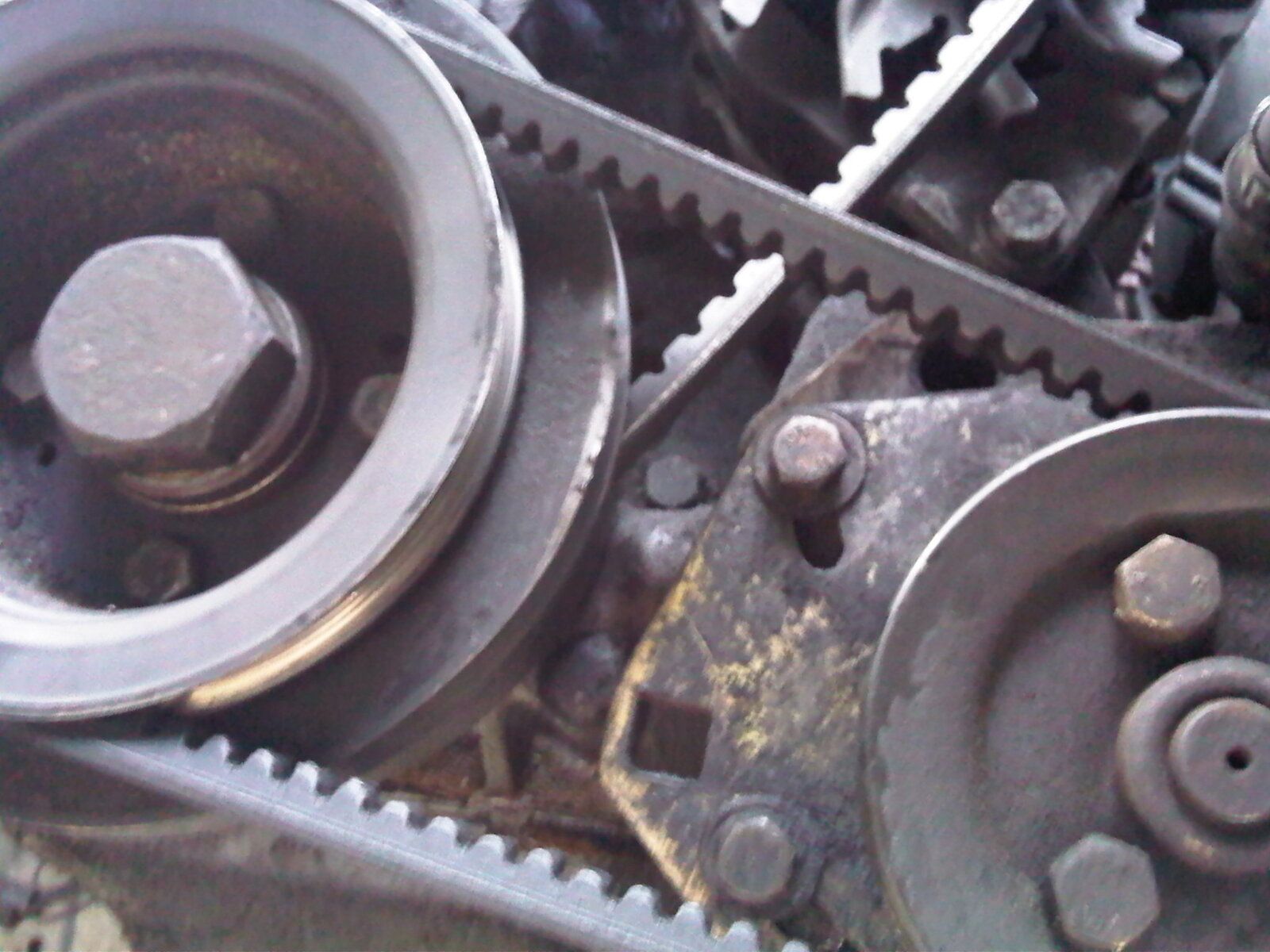

Did you mean out of the bolt in pic 1 or somewhere down by pic 2?



Attachments

•

  289.7 KB · Views: 241
•

  196.5 KB · Views: 232

Oldseadog

Well-Known Member

• Sep 17, 2011

• #12

MBrown said:

Hi again all, I can't believe I am posting about this again, sorry all

I spoke to LR who stated I only needed the one spacer and that it connect to the side of the timing case. So I am looking for 1 bolt set back further than another still spaced in the same distance apart as the piece. I cannot find any? I have taken some pics can anyone help the mechanically hopeless me?

Many thanks

Click to expand...

If you look at the left-hand picture of the three, there is a short strip attached by two screws. That is the rough position of the missing pointer.

On the crankshaft pulley, which is the lowest of them, you should find a shalloe 'V' shaped groove across the inner pulley rim. This can be difficult to see, so run your finger around until you find it. Then get a bit of Tippex or white paint to mark it.

Your pointer should also have a bit of paint on the end so that you can see both of them when your timing light flashes.

Hope this helps.

OSD



MBrown

Active Member

• Sep 18, 2011

• #13

Brilliant thank you, i'll take another look asap
