landy-lee

Well-Known Member

• Apr 9, 2017

• #1

Does the 300Tdi have two water temp sensors?

here the photos of what i think they are.



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Apr 9, 2017

• #2

Yes from what I know.....one for the ECU (if it is a later EDC version) and one for the temp gauge.



Kwakerman

Well-Known Member

• Apr 13, 2017

• #3

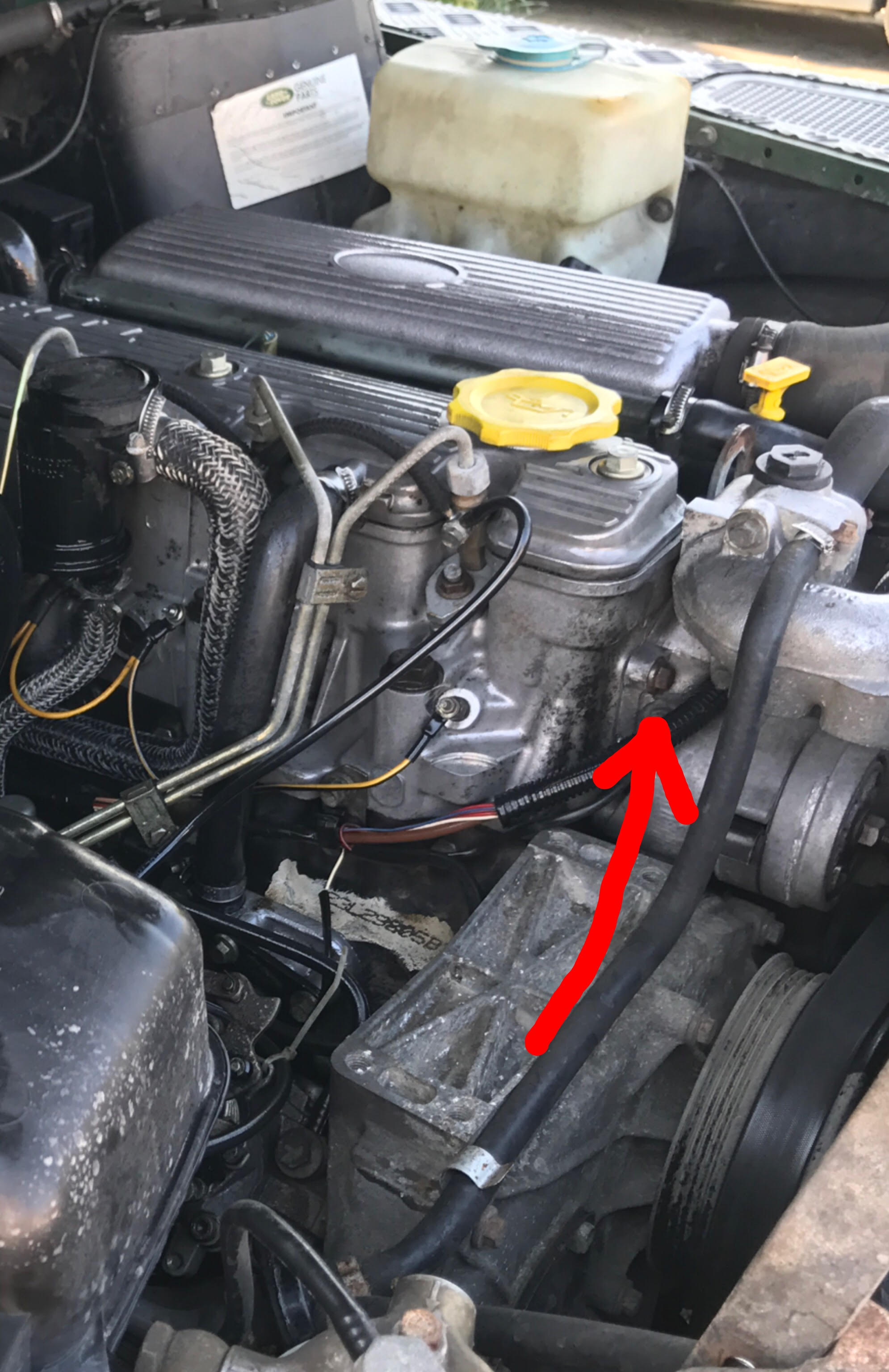

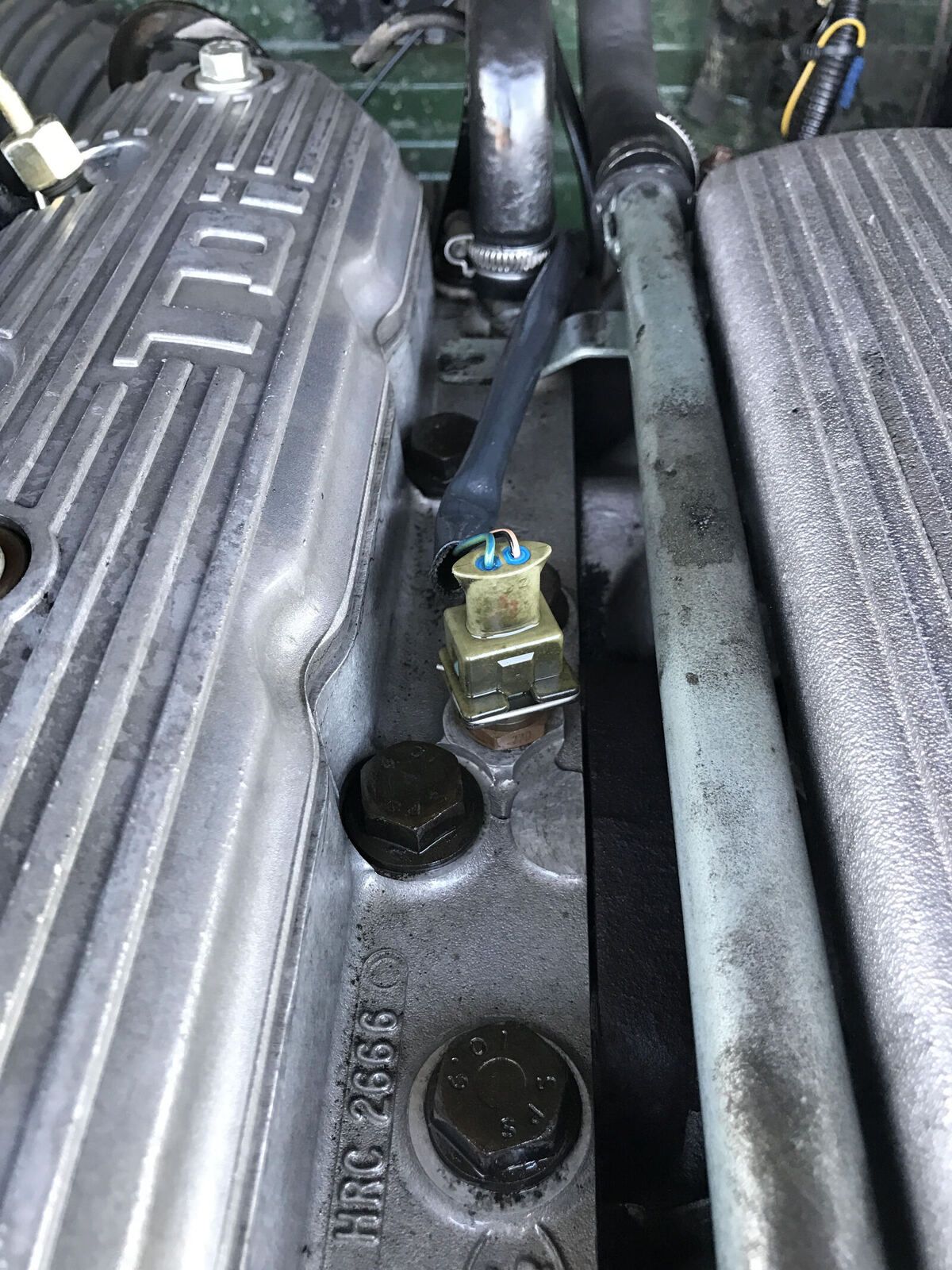

Red arrow one is the water temp sender for your gauge, the other (on the top) is to do with the exhaust gas recirculating (EGR) valve. Hopefully you have removed the EGR (its more of a hindrance than a benefit), in which case the one on top isn't doing anything apart from keeping your coolant in!



Last edited: Apr 13, 2017

landy-lee

Well-Known Member

• Apr 13, 2017

• #4

Kwakerman said:

Red arrow one is the water temp sender for your gauge, the other (on the top) is to do with the exhaust gas recirculating (EGR) valve. Hopefully you have removed the EGR (its more of a hindrance than a benefit), in which case the one on top isn't doing anything apart from keeping your coolant in!

Click to expand...

the egr is going this weekend!
