D

D2Overland

New Member

• Dec 9, 2013

• #1

Hi . need to pick up the ignition switched live from Starter motor solenoid in order to supply a battery isolator for a twin battery system. Stuggling to identify where this is - anyone got a photo or can direct me? Thanks



sierrafery

Well-Known Member

• Dec 9, 2013

• #2

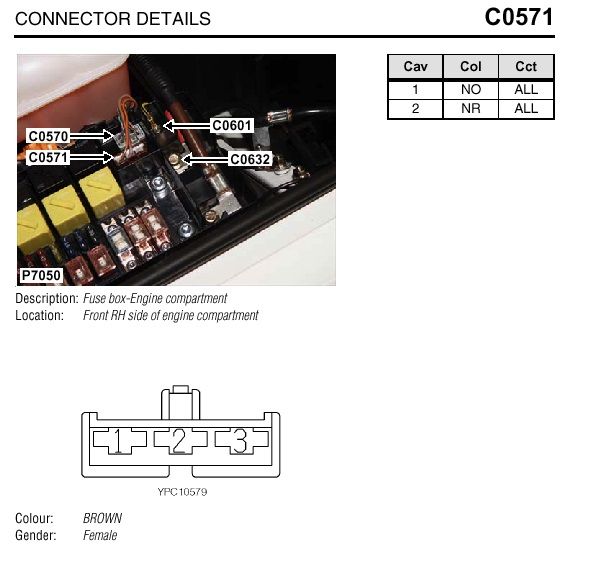

see attachment, the brown/red(NR) wire from pin 2 of C0571



Attachments

•
  starter exciter wire.jpg

  40.3 KB · Views: 326

D

D2Overland

New Member

• Dec 9, 2013

• #3

Nice. thanks , i'll try that later. Will let you know how it goes, and try topost some pics i took of the installation.



D

D2Overland

New Member

• Dec 12, 2013

• #4

Thanks sierrafery! All connected up and checked with Multimeter and working as it should!
