Hello,
I'm curre tly replacing flywheel and clutch on my Td5 2002 Defender. While removing gear box I managed to break the contact to the crankshaft sensor. I have new one but does anyone know which colour oft the connection go where? Does it matter? There is one white/blue and one black/orange.

Thanks!
/Lars



sierrafery

Well-Known Member

• Aug 28, 2017

• #2

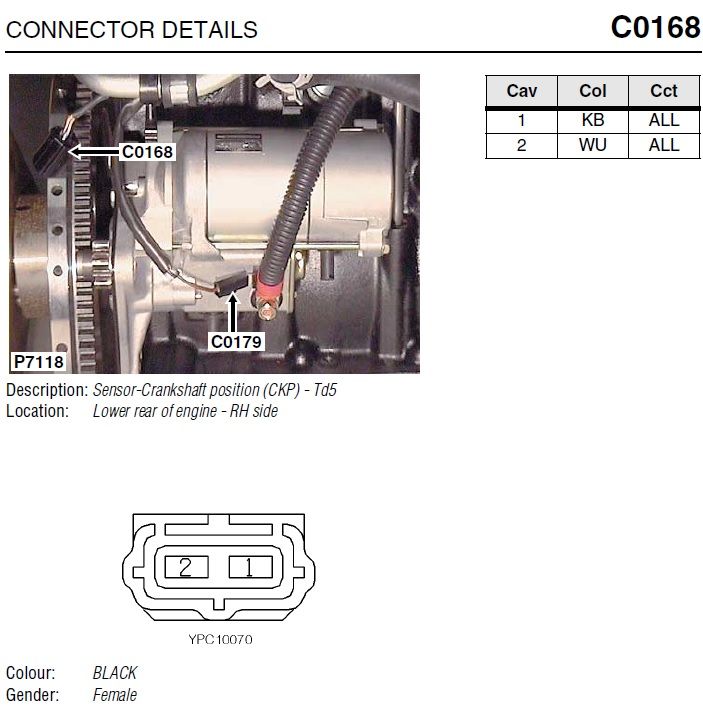

Normally you should not be able to connect the plug the other way around cos it has a guiding track, it's important to have the wiring in good order and the wires should be white/blue(pin 2) and pink/black(pin 1)



L

lekfr97

Member

• Aug 28, 2017

• #3

Thanks a lot! Yes, the plug can only go one way, but as the wirings was completely pulled out I can't see which one go where into the plug. But now I know! Thanks!
