Morning All,

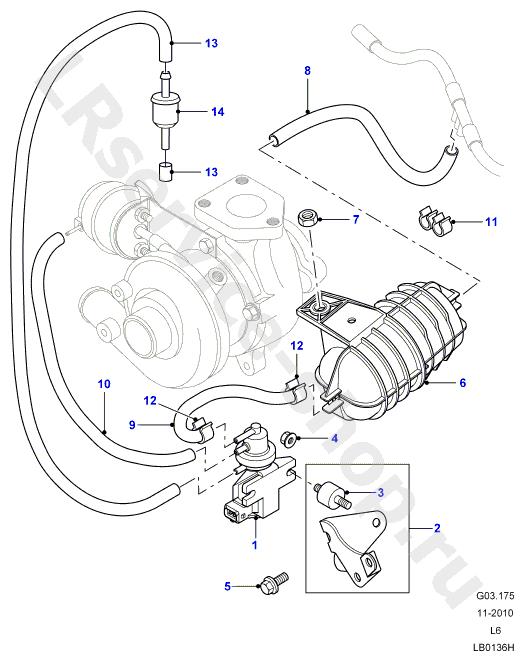

I was wondering which diameter was on those tubes originally? I know it was 3.2 and 3.5 mm ID but no idea which one was which one?
Anyone some help on it? The one to the little filter, I've got original from LR so can check, but especially the one going from the reservoir to
the turbo, I'd like to know length and ID &OD. If the rest is one that would be good as well. Will post when home.

BR
Matthias



Attachments

•

  50.8 KB · Views: 105

M

mbrokof

Active Member

• Oct 30, 2023

• #2

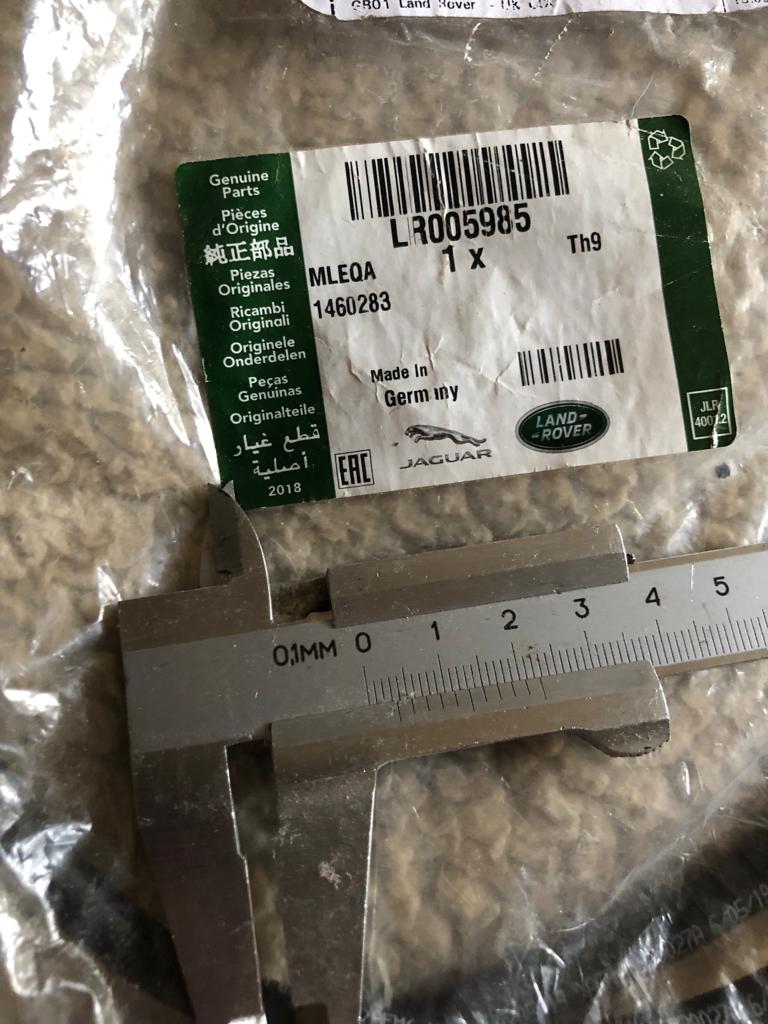

Ok here is the ID of LR005985 at I'd 3.5mm, OD 7.5mm, length is left 91cm and I think I took off about 20cm for the EGR which as it seems was wrong, but thought I found it. Will update if I get hold of the other ones.



Attachments

•

  105 KB · Views: 104

Arctic2

Well-Known Member

• Oct 30, 2023

• #3

mbrokof said:

Ok here is the ID of LR005985 at I'd 3.5mm, OD 7.5mm, length is left 91cm and I think I took off about 20cm for the EGR which as it seems was wrong, but thought I found it. Will update if I get hold of the other ones.

Click to expand...

Hi Have some in my shed i will check it later



Arctic2

Well-Known Member

• Nov 2, 2023

• #4

Most likely to late now for you but 3.2 is what you need.

1

2

3

4

5

6

7

8



M

mbrokof

Active Member

• Nov 4, 2023

• #5

Morning @Arctic2,
No, not too late, Very good, thank you. How many meters would you think overall @3.2mm is needed? I would assume 3m for one change.
