bluedog333
Well-Known Member
I know this has been done before, but can’t seem to find the right info. Would anyone happen to know the code or colour code for TD5 110 SW front springs, normal duty. Thanks!
Interceptorxj
Well-Known Member
Try NRC8045 Yellow/Yellow
bluedog333
Well-Known Member
Cheers, do you know if they were fitted to the td5s? I know they’re suitable up to 2007, but can’t seem to find if they were actually standard, I.e not from 200/300tdi era. Basically, I’m after the more progressive spring rate that the td5 SW had.
Interceptorxj
Well-Known Member
It would appear RHD TD5 has 1 x NRC8045 (n/s) and 1 x NRC8044 (o/s) as standard. From 2007 it is 2 x NRC8045
Product Description
Coil Spring - NRC8045 - Genuine
Specifications and additional product information
Defender 07 on - 110 ONLY All LHD models from (VIN) 7A000001 on - Front, passenger's side, standard
Defender 07 on - 110 ONLY All RHD models from (VIN) 7A000001 on - Front, both sides, standard
Defender 83-06 - 110 ONLY All models up to (VIN) 6A999999 - Front, passenger's side, standard - Quantity Required - 1
Product Description
Coil Spring - NRC8044 - Genuine
Specifications and additional product information
Defender 07 on - 110 ONLY All LHD models from (VIN) 7A000001 on - Front, driver's side, standard - Quantity Required - 1
Defender 83-06 - 110 ONLY All models up to (VIN) 6A999999 - Front, driver's side, standard - Quantity Required - 1
Product Description
Coil Spring - NRC8045 - Genuine
Specifications and additional product information
Defender 07 on - 110 ONLY All LHD models from (VIN) 7A000001 on - Front, passenger's side, standard
Defender 07 on - 110 ONLY All RHD models from (VIN) 7A000001 on - Front, both sides, standard
Defender 83-06 - 110 ONLY All models up to (VIN) 6A999999 - Front, passenger's side, standard - Quantity Required - 1
Product Description
Coil Spring - NRC8044 - Genuine
Specifications and additional product information
Defender 07 on - 110 ONLY All LHD models from (VIN) 7A000001 on - Front, driver's side, standard - Quantity Required - 1
Defender 83-06 - 110 ONLY All models up to (VIN) 6A999999 - Front, driver's side, standard - Quantity Required - 1
bluedog333
Well-Known Member
Cheers for the info mate, I think I know what I need now.
bluedog333
Well-Known Member

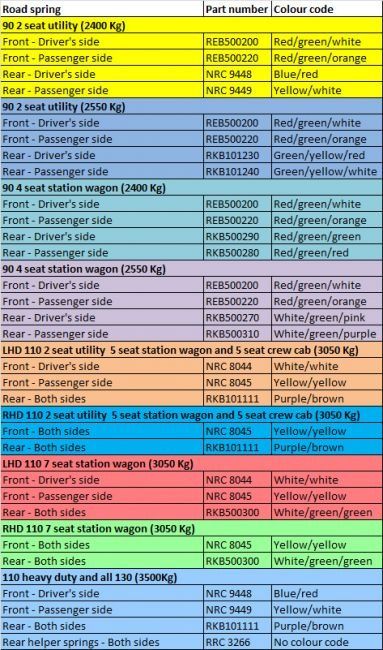

Cheers Mick, I recall seeing that chart on here it that long ago. Seems to suggest that RHD models are not handed and two x NRC8045 will do? Seems strange that ‘07 models I.e Pumas can use the same spring both sides, but previous models needed NRC8044 + NRc8045. Wonder why this is?
mick 1986
Well-Known Member
It was something to do with weight distribution. One is slightly longer than the other. I fitted two of the longer ones when I done my rebuild, 8044 seems to ring a bell.
