I have always been in to my car stereos, I like to be able to listen to music above the sound of the engine.

Looking around the Freelander I was struggling to see what could be done as the doors looked to be a bit of a challenge. (3 door Facelift).

First thing I did was strip the door cards off and have a look at what I was dealing with, 6.5" at the top and a tweeter, sound wise appalling. Time to look outside the box, I had a set of 3 way Focal AS3 3 way components that I briefly had in my last car that I wanted to fit, these consist of a 6.5" woofer an 80mm mid range and a separate tweeter.

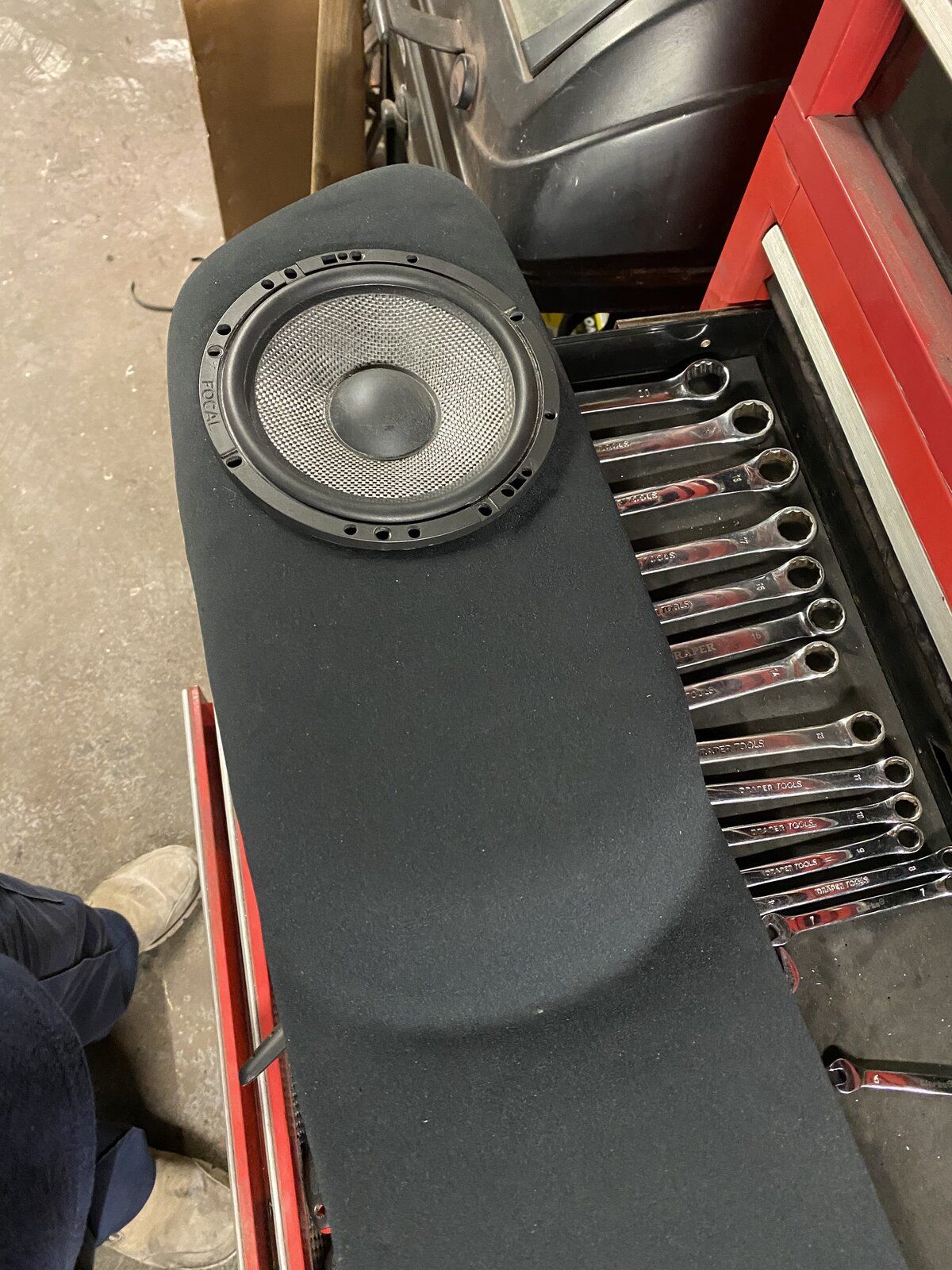

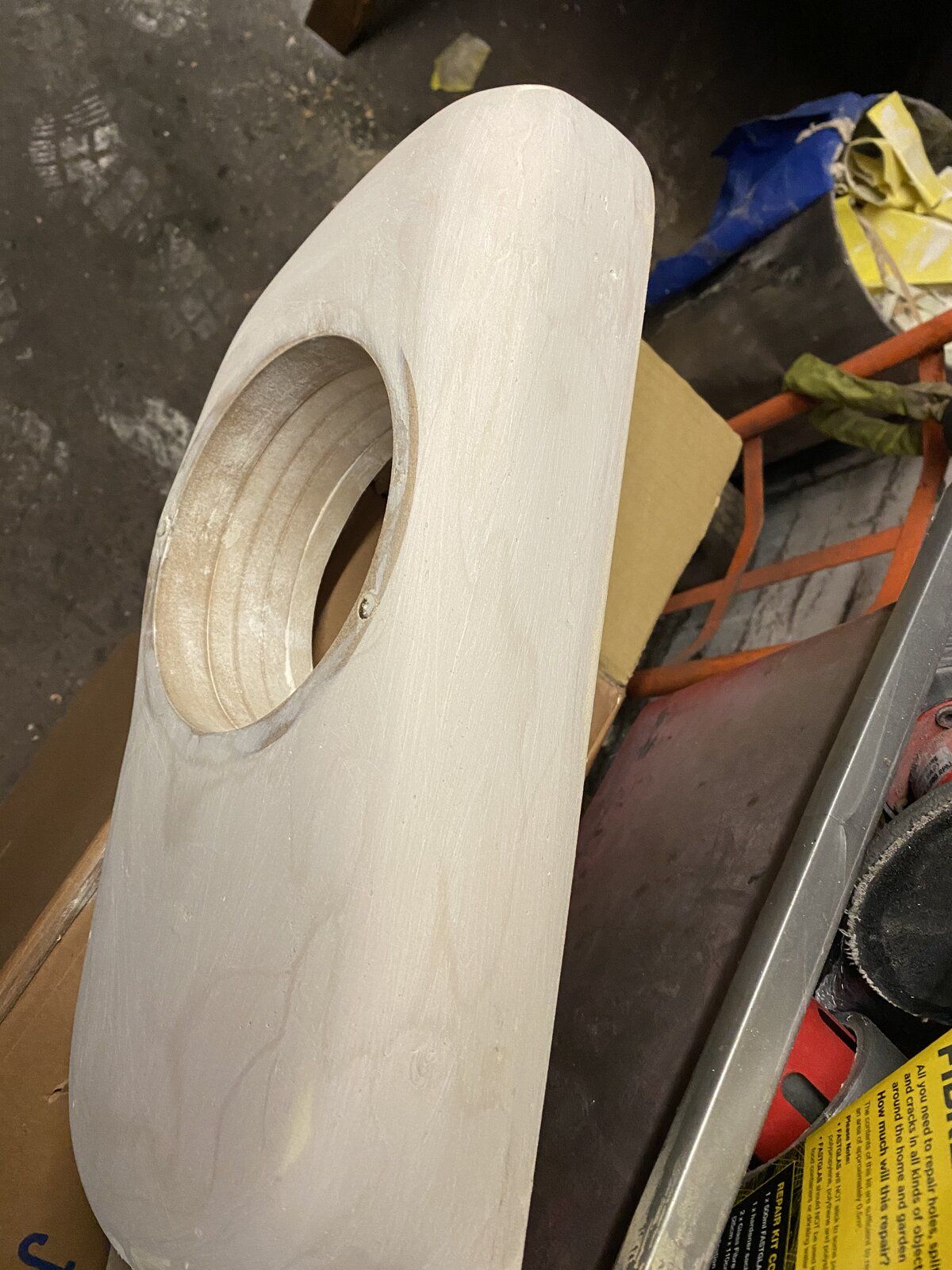

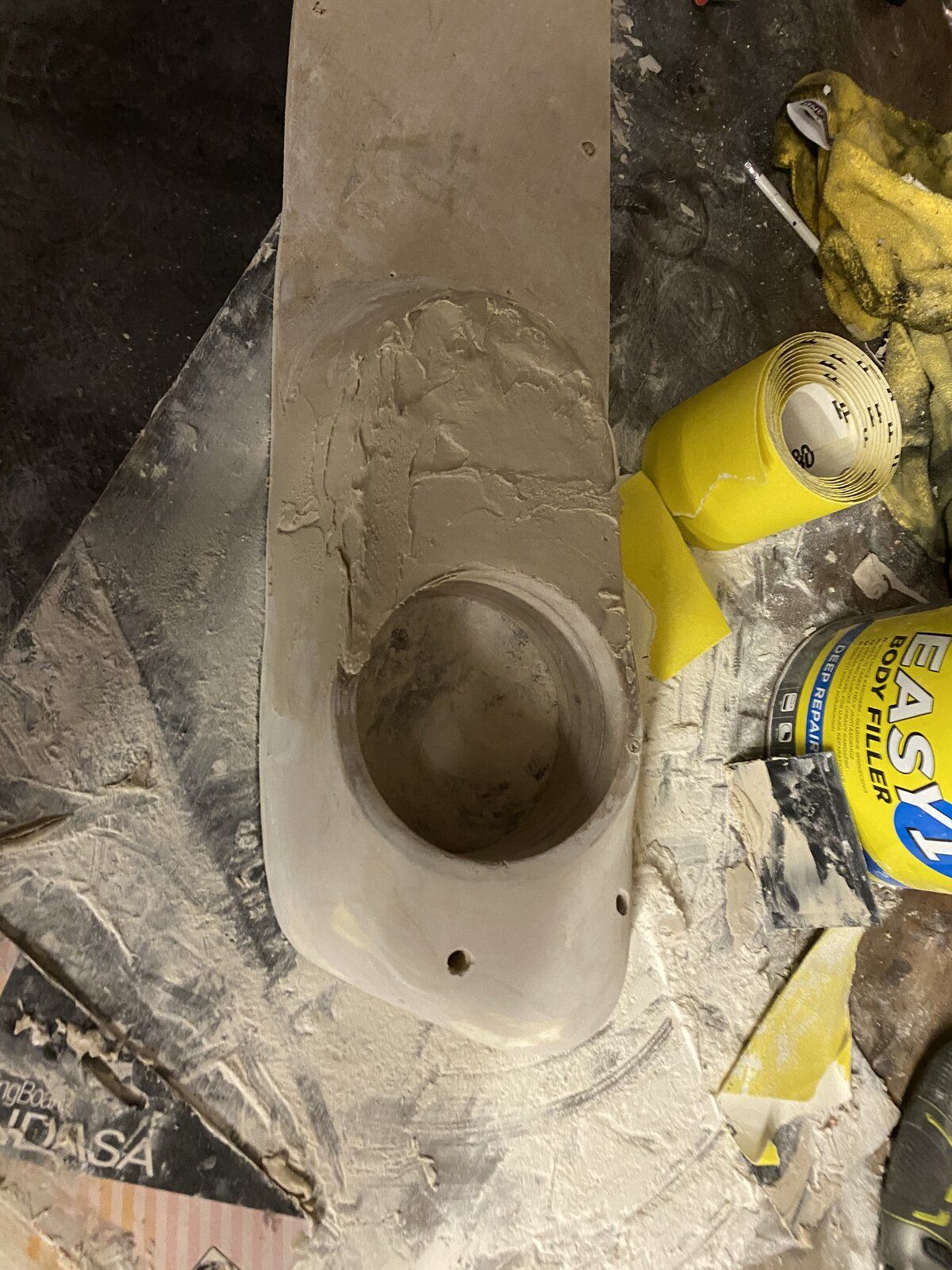

Woofer needed to go in the bottom of the door but due to the pocket and solid metal behind this seemed out of the question, so I have gone all Blue Peter on it. MDF, foam, filler and a great deal of patience I decided to have a go at building my own door pods. This is what I have come up with.

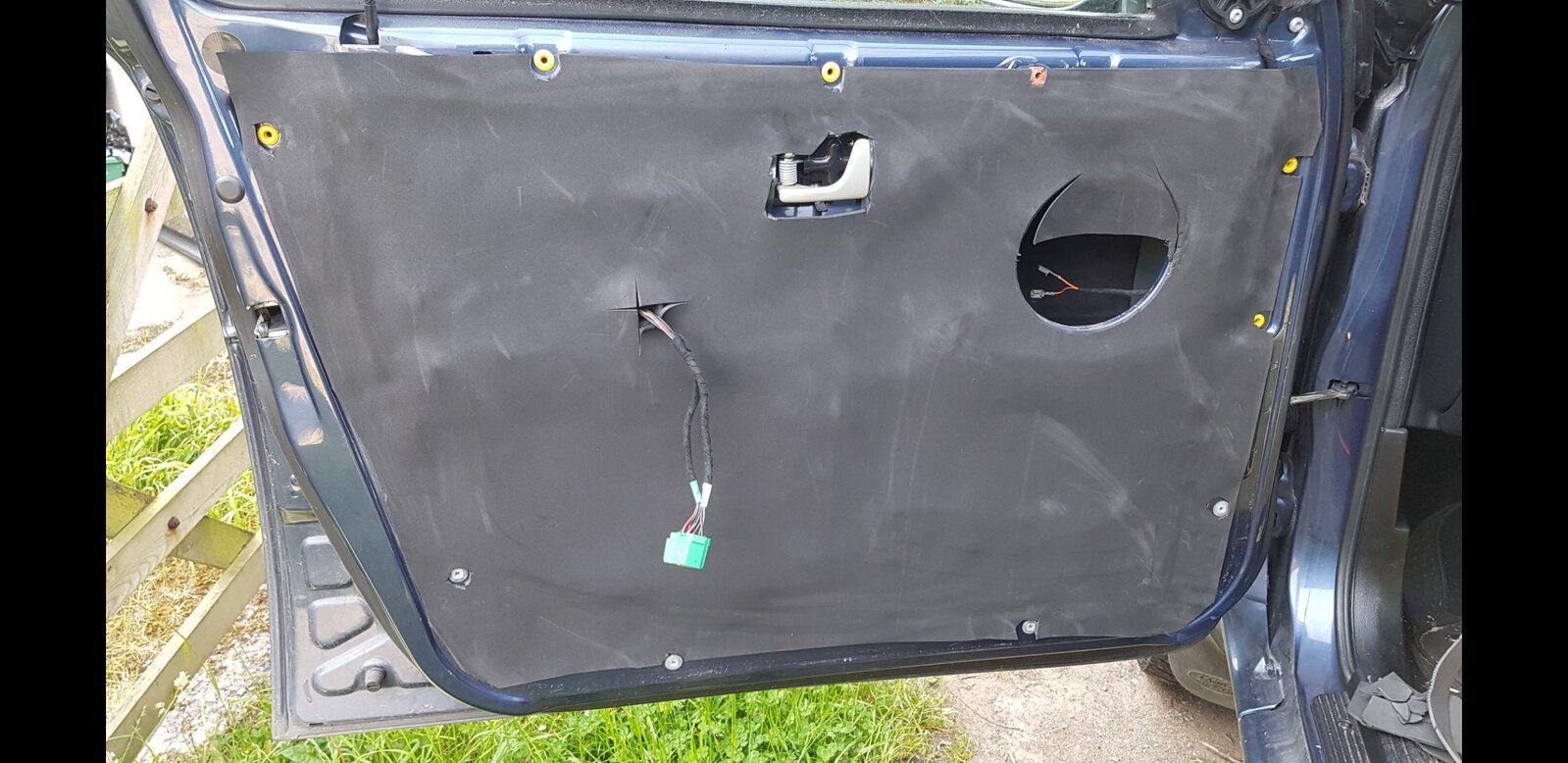

I will get some more images of them fitted tomorrow once it is light again, but these are in the bottom of the door, the 80mm mids are in the normal speaker location in custom built adaptors and the tweeters are in the stock position. Doors have all had sound deadening fitted to try and stop the rattles.

Nice job.
I didn't go nearly that far, choosing to fit some cheap 6 1/2" coaxial speakers in the factory speaker aperture instead. I did deaden the door panels though, to reduce the rattling caused by the speakers.
I also fitted a 10" sub in the boot floor cubby, which made a massive difference to the low frequency output.

ivancrx said:

I have always been in to my car stereos, I like to be able to listen to music above the sound of the engine.

Looking around the Freelander I was struggling to see what could be done as the doors looked to be a bit of a challenge. (3 door Facelift).

First thing I did was strip the door cards off and have a look at what I was dealing with, 6.5" at the top and a tweeter, sound wise appalling. Time to look outside the box, I had a set of 3 way Focal AS3 3 way components that I briefly had in my last car that I wanted to fit, these consist of a 6.5" woofer an 80mm mid range and a separate tweeter.

Woofer needed to go in the bottom of the door but due to the pocket and solid metal behind this seemed out of the question, so I have gone all Blue Peter on it. MDF, foam, filler and a great deal of patience I decided to have a go at building my own door pods. This is what I have come up with.

View attachment 222986 View attachment 222987 View attachment 222988


I will get some more images of them fitted tomorrow once it is light again, but these are in the bottom of the door, the 80mm mids are in the normal speaker location in custom built adaptors and the tweeters are in the stock position. Doors have all had sound deadening fitted to try and stop the rattles.

Click to expand...

I like that - nice workmanship and a can-do attitude.

Jayridium said:

I like that - nice workmanship and a can-do attitude.

Click to expand...

Thank you, I don't like to be beaten by anything. Just takes a bit of time and thinking about.

A couple of photos of them fitted.
