S

Specto Marine

Member

• Dec 10, 2018

• #1

Ive had huge play in my steering, discover that the arm going into the steering box has huge amounts of play. Looks like the UJ fitting has gone, Now ive only seen straight steering columns going into the steering box but mine isn't. Mine has two bends in it and its not square, Any ideas what this is called? I need to get a new uj or a complete section
Cheers



Disco1BFG

Well-Known Member

Full Member

• Dec 10, 2018

• #2

Full shaft here:-

https://www.paddockspares.com/qme500031-steering-shaft-including-joints-from-va133509.html

Though re-reading your post this might not be the right one.....

1 UJ here:-

https://www.paddockspares.com/nrc7387-steering-joint.html

lower UJ:-

https://www.paddockspares.com/nrc7704-steering-joint.html



Al2O3

Well-Known Member

Full Member

• Dec 10, 2018

• #3

@Disco1BFG Ive just looked at OP's profile and he's got an 88 90
I'm on my phone at the mo and it's a right fanny on looking up parts



ivancrx

Well-Known Member

• Dec 10, 2018

• #4

https://www.ebay.co.uk/itm/Land-Rov...=item1a60fcd0f5:g:wcgAAOSwpTJbu3CO:rk:23:pf:0

Is it this type of set up?



jamesmartin

Well-Known Member

• Dec 10, 2018

• #5

earlier type but ujs are the same as listed above



S

Specto Marine

Member

• Dec 11, 2018

• #6

Hi guys

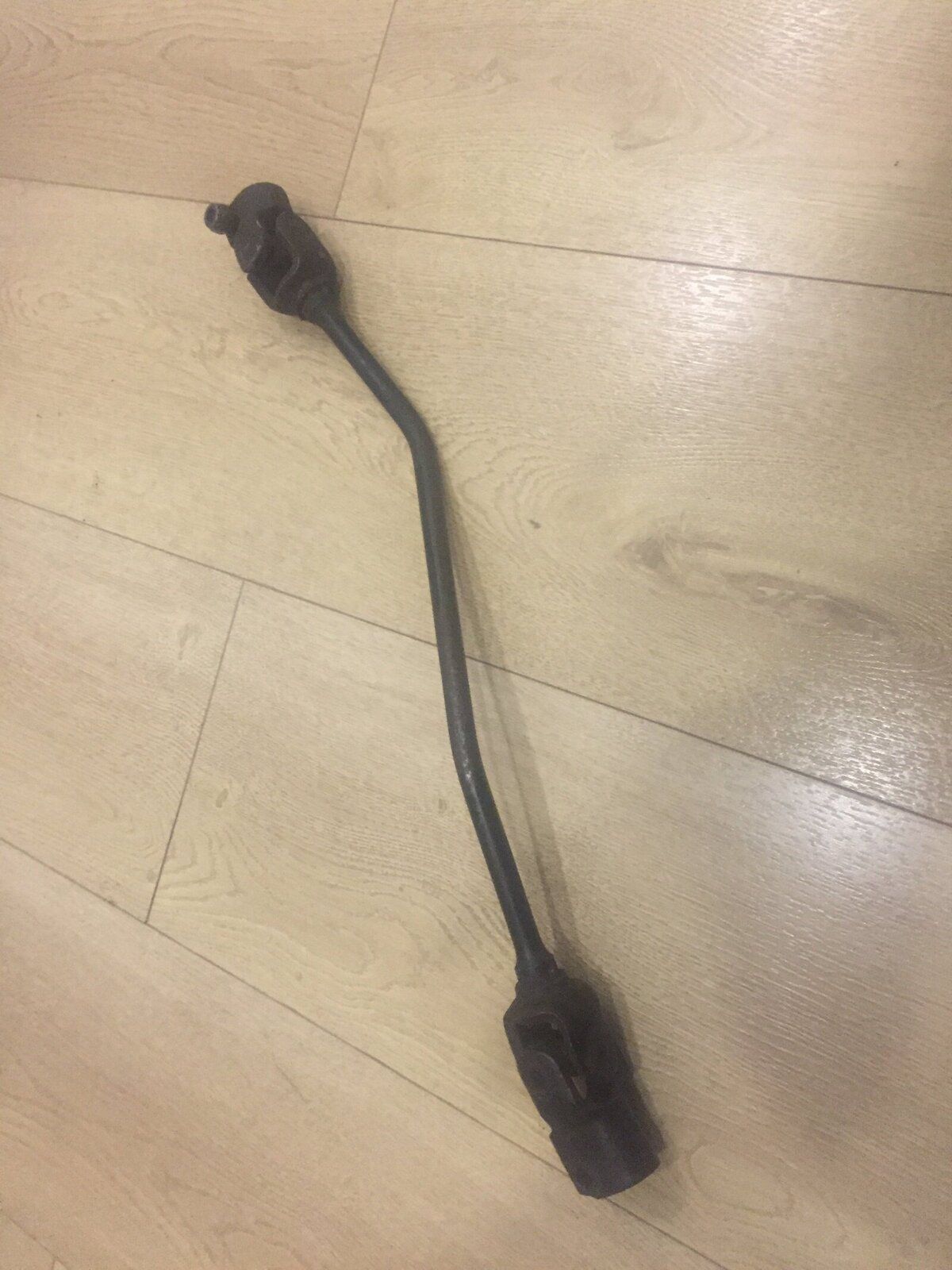

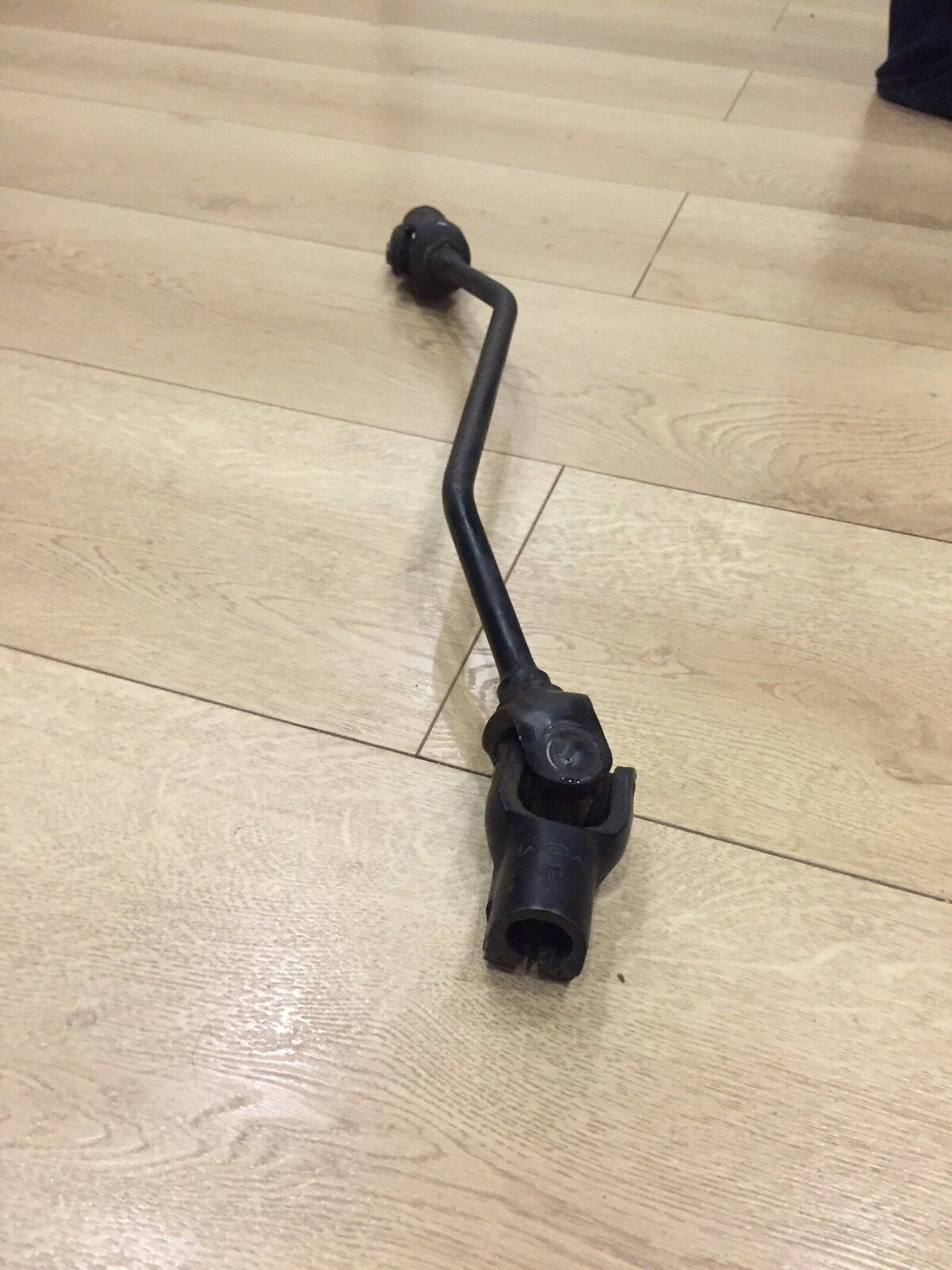

Thanks for your replies. This is what mine looks like!



Attachments

•

  214.2 KB · Views: 112
•

  231.1 KB · Views: 105

jamesmartin

Well-Known Member

• Dec 11, 2018

• #7

Specto Marine said:

Hi guys
Thanks for your replies. This is what mine looks like!

Click to expand...

use above types not sure were that come from but theres no sliding joint



Al2O3

Well-Known Member

Full Member

• Dec 11, 2018

• #8

Are you sure you're not driving one of these?
