pete12345 · Jul 20, 2019

previously my srs air bag fault light was intermittent cleaned all the yellow connectors with contact cleaner and the seat belt pre tensioners that was few weeks ago now the srs fault light is on permanent any suggestions be mighty helpfull maybe a new ecu 1999 Thor

Datatek · Jul 20, 2019

pete12345 said:
previously my srs air bag fault light was intermittent cleaned all the yellow connectors with contact cleaner and the seat belt pre tensioners that was few weeks ago now the srs fault light is on permanent any suggestions be mighty helpfull maybe a new ecu 1999 Thor

Usually it's the connectors under the seat. The ECU is reliable. what did you actually use to clean the connectors?
You really need diagnostics.

Rubberknees · Jul 20, 2019

There is a connector below steering wheel just under the dash , found this to be the problem on mine. Take the panel off under the steering wheel and you will see the yellow wires bit fiddly but doable with care

pete12345 · Jul 20, 2019

I got diagnostics data will plug in again can't rember what it said but also I haven't cleaned the plug under the steering wheel oh the stuff I used is aero klene 50

pete12345 · Jul 20, 2019

The nanocom says code 004 air bag light fault open circuit permanent

pete12345 · Jul 20, 2019

And I've replaced both the bulbs

Datatek · Jul 21, 2019

pete12345 said:
And I've replaced both the bulbs

The bulbs have to be the correct wattage and that type of bulb is available in several different wattages.

pete12345 · Jul 21, 2019

Yer I've checked that data they are the correct wattage

pete12345 · Jul 21, 2019

Could it be something to do with the wiring to the bulbs then

Datatek · Jul 21, 2019

pete12345 said:
Yer I've checked that data they are the correct wattage

So in that case, if the diagnostics are to be believed, one line to the bulbs is open circuit or high resistance, do both bulbs light with equal intensity?
If both bulbs light, it may be the ECU at fault although that would be unusual.

kermit_rr · Jul 21, 2019

worth swapping a few bulbs round on the dash?

Datatek · Jul 21, 2019

pete12345 said:
Could it be something to do with the wiring to the bulbs then

Coffee break is over, I'll have a look at the wiring in RAVE later, what year is your car and does it have side airbags?

wammers · Jul 21, 2019

Datatek said:
Coffee break is over, I'll have a look at the wiring in RAVE later, what year is your car and does it have side airbags?

W reg should have it could also be the connections to the seat belt tensioners, will need to remove door sill covers to get at those.

pete12345 · Jul 21, 2019

I've had the pre tensioners apart and cleaned them already will check the bulbs and do the only connection I've not done under the steering wheel

pete12345 · Jul 21, 2019

Yer it's a w 1999 don't you remember the eas sarga data

pete12345 · Jul 21, 2019

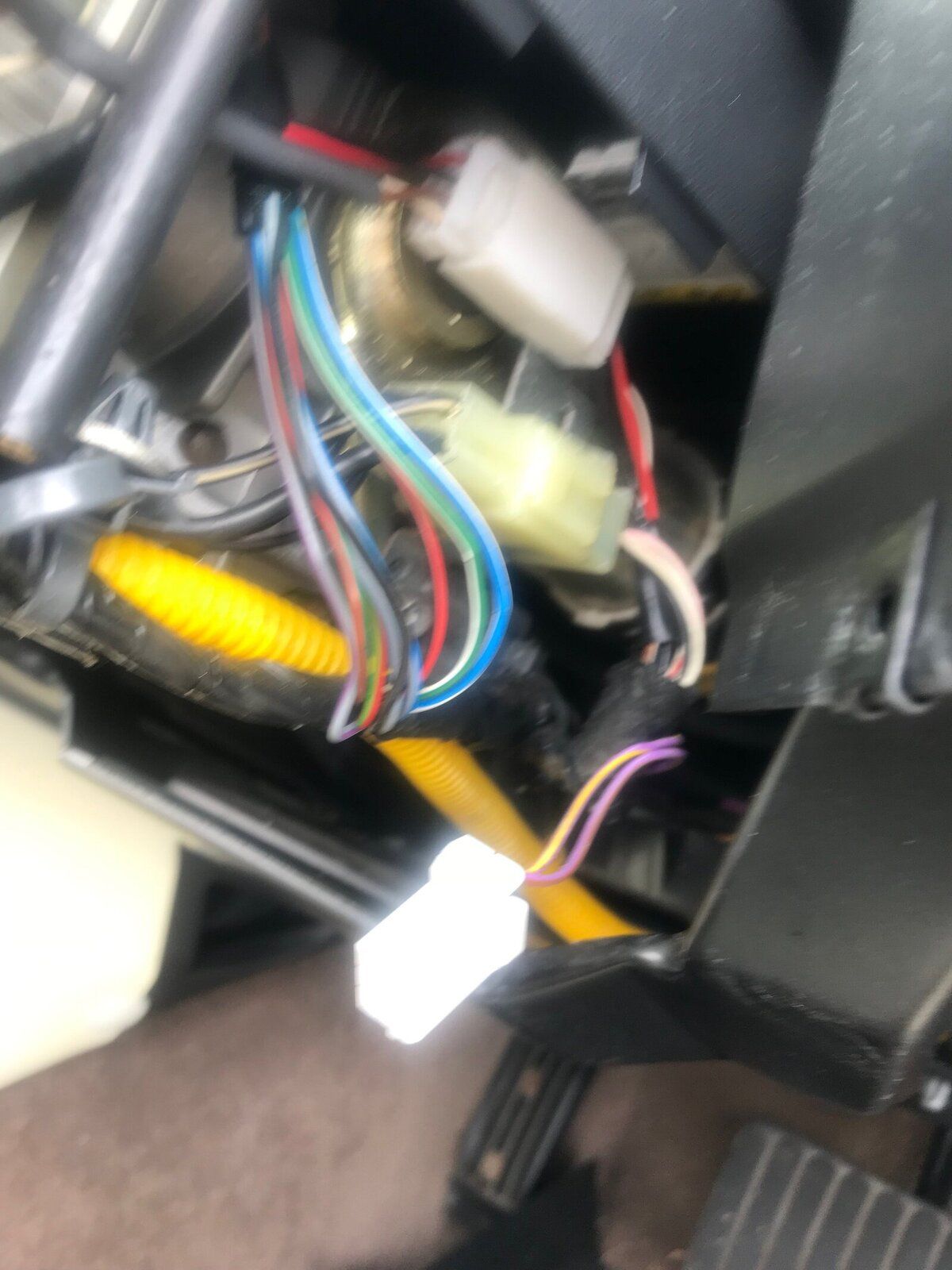

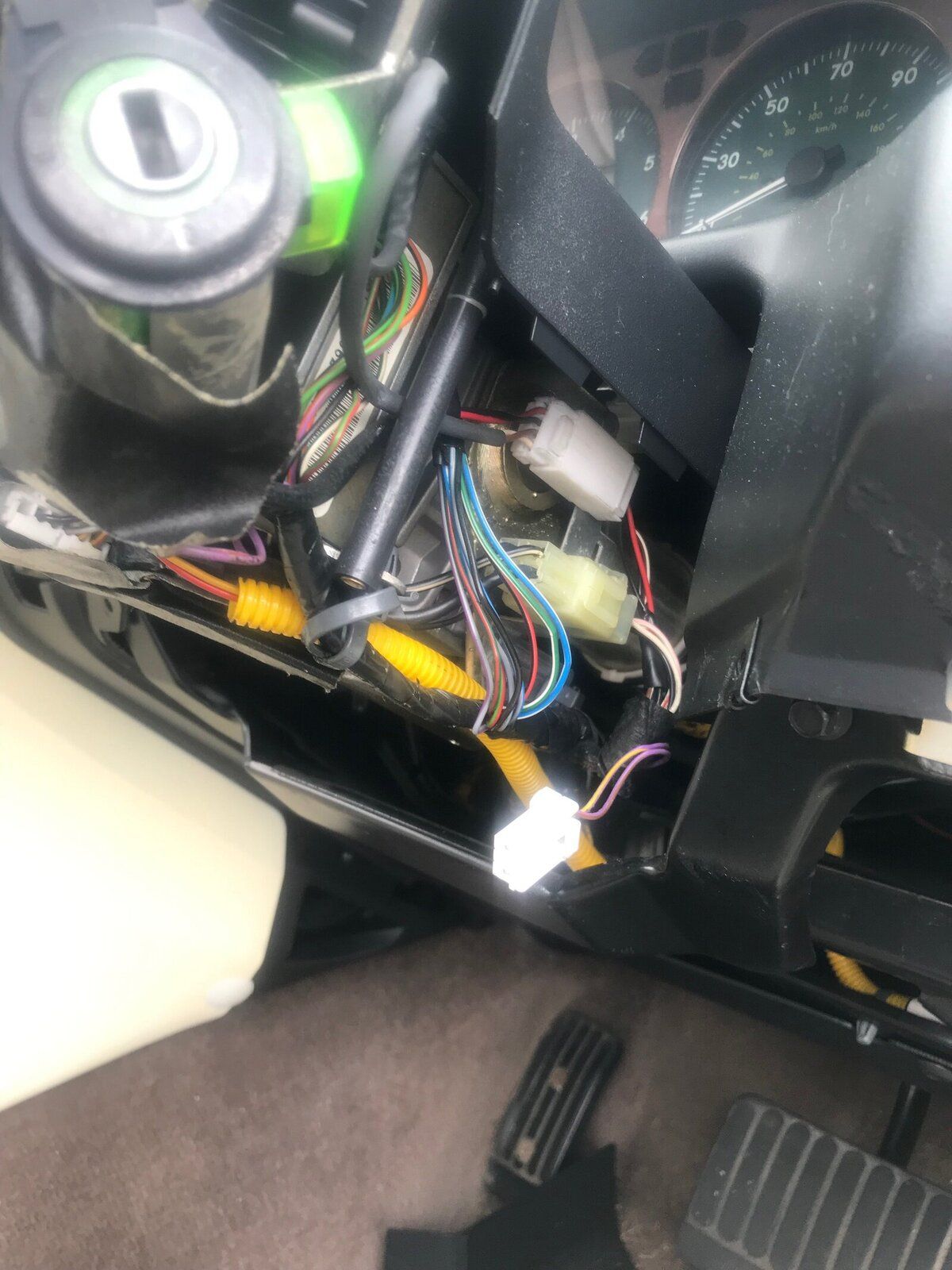

Had a chec both bulbs light the same but cannot find the yellow connection under the steering wheel but have found something unplugged but can't c where it's supposed to go so not sure what it's for will post a pic in a bit

pete12345 · Jul 21, 2019

Here's that plug for no use purple wires

pete12345 · Jul 21, 2019

Srs problems solved moved the bulbs about Mabey one was not right or wiring loose and disconnected the the plug under the steering cleaned with contact cleaner re connect and all good to go on to the next job replace all the bushes

pete12345 · Jul 21, 2019

Thanks for help yet again and told the enemy saved us £100 by doin it myself she was always worried an air bag would go off in her face oh ye of little faith

Datatek · Jul 21, 2019

pete12345 said:
I've had the pre tensioners apart and cleaned them already will check the bulbs and do the only connection I've not done under the steering wheel

I don't remember anything for more than 5 minutes these days

Pleased you got it sorted.
