2002 Freelander1.
Following on from the last thread, the working replacement instrument cluster was fitted & the result was,,,, Speedo/rev counter remained still, not working.
So my question is: where does the info for the Speedo & rev counter come from? As it is quite clearly not being sent to my panel. I presume some electronic relay/sender in the gearbox or?



pwood999

Well-Known Member

Full Member

• Wednesday at 20:07

• #2

It's explained in RAVE - Workshop Manual system Decription



C

curlycat

Member

• Thursday at 12:12

• #3

pwood999 said:

It's explained in RAVE - Workshop Manual system Decription

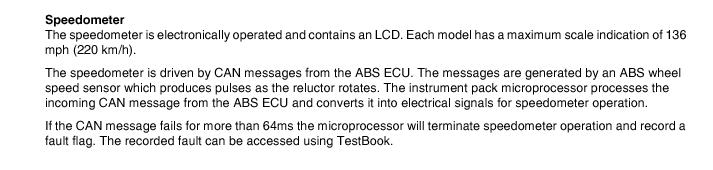

View attachment 320661

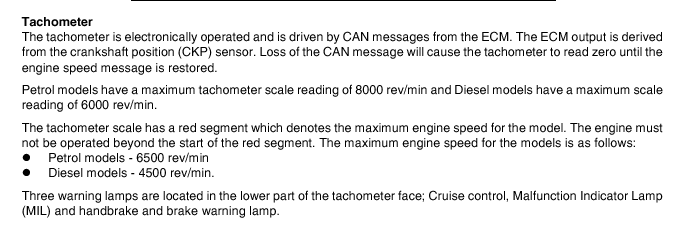

View attachment 320662

Click to expand...

Thank you for the info & I will try to find a copy of Rave as I understand from other posts it is no longer published.



Freddie17

Can’t re Member

Full Member

• Thursday at 17:50

• #4

Search on here for Rave - there are ‘how too’s’ and copies of the disk available.
(Search under @Hippo )

It is a number of disk images - you’ll need a pc to run/read it (an old one will do), but it is invaluable for an F1.
It is the official Land Roverer workshop details. Waaay better than Haynes.



C

curlycat

Member

• Thursday at 18:20

• #5

Thanks Freddie, I will look it up & download it.



GrumpyGel

Well-Known Member

• Thursday at 18:44

• #6

Rave disk maintenance manual

I'm putting this ere so I can link to it. If you can see adverts on this page selling car repair manuals, DONT click on them. They're sneaky adverts from google which detect words used in this fred, on the chance you will be attracted to click on said advert. The adverts are trying to get you...

landyzone.co.uk
