Hi, I have a series 3 running 7.50 x 16 tyres with early Range Rover diffs, I’ve done a quick search and Google gives me a different result each time for Range Rover ones but would anyone be able to advise on the correct colour/number of teeth for the speedo drive gear for this set up?

Thank you



dantaylor360

Active Member

• Saturday at 14:52

• #2

dantaylor360 said:

Hi, I have a series 3 running 7.50 x 16 tyres with early Range Rover diffs, I’ve done a quick search and Google gives me a different result each time for Range Rover ones but would anyone be able to advise on the correct colour/number of teeth for the speedo drive gear for this set up?

Thank you

Click to expand...



Attachments

•

  646 KB · Views: 20

dag019

Well-Known Member

• Saturday at 19:34

• #3

I may be wrong but I don't think the series speedo drive uses colours, and I am not sure if there is different gearing or not. it is a very different setup to the defender style with the coloured cogs. A standard series speedo drive pinion is part number FRC1536 and looks like the below:

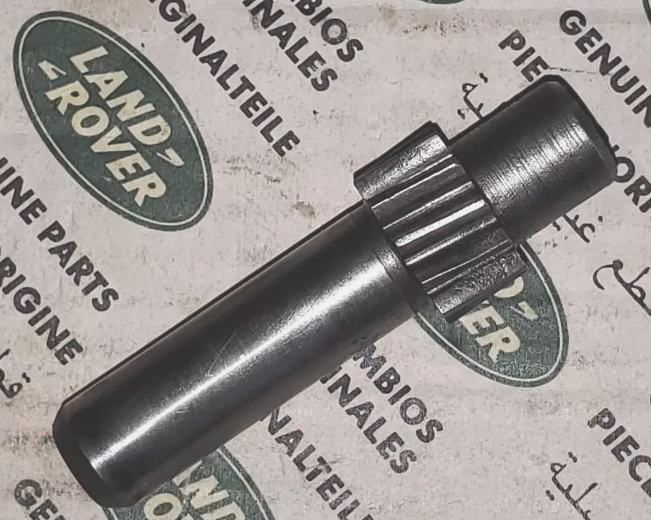

But i am sure someone with more in depth series gearbox knowledge will be along to correct me shortly.



H

Hicap phill

Well-Known Member

• Saturday at 20:51

• #4

Find a gearbox diagram/parts for a 109.
This would have the correct drive to use



boguing

Well-Known Member

Full Member

• Saturday at 21:31

• #5

Hicap phill said:

Find a gearbox diagram/parts for a 109.
This would have the correct drive to use

Click to expand...

I've had a look at my parts book and the only difference in drives is for the 109 V8 - and totally different setup.

'Standard' Except for 1 Ton and 109 V8.

I Ton.

109 V8



H

Hicap phill

Well-Known Member

• Saturday at 21:49

• #6

@boguing That’s confused me then….



dantaylor360

Active Member

• Saturday at 22:16

• #7

boguing said:

I've had a look at my parts book and the only difference in drives is for the 109 V8 - and totally different setup.

'Standard' Except for 1 Ton and 109 V8.

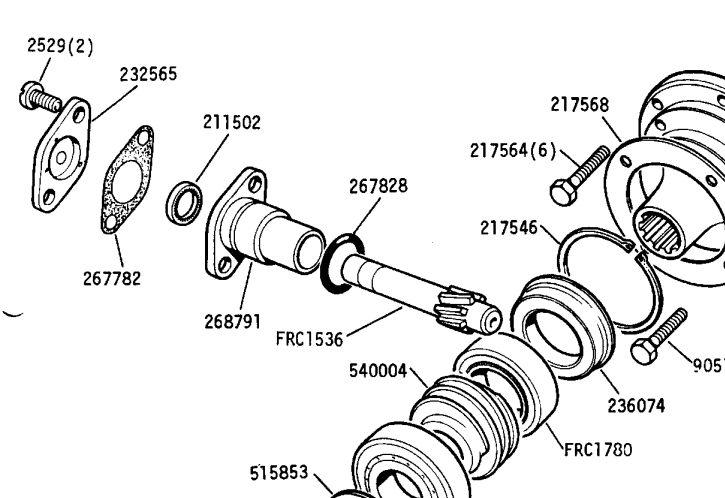

View attachment 321341

I Ton.

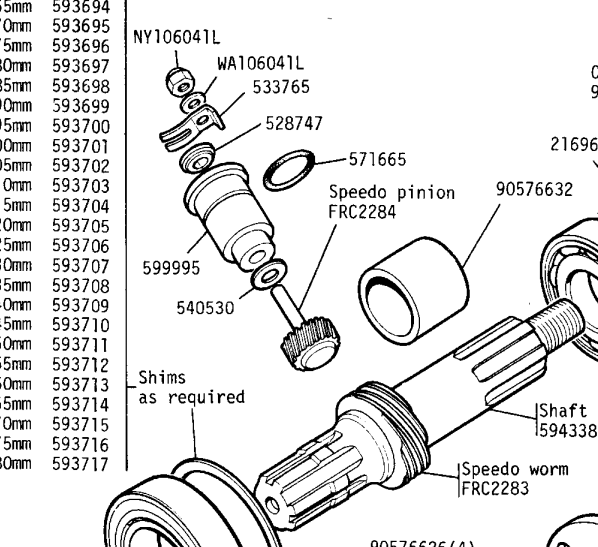

View attachment 321342

109 V8

View attachment 321343

Click to expand...

Thank you - looks like I’m stuck for now then

boguing said:

I've had a look at my parts book and the only difference in drives is for the 109 V8 - and totally different setup.

'Standard' Except for 1 Ton and 109 V8.

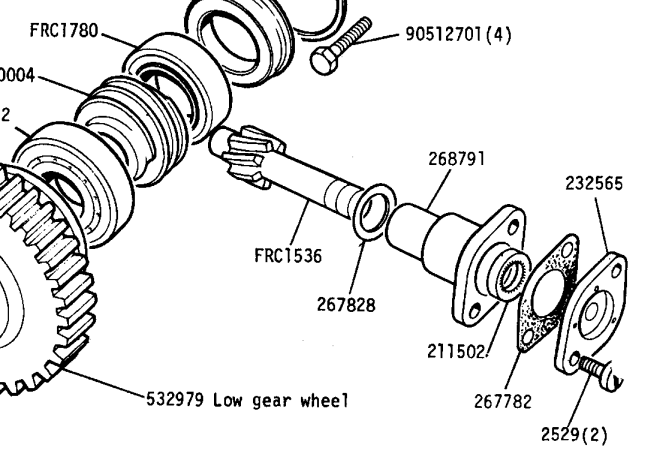

View attachment 321341

I Ton.

View attachment 321342

109 V8

View attachment 321343

Click to expand...

thank you all for replying, looks like there’s no variations on the frc1536 type drive - probably be easier to change the diffs back!



boguing

Well-Known Member

Full Member

• Saturday at 22:34

• #8

If it's happy on taller diffs I'd rather them than an accurate speedo.



steve2286w

Well-Known Member

• Saturday at 22:44

• #9

You can change the speedo calibration



Bobsticle

De Villes Advocaat

• Saturday at 23:29

• #10

I’m sure you have to change it at the speedo end. There are a few recalibration services out there. Not sure if you have to know what your ratio requirement is but they will know.



dag019

Well-Known Member

• Yesterday at 12:25

• #11

boguing said:

If it's happy on taller diffs I'd rather them than an accurate speedo.

Click to expand...

You very quickly get used to the inaccuracy on the speedo and drive accordingly. my 110 is about 8% over read but my series is about a 3% underread. but I am aware of this and you just drive to the "correct" speed limit on your speedo.



tottot

Well-Known Member

• Yesterday at 13:17

• #12

If it is very important like here in Wales [ 20mph in silly places] a satellite speedometer for under £20.



Rangieman123

Active Member

• Yesterday at 20:16

• #13

To the best of my knowledge, Land Rover speedo drive gears in Series 2/3 vehicles are the same. The only difference in speedos was between SWB and LWB models as they came with different sized tyres. A LWB speedo was around 11% undergeared due to being fitted with the larger 7.50's.
If you look closely around the edge of the black part of you speedo face behind the glass you may see some numbers. I do remember that a Mk2 Jag with 3.54 rear end had a speedo cable rate of circa 1,200 revolutions per mile.
Range Rover diffs will change your gearing by 32%.
You could either get your speedo recalibrated, or fit a wee gearbox to the cable which I've seen in the USA.
