A

Aeromole

Member

• Sep 5, 2018

• #1

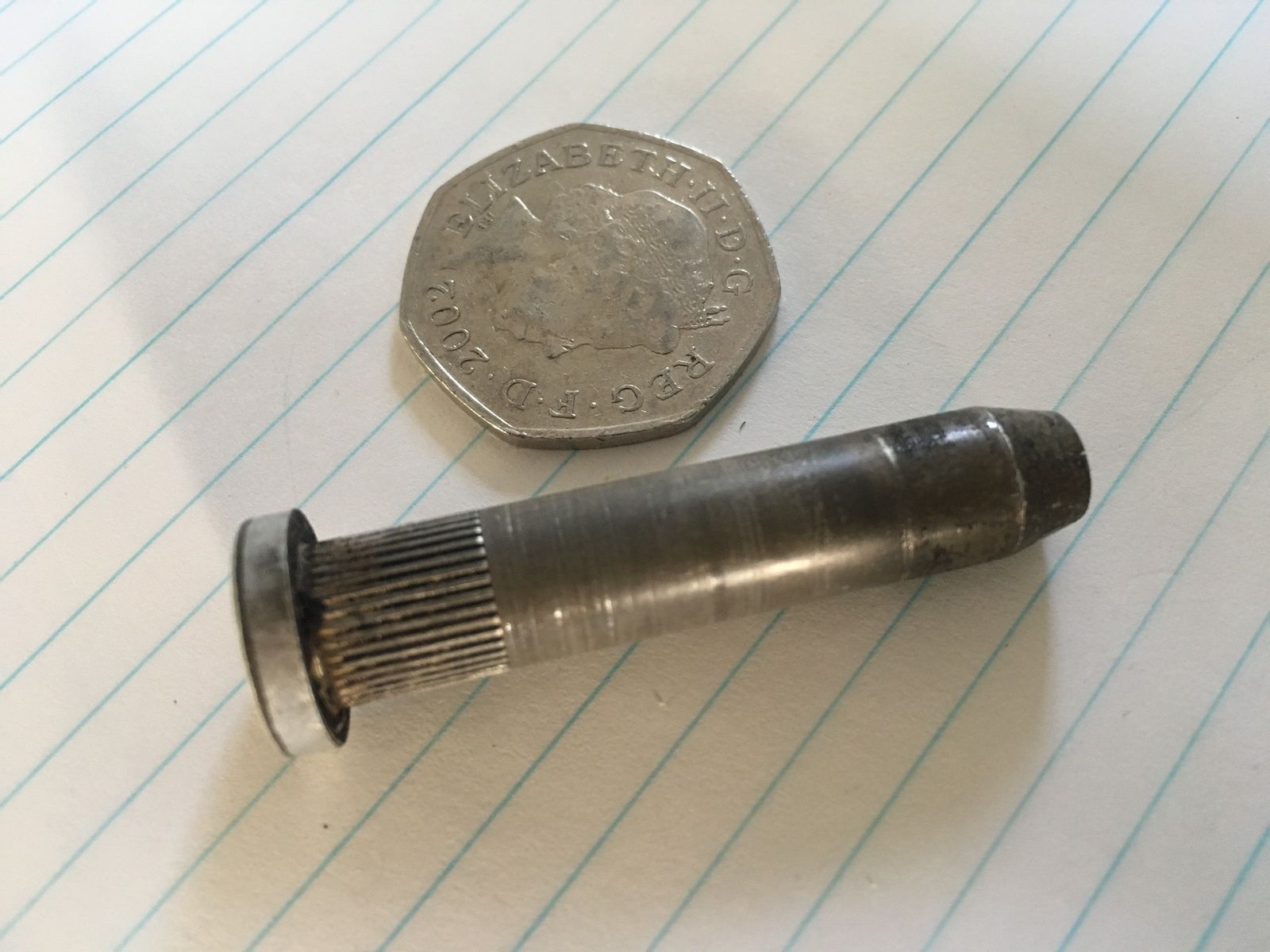

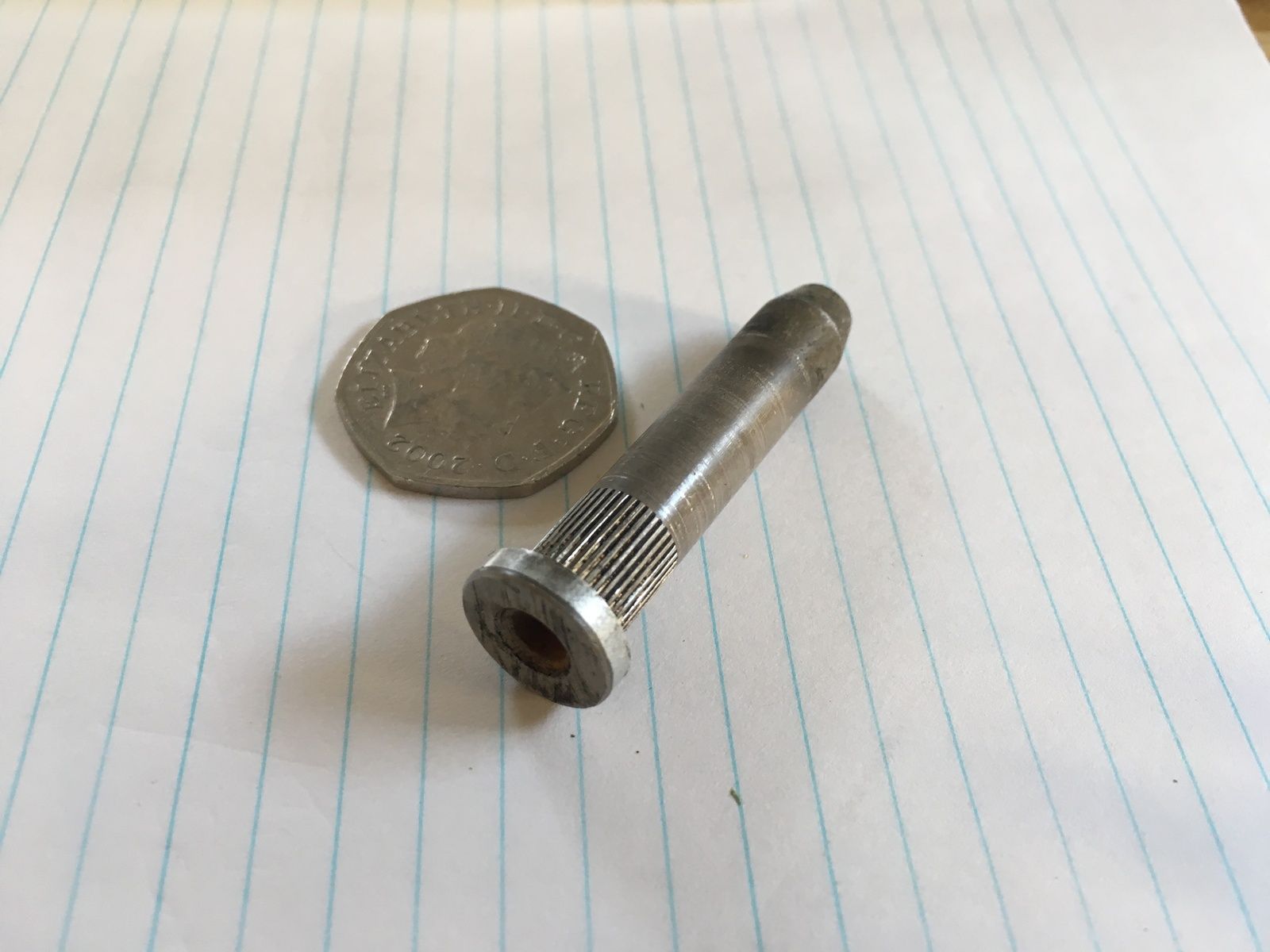

Hi. I've just replaced the head gasket on my 2002 TD5 Disco. Job went tolerably well, and the truck is running again, but.....rather embarrassingly I have a spare part! I know I took it off, but I can't for the life of me see where it came from. Pictures attached. It looks like a water flow restrictor - the hole inside is brownish. Can anyone help please....and more importantly, advise me whether I should be worried that it is not fitted! Thanks in anticipation. Pete



Lazydave

Well-Known Member

• Sep 5, 2018

• #2

I believe this is fitted inside the coolant hose near to fuel cooler. It is fitted when a later type radiator is fitted. It alters flow rate.



neilly

Well-Known Member

• Sep 5, 2018

• #3

Look here and scroll down to cooling unit and fan cowl diesel. look at piccie.

https://allbrit.de/NAV.cfm?PAGE=544149&SPRACHE=EN

Cheers



Interceptorxj

Well-Known Member

• Sep 5, 2018

• #4

Yes just pops in the front end of the fuel cooler before you put your pipe on.



A

Aeromole

Member

• Sep 5, 2018

• #5

Ah, I see! Many thanks guys. Pete
