Devlin · Sep 19, 2011

What can you tell me about these, whats the round thing behing dip stick tube, whats the little pipe at the back of the turbo hose, and is it egr blankedhttp://www.landyzone.co.uk/lz/attachment.php?attachmentid=25391&stc=1&d=1316425807http://www.landyzone.co.uk/lz/attachment.php?attachmentid=25392&stc=1&d=1316425807
http://www.landyzone.co.uk/lz/attachment.php?attachmentid=25393&stc=1&d=1316425807
Hope I have done this right
Dev

jamesmartin · Sep 19, 2011

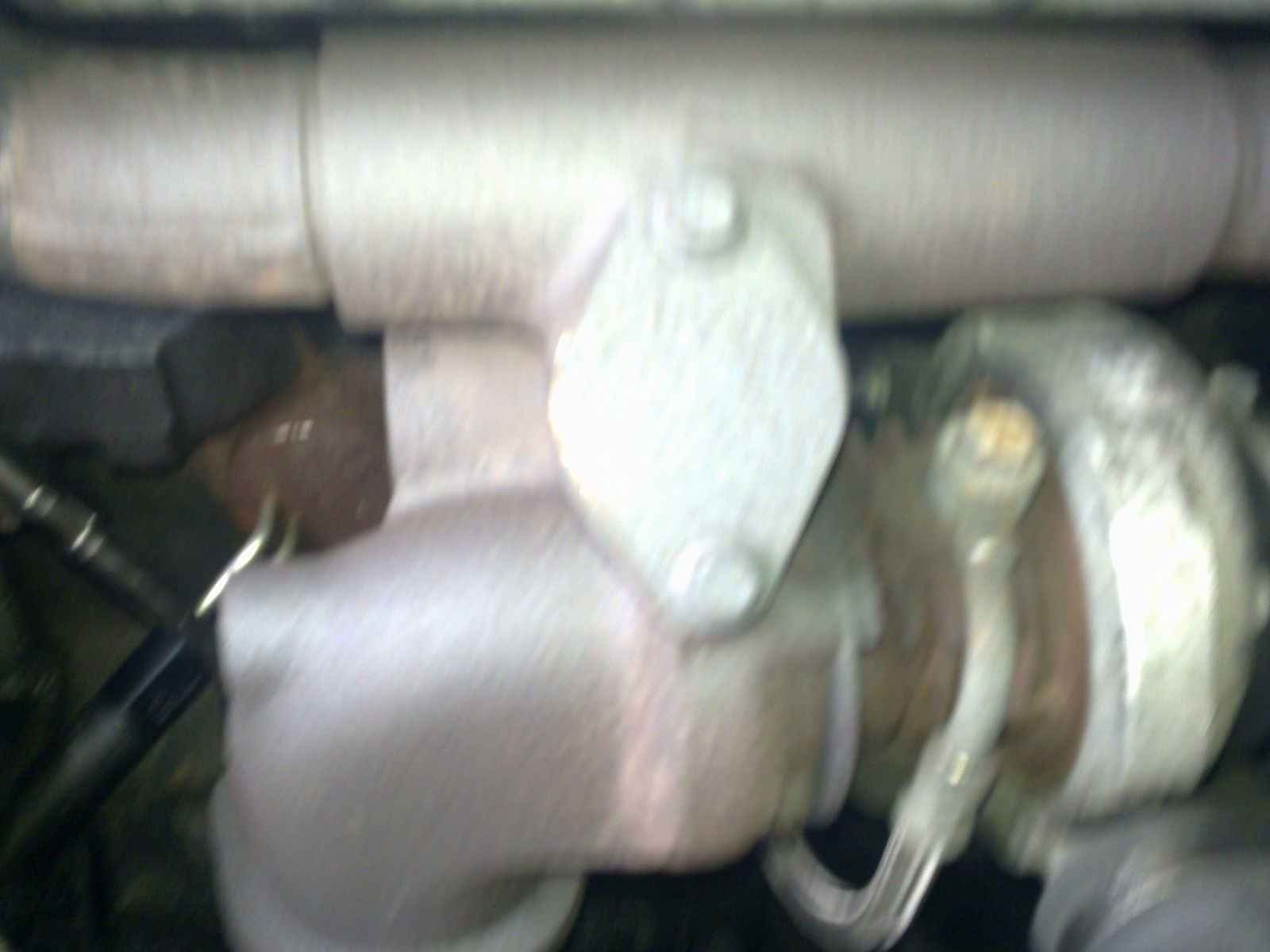

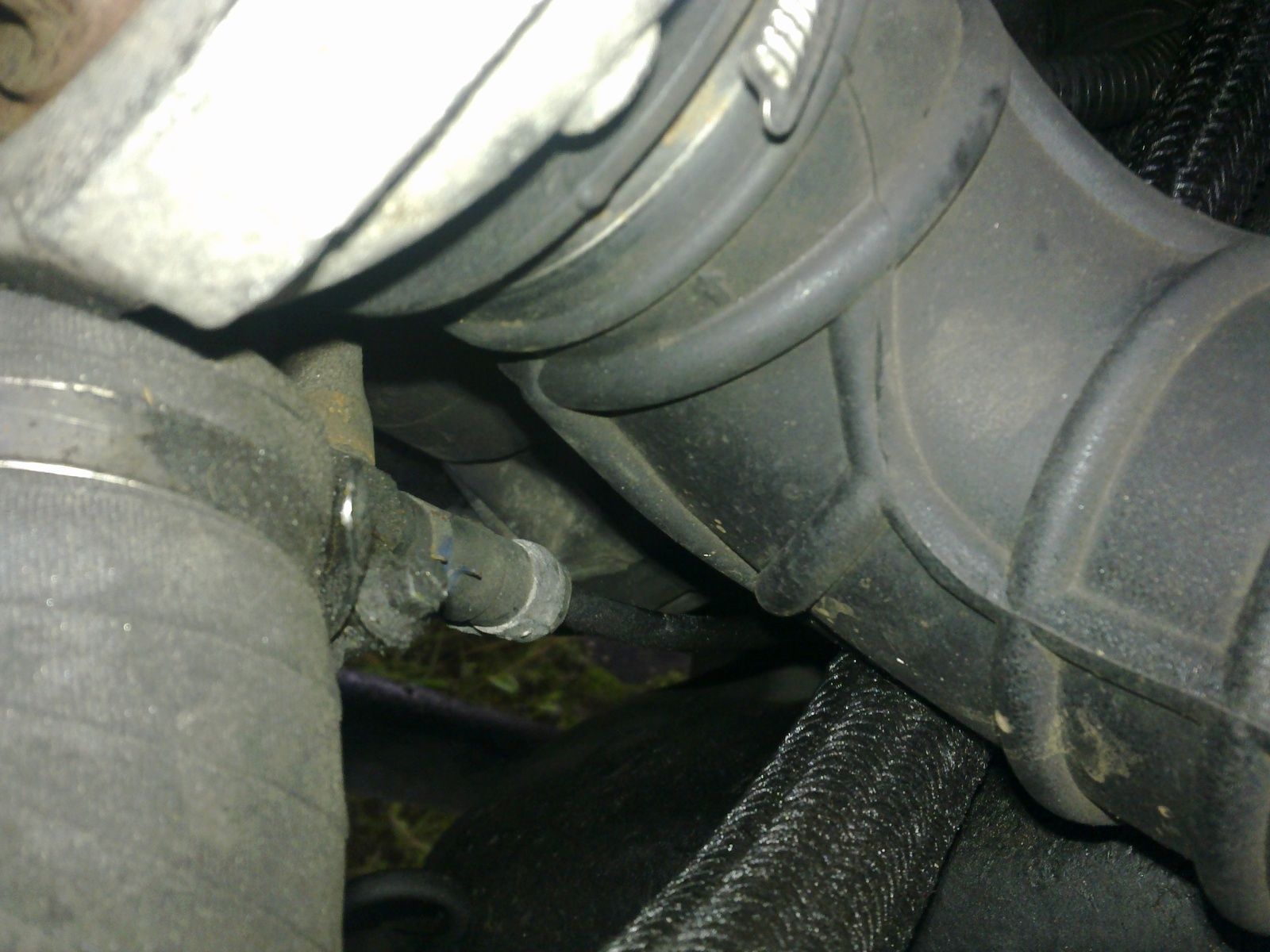

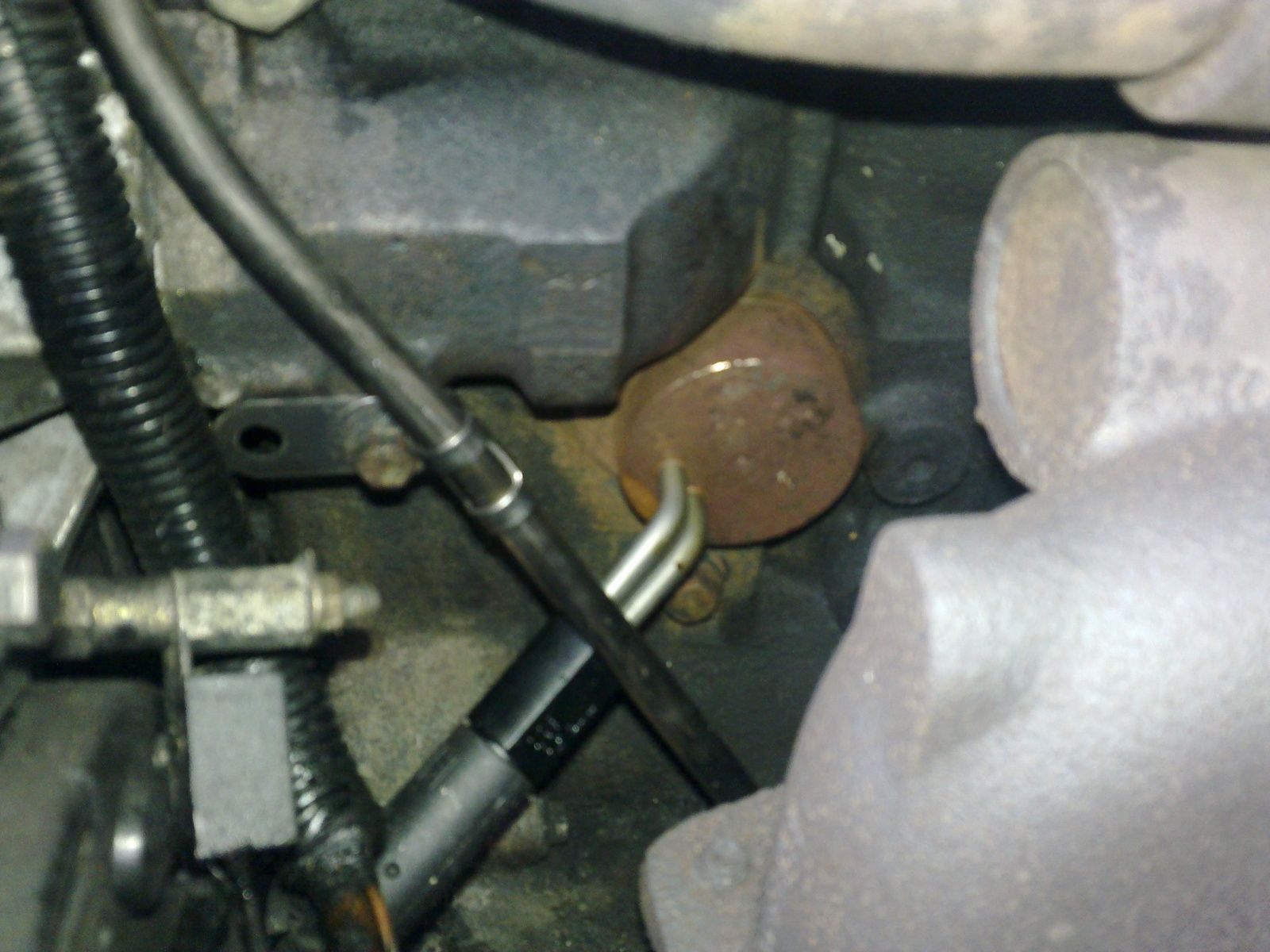

looks like water preheater ,little pipe should have 2 pipes coming off one to top of injection pump to give boost pressure feed for pump diaphragm to give more fuel as more air is forced in by turbo and feed for wastegate actuator,egr is blanked

Devlin · Sep 19, 2011

Thanks James
Dev

jamesmartin · Sep 19, 2011

no problem ,trace your feed from injector pump top back has it been atached to inlet manifold rather than your little fitting on turbo housing
