harvey4x4 · Tuesday at 15:23

anyone got the part number for the axile hub shims(front hub spigot behind the spring clip)?
also the thread size of the cv shaft,hub end to pull the shaft out?
1991,110 defender TD5.
Cheers
Steve.

meego · Tuesday at 16:06

harvey4x4 said:
anyone got the part number for the axile hub shims(front hub spigot behind the spring clip)?
also the thread size of the cv shaft,hub end to pull the shaft out?
1991,110 defender TD5.
Cheers
Steve.

1991 TD5 ??

meego · Tuesday at 16:09

harvey4x4 · Tuesday at 16:39

meego said:

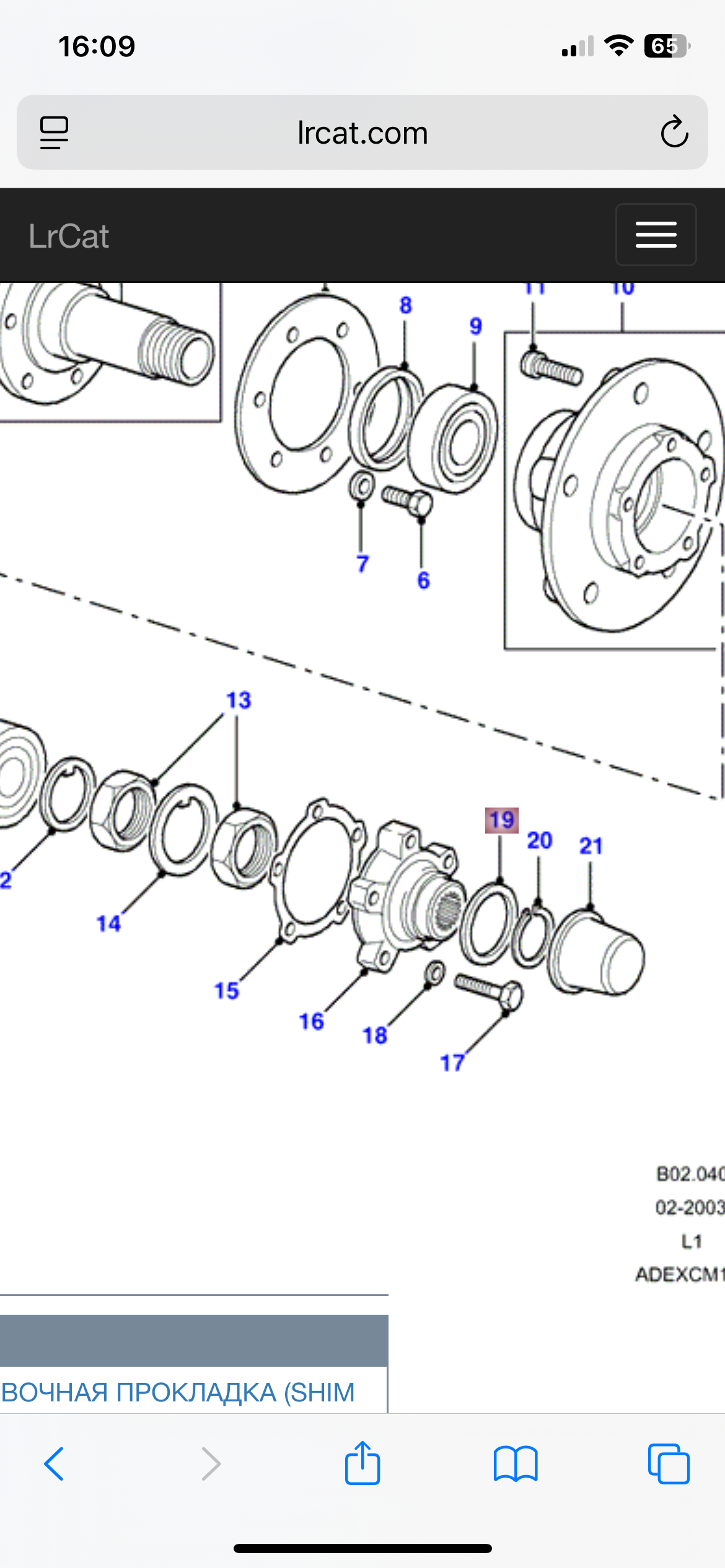

View attachment 347510

Thanks!!!

meego · Tuesday at 16:45

harvey4x4 said:
Thanks!!!

If you let me know what number on that image is the part you want, I’ll let you know the part number. From your post I assumed it was number 19 (that isn’t the part number)

Hicap phill · Tuesday at 16:47

meego said:
If you let me know what number on that image is the part you want, I’ll let you know the part number. From your post I assumed it was number 19 (that isn’t the part number)

Will be 19

meego · Tuesday at 16:54

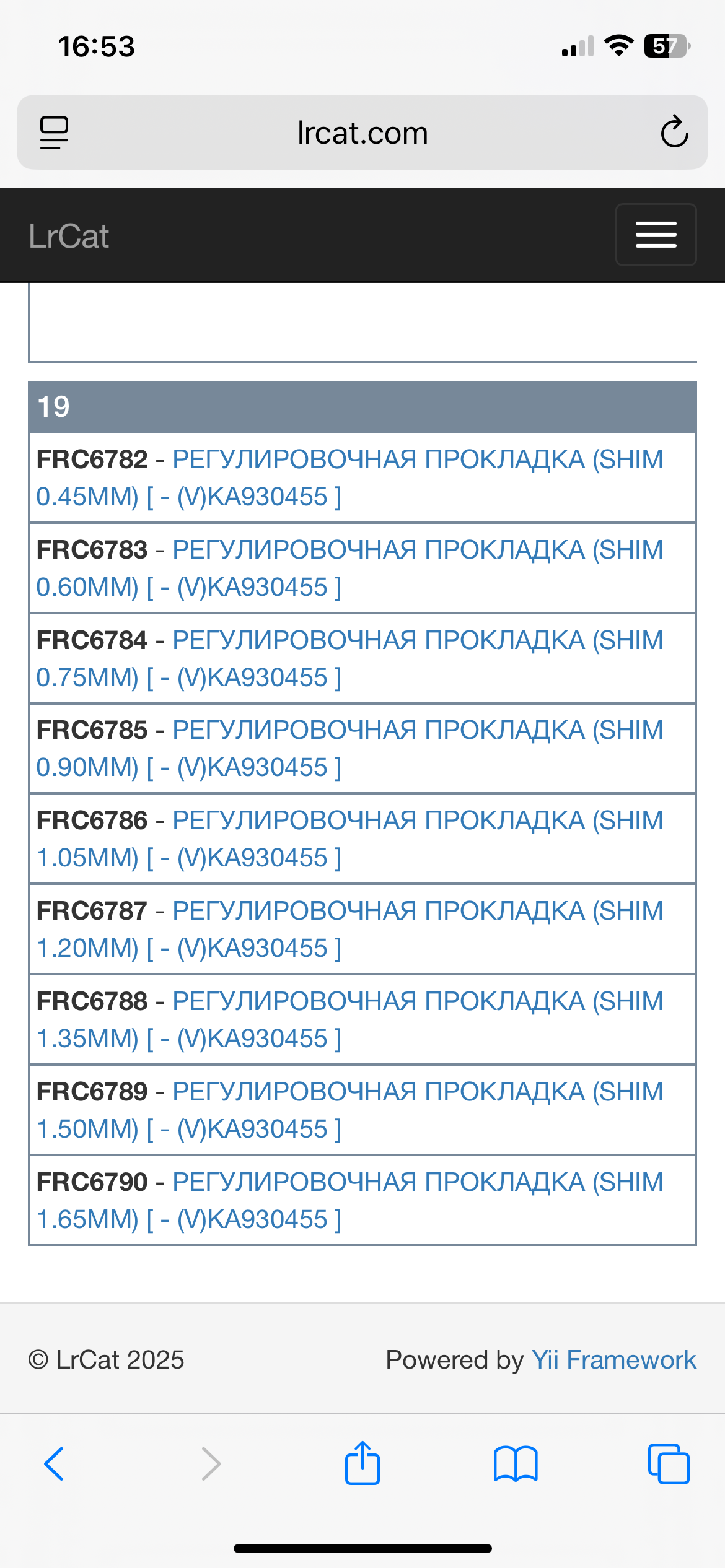

Here is the list of shims

harvey4x4 · 2025-08-14T12:11:36+0100

Hicap phill said:
Will be 19

Thanks,Iv now cracked the problem!
There are 9 different sized shims starting with #FRC 6782 @ 1.5mm down to point 45mm
the diagram helped a lot.Steve.

meego · 2025-08-14T12:34:46+0100

harvey4x4 said:
Thanks,Iv now cracked the problem!
There are 9 different sized shims starting with #FRC 6782 @ 1.5mm down to point 45mm
the diagram helped a lot.Steve.

It’s always good to get feedback on posts and responses. Thanks. Some come on and get help then disappear without letting us know how they got on.
