Loafer61

Member

• Saturday at 04:47

• #1

It’s a 3.9l EFi with a serpentine belt running around the water pump, fan, power steering and alternator, so the steering going very heavy was the give away. I turned around and immediately found the belt on the trail, in unmarked condition. Refitted it a couple of times and it leapt straight off again on turning over.

It appears the alternator pulley has broken, it is very wobbly but the retaining bolt neither comes off or tightens. I’ll take the whole assembly off and take to a shop, but I wondered if anyone else has experienced this?



Loafer61

Member

• Saturday at 04:52

• #2

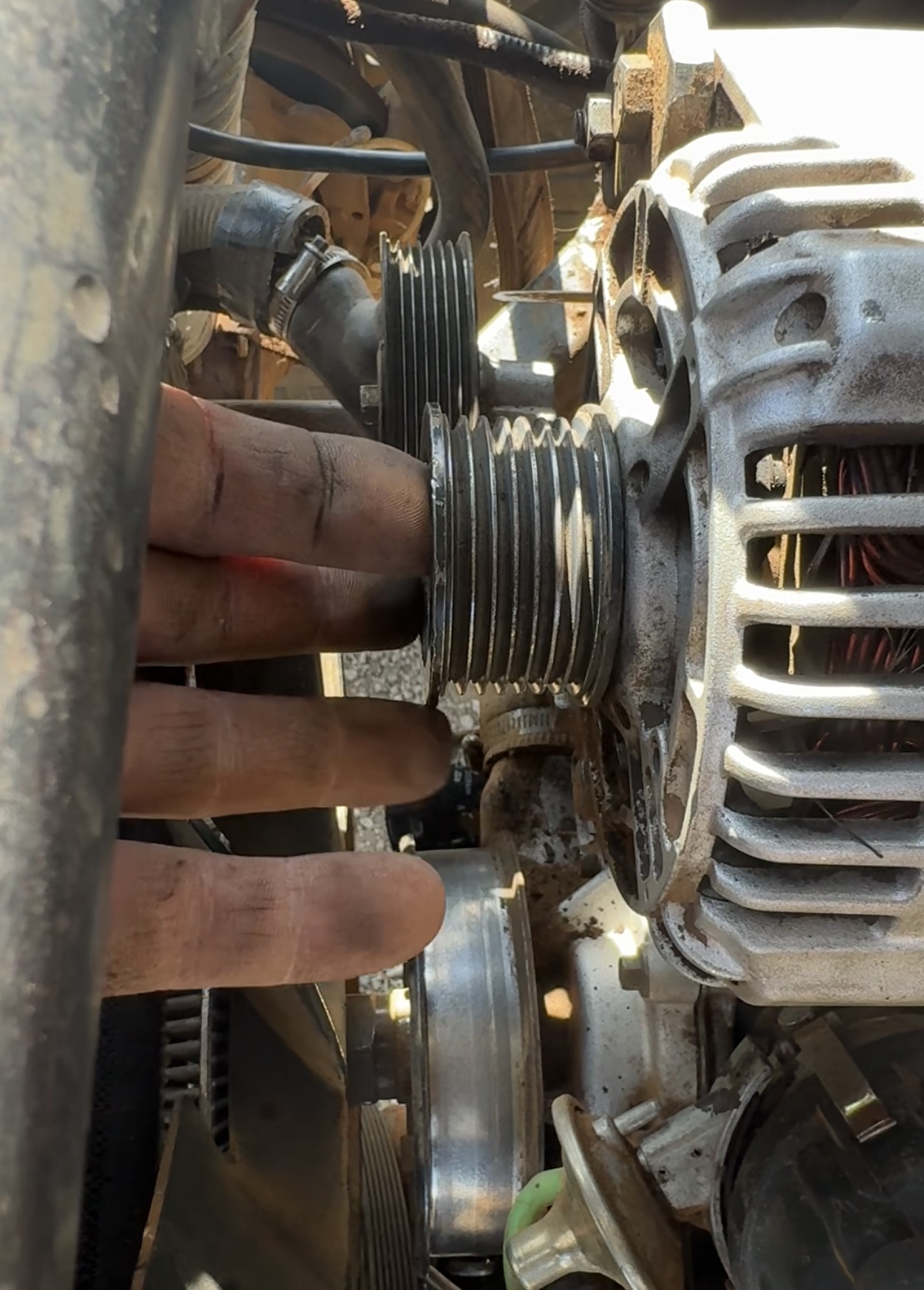

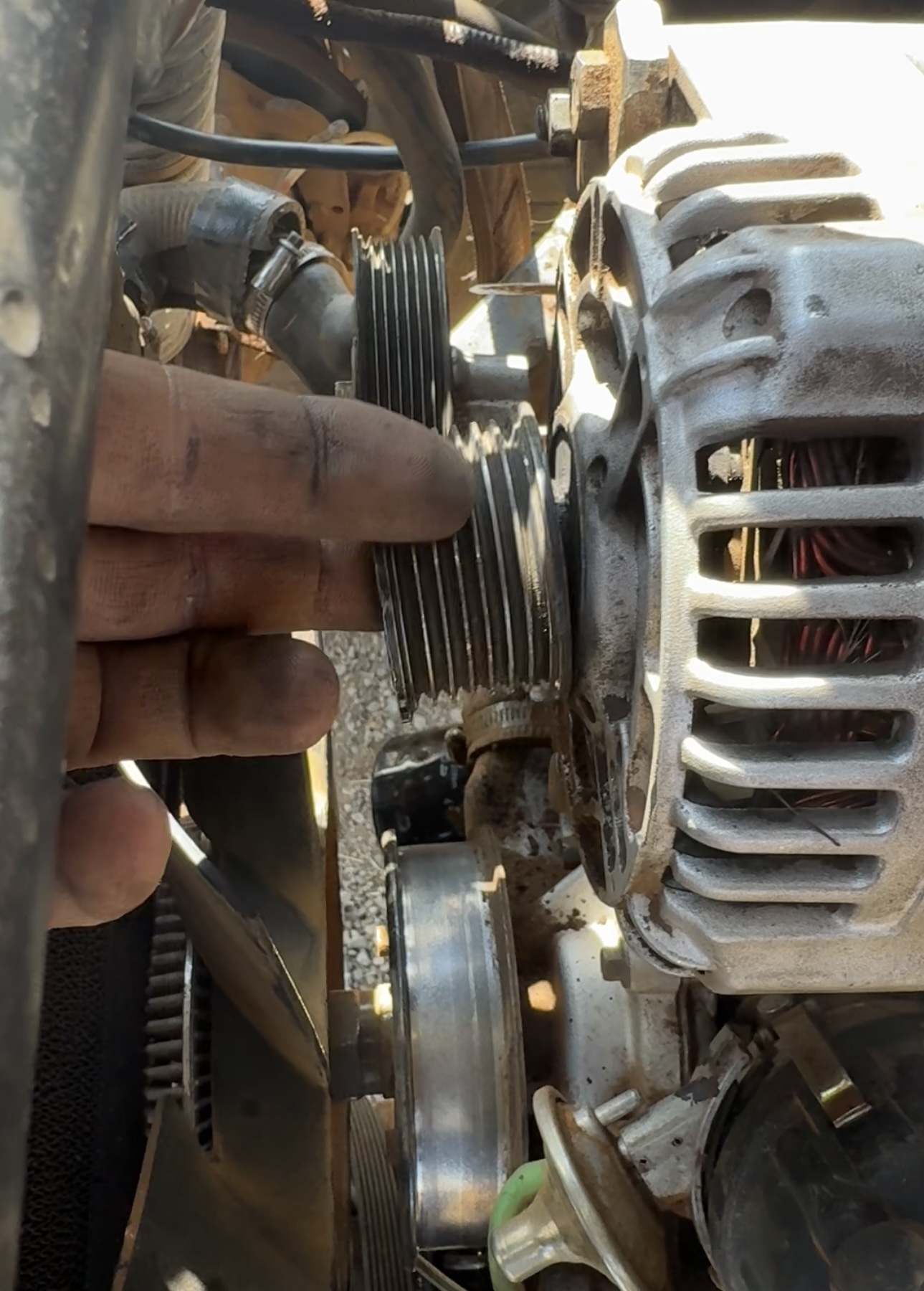

Here we go…

Probably a bit close to the alternator housing, but I pushing it back with my fingers.

It appears to move around, without moving the windings. Out of interest, what does the cone with the green tube at the bottom of the picture do? Tube goes to the inlet manifold.



Dippypud

Never Knowingly Understood

Full Member

• Saturday at 06:20

• #3

Loafer61 said:

Here we go…

Probably a bit close to the alternator housing, but I pushing it back with my fingers.

View attachment 335574

It appears to move around, without moving the windings. Out of interest, what does the cone with the green tube at the bottom of the picture do? Tube goes to the inlet manifold.

Click to expand...

The cone is part of the vacuum assy of the distributor ignition system, don't know what the green tube is though ...

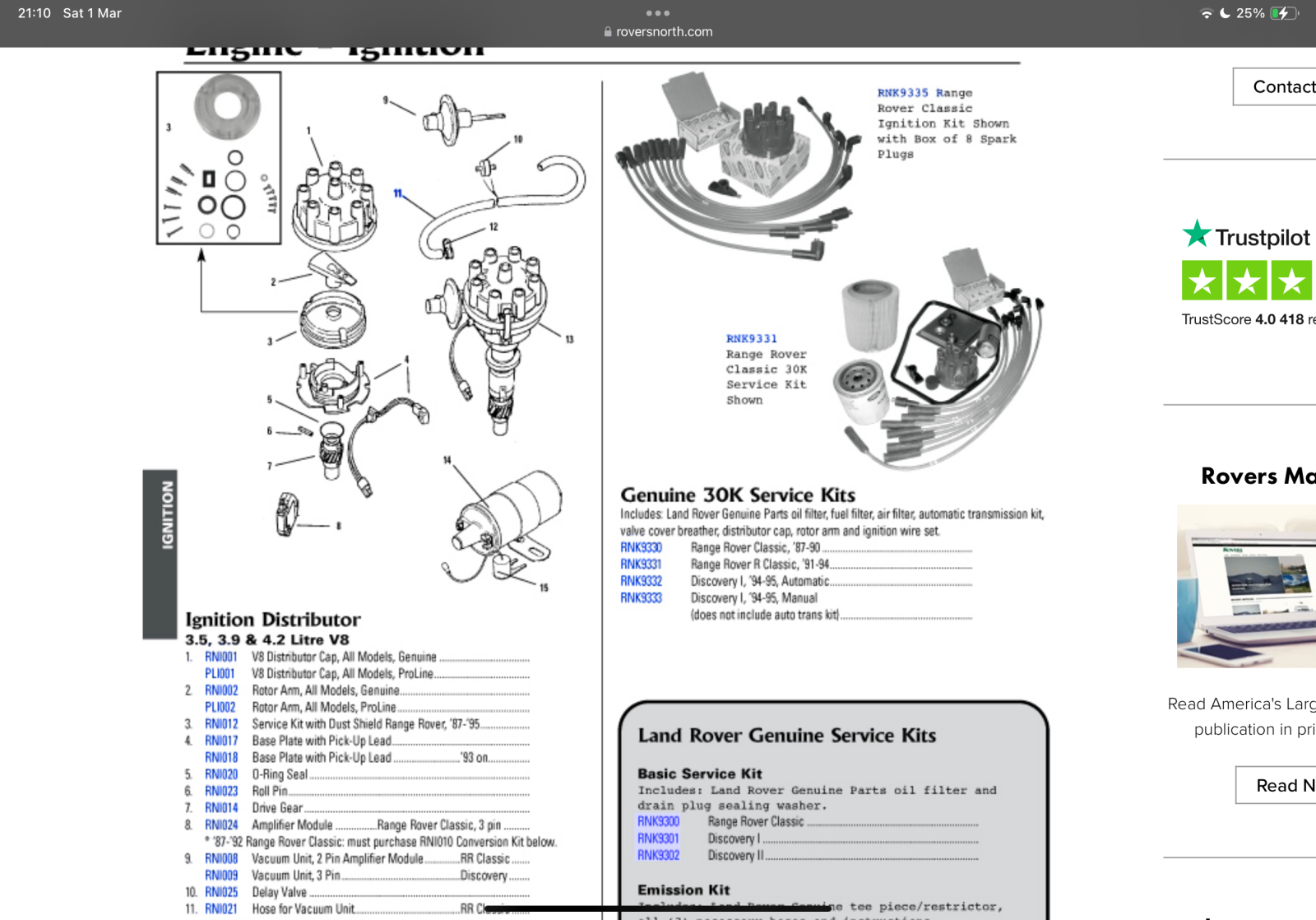

Distributor Assy 3.5/3.9/4.2L V8 EFI PLI019 | Rovers North - Land Rover Parts and Accessories Since 1979

New V8 EFI Distributor assembly. Complete, ready to drop in. OEM assembly with Lucas ignition module. FITS: 3.5, 3.9, & 4.2 liter Rover V8 with electronic fuel injection. Defender 1993-1997, Range Rover Classic 1987-1995 & Discovery I 1994-1995 Additional Images...

www.roversnorth.com



marjon

Well-Known Member

Full Member

• Saturday at 06:21

• #4

Yep thats broke .

The green hose looks like it could be the Vac advance from the distributor does the other end go up to the intake manifold

J



H

Hicap phill

Well-Known Member

• Saturday at 07:47

• #5

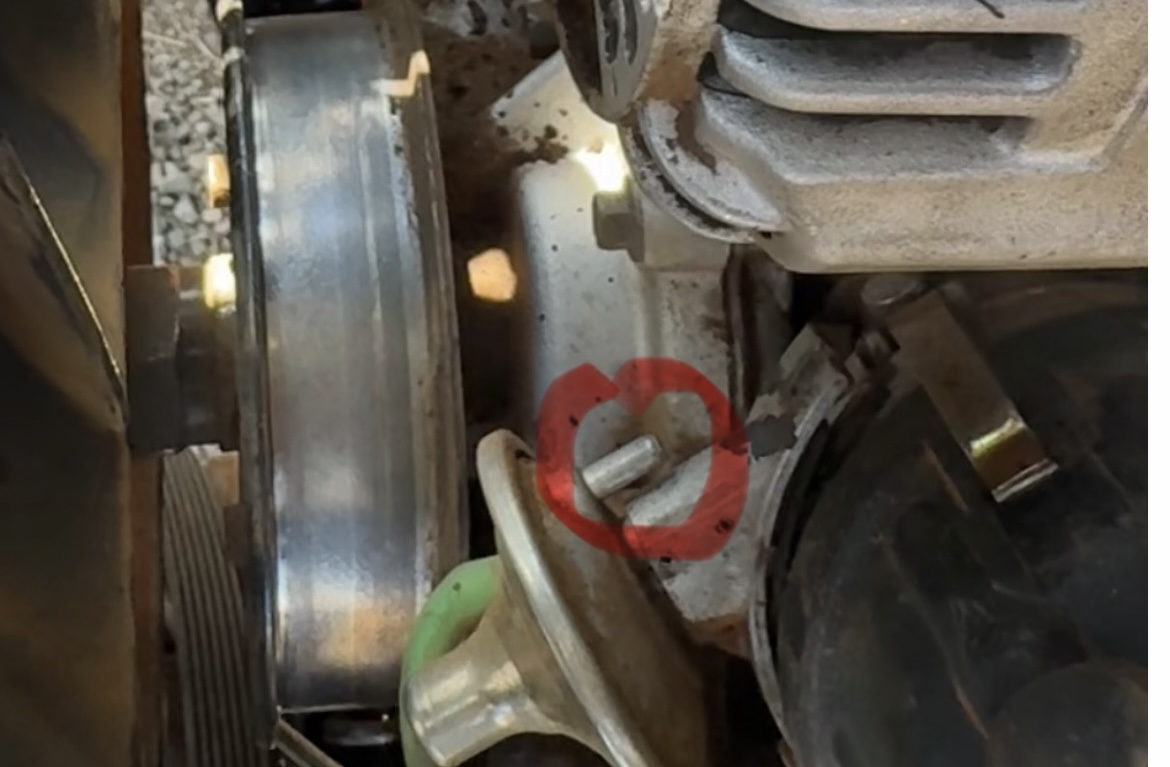

Green pipe should go back on here



Loafer61

Member

• Saturday at 07:55

• #6

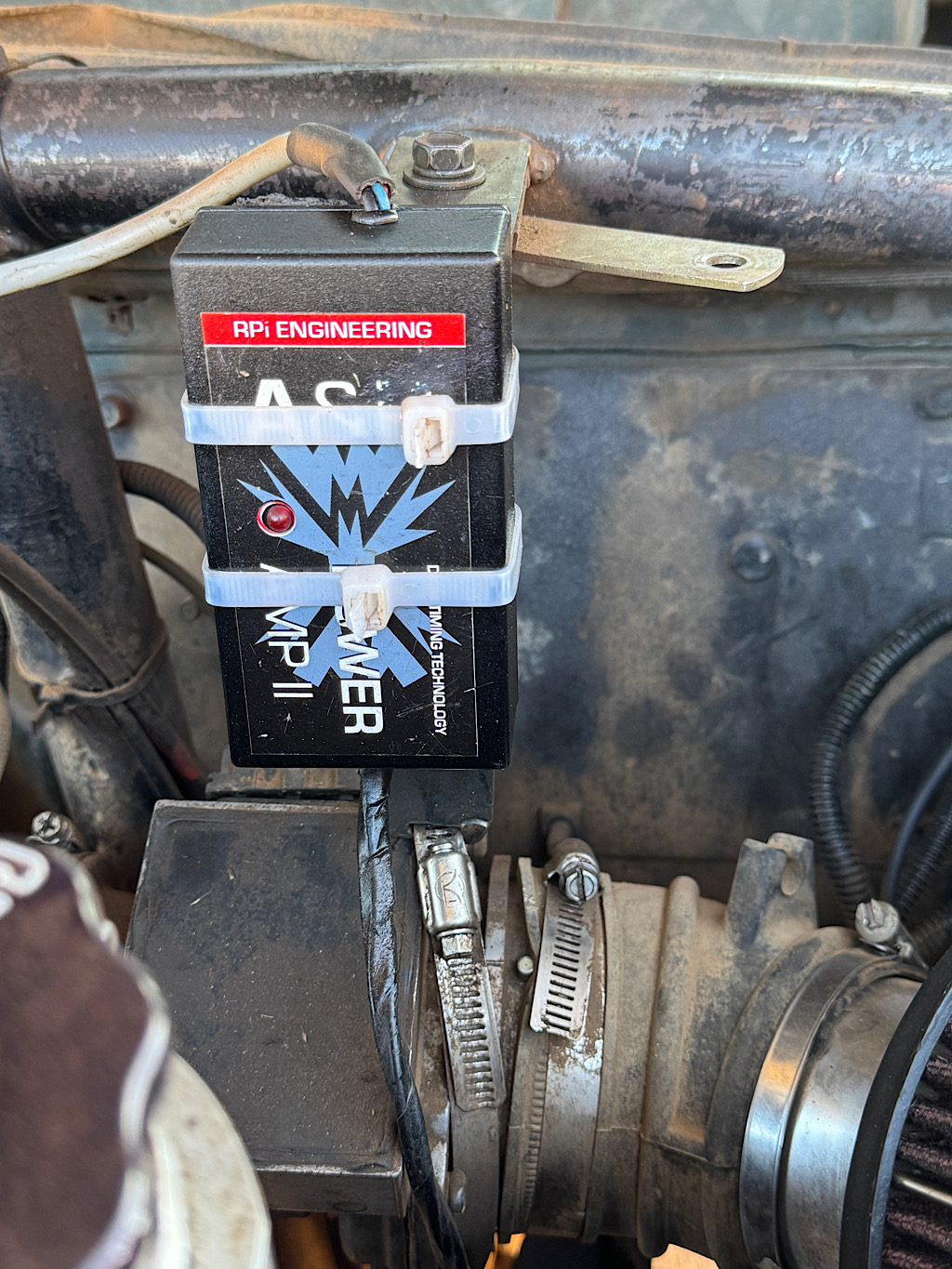

I’ll take a decent picture, but it does go from a tab on the other side of that one you have marked to the inlet manifold, yes. Just to add to the fun, I’m running a RPi Engineering ignition system (and a big K&N). I am in the process of adding more heatshrink to everywhere to safeguard wires!



Loafer61

Member

• Saturday at 07:59

• #7

A little info on it here: https://www.landyzone.co.uk/land-ro...n-ur-disco-today.307164/page-270#post-5803530
