Joss155

Well-Known Member

• Oct 12, 2018

• #1

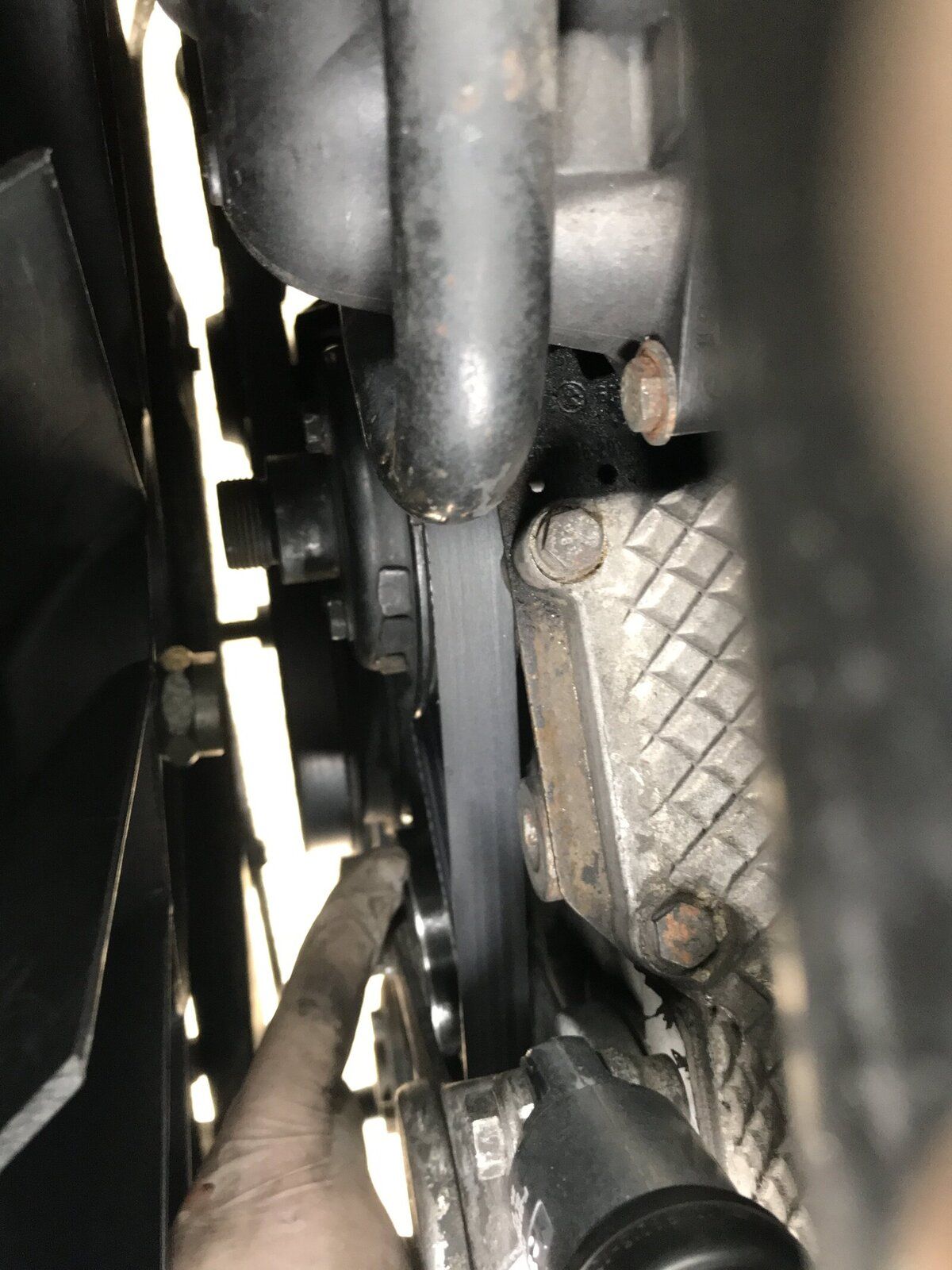

I was changing the belts as it had started to squeak. Rebuilt and back together but I notice the main tensioner seems bent over. Its pulling the new belt off and into the tensioner bracket slightly. Could have been like this for a while. Checked the idler and the bolt. Both seem fine. Installed it back to front just to see if it made any difference but it still runs off to the back. So assuming whole new part. You can see the belt has run to the back of the idler in the picture.



Joss155

Well-Known Member

• Oct 12, 2018

• #2

So had a browse of parts.

STC2126
STC2127
STC4608
This makes up the tensioner and guide. I see the main body has been superseeded so I guess it’s a common issue. Going to have a look at RAVE and find the tool to remove it.



Joss155

Well-Known Member

• Oct 12, 2018

• #3

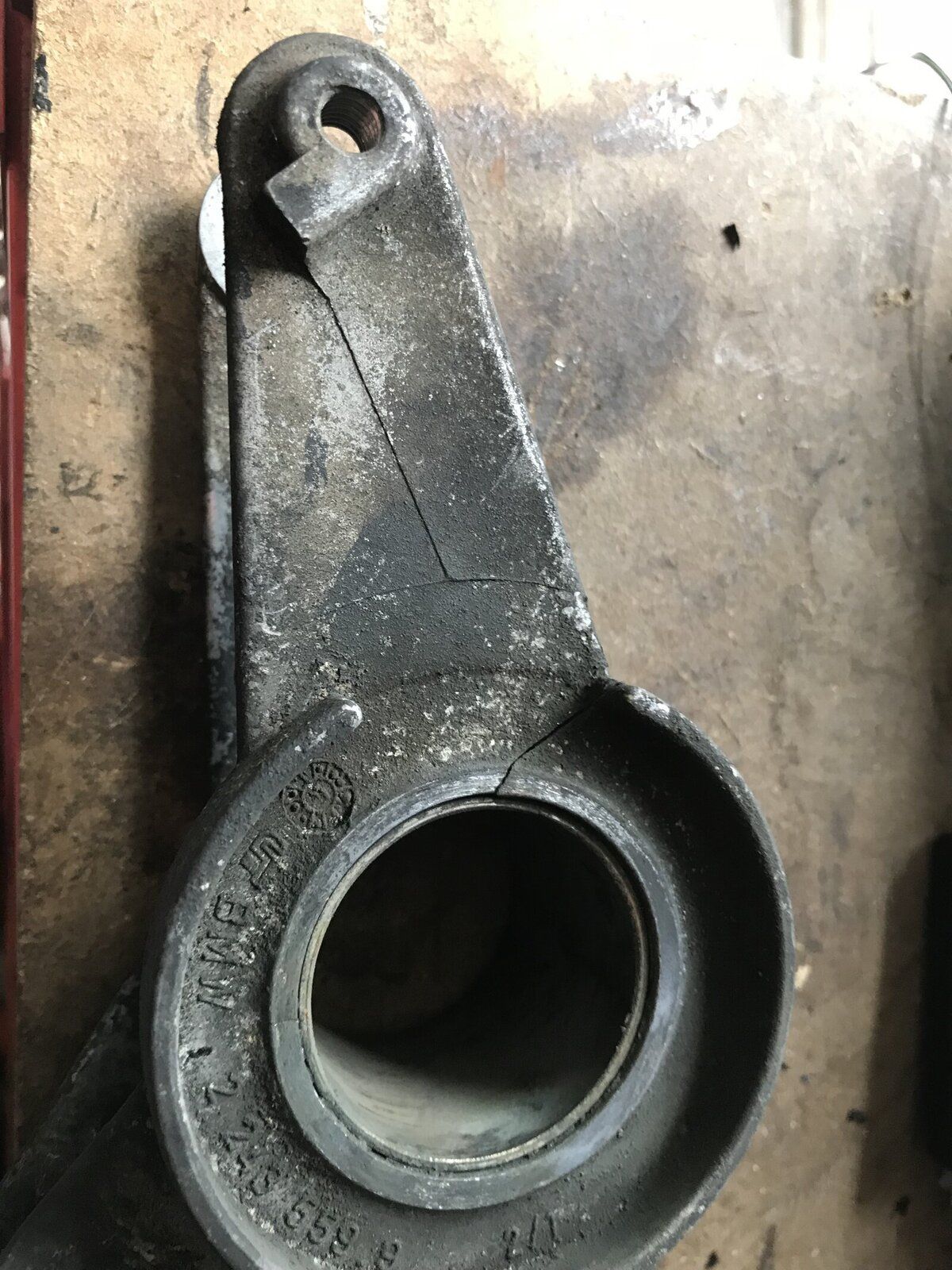

Answered my own question. Anyone got an arm kicking about before I order a new one?



ukadamwest

Well-Known Member

• Oct 12, 2018

• #4

i would suggest that a crack in the arm might lead to the belt being pulled backwards



Grrrrrr

Technician, Bodgit & Scarper Ltd

Full Member

• Oct 14, 2018

• #5

Yes, common fail. @Rick-the-Pick went through about 3 in quick succession and ended up modding it.



Joss155

Well-Known Member

• Oct 15, 2018

• #6

I'm wondering if I can make up a special lever to take the tension off. It seems you are either leaning on the spring tensioner (my old one was smashed at both ends by previous removals from other people) of you lever the side other the bracket which puts a side load on it.



wammers

No longer with us, RIP

Donater

• Oct 15, 2018

• #7

Joss155 said:

I'm wondering if I can make up a special lever to take the tension off. It seems you are either leaning on the spring tensioner (my old one was smashed at both ends by previous removals from other people) of you lever the side other the bracket which puts a side load on it.

Click to expand...

Done properly releasing belt tension is easy and puts no strain on the tensioner arm at all. Let alone any sideways pressure. Hamfistedness can break it though i suppose.



Joss155

Well-Known Member

• Oct 15, 2018

• #8

wammers said:

Done properly releasing belt tension is easy and puts no strain on the tensioner arm at all. Let alone any sideways pressure. Hamfistedness can break it though i suppose.

Click to expand...

Well that's just it. The way described looked like it damaged the spring tensioner. I replaced mine because from what I could tell 1 of the previous owners had used this method and smashed it to pieces. There was only half the bottom bolt hole left. I had been using this other method which seemed fine to try and avoid this. Anyway the point is it had already failed from what I could see causing the squeak.



Last edited: Oct 15, 2018

wammers

No longer with us, RIP

Donater

• Oct 15, 2018

• #9

Joss155 said:

Well that's just it. The way described looked like it damaged the spring tensioner. I replaced mine because from what I could tell 1 of the previous owners had used this method and smashed it to pieces. There was only half the bottom bolt hole left. I had been using this other method which seemed fine to try and avoid this. Anyway the point is it had already failed from what I could see causing the squeak.

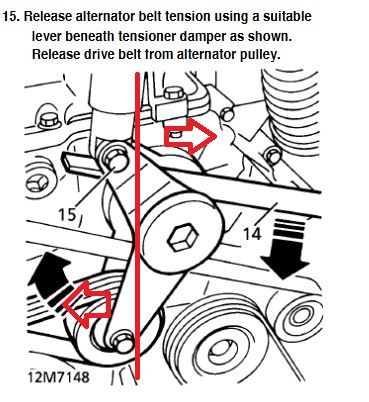

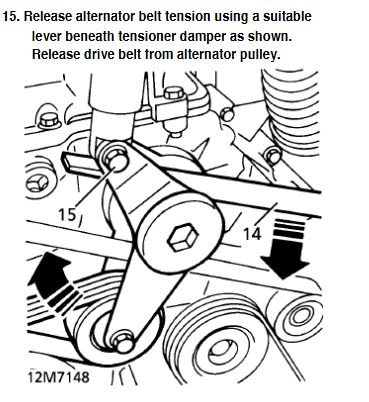

View attachment 160874 View attachment 160875

Click to expand...

Not using that method he didn't as long as the tensioner arm was not seized onto the shaft.



Joss155

Well-Known Member

• Oct 15, 2018

• #10

Hadn't thought of that. Well either way it's getting fixed
