dag019

Well-Known Member
Does anyone have a series three wiring diagram, I am assuming it is not very complex.

After using the series as a daily for a week while repairing the oil cooler pipe on my 110 i have noticed that my front side lights do not work. the tail lights work, the headlight work just no front sides. I have done no investigation so far (it could be as simple as both bulbs blown at the same time). but I thought it best to consult the wiring diagram before I go trying to pull things apart and hunt for 12V.

I have one somewhere.. one mo...

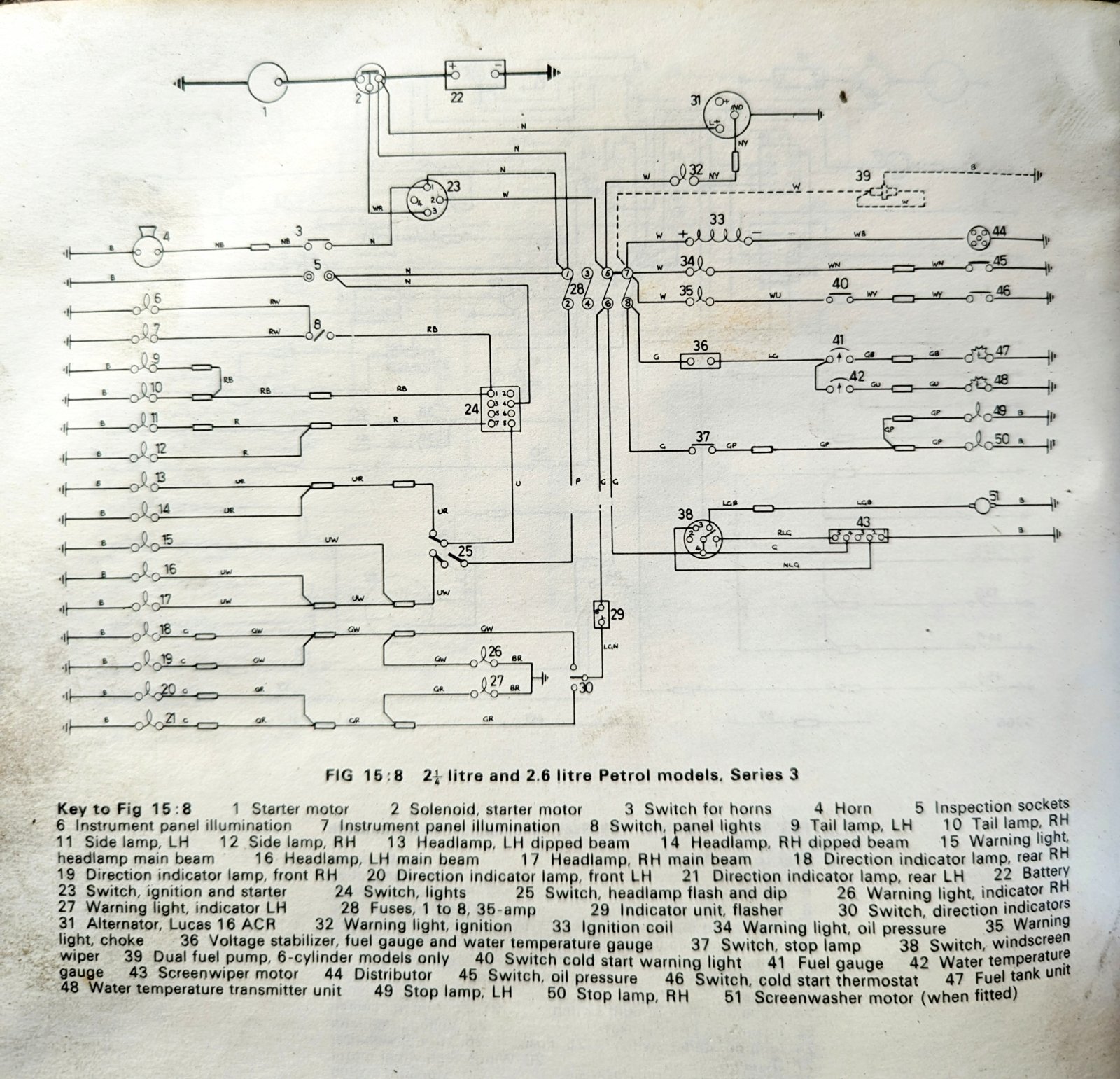

I do but can't find it here's a pic from my book..

Last edited:
check the lighting switch for feed to front side lamps ( 7) as the terminal may have become detached as the front and rear are on different terminals

check the lighting switch for feed to front side lamps ( 7) as the terminal may have become detached as the front and rear are on different terminals
many thanks, that I did not know, hence the request for a wiring diagram, I had assumed that as the tail lights were working the switch etc was good and it would be a wiring fault somewhere else.

Blown bulbs or crap connections

Get the testers out
That is my plan for the next step but may need to wait a little while as I have fields to cut as the weather is good this weekend!


According tot he wiring diagram posted by @kermit_rr (many thanks) the tail lights and the dash illumination come form the same place (6,7,9,10) and the side lights are separate. however I have lost sides and dash illumination is it likely/possible that the setup I have had the dash illumination linked to the side lights not the tail lights?
