Good afternoon all,

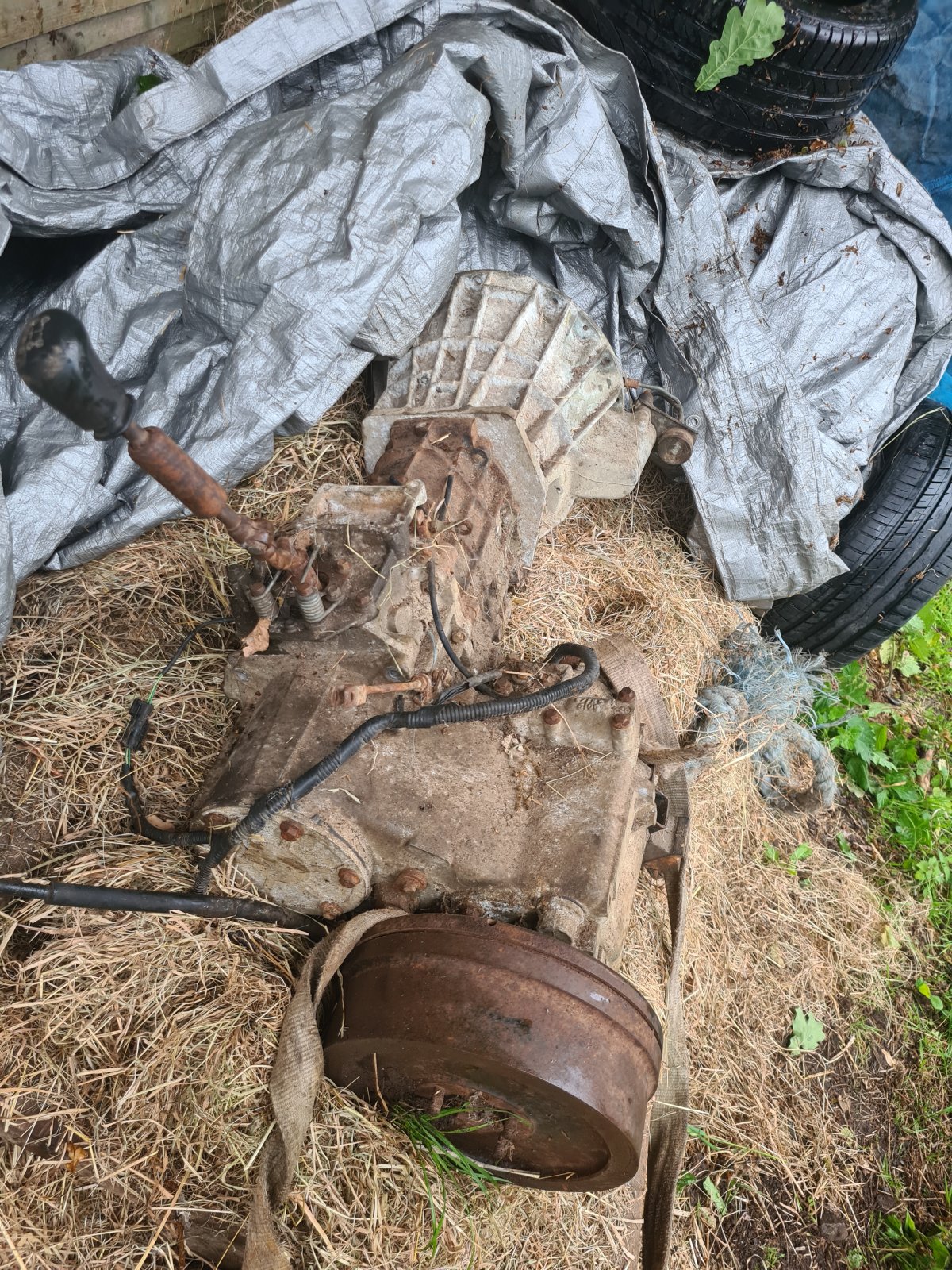

I have taken all the bolts out of the lt230 in the below picture, but she just won't budge. I can see that it's free, when I move the box up and down it's got a small amount of separation.

Am I missing something here, is there a bearing or something that's stopping the shaft from coming out?


Thanks all



Attachments

•

  692.1 KB · Views: 31

H

Hicap phill

Well-Known Member

• Tuesday at 19:29

• #2

Take the round back plate off(by the handbrake) remove the gear. As splines may be worn & holding it on…

Or some one has put a nut on the end of the shaft for fun



L

lynall

Well-Known Member

Full Member

• Tuesday at 19:54

• #3

Hicap phill said:

Take the round back plate off(by the handbrake) remove the gear. As splines may be worn & holding it on…

Or some one has put a nut on the end of the shaft for fun

Click to expand...

Or welded it!



tottot

Well-Known Member

• Tuesday at 22:02

• #4

Heard of the above done to sell off a knackered box before!



Lej

Active Member

• Wednesday at 07:25

• #5

Oh boy I sure hope not... Thanks all- I'll get back with my findings...



Brown

Well-Known Member

Full Member

• Wednesday at 08:09

• #6

Don't forget the bolt between the R380 and the front nose cone of the transfer box. It's easy to miss because it's hidden.



Lej

Active Member

• Yesterday at 21:26

• #7

Thankfully it was just being stubborn, some sharp rocking and it separated, thanks all!
