chazadagreat

Active Member

• Mar 21, 2017

• #1

HI all,

just wondering where the best place to run a wire from the engine bay to the cab would be any easy access holes?

Cheers



sierrafery

Well-Known Member

• Mar 21, 2017

• #2

Better explain what you are after cos there might be a solution without running a wire if it's only about one



chazadagreat

Active Member

• Mar 21, 2017

• #3

sierrafery said:

Better explain what you are after cos there might be a solution without running a wire if it's only about one

Click to expand...

i want to run a power wire from the battery to a amp in the back



brian47

Well-Known Member

• Mar 21, 2017

• #4

There is a fairly large grommet already in the bulkhead behind the fusebox but it's not easy to get to. I have used it to thread a couple of wires through, but they were "standard" thickness wires. You might have to invent some other holes for any thicker power feeds though.



sierrafery

Well-Known Member

• Mar 21, 2017

• #5

What load?(how many amp should it support)... the accessory socket can bear 25A and if you dont tow a caravan the unused live for the S12 Socket behind the rear RH lamp is 30A



chazadagreat

Active Member

• Mar 21, 2017

• #6

well its quite a chunky cable its 4 gauge wire. its to support a 1000w sub i have from my old car.



sierrafery

Well-Known Member

• Mar 21, 2017

• #7

Follow the bonnet release cable, push a rigid wire(e.g straightened coat hanger) through the grommet near it into the engine bay, fix the cable to the wire with duct tape and pull it into the cabin...that's the easyest way i found



Marmaduke

Well-Known Member

• Mar 22, 2017

• #8

Don't know what side the battery is on a d2 but yesterday on my 300tdi I ran one from the front drivers side though the accelerator pedal gromet to a fuse box I've put underneath the drivers seat then on to the boot area, I've ran the co-ax amp cables down the passenger side to avoid interference.



discool

Well-Known Member

• Mar 22, 2017

• #9

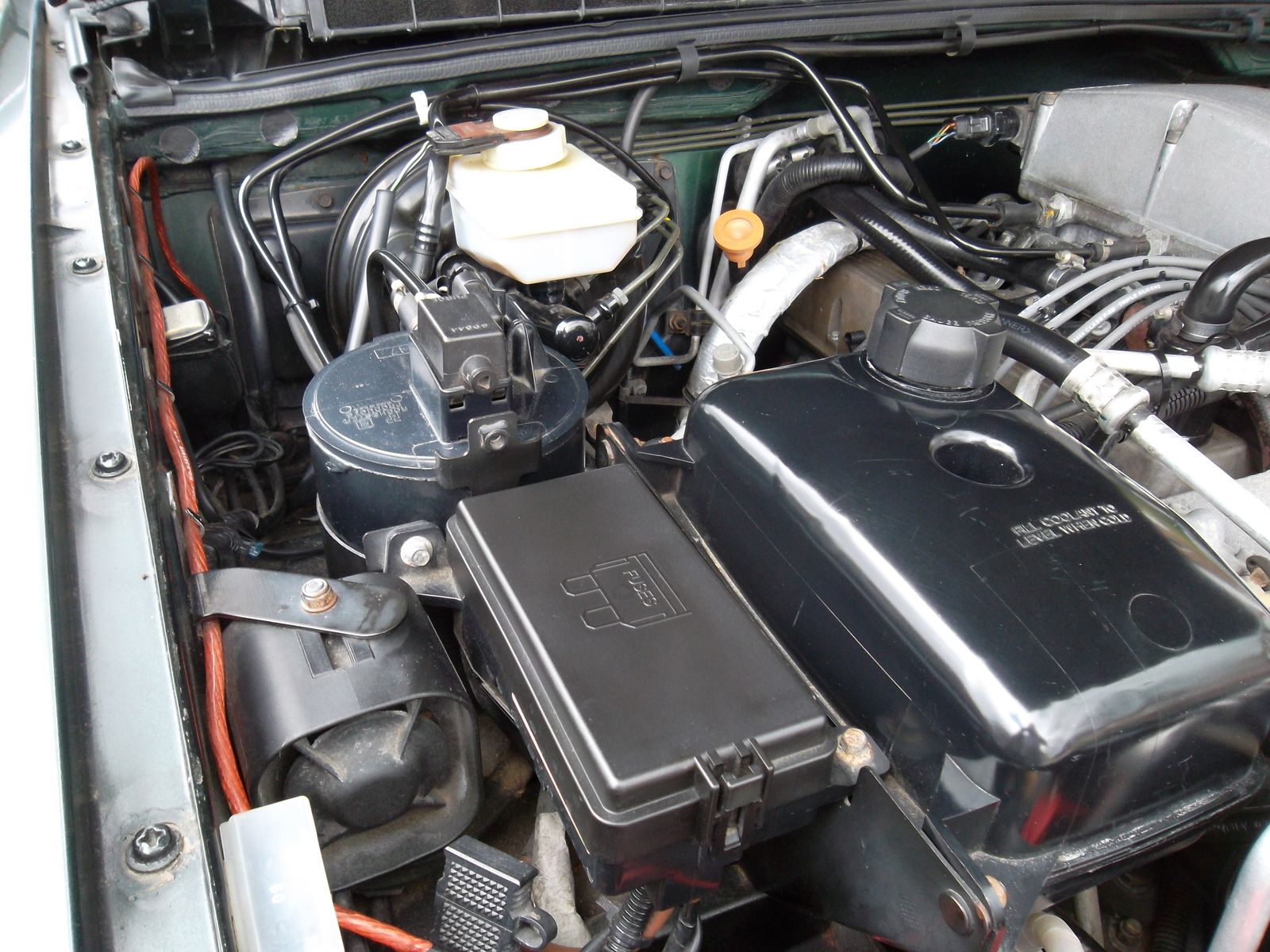

Did mine 8 years ago to feed a sub amp under the front passenger seat, and then run the cable below the drivers door underneath the carpet after removing the step tread plate first and then crossing over still under the carpet to the passenger side. Simples



Attachments

•

  299.4 KB · Views: 274
