Which way up is the rocker shaft installed, I didn’t realise there was a difference when I took off the rockers but the oil holes on one side of the shaft have a rectangular indent whereas the other side are plain holes.
Does the rocker go over the indented hole or the plain one. Many thanks



kermit_rr

Very

Full Member

• Oct 24, 2020

• #2

I always thought the rocker shaft was free to spin. Might be wrong or might just be some designs



L

lynall

Well-Known Member

Full Member

• Oct 24, 2020

• #3

Any help?



O

ormondstreet

Active Member

• Oct 24, 2020

• #4

Kermit-rr it doesn’t spin, 5 bolts hold it in place but thanks all the same

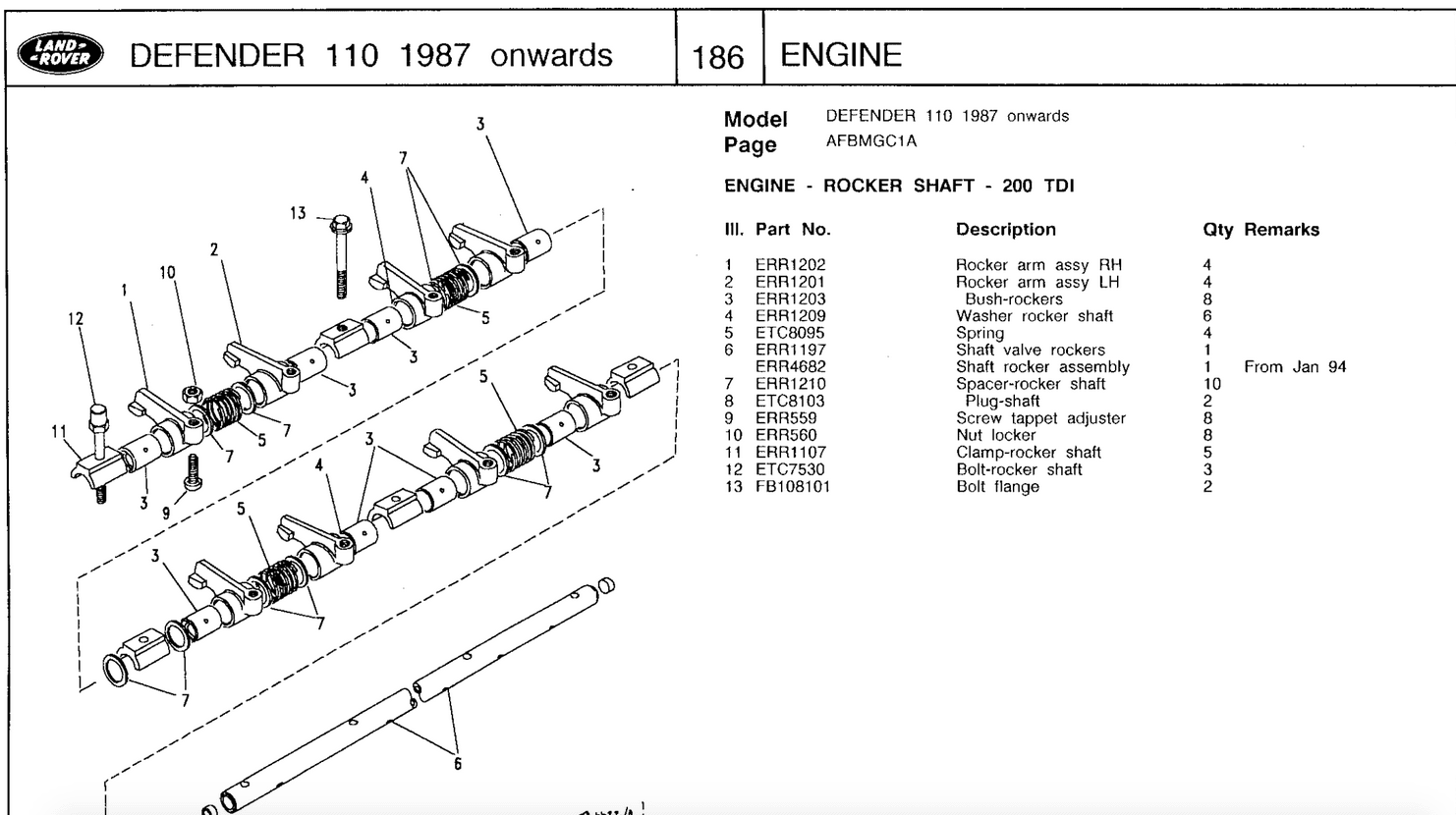

Lynall, yes I looked at that last night but it doesn’t show enough detail, thanks anyway.



jamesmartin

Well-Known Member

• Oct 24, 2020

• #5

ormondstreet said:

Which way up is the rocker shaft installed, I didn’t realise there was a difference when I took off the rockers but the oil holes on one side of the shaft have a rectangular indent whereas the other side are plain holes.
Does the rocker go over the indented hole or the plain one. Many thanks

Click to expand...

3 of the securing holes are larger on the side that locates on the dowels



O

ormondstreet

Active Member

• Oct 24, 2020

• #6

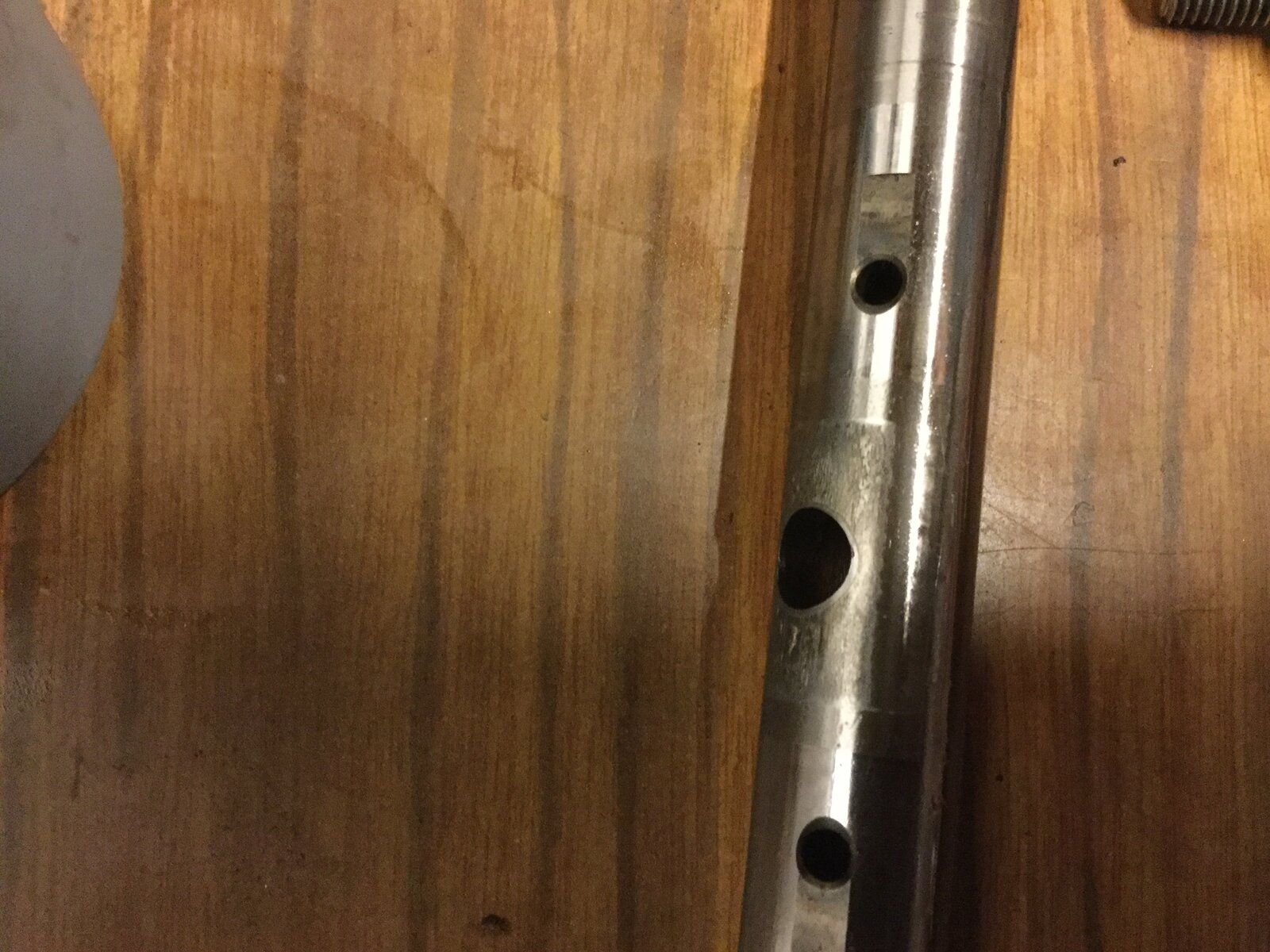

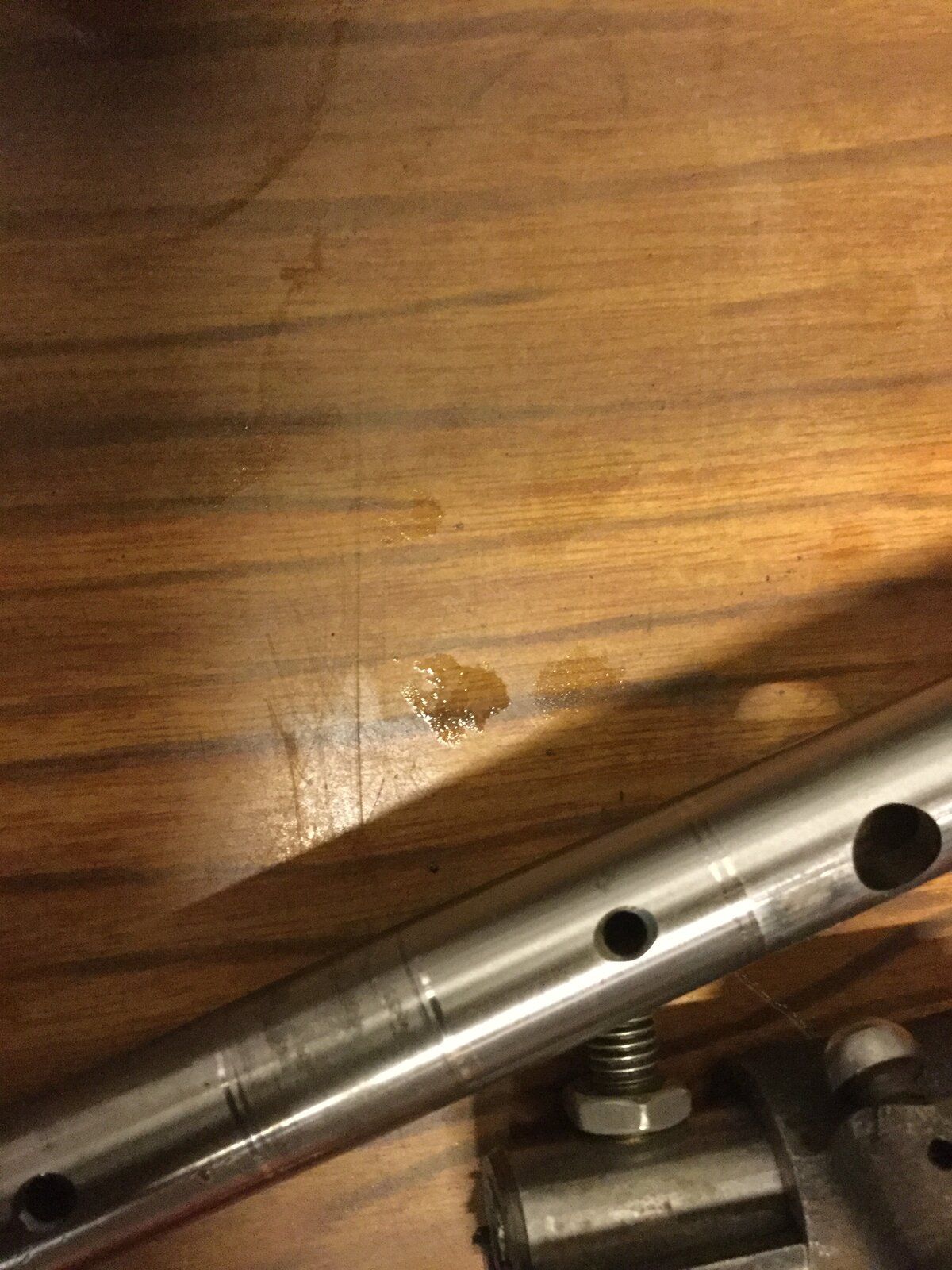

These are the oil holes on one side of the shaft, and the oil holes on the other side of the shaft and I don’t know which way up it goes



Attachments

•

  291.2 KB · Views: 153
•

  279.8 KB · Views: 152

jamesmartin

Well-Known Member

• Oct 24, 2020

• #7

ormondstreet said:

These are the oil holes on one side of the shaft, and the oil holes on the other side of the shaft and I don’t know which way up it goes

Click to expand...

have you checked the 3 dowel hole



O

ormondstreet

Active Member

• Oct 24, 2020

• #8

There are 5 holes along the shaft, they all look the same size



steve2286w

Well-Known Member

• Oct 24, 2020

• #9

The dowel at rear where oil supply comes should be a neat fit on one end of shaft



jamesmartin

Well-Known Member

• Oct 24, 2020

• #10

steve2286w said:

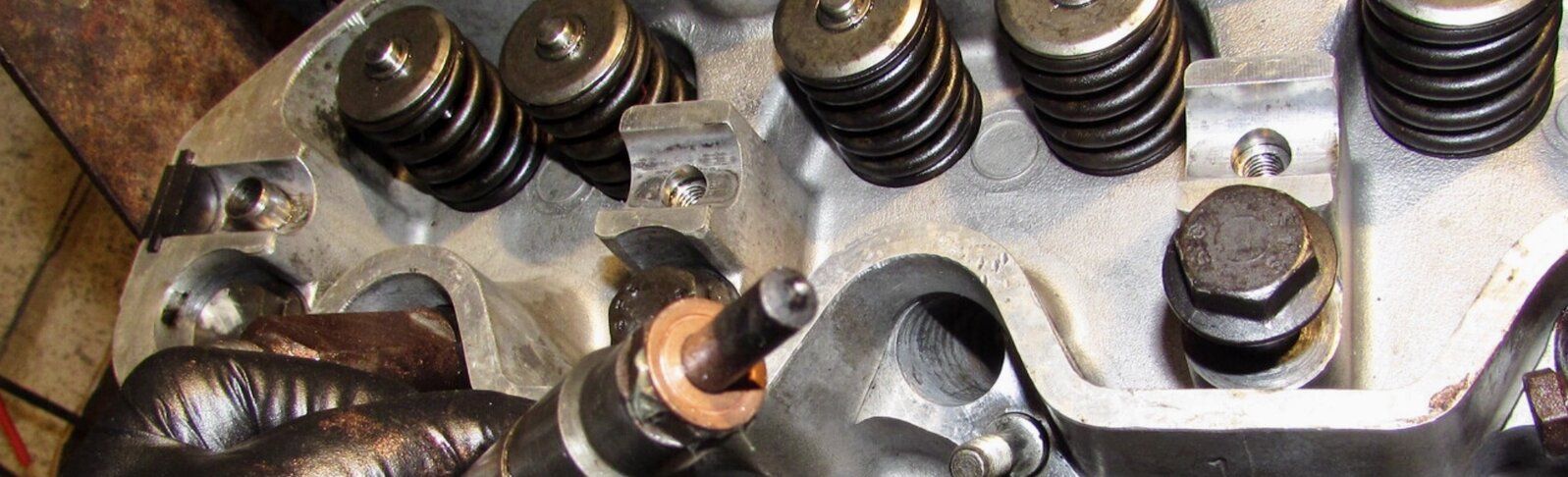

The dowel at rear where oil supply comes should be a neat fit on one end of shaftView attachment 221911

Click to expand...

oil supplies at the front front cam bearing



steve2286w

Well-Known Member

• Oct 24, 2020

• #11

Correct ignore my post I’m talking bollicks



O

ormondstreet

Active Member

• Oct 25, 2020

• #12

Well You we’re both in the right direction, I didn’t notice it until I had looked at it about 3 times but on the five fixing holes, one of them ( the one that the dowel goes into) was bigger on the underside than all the others so there was only one way it could have gone on. Thanks for all your help, next time I will think it out a bit more before shouting “help”.
