instantsquid
New Member
They look great, mate.
I fitted a pair at the weekend that I bought off eBay. I was looking at the construction and reckon I could do the welding okay, but it's the pipe bending I'm stuck with. What did you use for the bends? (Apologies in advance if this is a really stupid question!)

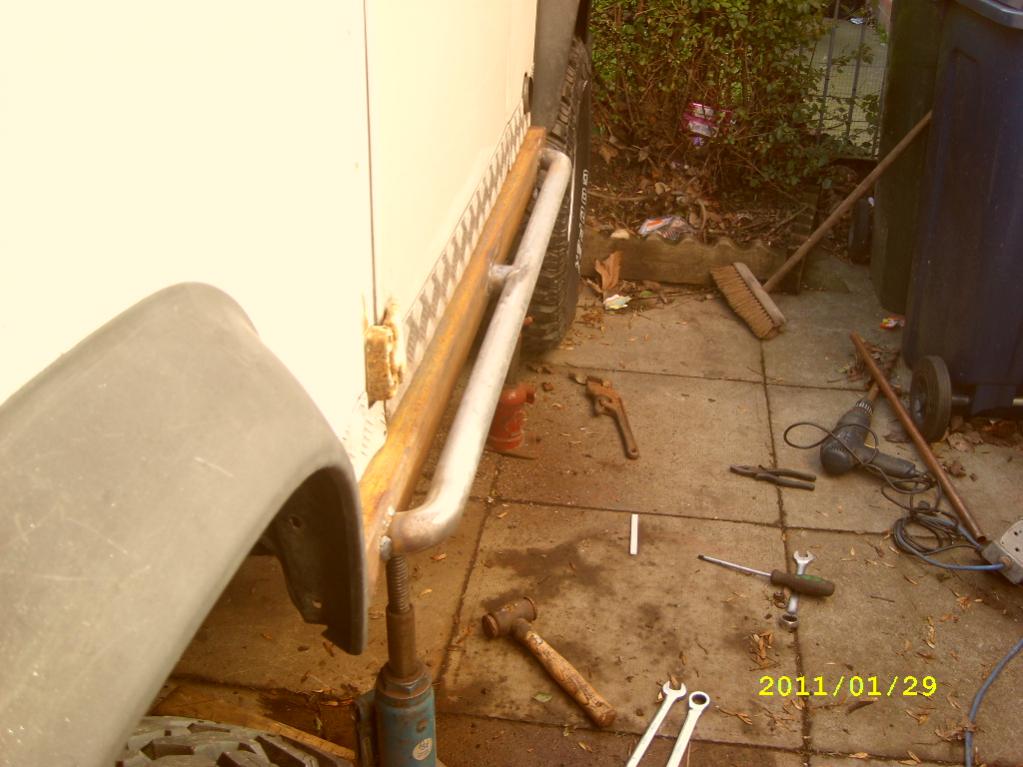

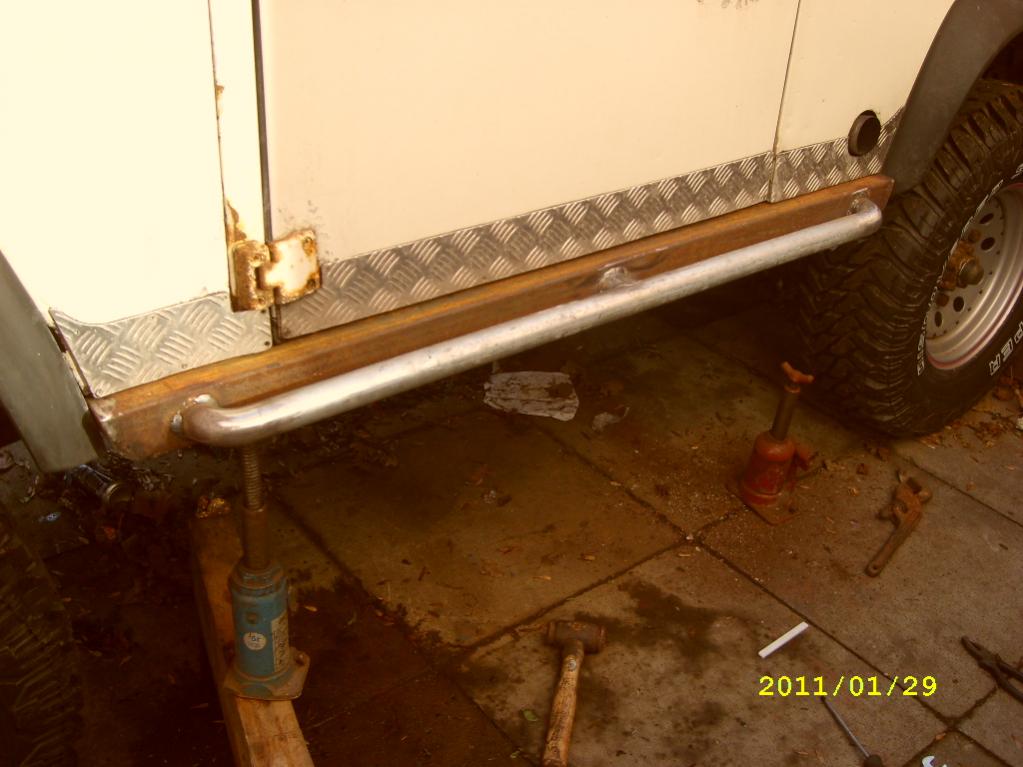

I'm glad to see that the way you've got them lined up with the edge of the Landy is the same as mine. I was a bit worried to start with that the box section part was sticking out too far - but it appears that they're meant to be like that.
I fitted a pair at the weekend that I bought off eBay. I was looking at the construction and reckon I could do the welding okay, but it's the pipe bending I'm stuck with. What did you use for the bends? (Apologies in advance if this is a really stupid question!)
I'm glad to see that the way you've got them lined up with the edge of the Landy is the same as mine. I was a bit worried to start with that the box section part was sticking out too far - but it appears that they're meant to be like that.
khaos
New Member
They look great, mate.
I fitted a pair at the weekend that I bought off eBay. I was looking at the construction and reckon I could do the welding okay, but it's the pipe bending I'm stuck with. What did you use for the bends? (Apologies in advance if this is a really stupid question!)
I'm glad to see that the way you've got them lined up with the edge of the Landy is the same as mine. I was a bit worried to start with that the box section part was sticking out too far - but it appears that they're meant to be like that.
Yeah if they didn't stick out there wouldn't be much point in them
And can we have some more pictures of them mate... you know just in case one of us was going to make some
I think I'll leave the pipe off of mine until I get some bent.
instantsquid
New Member
I meant the box section! I was imagining it would sit more flush with the side of the Landy.
khaos
New Member
I meant the box section! I was imagining it would sit more flush with the side of the Landy.
I think I'm going to make some with no pipe but have the box section angled and sticking out as far as the pipe would. Could look good or could look crap, we'll soon see.
mal4936
New Member
the tube is just s length with two bends welded on you can by the bends to match the tube at places like b.s.s only a couple of quid they come ready chamfered you do the same with the pipe ends to get a good strong weld.
have just dropped them of at shot blasters so will take some more picks of inside fixings ect Friday when they come back
next project to start is tube bumper
have just dropped them of at shot blasters so will take some more picks of inside fixings ect Friday when they come back
next project to start is tube bumper
Hamsterberg
Well-Known Member
khaos
New Member
A bumper is a very simple job. I'll stick a couple of pics of mine up if it's any help.
khaos
New Member

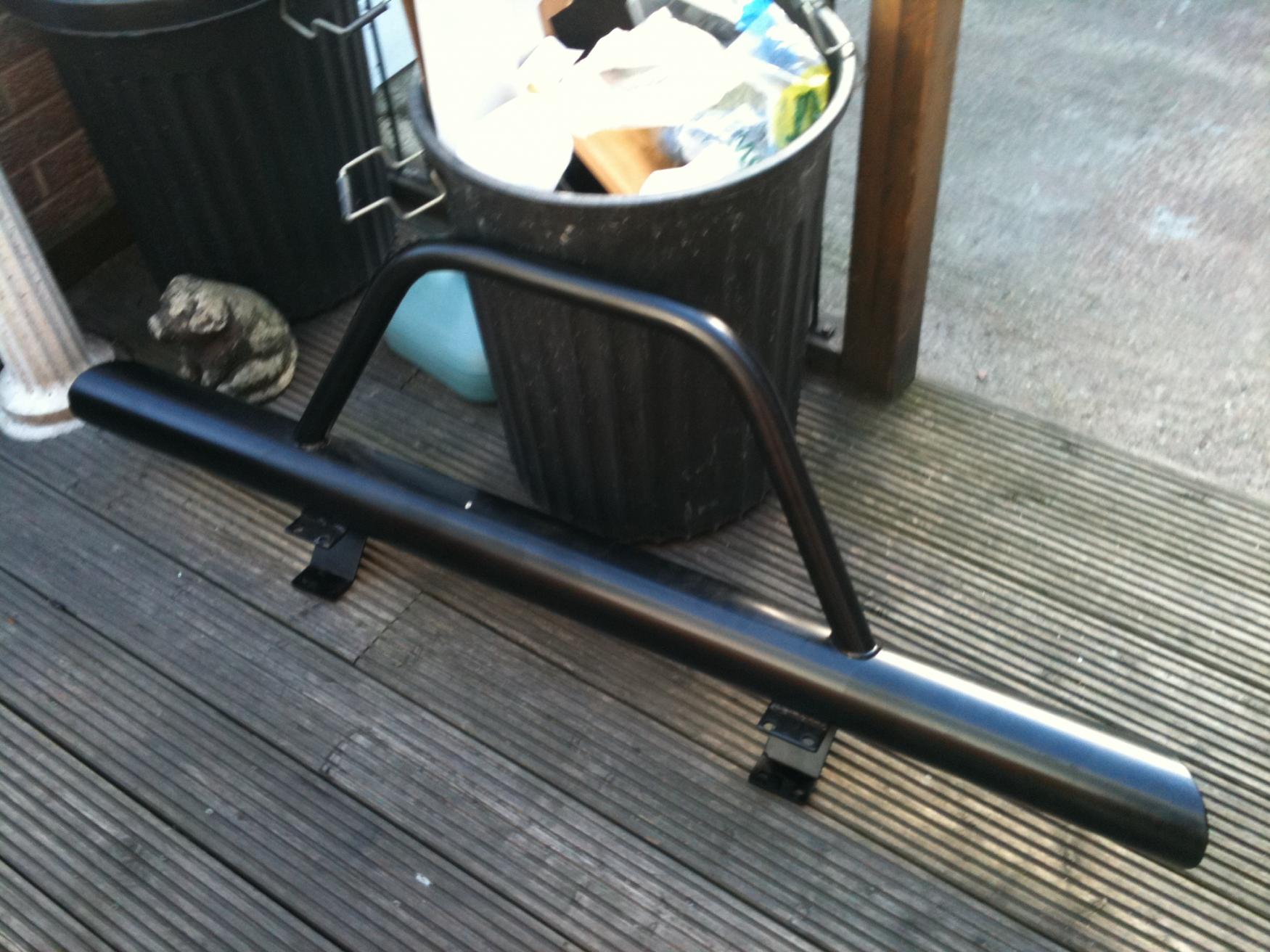

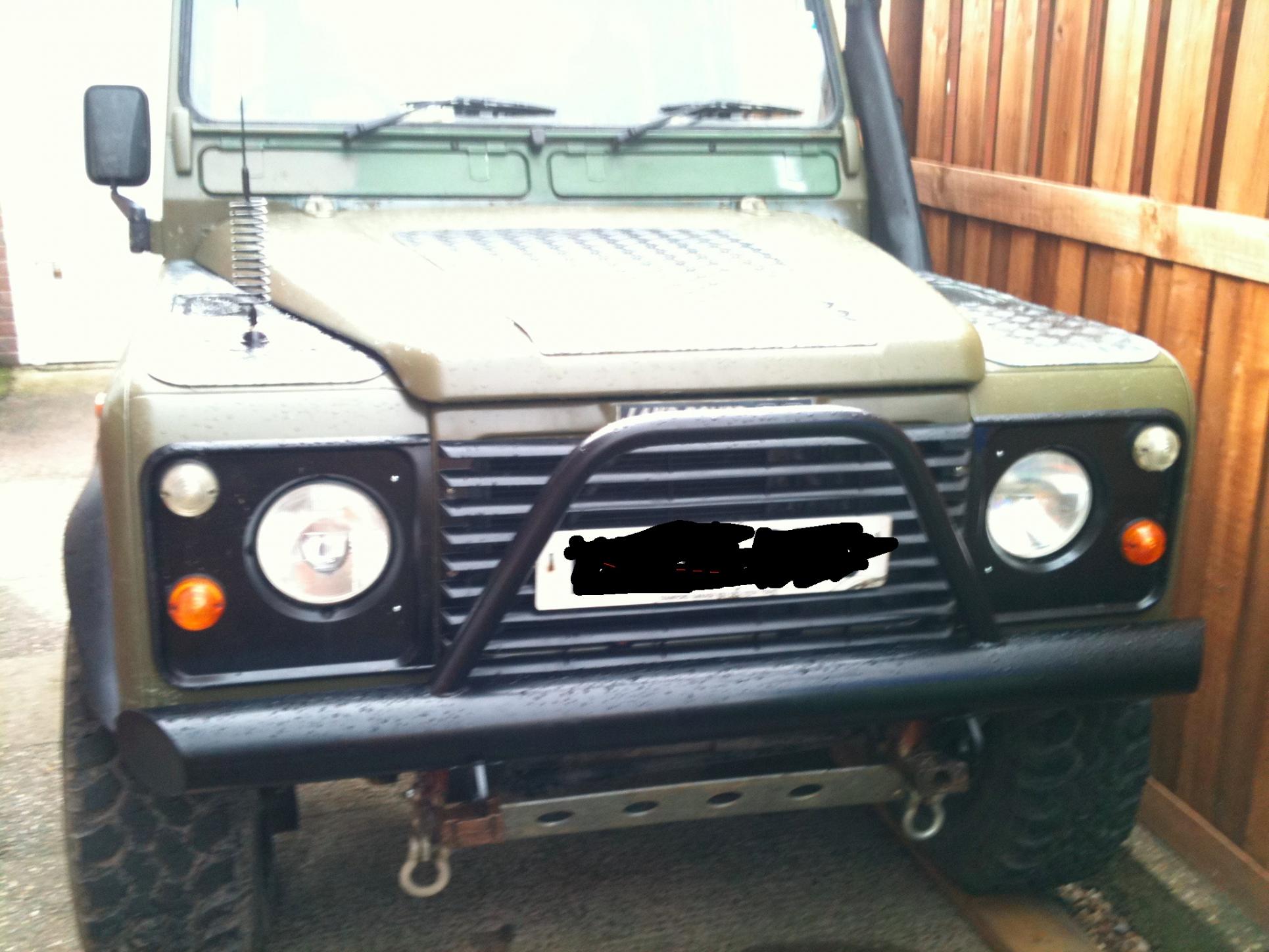

As you can see you can make a nice looking bumper from only 4 parts. If you leave the a bar off it would only be 3 parts. That has been powder coated though. The pipe used for the bumper is a lot thicker than anything I've ever seen. It's at least 6 mil thick and a massive diameter. I like the chunky look.
Attachments
nunny.bdsc
New Member
looking good,jobs well done,nice 1
instantsquid
New Member
Bumper is next on my list - got the metal ready to go, just need to get a move on.
Good to know the bends can be bought off the shelf - never thought of that. Makes things a lot easier. So many projects... so little time!
Good to know the bends can be bought off the shelf - never thought of that. Makes things a lot easier. So many projects... so little time!
m35reo
New Member
They look good mate, there on my list as well as winch bumper.

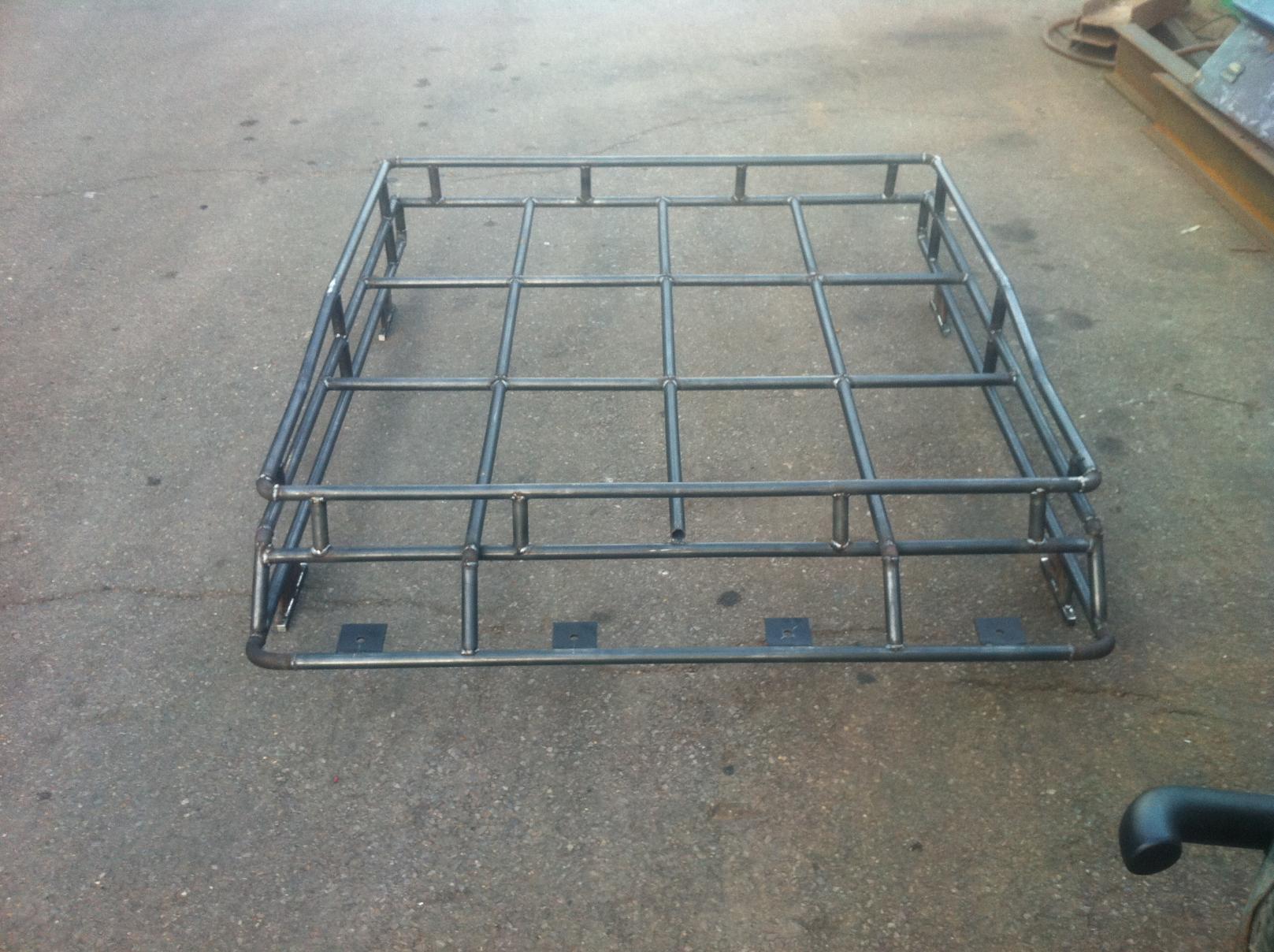

Made roof rack today not finished yet though
fair play fella! that roof racks an awesome bit a work!
When i mad my tree sliders i dint buy bends or bend the pipe i decided where i wanted them to "bend inwards" and split the angle between the pipes, With the trusty grinder preped the edges and welded up. I was going to do a draing and transfer it to the pipe but.....
We use to do this a lot when the bends werent at 45 deg or 90 deg, we would cut them back, But then i am a class 1 pipefitter welder to trade
We use to do this a lot when the bends werent at 45 deg or 90 deg, we would cut them back, But then i am a class 1 pipefitter welder to trade
khaos
New Member
When i mad my tree sliders i dint buy bends or bend the pipe i decided where i wanted them to "bend inwards" and split the angle between the pipes, With the trusty grinder preped the edges and welded up. I was going to do a draing and transfer it to the pipe but.....
We use to do this a lot when the bends werent at 45 deg or 90 deg, we would cut them back, But then i am a class 1 pipefitter welder to trade
Got any pics?
BearDy89
Well-Known Member
I Like that Khaos.
any chance you could PM me some more pics?
Id like to make somthing up like that, but make up some built in recovery eyes.
instantsquid
New Member
Please don't keep the pics to PM - I'd certainly like to see them as well.
BearDy89
Well-Known Member
didnt wana hijack the thread
But im not really that bothered aslong as Khaos is happy to post em
khaos
New Member
It does have built in eyes underneath. That one isn't the one I made. I had it made by someone else and powder coated for £50.
The one I made myself I swapped for some parts with a mate. It was an exact copy of that one except it was painted with hammerite not powder coated. I'll take some photos tomorrow from different angles.
I did cheat with my A bar though because I had it bent at someone who I know's work for free.
So just to make it clear, the pics I'm going to put up are of the bumper I copied, not the one I made. That way you won't get any of my second hand errors.
BearDy89
Well-Known Member
Ah cool i didnt spot them, even better!!
No worries, be interested in the size and thickness of the different sections. I should be able to get the pipe bent locally.
Some pics from different angles would be brill.
Cheers Sam
