Tailgate wouldn’t open so I did the ‘get in the boot job’, spent a good out or so getting the boot open from the inside then fitting the actuator. Double checked the plug connection, put everything back together and boot still won’t open. I checked the cable and that looked fine. Apart from taking it all apart again and checking the connection I don’t know what else I can do.

*Discovery 4*

Last edited:
The upper tailgate won’t open. The button on the bottom tailgate worked when I managed to get the top tailgate to open. So the issue is the upper tailgate not opening.

Hi

maybe the handle itself has failed , best to check using a multimeter to ensure power is getting to the switch, have seen on many occasions a broken wire or bad earth

also the micro switch might just need cleaning

what year is ur D4 plse

hope that also helps

Last edited:
gstuart said:
Hi

maybe the handle itself has failed , best to check using a multimeter to ensure power is getting to the switch, have seen on many occasions a broken wire or bad earth

also the micro switch might just need cleaning

what year is ur D4 plse

hope that also helps
Click to expand...
Thank you. Discovery is 2010. How do you go about cleaning the micro switch?

Appreciate the help.

ExecutiveOutcomes said:
Thank you. Discovery is 2010. How do you go about cleaning the micro switch?

Appreciate the help.
Click to expand...

many thks and ur so welcome , always a team effort

have u also checked under the passenger side front seat plse as a supply comes from the FET ( fuse box ) to a connector under the seat then onto the tailgate

plse ensure u have power at the tailgate switch , might have to pull the connector apart if power isn’t going through it

hope that also helps

gstuart said:
many thks and ur so welcome , always a team effort

have u also checked under the passenger side front seat plse as a supply comes from the FET ( fuse box ) to a connector under the seat then onto the tailgate

plse ensure u have power at the tailgate switch , might have to pull the connector apart if power isn’t going through it

hope that also helps
Click to expand...
Thank you. Much appreciated. I’ve got a few things to work through now 😂👍🏽

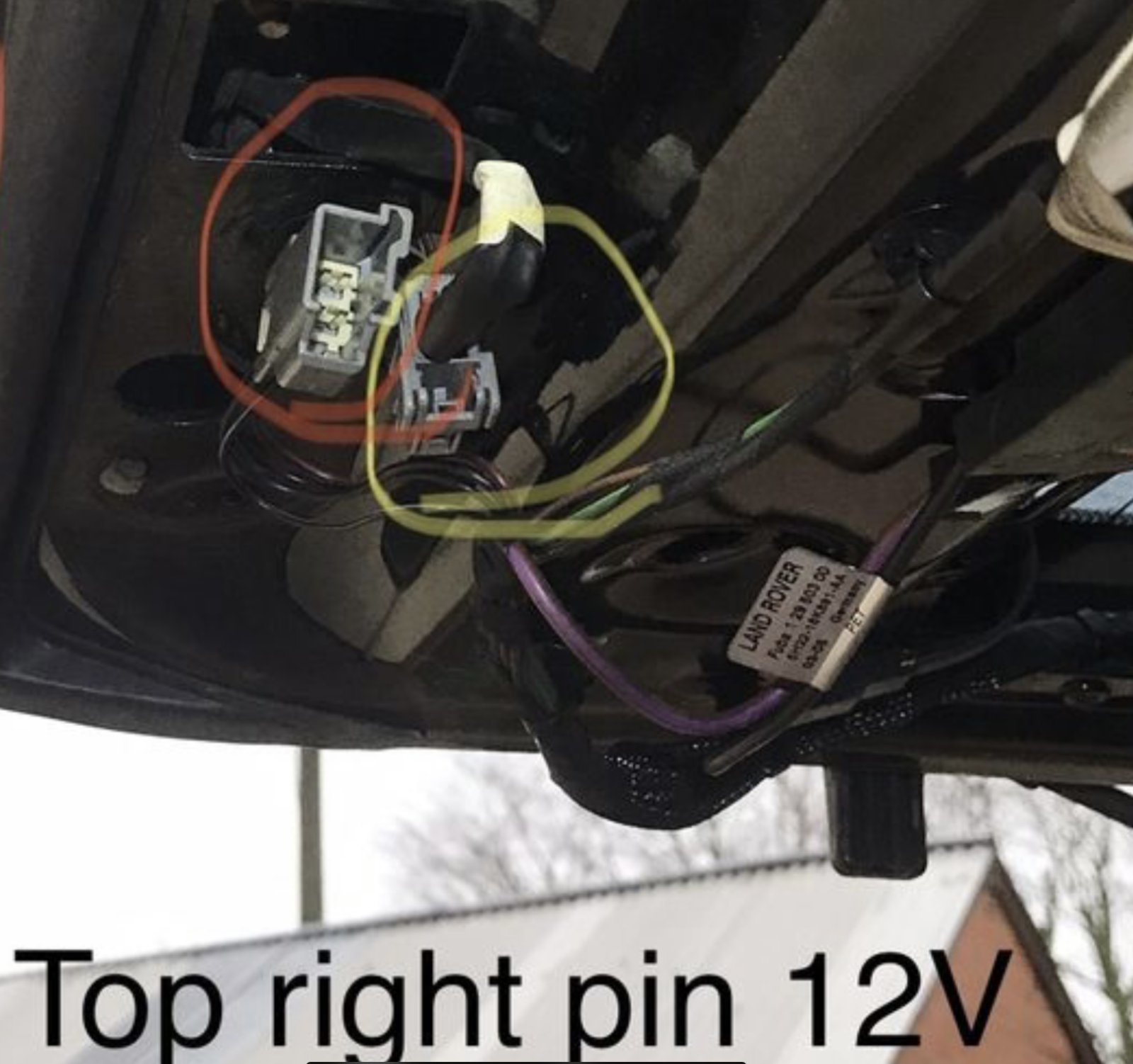

See if this is correct regarding the tailgate connector

before I forget , if u can get someone to sit in the seat , ign on , push both the lock / unlock buttons for 5 x seconds to see if the tailgate opens plse


also the earths are very important seeing it goes down to ground when the switch is pressed , they are located left hand side of the boot behind the side locker

if it is the micro switch don’t forget it’s a ford part

Last edited:
gstuart said:
See if this is correct regarding the tailgate connector

before I forget , if u can get someone to sit in the seat , ign on , push both the lock / unlock buttons for 5 x seconds to see if the tailgate opens plse

View attachment 292374
Click to expand...
Thanks mate. I’ll check that. The only thing with the Discovery 4 is that it doesn’t have the unlock/lock button on the centre console. It has them on the door panel and they can’t be pressed together.

gstuart said:
also the earths are very important seeing it goes down to ground when the switch is pressed , they are located left hand side of the boot behind the side locker

if it is the micro switch don’t forget it’s a ford part
Click to expand...
I’ll get that part ordered and replace it. Can’t hurt to try 👍🏽

ExecutiveOutcomes said:
Thanks mate. I’ll check that. The only thing with the Discovery 4 is that it doesn’t have the unlock/lock button on the centre console. It has them on the door panel and they can’t be pressed together.
Click to expand...

ur so welcome , oops I forgot about them being on the door , lol

also not wishing to sound rude but plse double check the Vdc beforehand to the door handle micro switch,/ connectors with a multimeter as I’ve often seen broken wires etc

indeed are very cheap these days , think there less than £15

plse let us know how ur get on
