Hey guys,

After fitting a tubular style winch bumper, I removed the ugly original washer bottle and
finally got around to retrofitting the washer bottle I got off Amazon.

This is what I purchased
TAKPART 12V Universal Windshield... Amazon product

Air filter box was removed for fitting a snorkel so that made it a whole lot easier

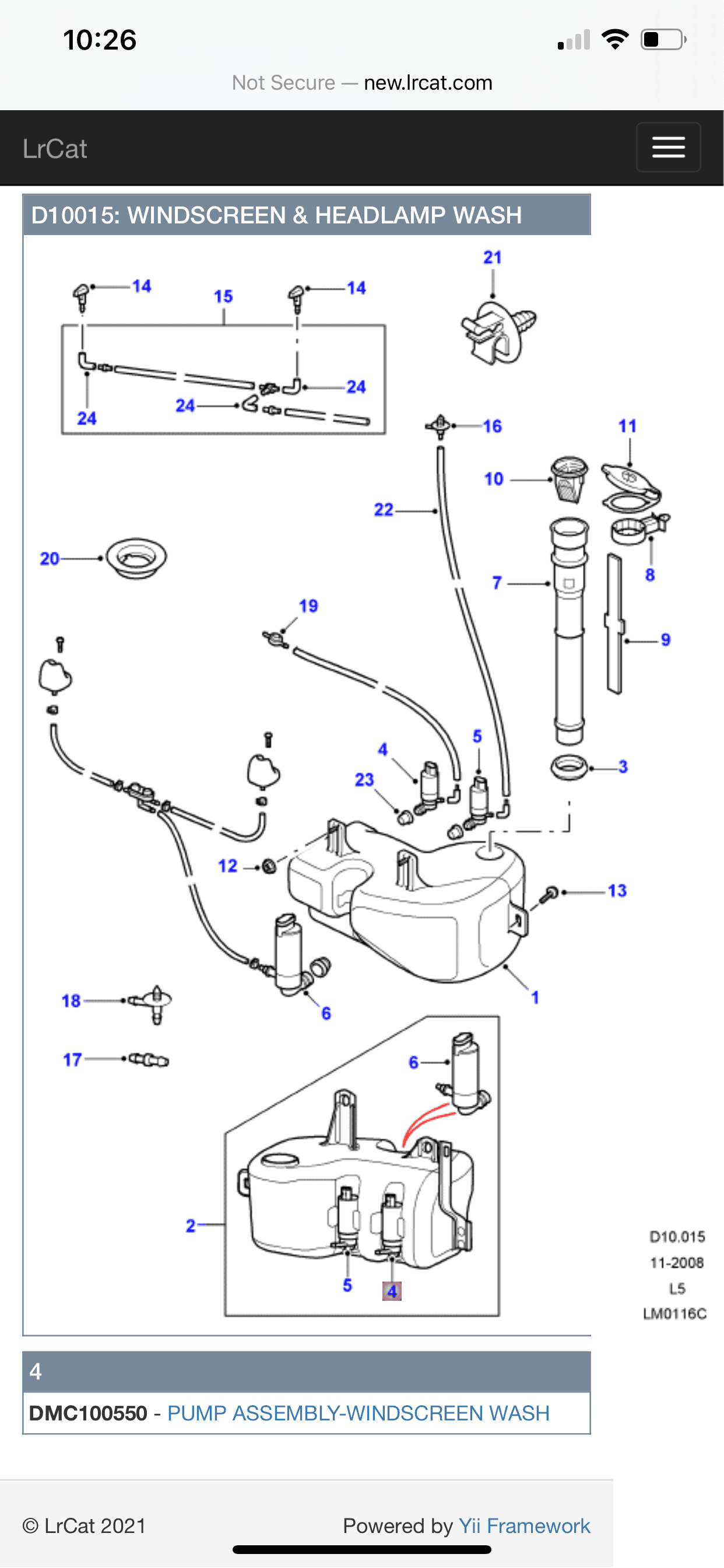

checked this drawing



It was the black wire and corresponding green and orange wire for the front windscreen washers.
I didn’t have the headlight washers and I never use the rear window one either so this will solution will only work for having a windscreen wash only.

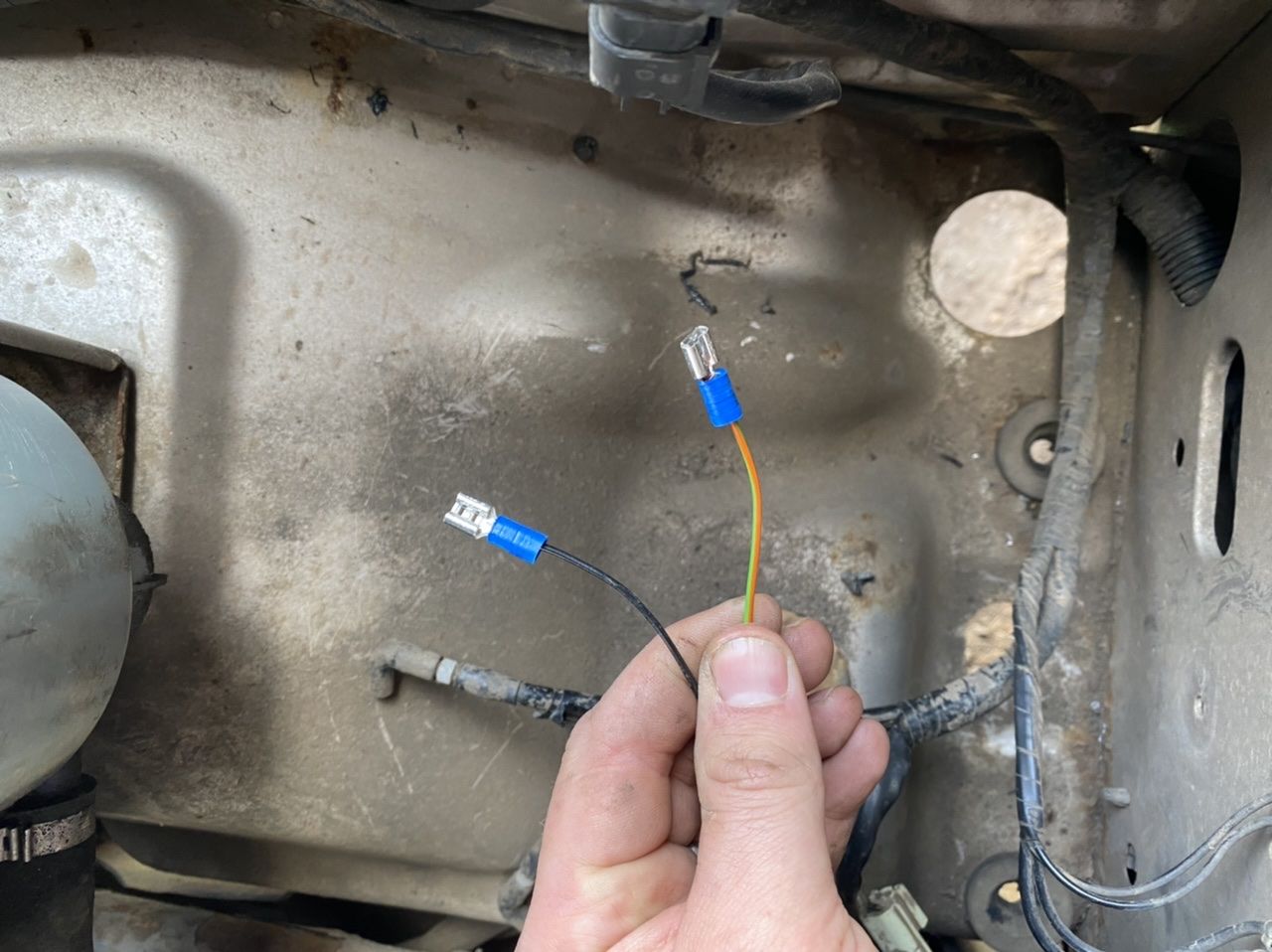

Crimped on connectors and ran a wire back up the bulk head along the existing cables.

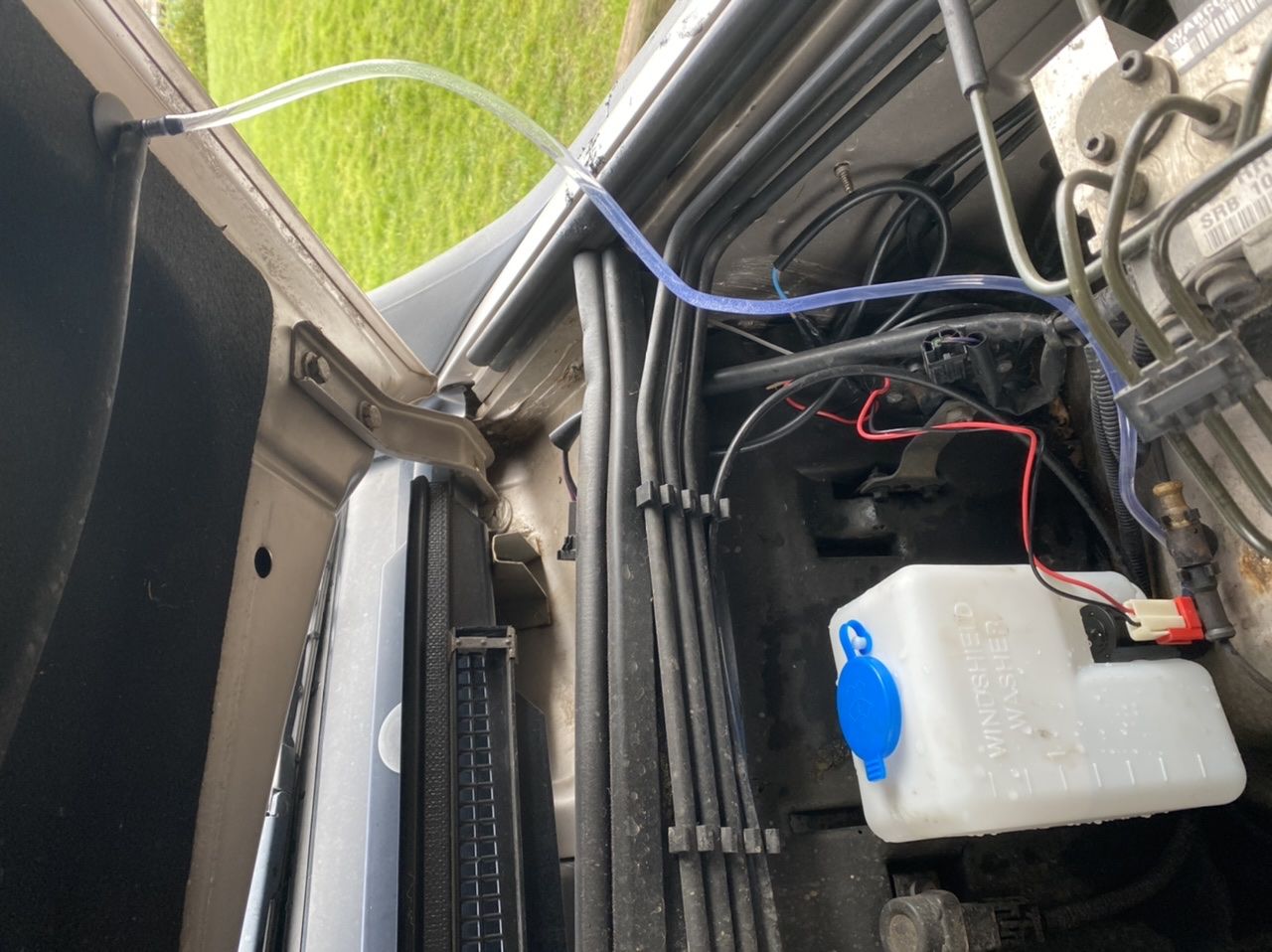

Used a couple of self tapping roofing screws to secure the bottle bracket to the bulk head, connected up to the white connector provided in the kit from Amazon.

pulled the drop down leg of the existing washer fluid water pipe off and fitted a new section that was provided with the kit.
Needs some tidying up with the cable management but it all works happy days


Looks good I'll be going down the same route but I'd like a bigger tank really. may have to find one off another car that fits nicely. Can't grumble for £15 though! Just an observation but do you know your missing your cabin filter?

I only do low mileage in mine so it’s good for me.

well spotted lol it’s on the list
