Liverghouls

Member

• Yesterday at 20:29

• #1

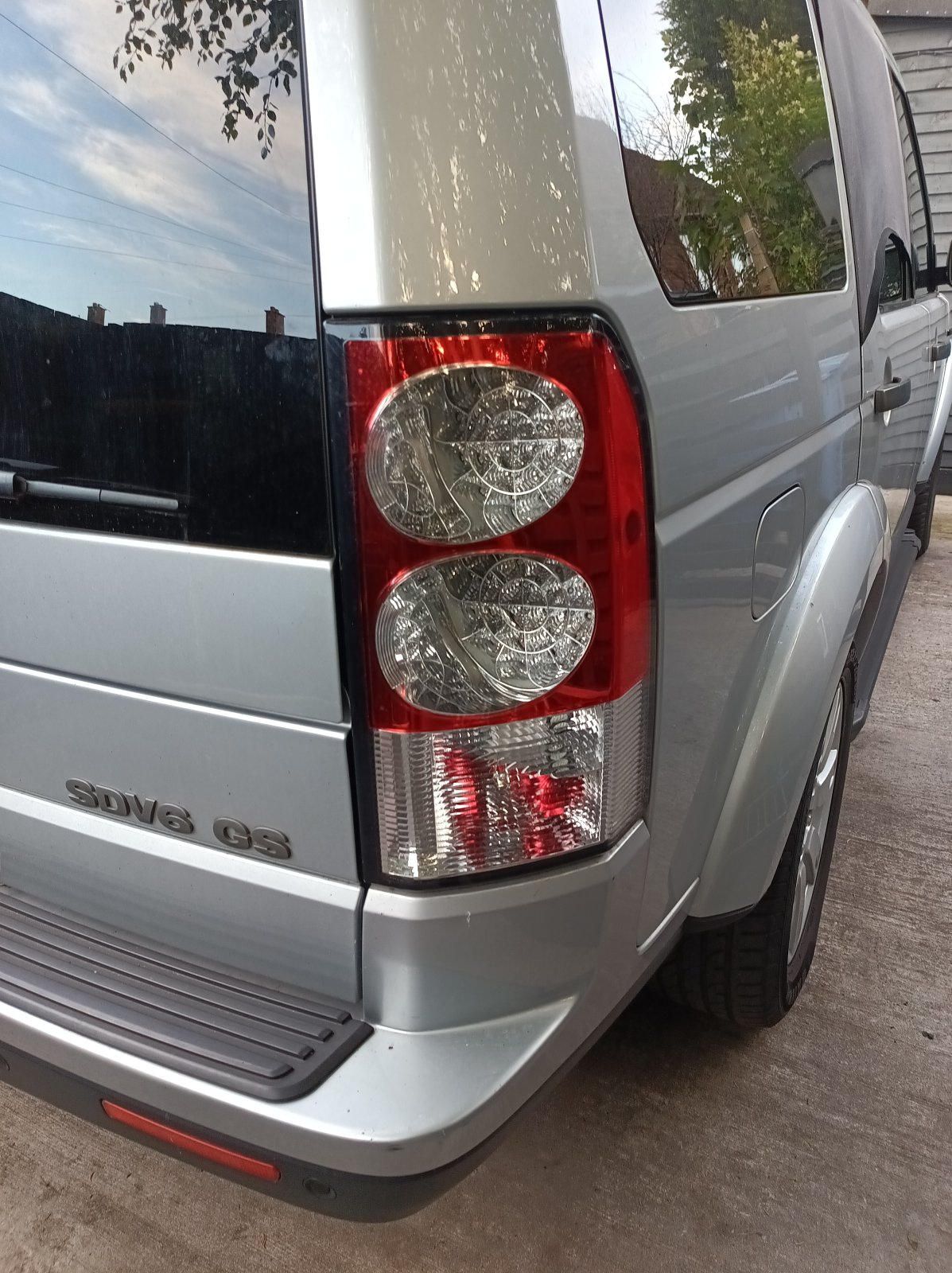

Hi all so I need to know does anyone out there know which wire is the live to the sidelights or back headlight at the back on the cluster please which colour will it be please if anyone knows that would be great and which wire on the back will be the indicator live please and thanks best wishes Tony



Attachments

•

  347.1 KB · Views: 7

gstuart

D3 Grandad

Full Member

• Today at 04:11

• #2

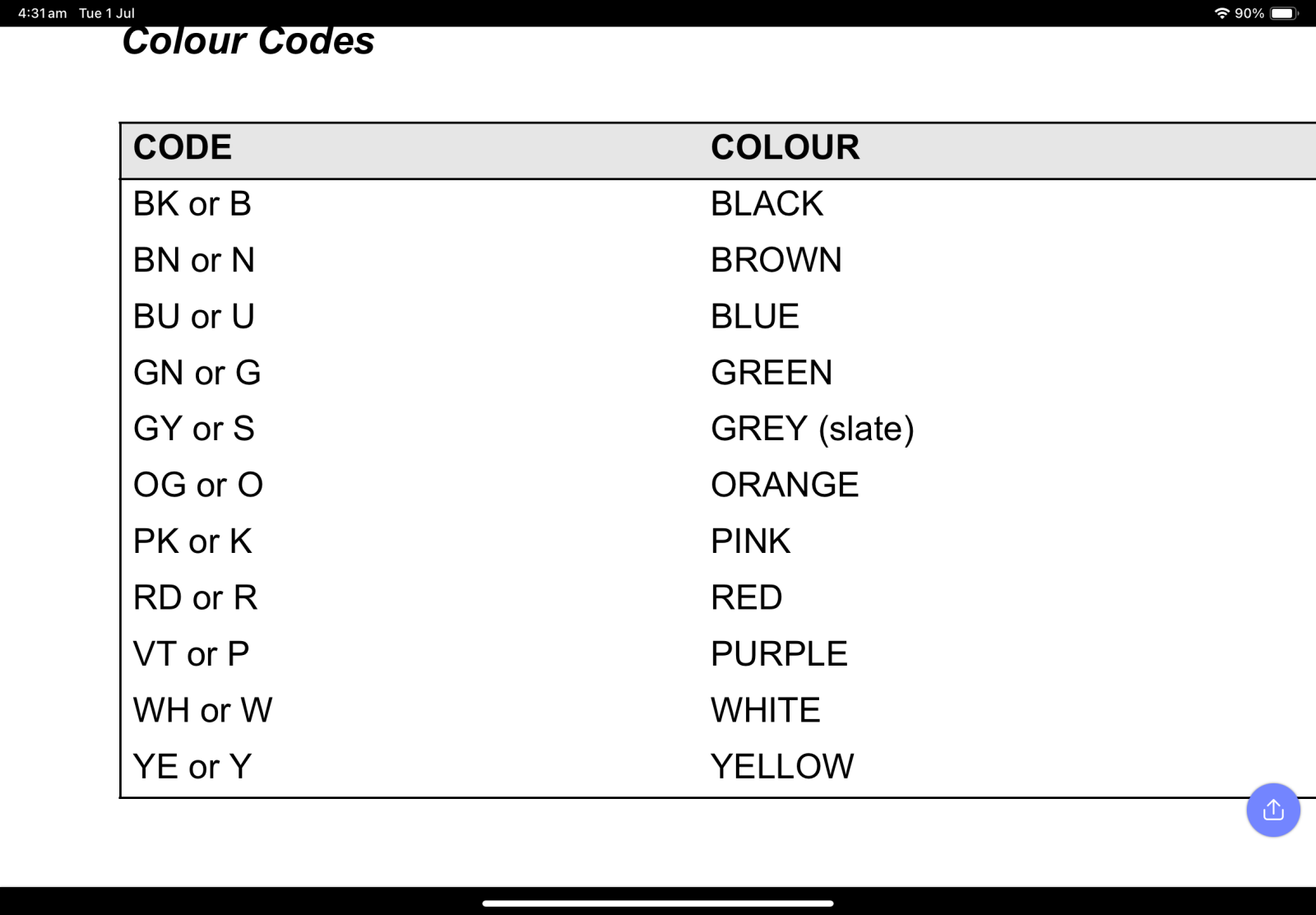

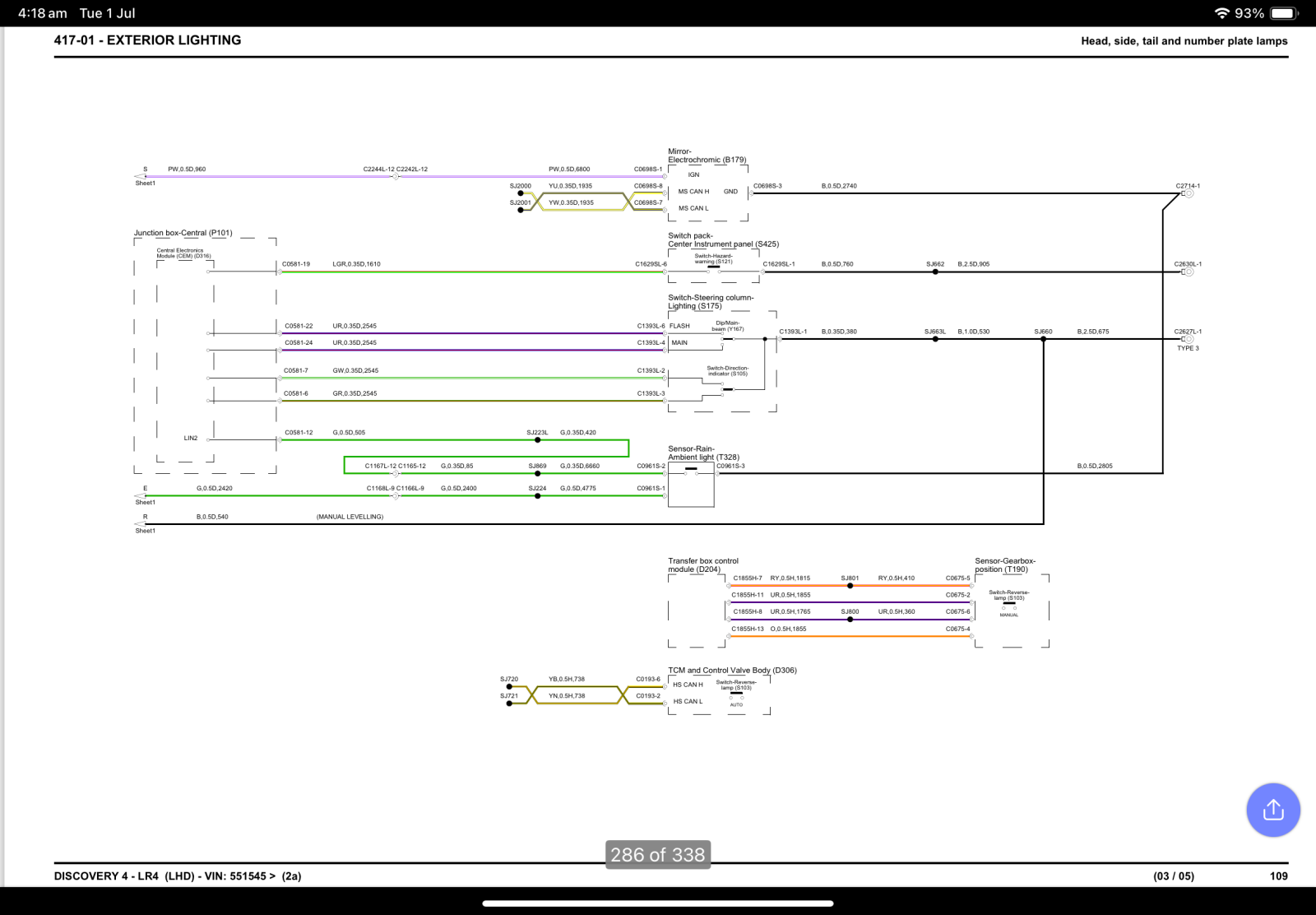

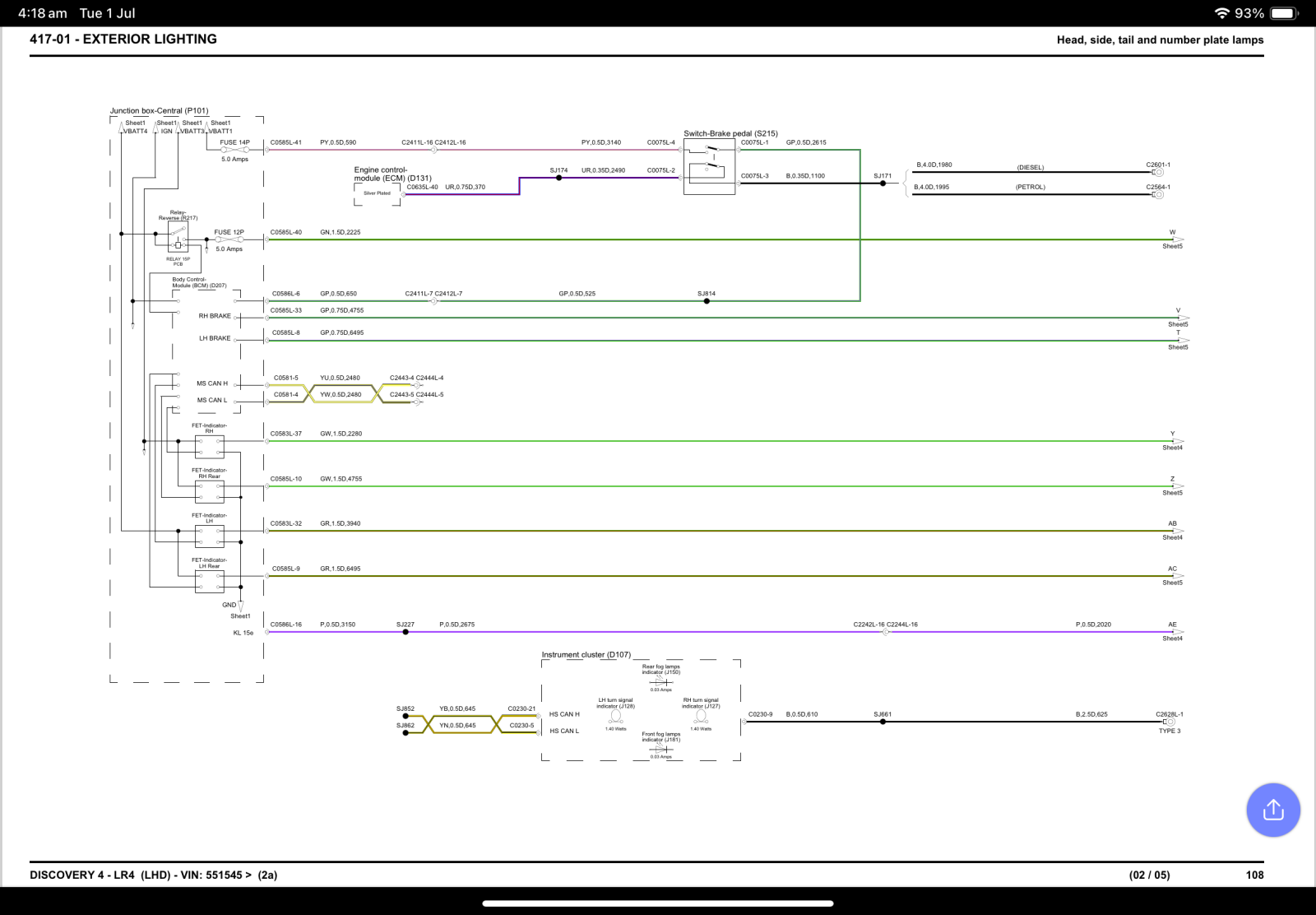

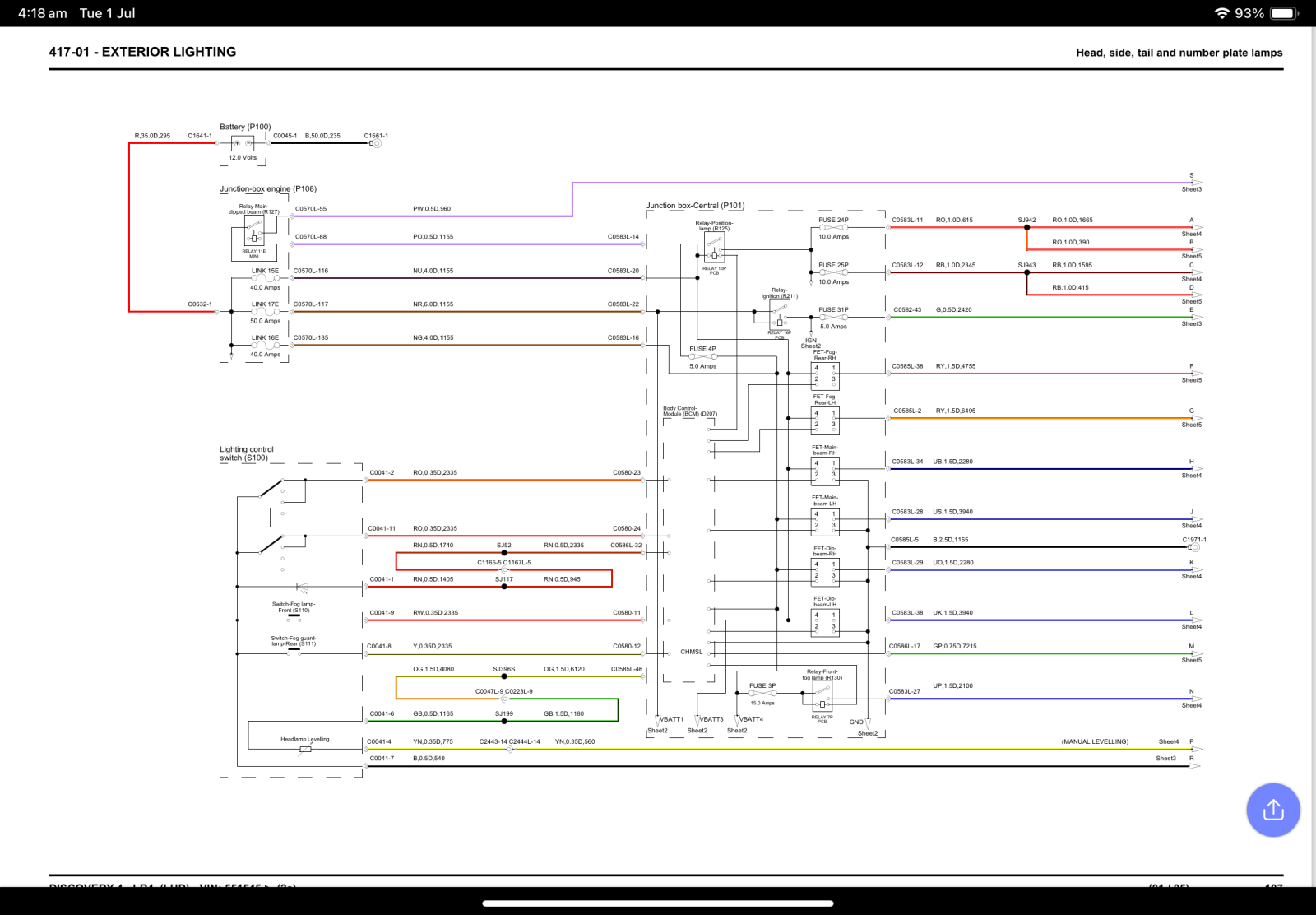

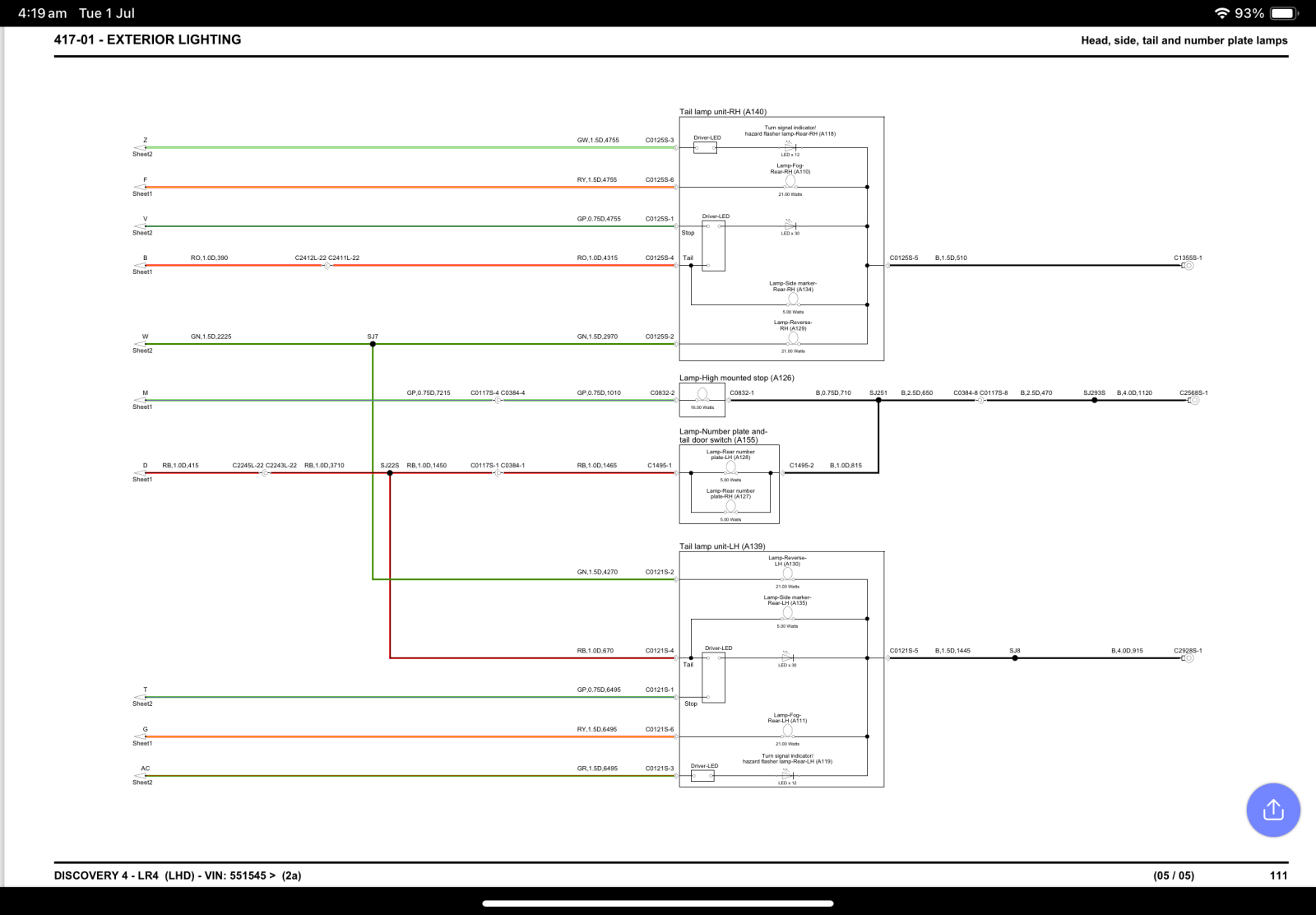

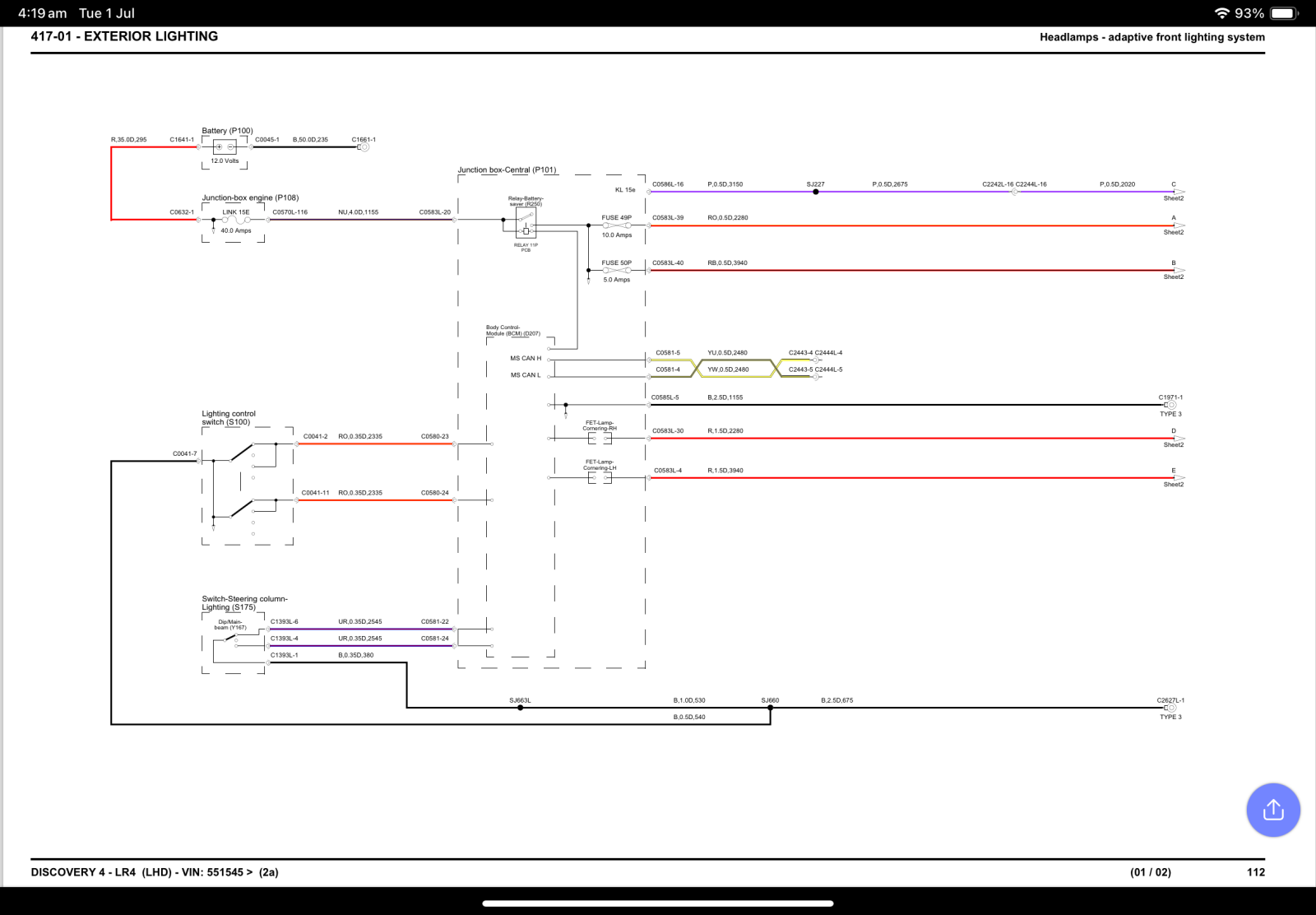

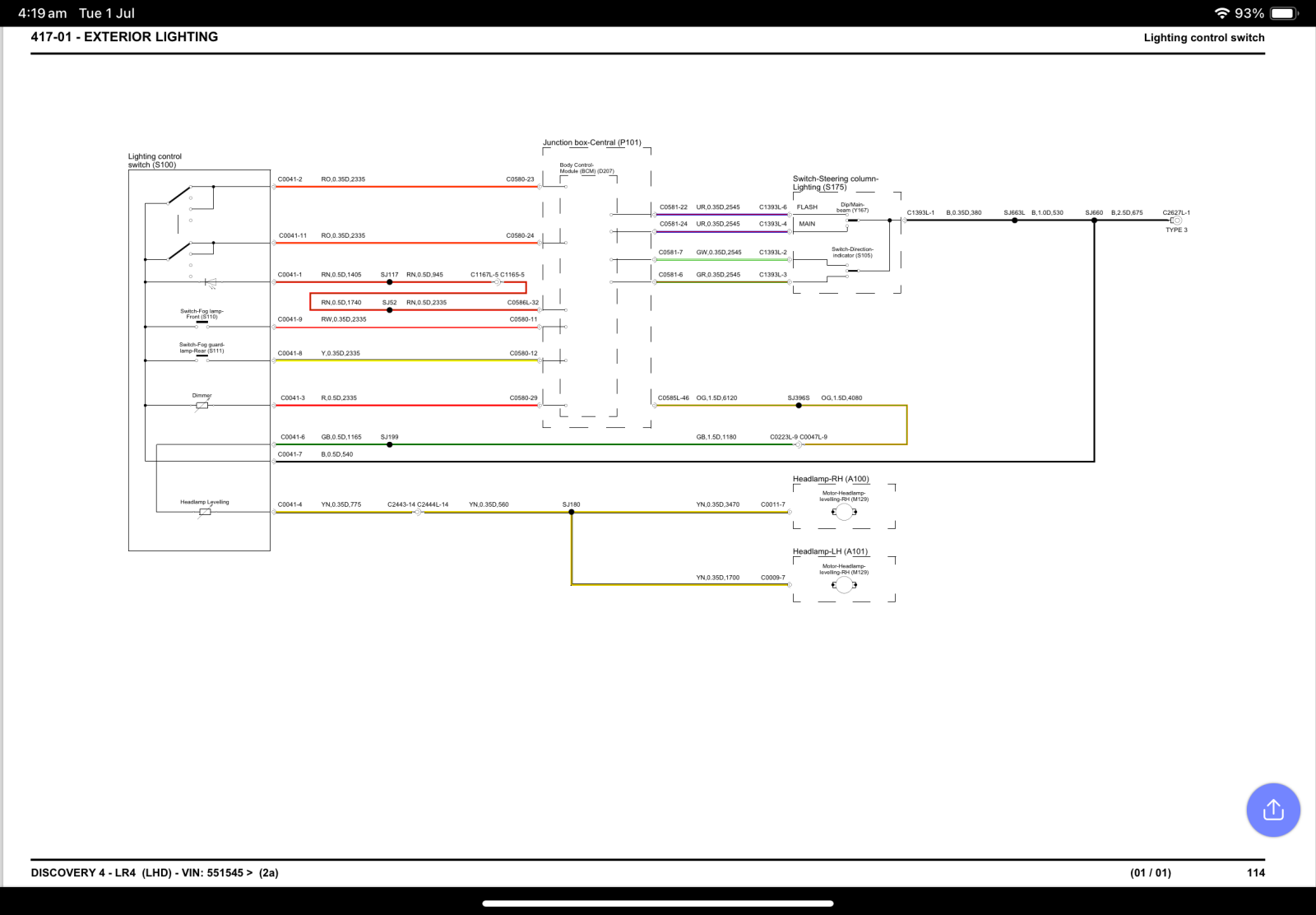

Hi

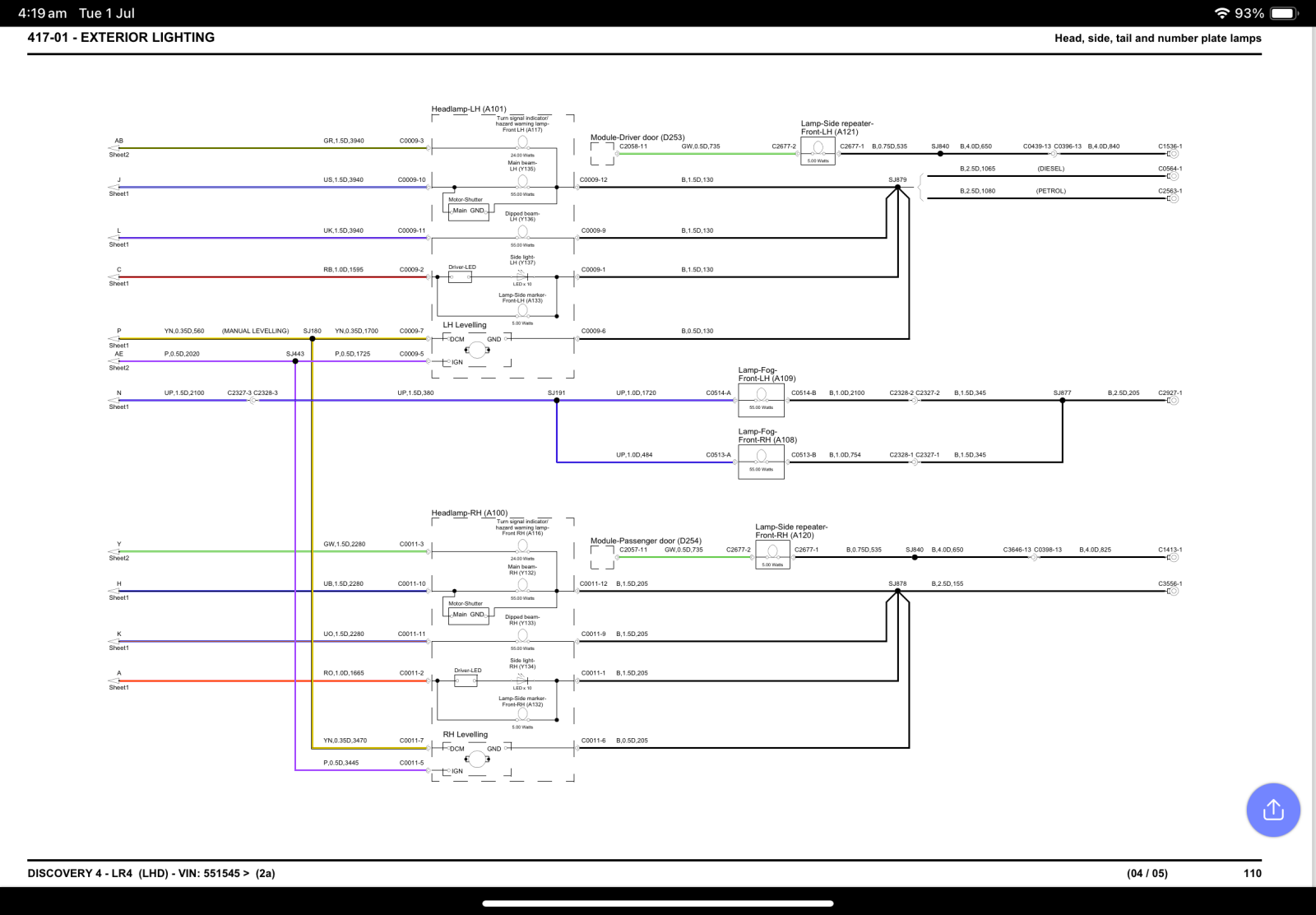

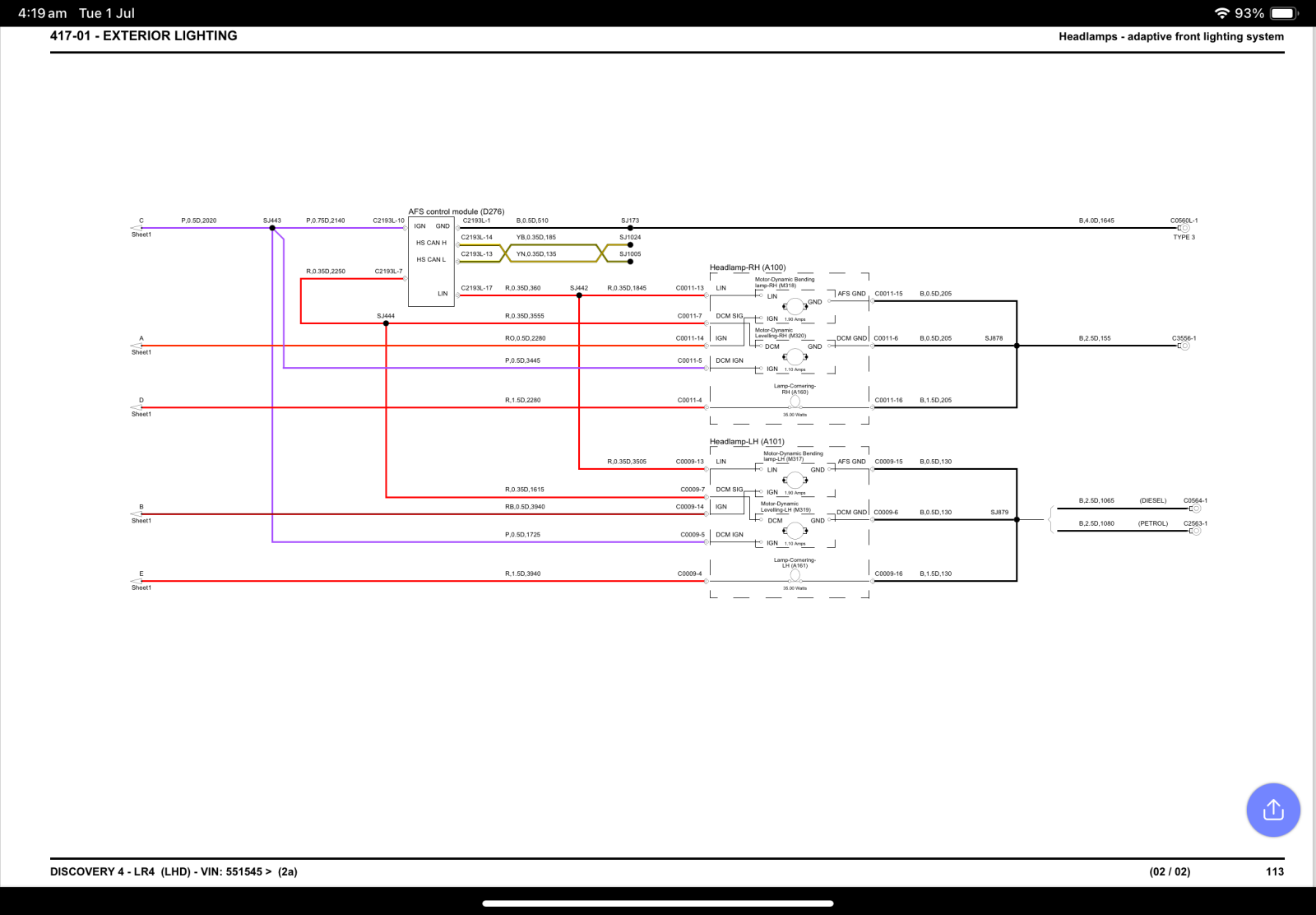

Does this help u at all , included the different headlights as wasn’t sure what type u had

Hope that’s useful to u



gstuart

D3 Grandad

Full Member

• Today at 04:28

• #3



gstuart

D3 Grandad

Full Member

• Today at 04:32

• #4



gstuart

D3 Grandad

Full Member

• Today at 04:36

• #5

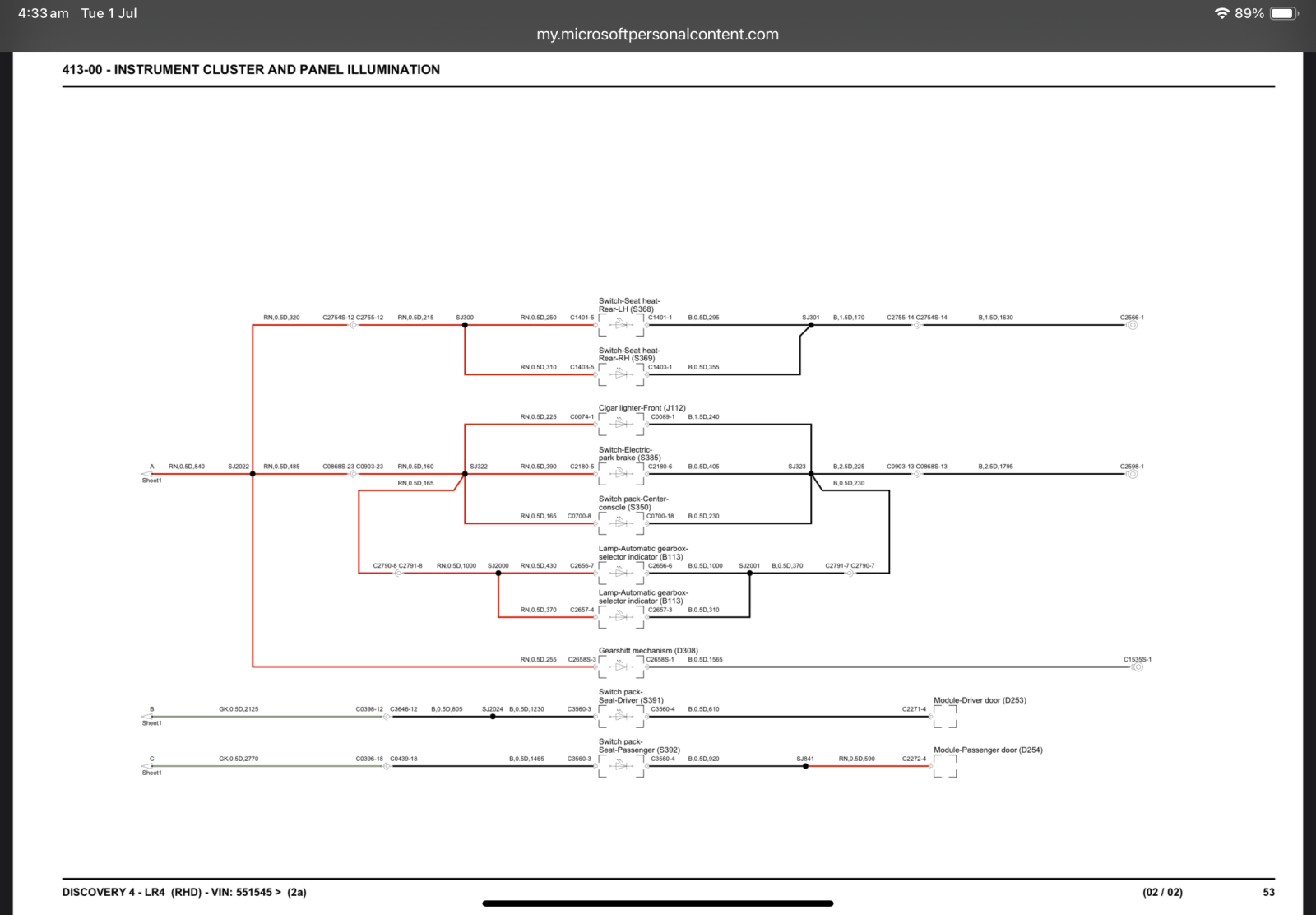

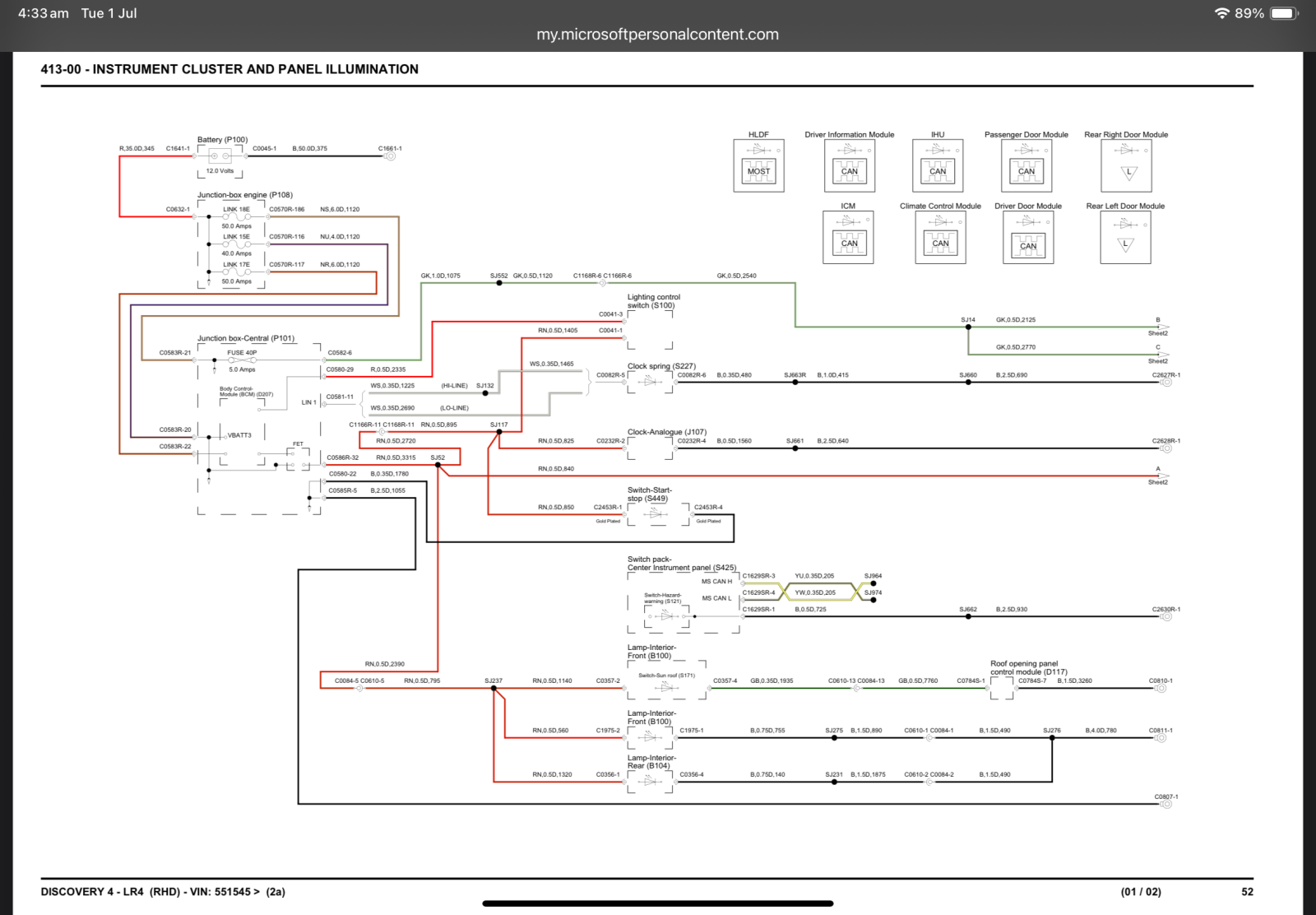

Hope this also helps

Instrument panel



gstuart

D3 Grandad

Full Member

• Today at 04:39

• #6

Plse let us know what kind of faults ur getting as may be able to help further



L

lynall

Well-Known Member

Full Member

• Today at 09:56

• #7

If its for tow bar use take a look behind nearside cluster in the boot, think the plug is already in there.
If not 5 minutes with a test light will tell you all you need to know.



Liverghouls

Member

• Today at 10:21

• #8

Hi thanks for all your help to all I really appreciate that ! Always count on good support here , I'm fitting 2 70 inch sidestep lights with repeater indicators they have a white light to wire to back headlight live , a wire for repeaters/indicators on either side and a wire for light comes on when cars unlocked ,I can wire the car unlock light that's no problem it's just the repeater indicator wire and back headlights live wire, I have a Light for both sides of car so will have to connect separately either side , so I'm thinking if I can find the live left and live right indicator pin on towbar plug I could wire it to them.and same with back headlights.



gstuart

D3 Grandad

Full Member

• Today at 11:37

• #9

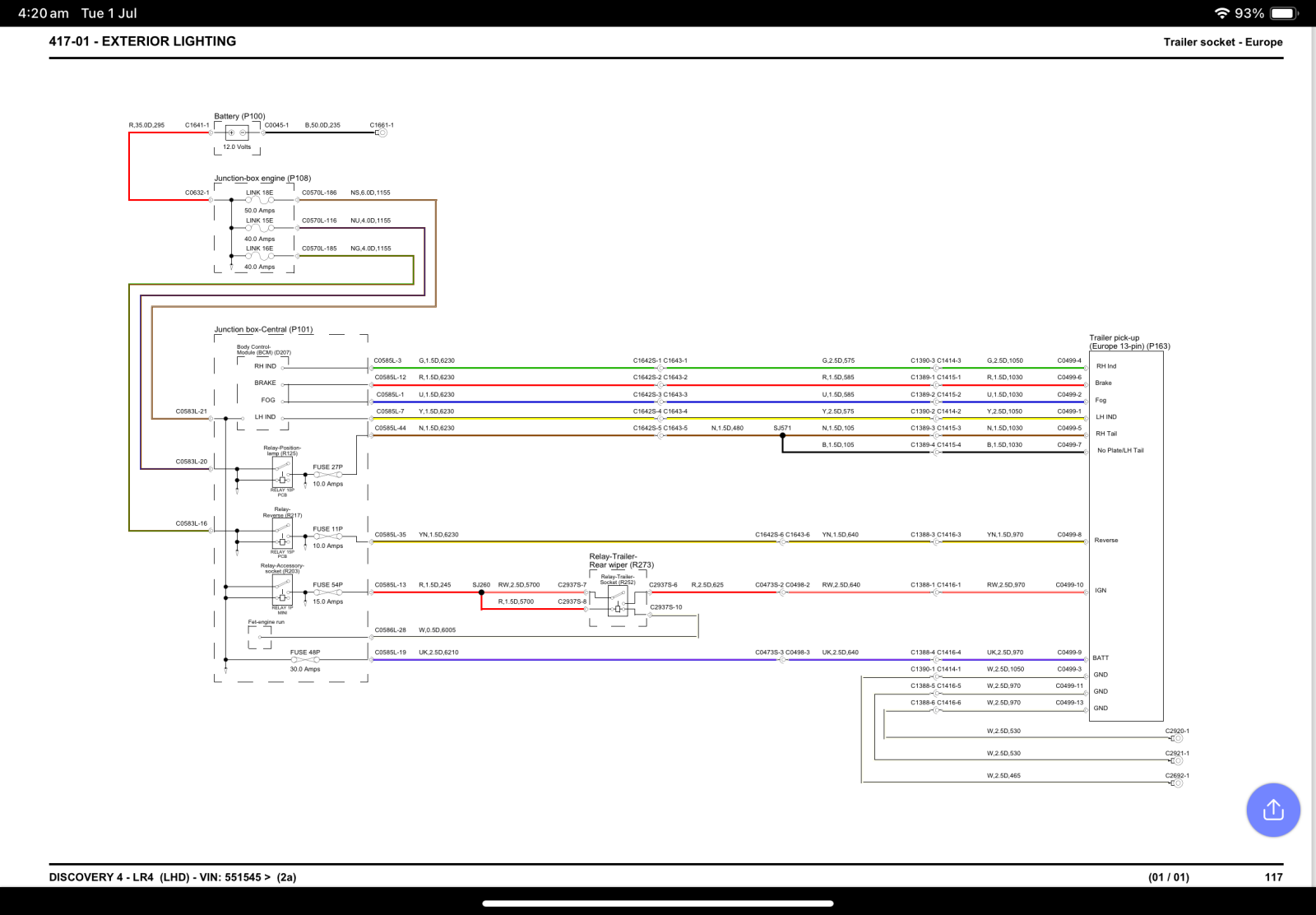

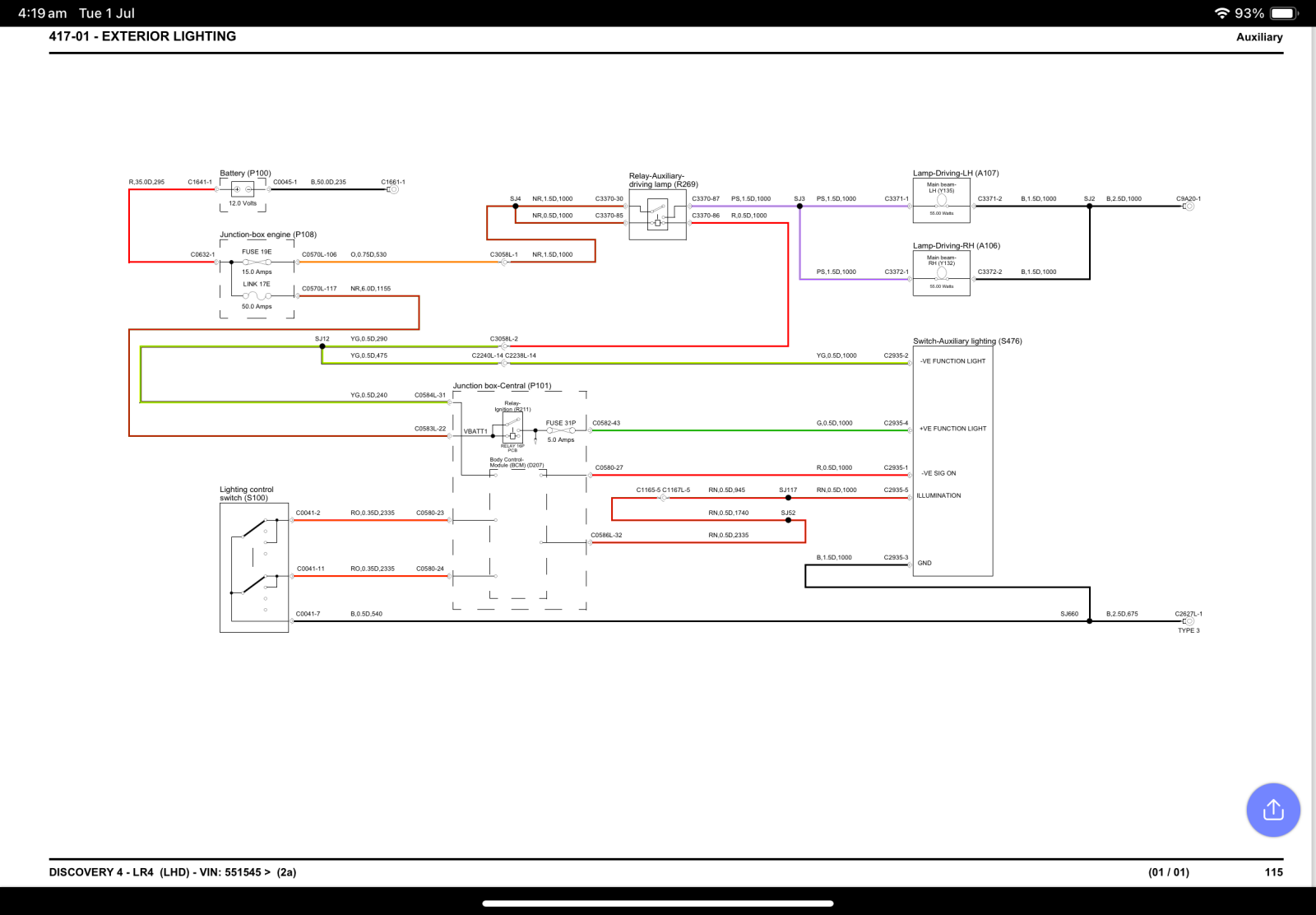

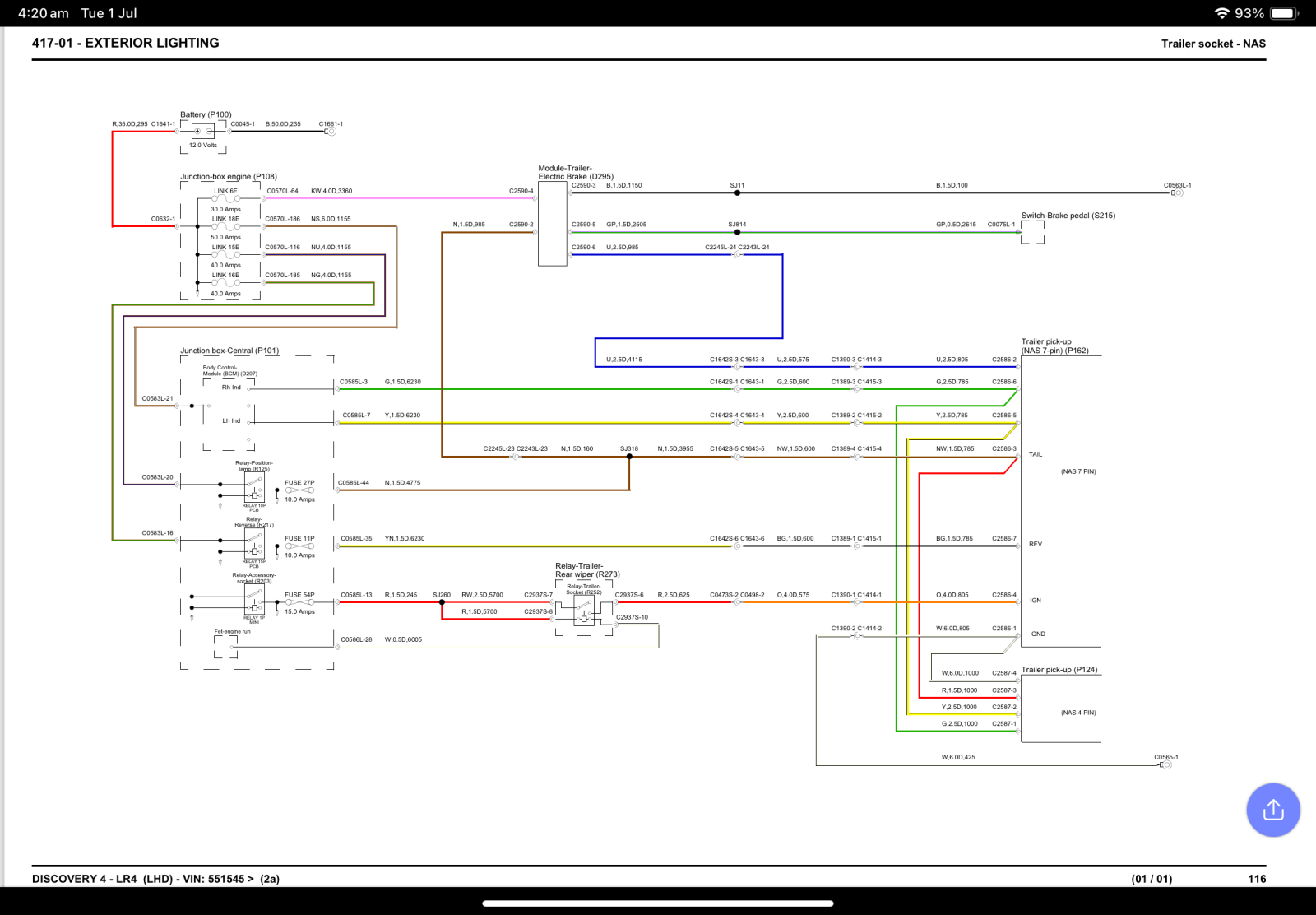

Hope this also helps as it shows the European and NAS towing style wiring setups, along with auxiliary



miktdish

Guns n Chainsaws

Full Member

• Today at 11:43

• #10

Liverghouls said:

Hi thanks for all your help to all I really appreciate that ! Always count on good support here , I'm fitting 2 70 inch sidestep lights with repeater indicators they have a white light to wire to back headlight live ,<snip> ...... back headlights.

Click to expand...

I guess you are bot in the UK (?) as it's not legal to have illuminated white lights on the rear of your car, unless it's a switched reversing light...

What do you mean by 'back headlights' ?



L

lynall

Well-Known Member

Full Member

• 28 minutes ago

• #11

miktdish said:

I guess you are bot in the UK (?) as it's not legal to have illuminated white lights on the rear of your car, unless it's a switched reversing light...

What do you mean by 'back headlights' ?

Click to expand...

I would guess he is not english and means reverse lights?



L

lynall

Well-Known Member

Full Member

• 26 minutes ago

• #12

Liverghouls said:

Hi thanks for all your help to all I really appreciate that ! Always count on good support here , I'm fitting 2 70 inch sidestep lights with repeater indicators they have a white light to wire to back headlight live , a wire for repeaters/indicators on either side and a wire for light comes on when cars unlocked ,I can wire the car unlock light that's no problem it's just the repeater indicator wire and back headlights live wire, I have a Light for both sides of car so will have to connect separately either side , so I'm thinking if I can find the live left and live right indicator pin on towbar plug I could wire it to them.and same with back headlights.

Click to expand...

You may find the new reverse lights draw to much power from the rev light circuit and the bcm might shut them down, if that is the case you will need some relays, fitting lower power bulbs in place of the rev light bulbs currently fitted might reduce the draw on the circuit.
