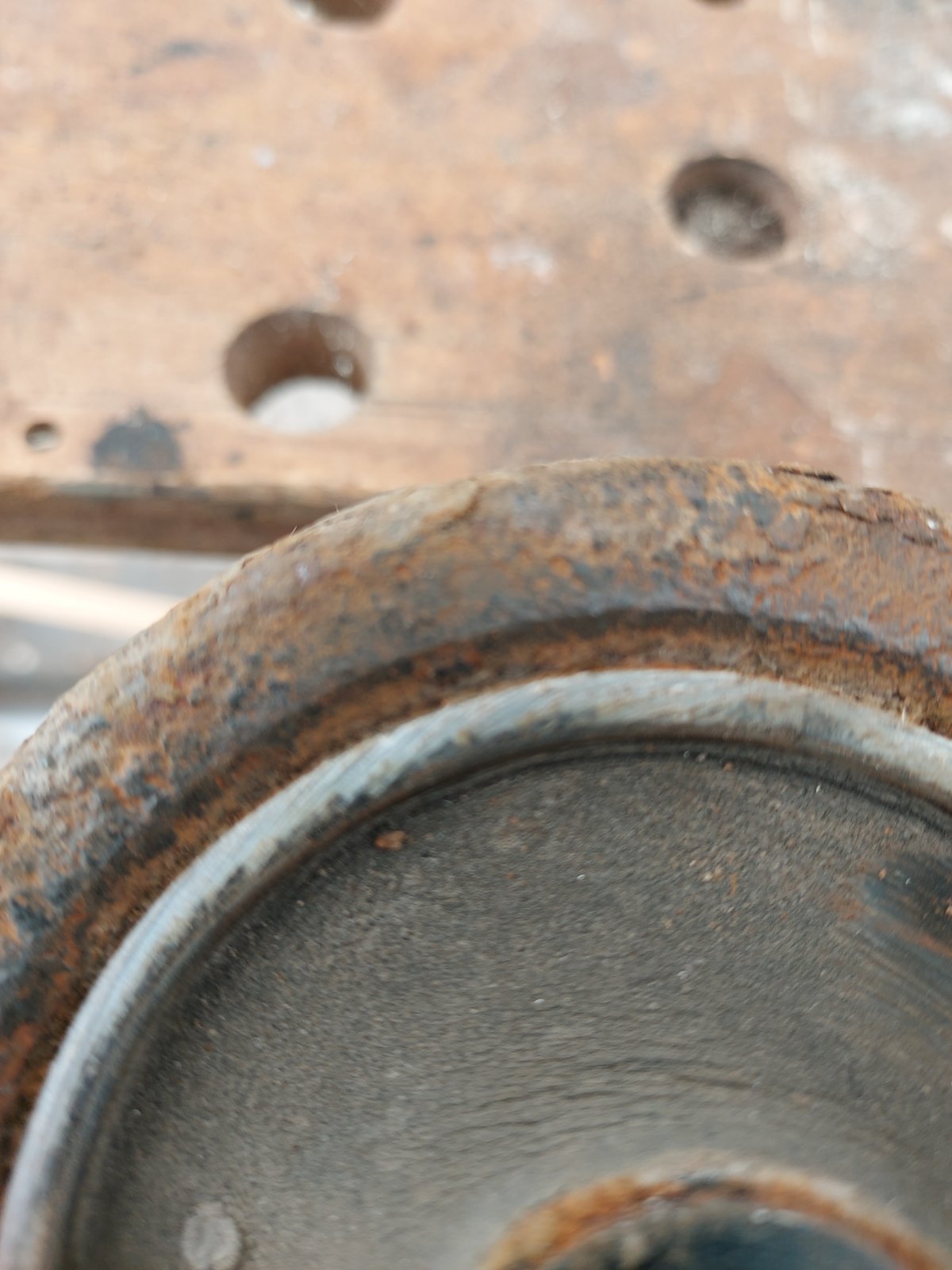

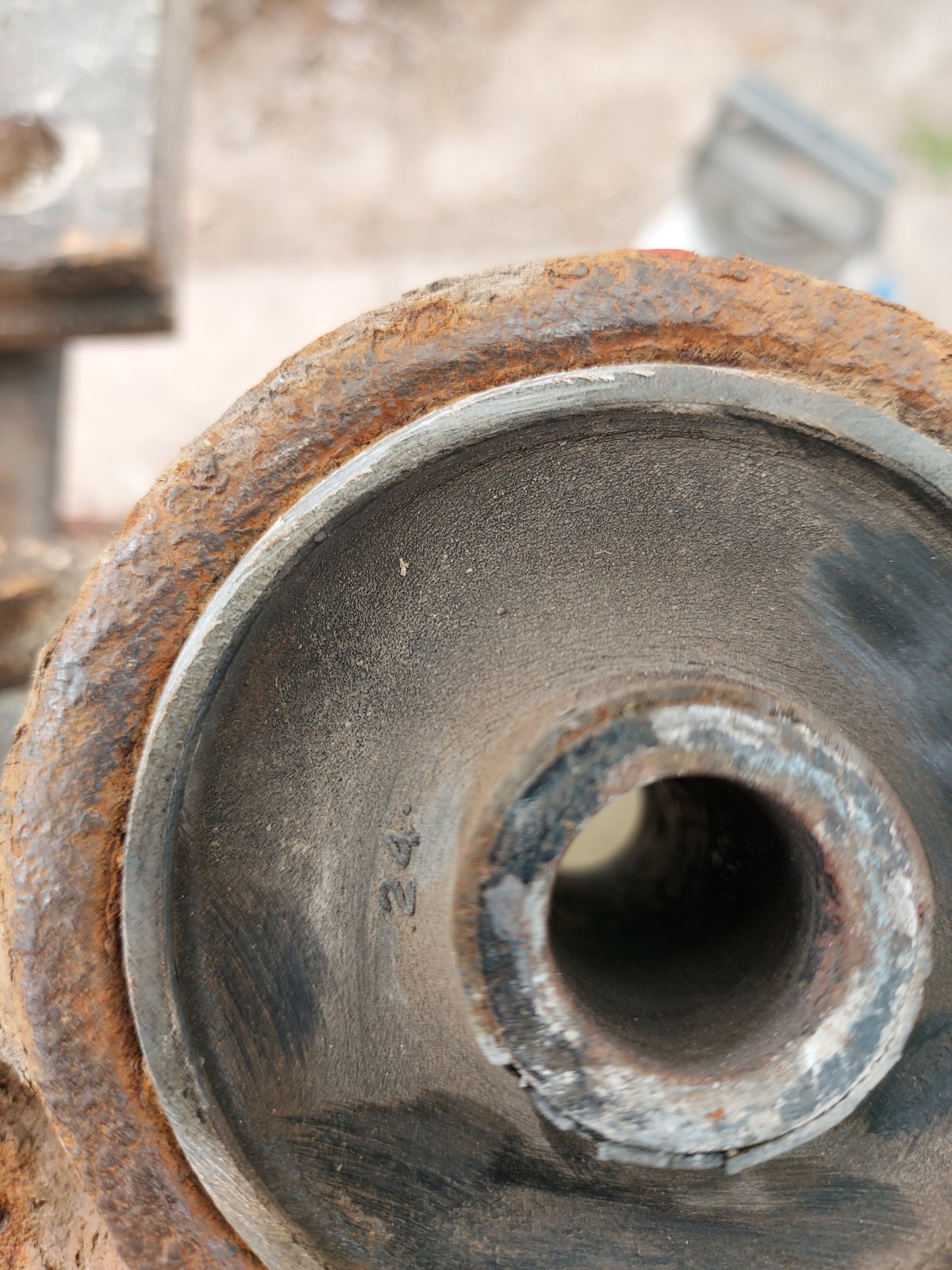

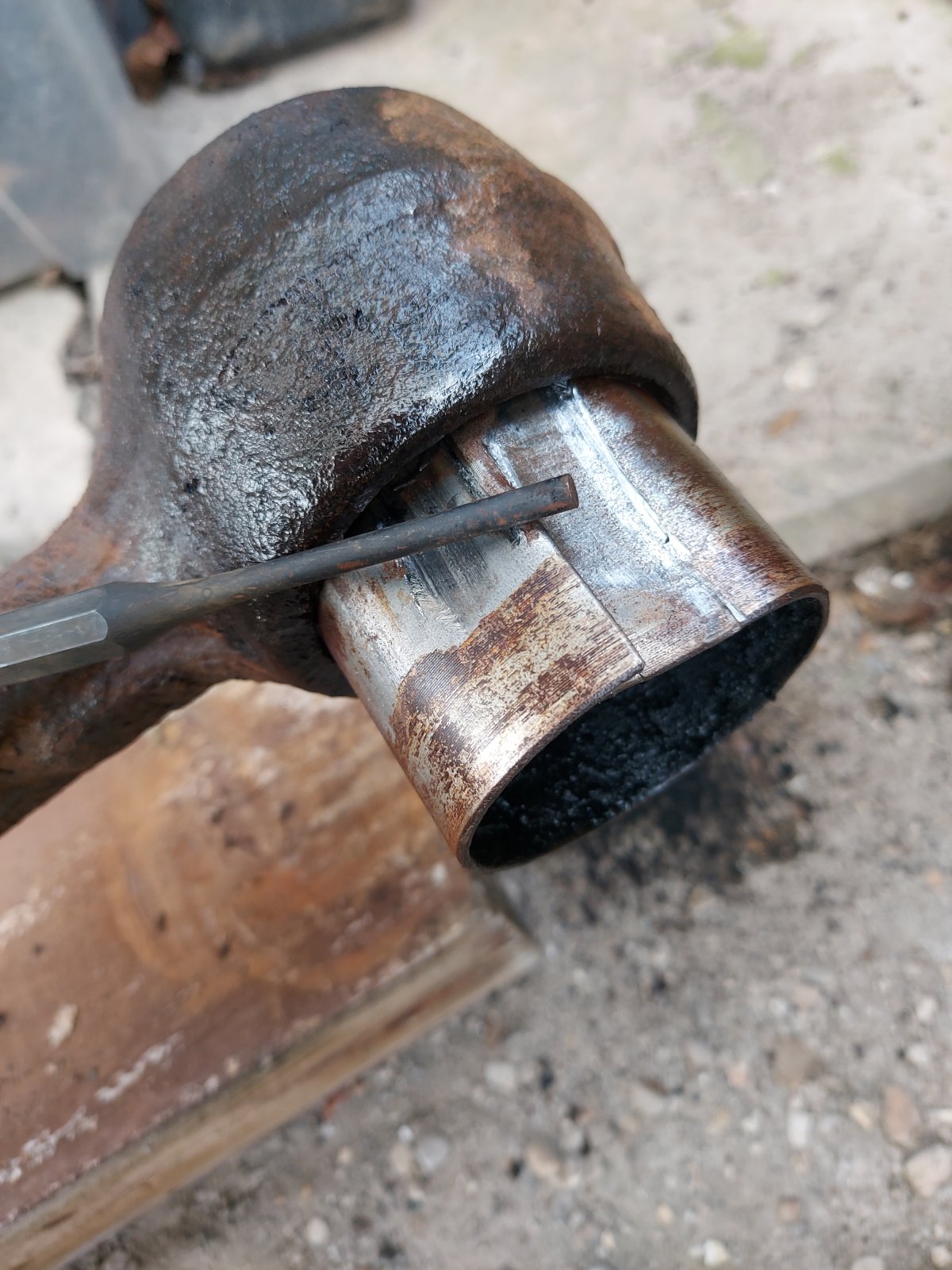

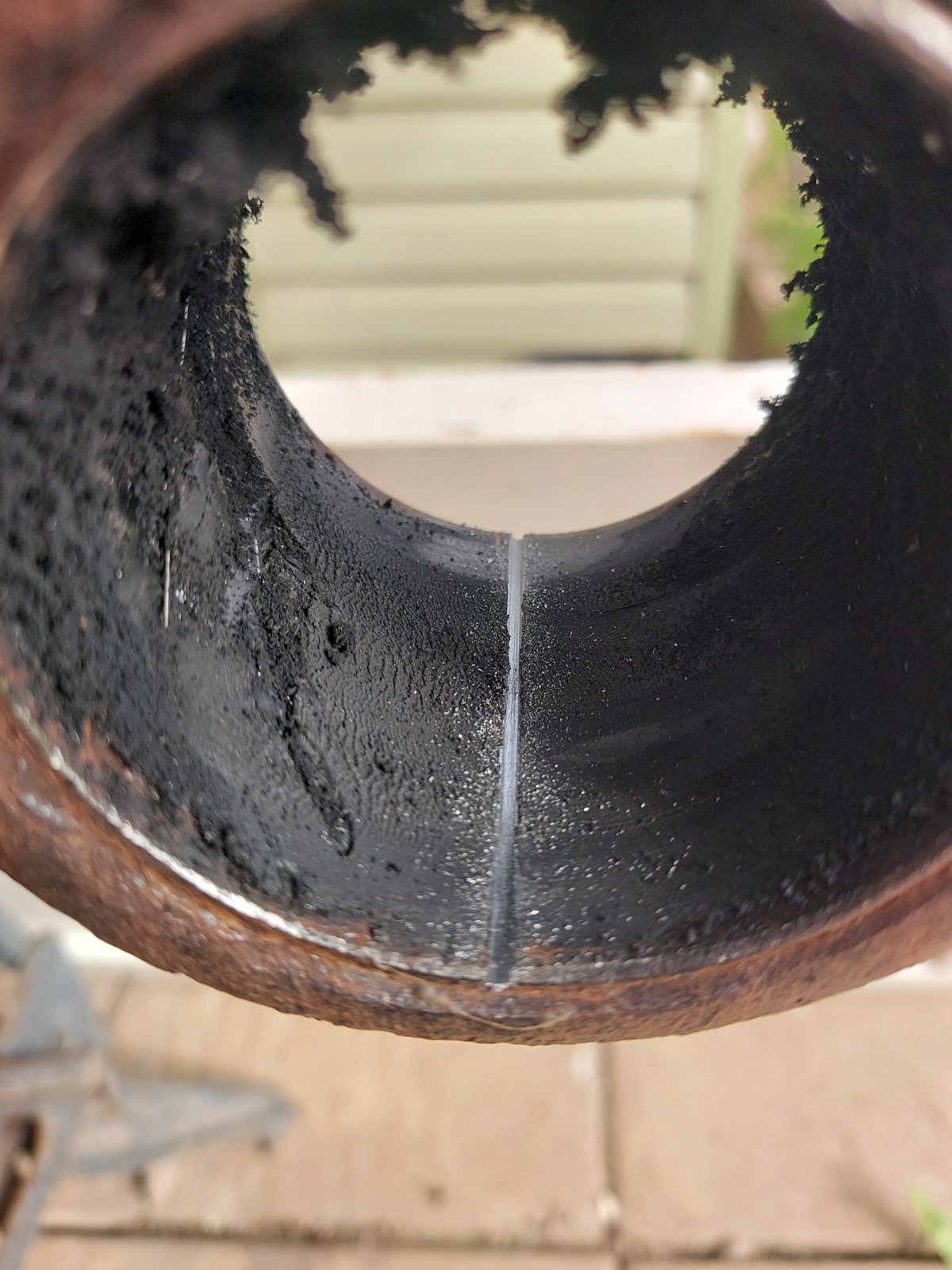

Hi all, are the rear most bushes in the radius arm a different construction from the front bush ? I'm replacing mine & the front bush is the usual metalastic jobbie whilst the rear two seem to have plastic on the o/s of the bush, see pics (I've only removed the front one at the moment),
Thanks in advance.



Attachments

•

  458 KB · Views: 116
•

  250.1 KB · Views: 101
•

  259.4 KB · Views: 109
•

  277.7 KB · Views: 107
•

  195 KB · Views: 103
•

  342.9 KB · Views: 98

Landmark2

Well-Known Member

• Mar 19, 2024

• #2

Hi, If you're saying they look like plastic they may be Polybushes.
Griff



Andy Warren

Well-Known Member

Full Member

• Mar 22, 2024

• #3

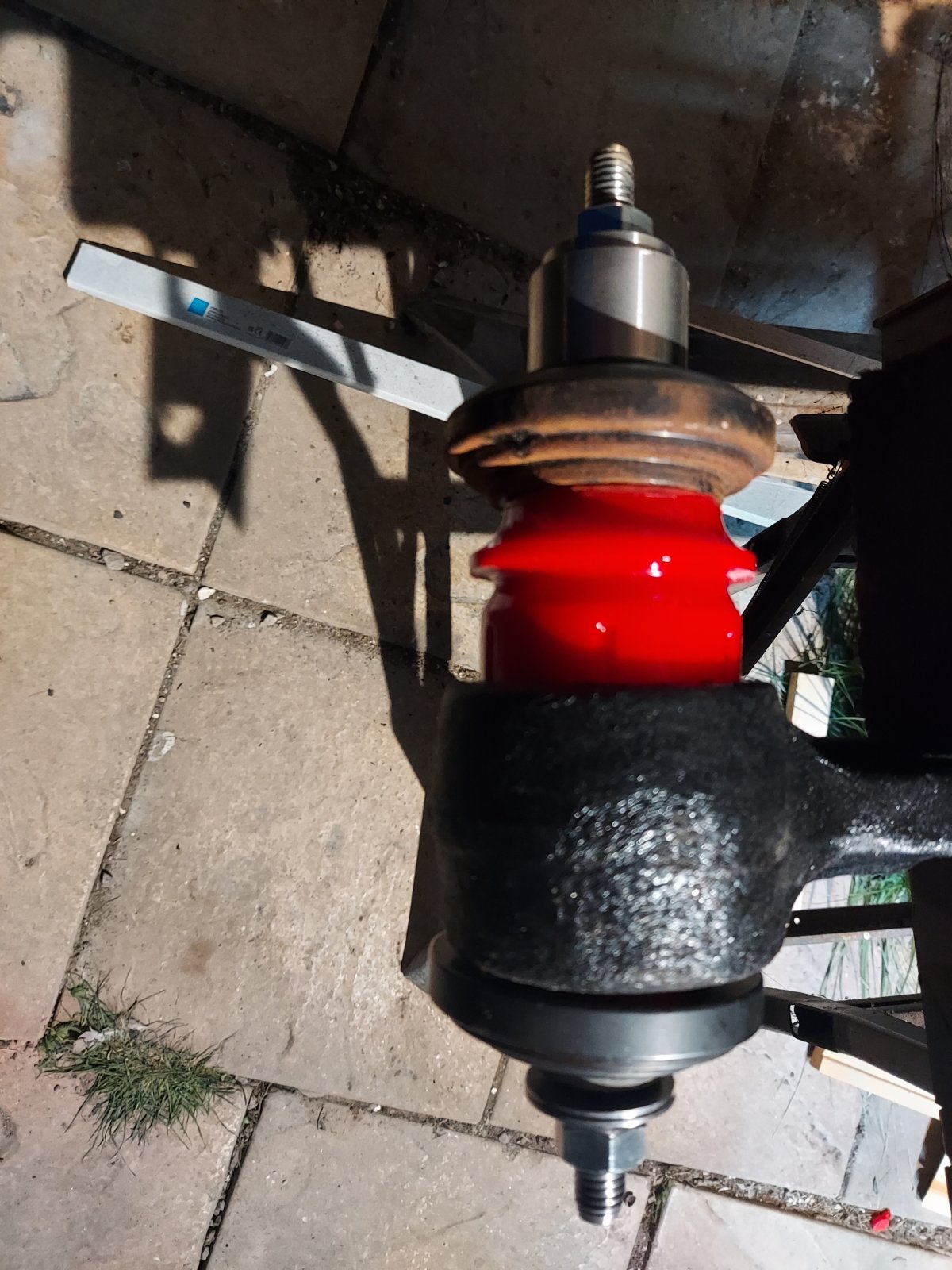

I've now replaced the front (smaller) bushes on the rear r/arms with polybushes, think the old ones had seen better days ! Cobbled together a 'tool' to insert them.



Attachments

•

  235 KB · Views: 99
•

  406.7 KB · Views: 91
•

  285.4 KB · Views: 98
•

  254.4 KB · Views: 93

A

Anaconda

Well-Known Member

• Mar 23, 2024

• #4

Certainly got your moneys worth out of those!



Andy Warren

Well-Known Member

Full Member

• Mar 23, 2024

• #5

Anaconda said:

Certainly got your moneys worth out of those!

Click to expand...

I think new original owner did.I'm the second & have done about 16,000 in just under 3yrs.

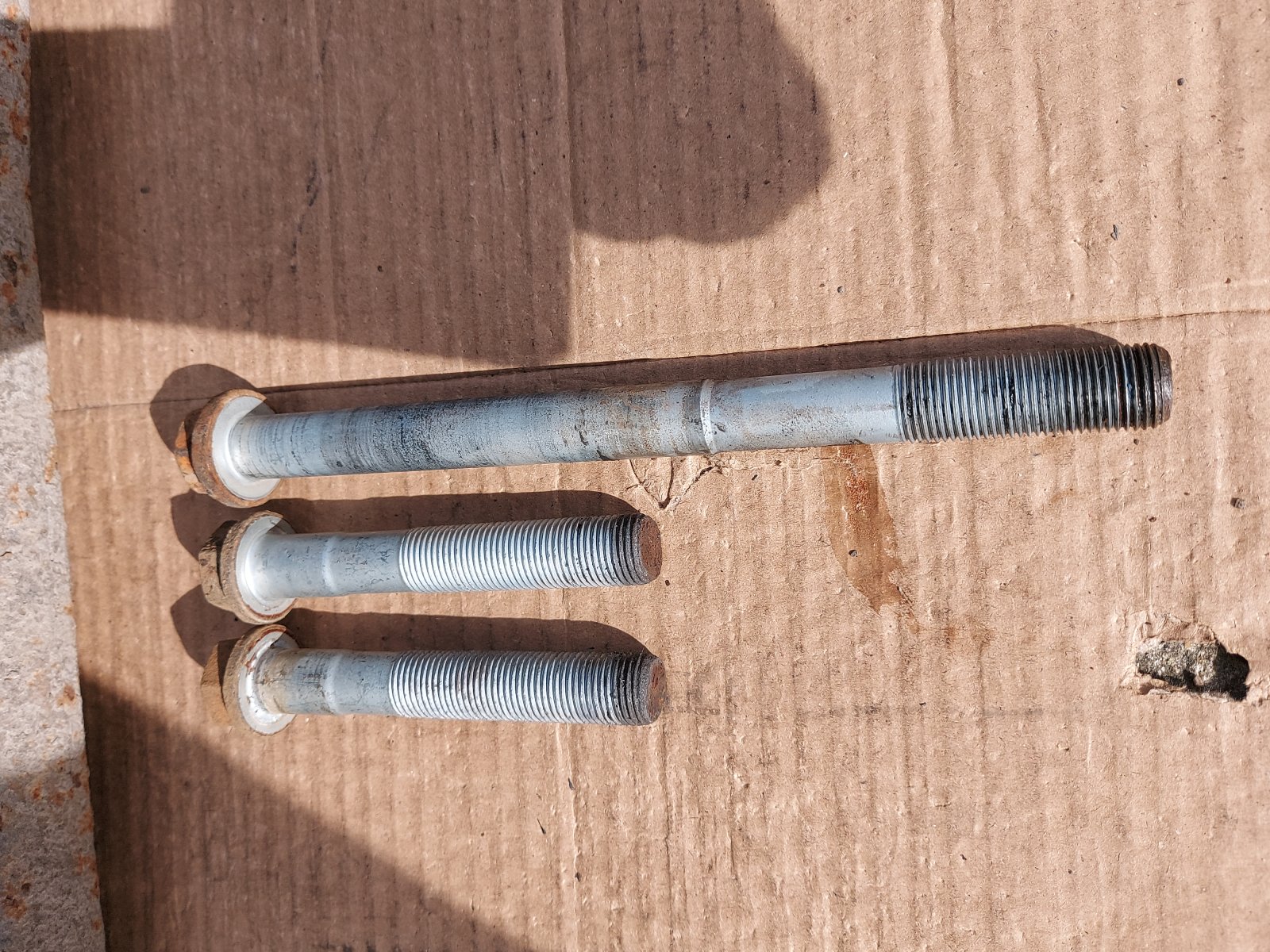

Wire brushed & given a coat of Vactan, I'll the spray it with Halfords truck bed spray (bloody good stuff) & hopefully refit this afternoon .I must admit the bolts, considering they've done 180,000 miles, are in great nick so someone at LR got something right in this particular case.
