T

T-C

Member

• Dec 16, 2018

• #1

In the past my project 1969 109 2.25 petrol has been moved by using a forklift. This has bent the rear propshaft.

I’m trying to source a replacement. Are S11A and S111 rear Propshafts the same?

Thanks.



steve2286w

Well-Known Member

• Dec 16, 2018

• #2

Hi TC
Yes you are correct below is from a parts supplier


Propshaft FRC4907 fits the rear on 88 inch wheelbase Series and Lightweight Land Rovers from 1958 to 1984.



T

T-C

Member

• Dec 16, 2018

• #3

Thanks. That says 88”, so just to clarify does the same apply to the 109”?



steve2286w

Well-Known Member

• Dec 16, 2018

• #4

Sorry didn’t read that properly , it depends on the diff whether it’s got Rover or Salisbury and the 1 ton looks different again



T

T-C

Member

• Dec 17, 2018

• #5

Ok thanks.

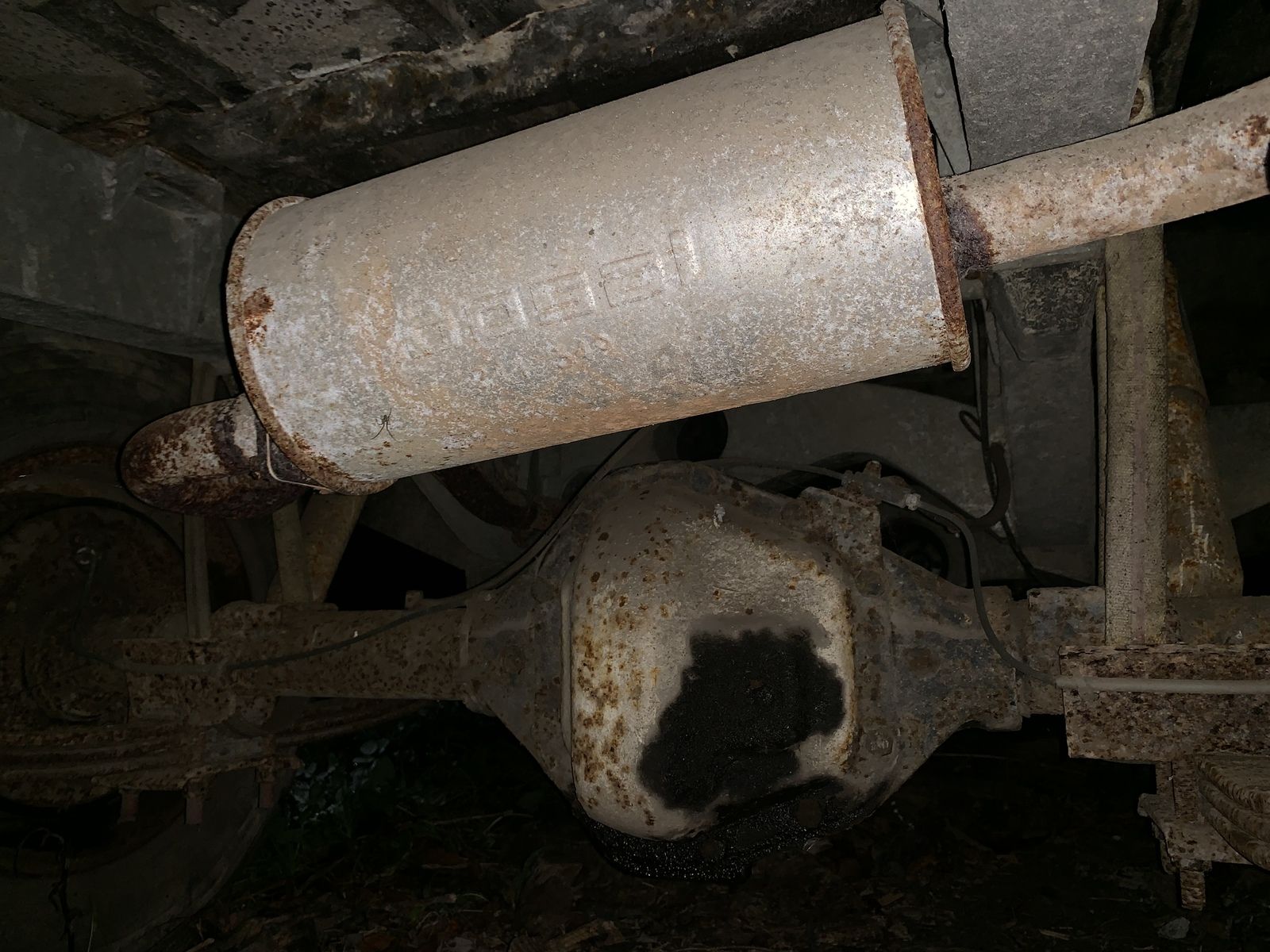

I’ve looked at the diff (attached) and I think it’s a Salisbury. I guess this means I need the Series 3 propshaft?



Attachments

•

  278.1 KB · Views: 116

steve2286w

Well-Known Member

• Dec 17, 2018

• #6

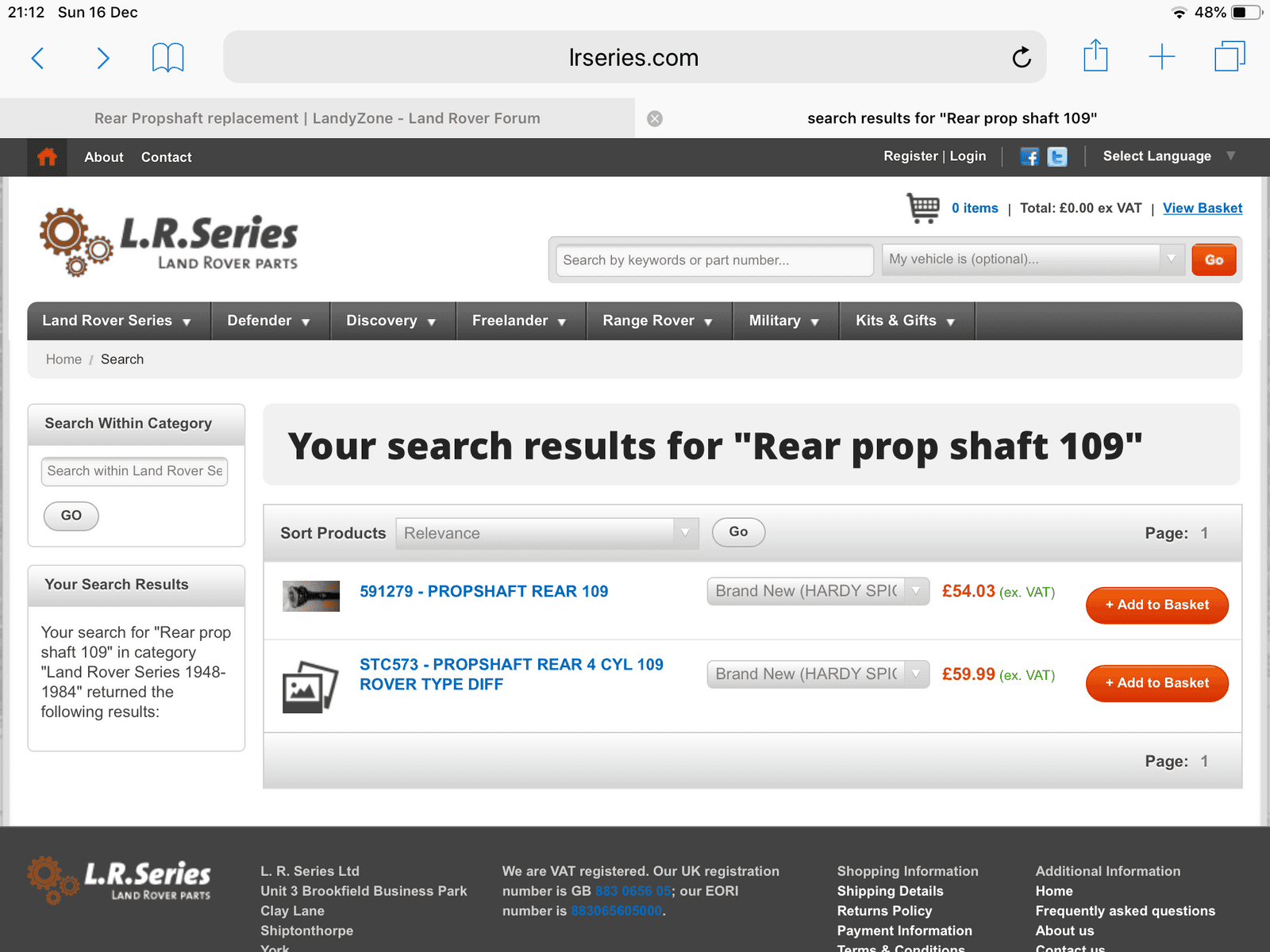

Looks like 591279 as above for 4 cylinder, the 6 cylinder is different best to fit new prop bolts all round



Last edited: Dec 17, 2018
