dag019

Well-Known Member

• Apr 22, 2023

• #1

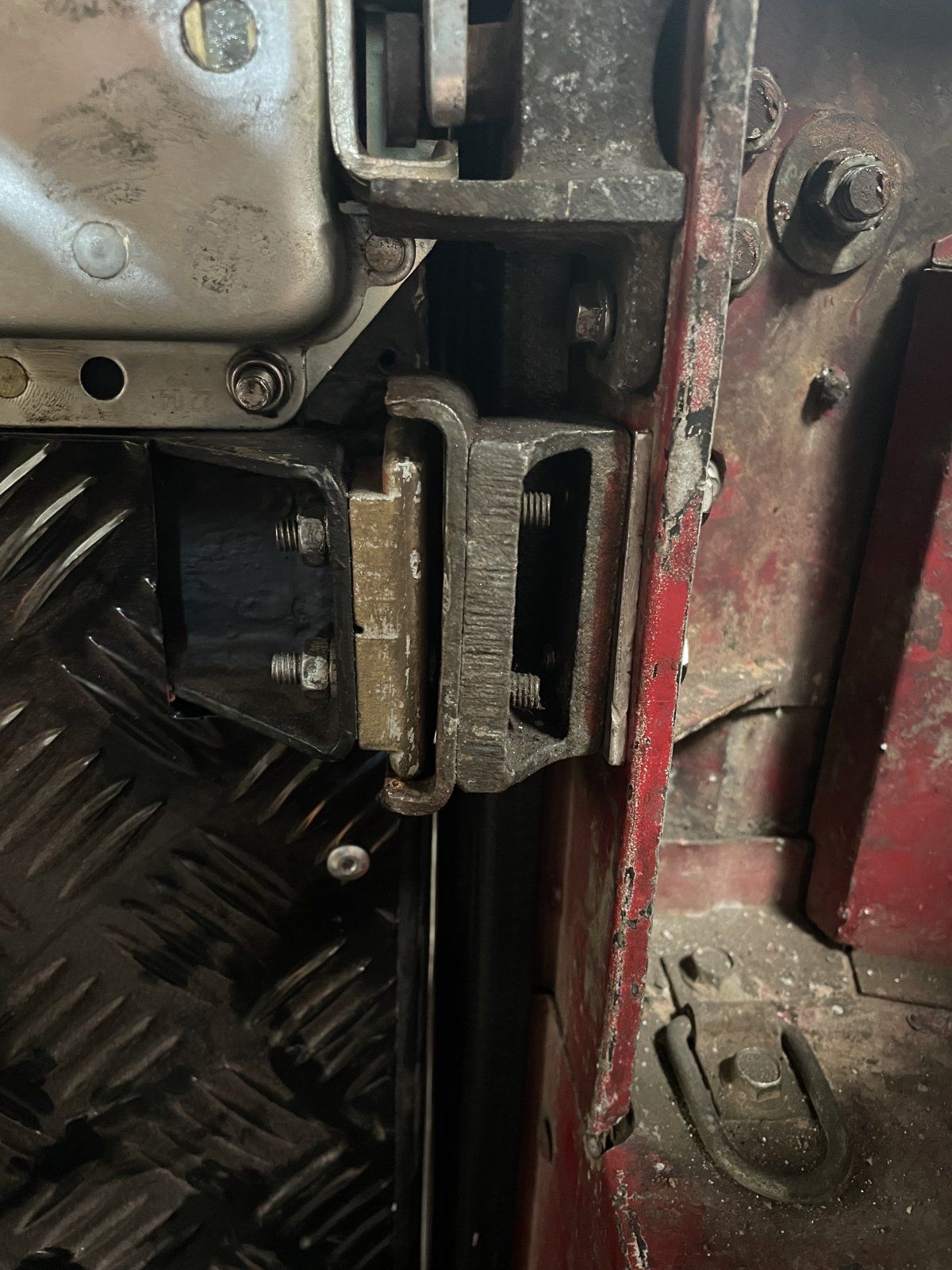

Quick question regarding the dovetail locator/support on the rear door. This looks like there is too large a gap and it should be tighter fitting than this. I assume there should be a spacer that I am missing? Should it go behind the brass block on the door or the dovetail bracket on the tub? I also assume I can just measure the gap and cut a suitable thickness piece of metal to act as a spacer?



steve24v

Well-Known Member

• Apr 22, 2023

• #2

Seem to remember on mine there were a load of shims between tub frame and the bracket. No longer have my 90 so can't check for you



steve24v

Well-Known Member

• Apr 22, 2023

• #3

This is my dads series 2a, was the same on my 90



tottot

Well-Known Member

• Apr 22, 2023

• #4

My Ninety has a bunch of them, just alloy plates with slots in them so you can slip in without removing the bolts, just slacken.



dag019

Well-Known Member

• Apr 22, 2023

• #5

Excellent many thanks all. Looks like some making of aluminium plates for the tub is my next job.



GRATCH

HUGE MEMBER

• Apr 22, 2023

• #6

dag019 said:

Quick question regarding the dovetail locator/support on the rear door. This looks like there is too large a gap and it should be tighter fitting than this.

Click to expand...

Yes.

dag019 said:

I assume there should be a spacer that I am missing?

Click to expand...

Yes.

dag019 said:

Should it go behind the brass block on the door or the dovetail bracket on the tub?

Click to expand...

Yes.

dag019 said:

I also assume I can just measure the gap and cut a suitable thickness piece of metal to act as a spacer?

Click to expand...

Yes.



dag019

Well-Known Member

• Apr 23, 2023

• #7

tottot said:

My Ninety has a bunch of them, just alloy plates with slots in them so you can slip in without removing the bolts, just slacken.

Click to expand...

Many thanks. Makes for very easy manufacture and fitting.

Spacer fitted and gap reduced but still possible too large a gap. How snug should the brass be into the bracket?



GRATCH

HUGE MEMBER

• Apr 23, 2023

• #8

It looks like the top bend has been opened up- it should curl over more.



Brown

Well-Known Member

Full Member

• Apr 23, 2023

• #9

Looks like you may be able to get two of those bits of plate in rather than just one.

I did something similar with my front door strikers, to space them away from the B post so they'd engage with the door catches. Well worth doing as it turned out.
