gR@HaM

Well-Known Member

• Aug 22, 2016

• #1

Can anyone help with a part number for the (5)stud bolts with 10mm nyloc nuts that attach the ABS sensor ring to the rear wheel hub on my '95 disco TDI ES?
I'm struggling to find the code anywhere and need to get them ordered asap.
Thanks muchly



gR@HaM

Well-Known Member

• Aug 22, 2016

• #2

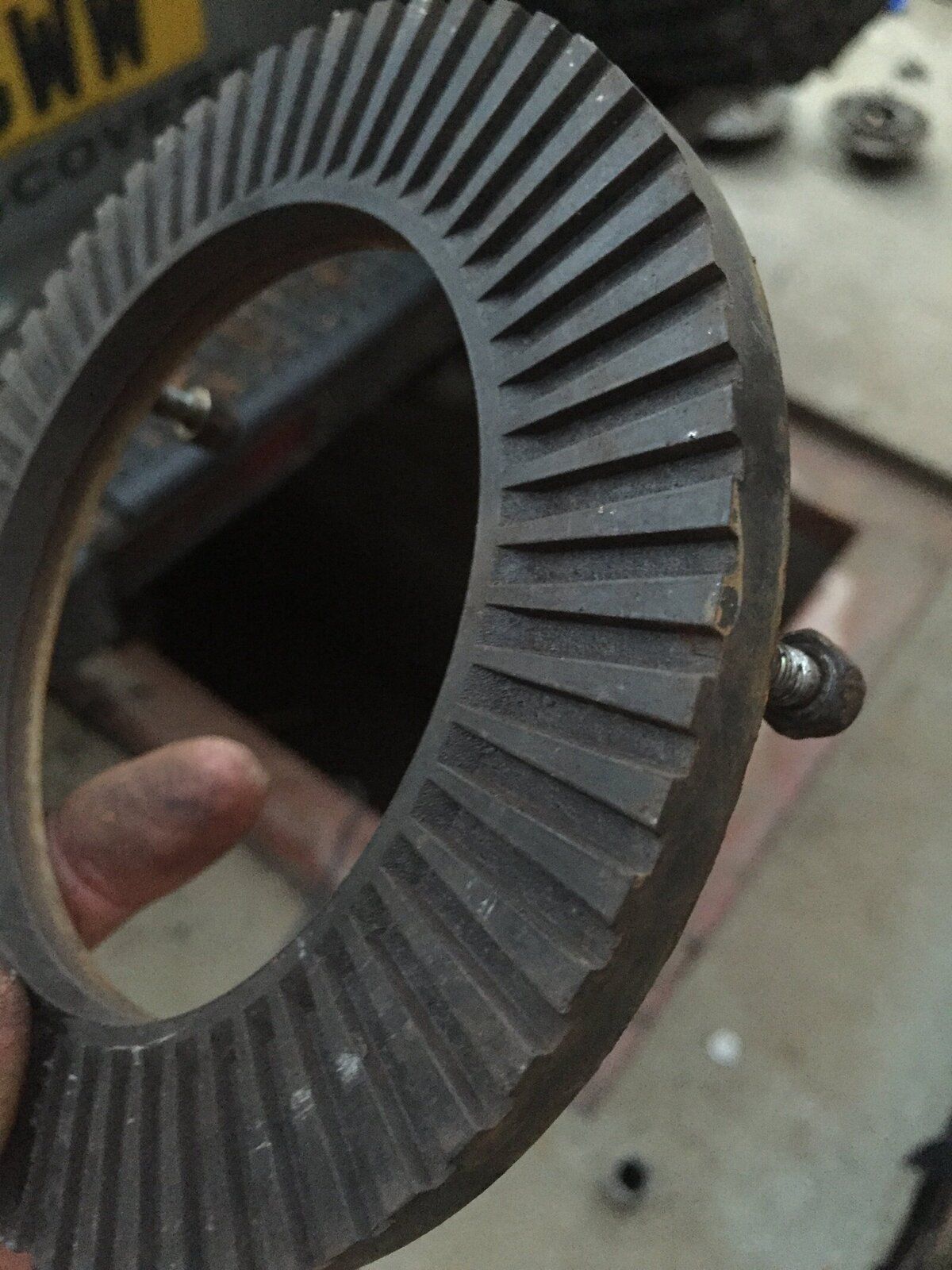

Photos attached..



Attachments

•

  248.2 KB · Views: 169
•

  262.9 KB · Views: 169

discool

Well-Known Member

• Aug 22, 2016

• #3

Oooo is that what they look like, anyway part numbers no probs. I have a disco parts catalogue but it's on line now, so see link below.
TD106041 Stud
NY106041 Nut a Flange Nyloc M6

http://www.allbrit.de/UNI.cfm?PAGE=806826&SPRACHE=EN



Last edited: Aug 22, 2016

gR@HaM

Well-Known Member

• Aug 22, 2016

• #4

Thanks Discool, you sarcastic git!! But in all seriousness much appreciated, useful link..



gR@HaM

Well-Known Member

• Aug 23, 2016

• #5

Phoned a few places it seems these are no longer available unless I buy replacement ABS rings for £250!!
Looks like I will need to get some 6mm rod and cut it into small pieces - has anyone else had this problem? They must corrode pretty quick..



gR@HaM

Well-Known Member

• Aug 23, 2016

• #6

Ok blonde moment, have now lopped the heads off a load of 6mm bolts job done
