M

Mthompson

Member

• Nov 18, 2019

• #1

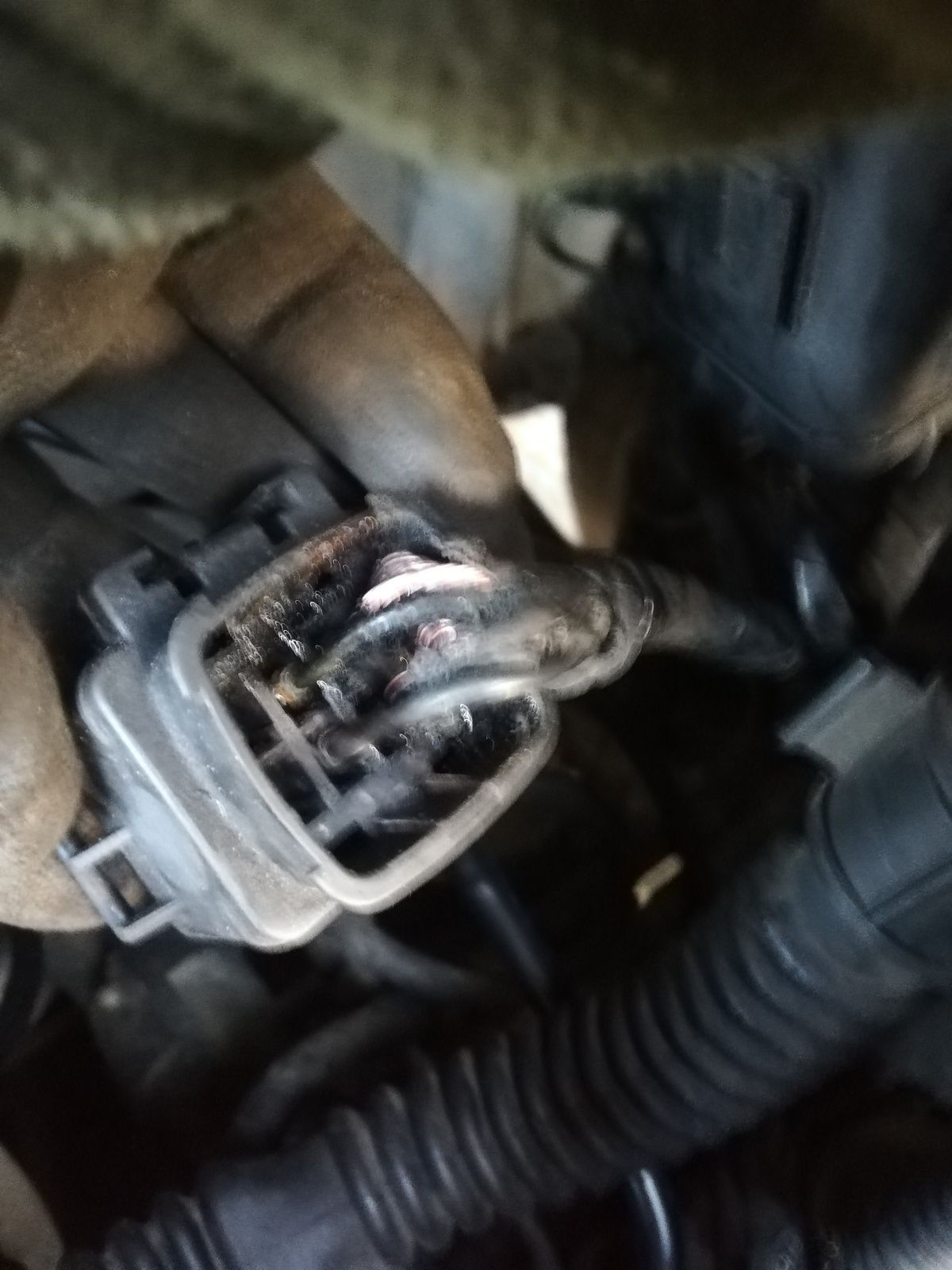

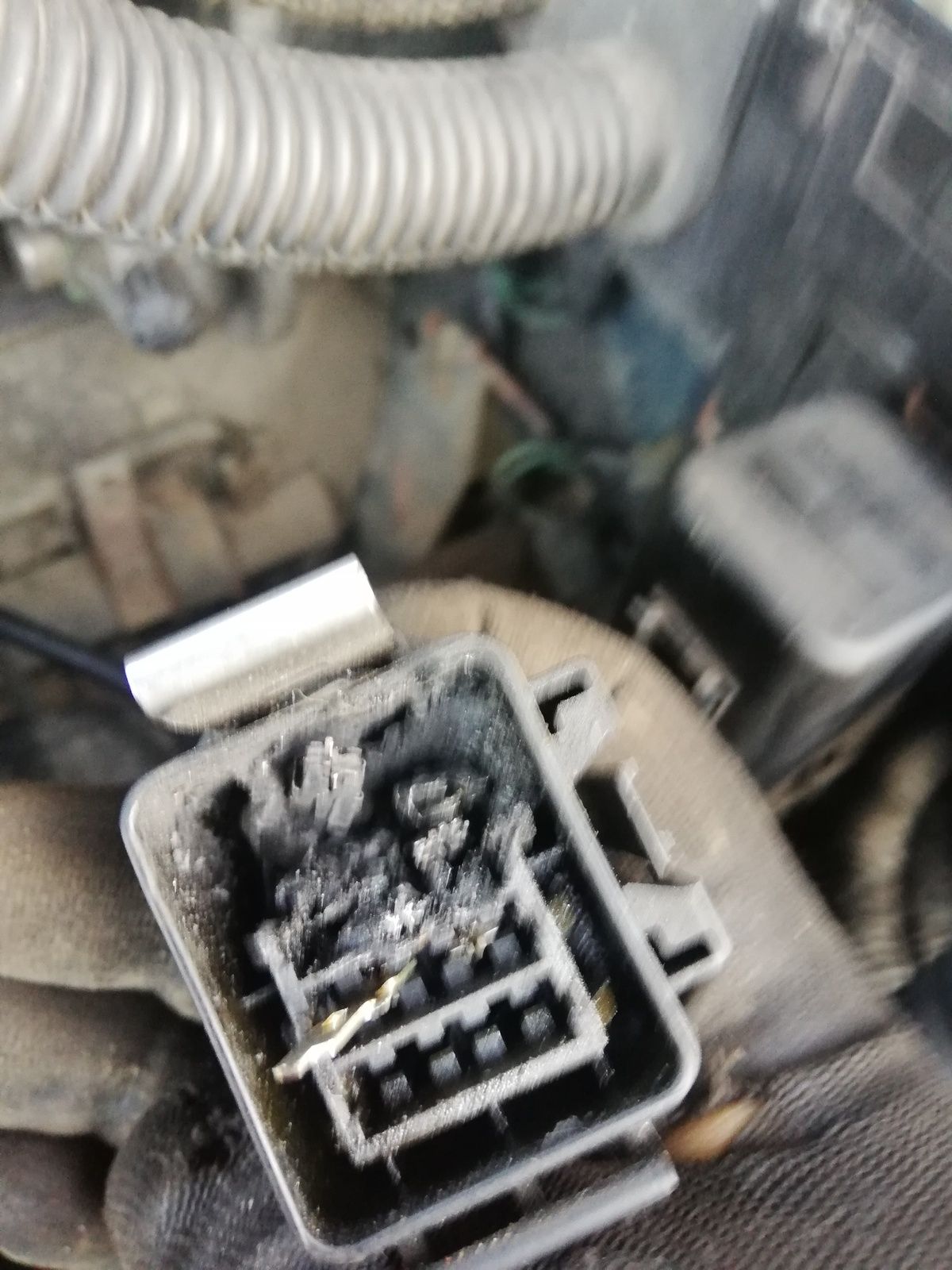

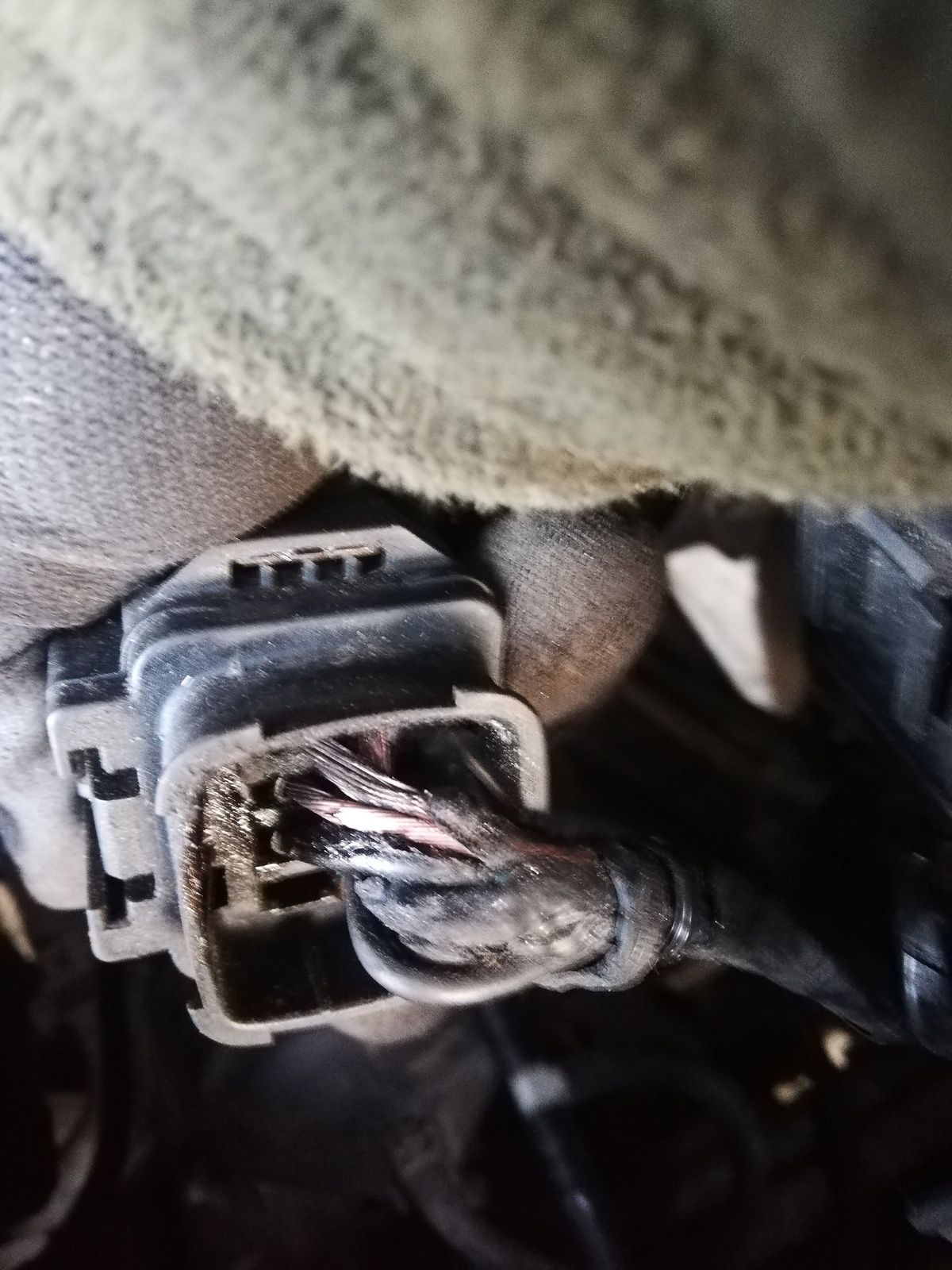

[GALLERY=]This morning when I started my FR1 and had been left at idle for a couple of minutes the cab started filling with smoke through the vents. When I opened the bonnet I saw the little square fues box was melted will add some picture. Think there something to do with the ptc heater but not sure what that is can anyone help me[/GALLERY]



Attachments

•

  209.5 KB · Views: 142
•

  233.7 KB · Views: 120
•

  158.3 KB · Views: 125

Nick the greek

Member

• Nov 18, 2019

• #2

PTC or electric heated screen if you have one



M

Mthompson

Member

• Nov 18, 2019

• #3

Nick the greek said:

PTC or electric heated screen if you have one

Click to expand...

Don't have heated screen so must be ptc but not sure where it is as never heard of one



freelance

Well-Known Member

• Nov 18, 2019

• #4

It’s a heater coil in cabin air box to help temperature rise in cold cabin, there was a mod by Land Rover, condensation could drip onto coil causing a short, leading to a fire



M

Mthompson

Member

• Nov 18, 2019

• #5

freelance said:

It’s a heater coil in cabin air box to help temperature rise in cold cabin, there was a mod by Land Rover, condensation could drip onto coil causing a short, leading to a fire

Click to expand...

Does it actually need this



freelance

Well-Known Member

• Nov 18, 2019

• #6

Pull the fuses and run without, does help on a frosty morning to get warm air to screen quicker !



M

Mthompson

Member

• Nov 18, 2019

• #7

freelance said:

Pull the fuses and run without, does help on a frosty morning to get warm air to screen quicker !

Click to expand...

That's what I though might fix it one day. I had already melted all the fuses no power going to wires so will do for now. Can't afford to fix it at thd minute. Thanks for your help
