Dear All, losing will to live here and hope you can help.

Replacing power steering pump hoses but am struggling with suppliers as to which is the correct part #. The hose is part #1 here https://www.lrworkshop.com/diagrams...ering-column-lower/power-steering-pipes_53705 [LR is a Def 200tdi, originally a 2.5TD]

This issue is the correct size of male connection that fits the rear of the pump

Here pic of pump and thread


Here pic of steering box end that fits the pump


Here pic of hose end that should fit pump but is too large


So, which #1 hose part number should I be ordering. All help greatly received

Thank you
v8250

eta why did LR make so many different hose end types o_O

Dear All, losing will to live here and hope you can help.

Replacing power steering pump hoses but am struggling with suppliers as to which is the correct part #. The hose is part #1 here https://www.lrworkshop.com/diagrams...ering-column-lower/power-steering-pipes_53705 [LR is a Def 200tdi, originally a 2.5TD]

This issue is the correct size of male connection that fits the rear of the pump

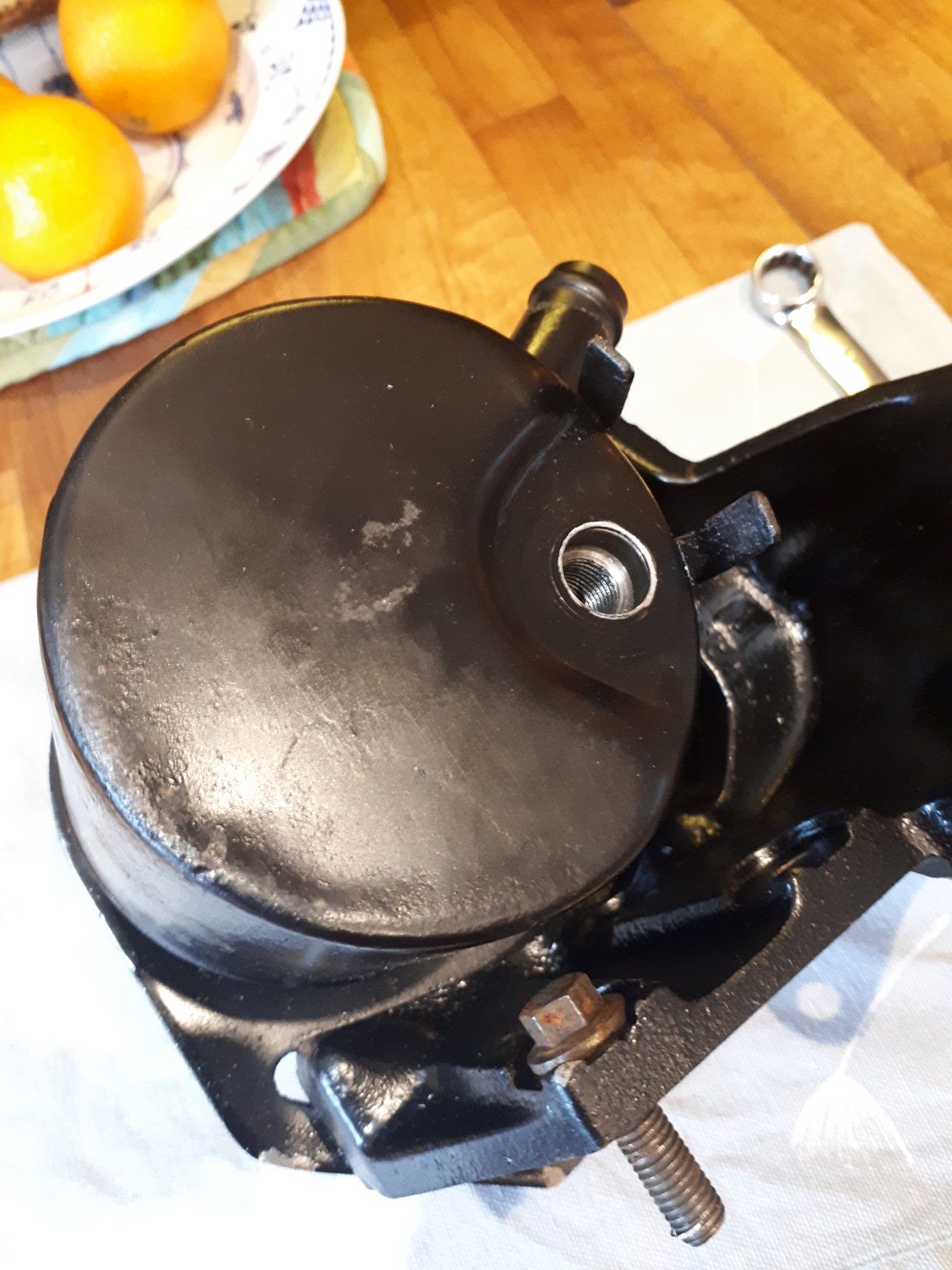

Here pic of pump and thread
View attachment 226185

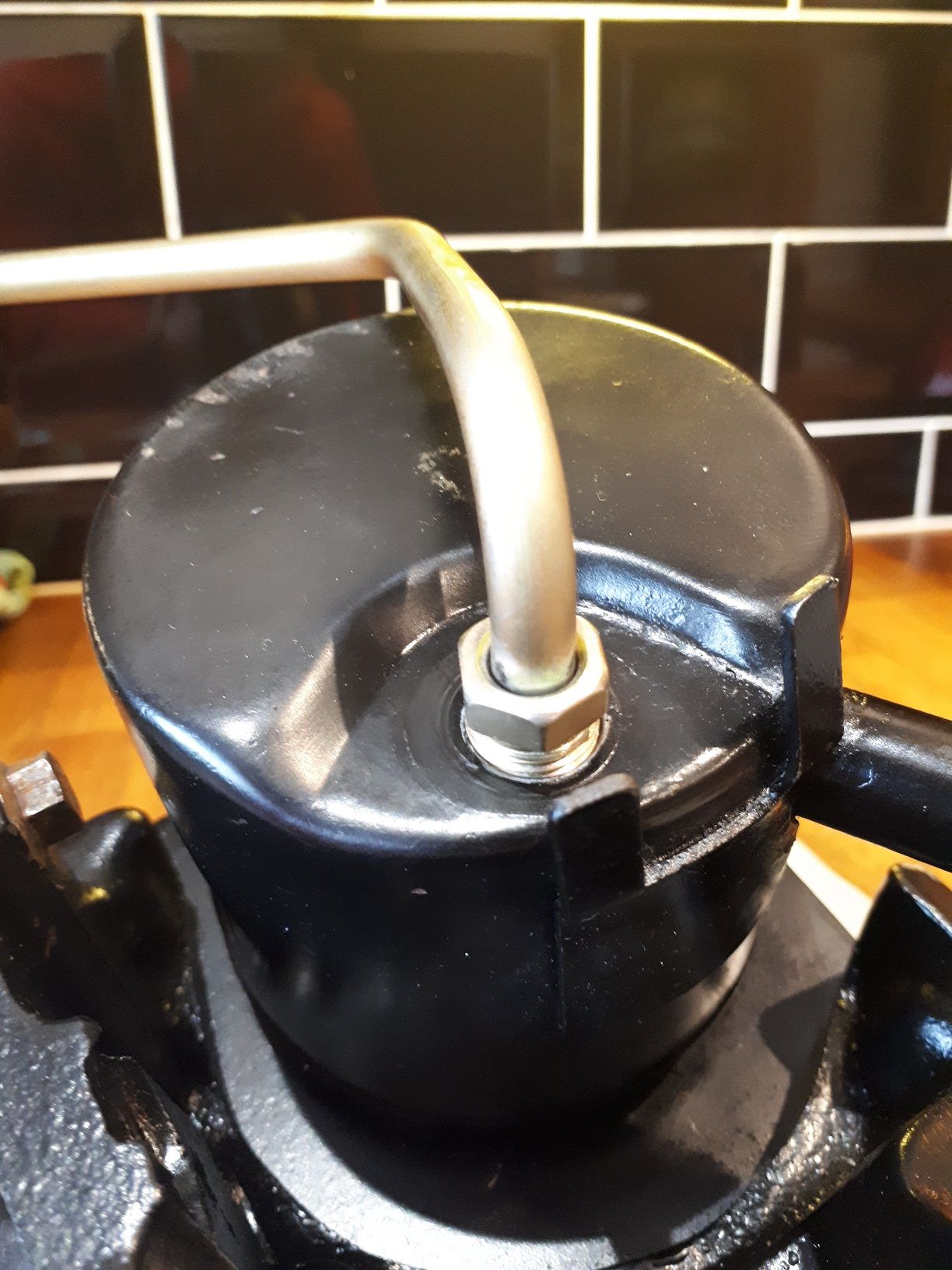

Here pic of steering box end that fits the pump
View attachment 226186

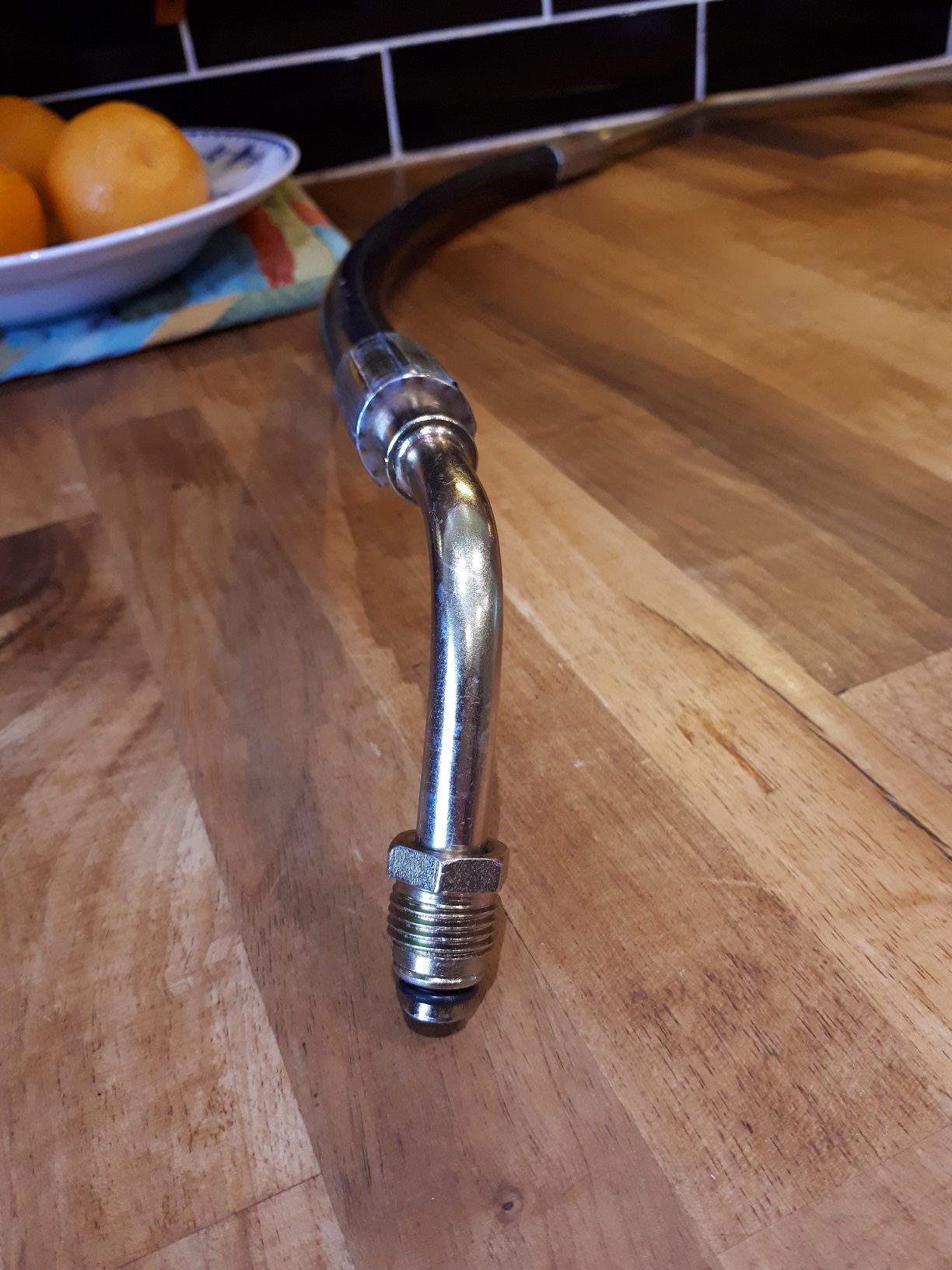

Here pic of hose end that should fit pump but is too large
View attachment 226187

So, which #1 hose part number should I be ordering. All help greatly received

Thank you
v8250

eta why did LR make so many different hose end types o_O
its part 3 in your pic, is pump 200tdi disco or defender

Hi James, I thought it was part #1 as this exits the rear of the pump.The side exit is just an open hose end onto hose stub fitted with a jubilee clip [see pic #1 hose stub]. Have no idea if pump disco or defender, but I'm gauging it's a defender, as is the engine from original conversion.

Hi James, I thought it was part #1 as this exits the rear of the pump.The side exit is just an open hose end onto hose stub fitted with a jubilee clip [see pic #1 hose stub]. Have no idea if pump disco or defender, but I'm gauging it's a defender, as is the engine from original conversion.
thats just a diagram you want pump to box pipe

id say it was defender there are 2 pumps with different numbers but look the same ntc8287 and ntc9070- doesnt look like banjo bolt is listed

Thanks James, agreed it's ntc8287...but still struggling with the correct hose/pipe part number that gives 1. both end fittings same as the box end, or 2. box end std fitting with o-ring, pump end onto banjo fitting :. now need to find banjo fitting part # :(

Thanks James, agreed it's ntc8287...but still struggling with the correct hose/pipe part number that gives 1. both end fittings same as the box end, or 2. box end std fitting with o-ring, pump end onto banjo fitting :. now need to find banjo fitting part # :(
your pump looks banjo fitting to me

Okay, good news. When I took the PAS assembly apart I'd forgotten I'd put the two piece banjo into a jar of WD40 to soak/clean up...and hey presto, after rummaging around found jar with clean banjo.Now to track down new copper washers and the little rubber seal...

Am I the only one who puts parts away in a "logically safe place" only to forget where the safe place was...?

Okay, good news. When I took the PAS assembly apart I'd forgotten I'd put the two piece banjo into a jar of WD40 to soak/clean up...and hey presto, after rummaging around found jar with clean banjo.Now to track down new copper washers and the little rubber seal...

Am I the only one who puts parts away in a "logically safe place" only to forget where the safe place was...?
they should be dowty washers for the banjo

James/All, as share for future reference...Defender PAS system is NTC8287 pump with rear two piece banjo, 2x Dowty washers, 1x rubber ring seal and high pressure pipe NTC6731 - the pipe has std male fitting at the steering box end, larger female fitting to pump banjo end.
