Hi we have a Land Rover discovery 4, the previous owner has fitted facelift headlights onto the vehicle and they need to be enabled by the cars BCM - can anybody tell me who can do this or how to do it / it’s due it’s MOT on the 24th Jan and currently has no headlights and I can’t find anybody anywhere able to help
Hi
always best to pop over to the introduce section , alas if u can’t find any local company ur more than likely need to buy ur own diagnostics, many of us with D3 and D4 use one called gap iid , there around £420 and is advantageous to have one due to the complexity of these vehicles
im afraid as you’ve mentioned it the only way is to use diagnostics, maybe some here might be able to help u if they live local
Hope that helps a little
always best to pop over to the introduce section , alas if u can’t find any local company ur more than likely need to buy ur own diagnostics, many of us with D3 and D4 use one called gap iid , there around £420 and is advantageous to have one due to the complexity of these vehicles
im afraid as you’ve mentioned it the only way is to use diagnostics, maybe some here might be able to help u if they live local
Hope that helps a little
Thank you so much for the info Stuart - my partner bought the car and I’m getting real close to sending him to live in it out of my sight
I’ve put a post on hopefully I can find someone close to me but at least I kind of know what I need - I’ve phoned so many garages and they don’t have a clue what I’m talking about
xx
I’ve put a post on hopefully I can find someone close to me but at least I kind of know what I need - I’ve phoned so many garages and they don’t have a clue what I’m talking about
xx
ur so welcome
poor hubby , lmao , am just trying to find out for u if a cheaper scanner will do the same for u
I’m wondering if the older headlights were halogen and the new ones are xenon, do the lights flicker when u first turn them on plse
there should be a label on the top of the lights , have heard of some issues with the facelift lights , called the 4.5 range , if u can take a pic of the front of the lights and label I’ll see if I can do some digging for u

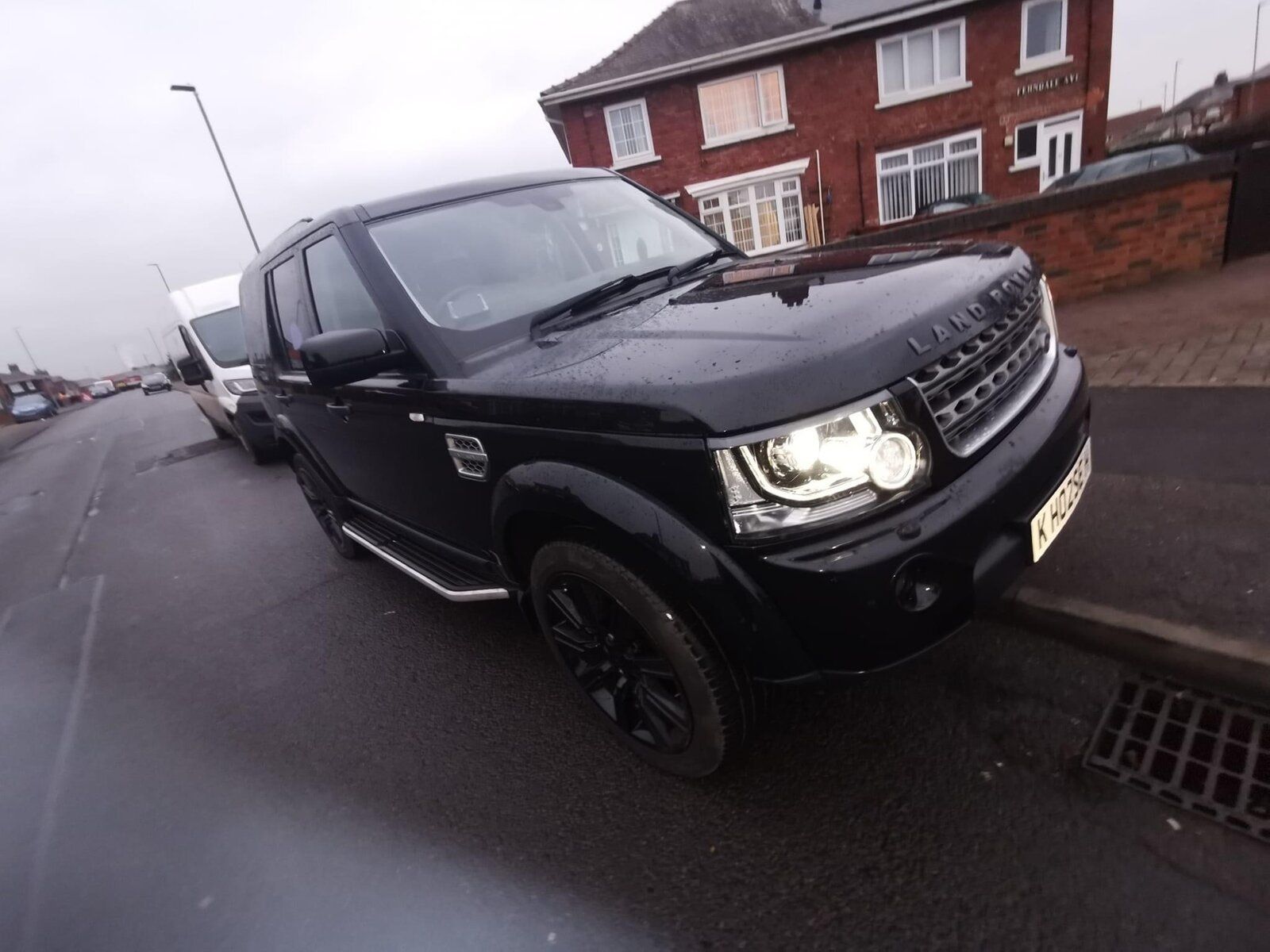

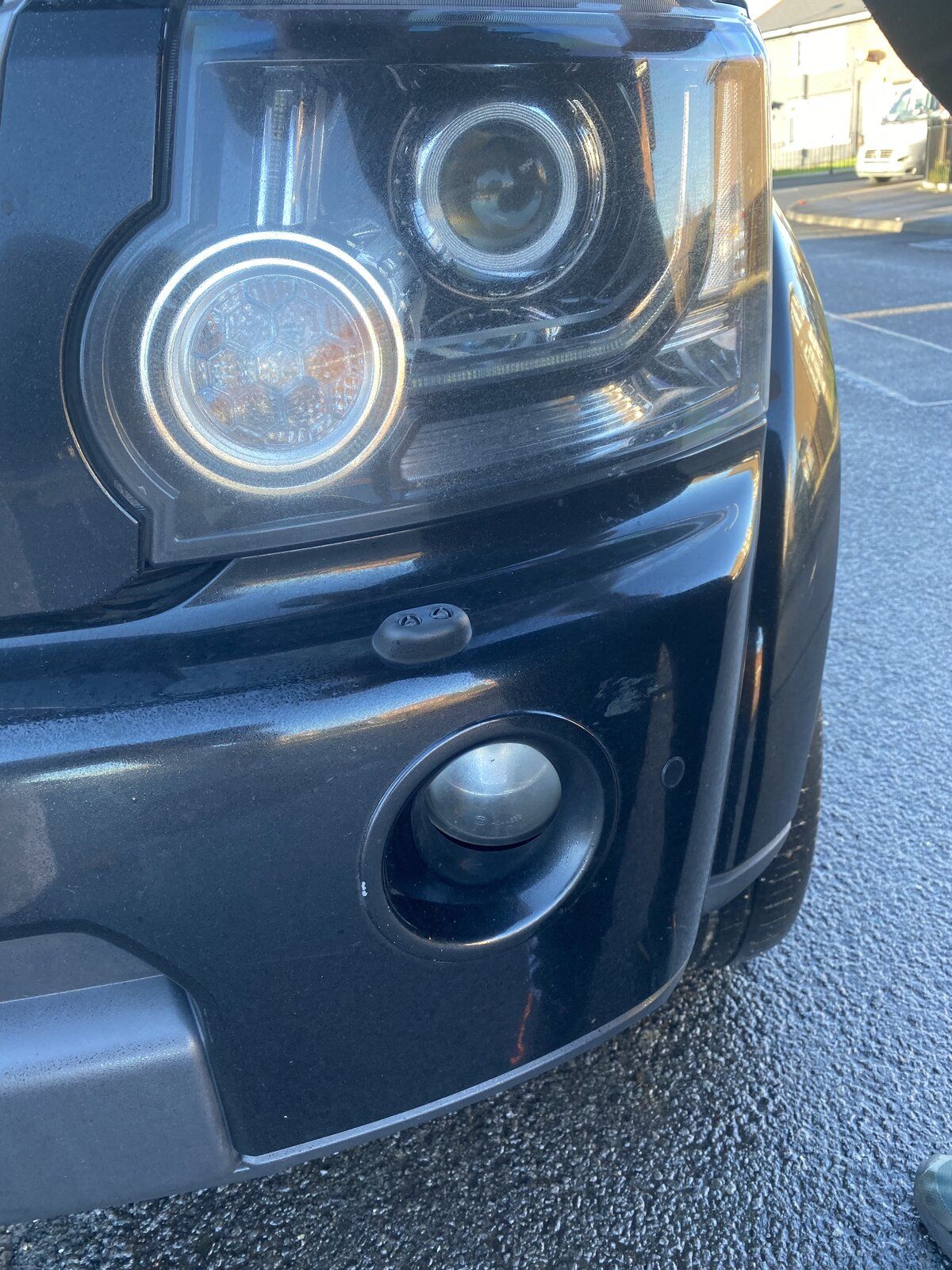

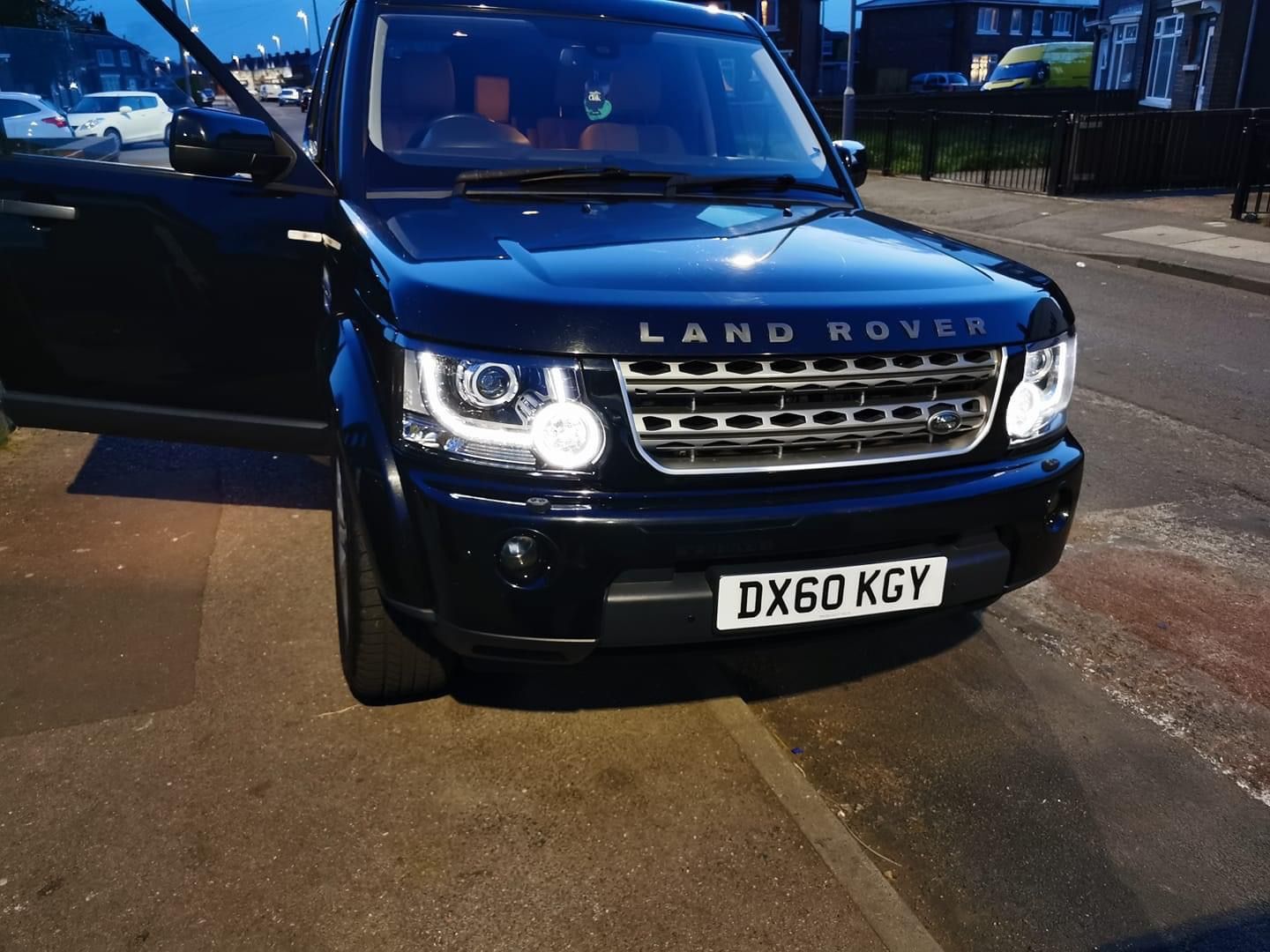

Many thks for the pics, so there called 4.5 facelift and I think some wiring and a relay needs adding, am just looking through some links for u

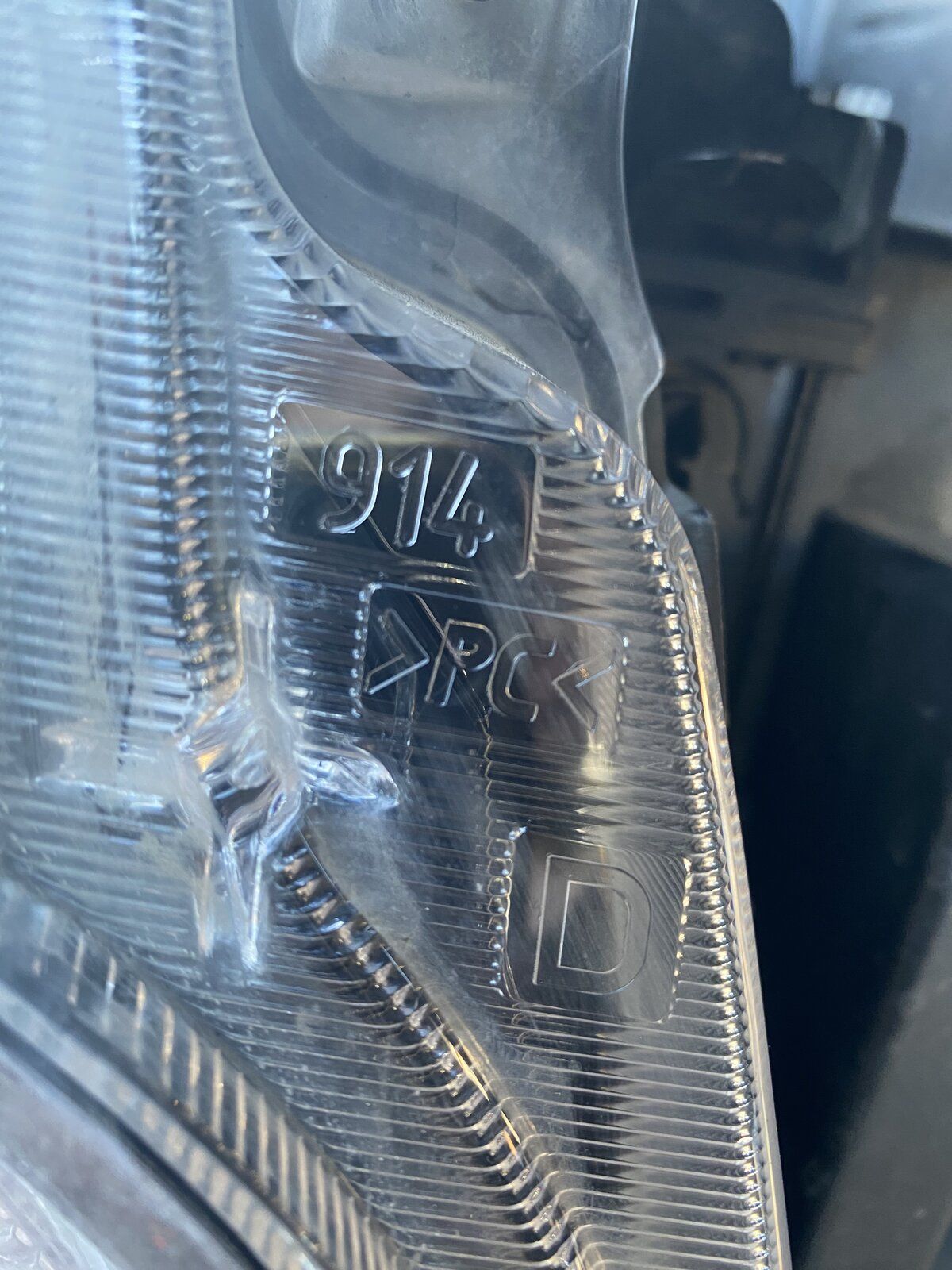

would u be able to take a picture of the label please , will be on top of the light , might have to quickly remove them if it’s hidden , need to ensure if you’ve bought AFS lights or not which are cornering lights which need more work to get them to work
more than happy to help and still looking to see if the cheaper scanner will work
would u be able to take a picture of the label please , will be on top of the light , might have to quickly remove them if it’s hidden , need to ensure if you’ve bought AFS lights or not which are cornering lights which need more work to get them to work
more than happy to help and still looking to see if the cheaper scanner will work
This is the cheaper scanner , alas though I can’t find out if it will do the headlight alteration in the CCF
https://www.auteldiag.co.uk/products/autel-maxiap-ap200
however it is always a good idea to have some form of scanner , as these motors are very complicated , I have a D3 but the D4 are even more complicated
these scanners are ideal to keep in ur glovebox and are Bluetooth via ur iPad or iPhone , sorry can’t find the answer if they will do the headlight ccf alteration but are very cheap to buy
Basically if u speak to a garage u want the headlight CCF files updated for the face lift 4,5 headlights ,
still searching for u
https://www.auteldiag.co.uk/products/autel-maxiap-ap200
however it is always a good idea to have some form of scanner , as these motors are very complicated , I have a D3 but the D4 are even more complicated
these scanners are ideal to keep in ur glovebox and are Bluetooth via ur iPad or iPhone , sorry can’t find the answer if they will do the headlight ccf alteration but are very cheap to buy
Basically if u speak to a garage u want the headlight CCF files updated for the face lift 4,5 headlights ,
still searching for u
There’s also the disco 3/4 forum, as maybe there’s someone there that’s near u, just trying to cover as many basis as we can
https://www.disco3.co.uk/forum/
https://www.disco3.co.uk/forum/
have u tried these please , just hope it helps so u can get them updated before the 24th
http://www.amrautos.co.uk/
https://ronturnbullgarages.com/car-service-prices/land-rover/
plse let me know how u get on and will be interesting to see what the label says, that will be dependent on what’s req to get them to work correctly
ps, I wondered why the 24th was a different day as it’s my birthday then, lmao
http://www.amrautos.co.uk/
https://ronturnbullgarages.com/car-service-prices/land-rover/
plse let me know how u get on and will be interesting to see what the label says, that will be dependent on what’s req to get them to work correctly
ps, I wondered why the 24th was a different day as it’s my birthday then, lmao

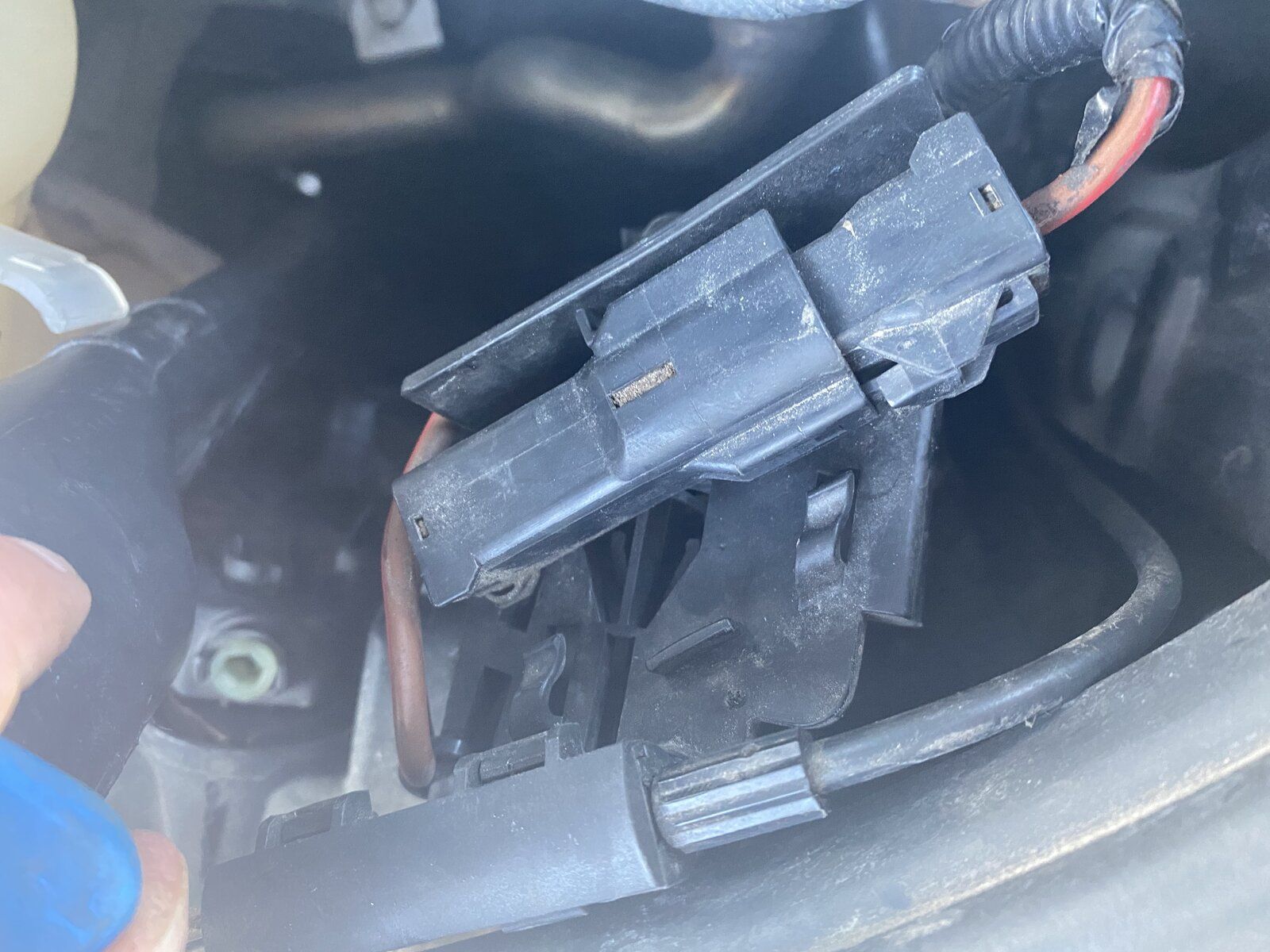

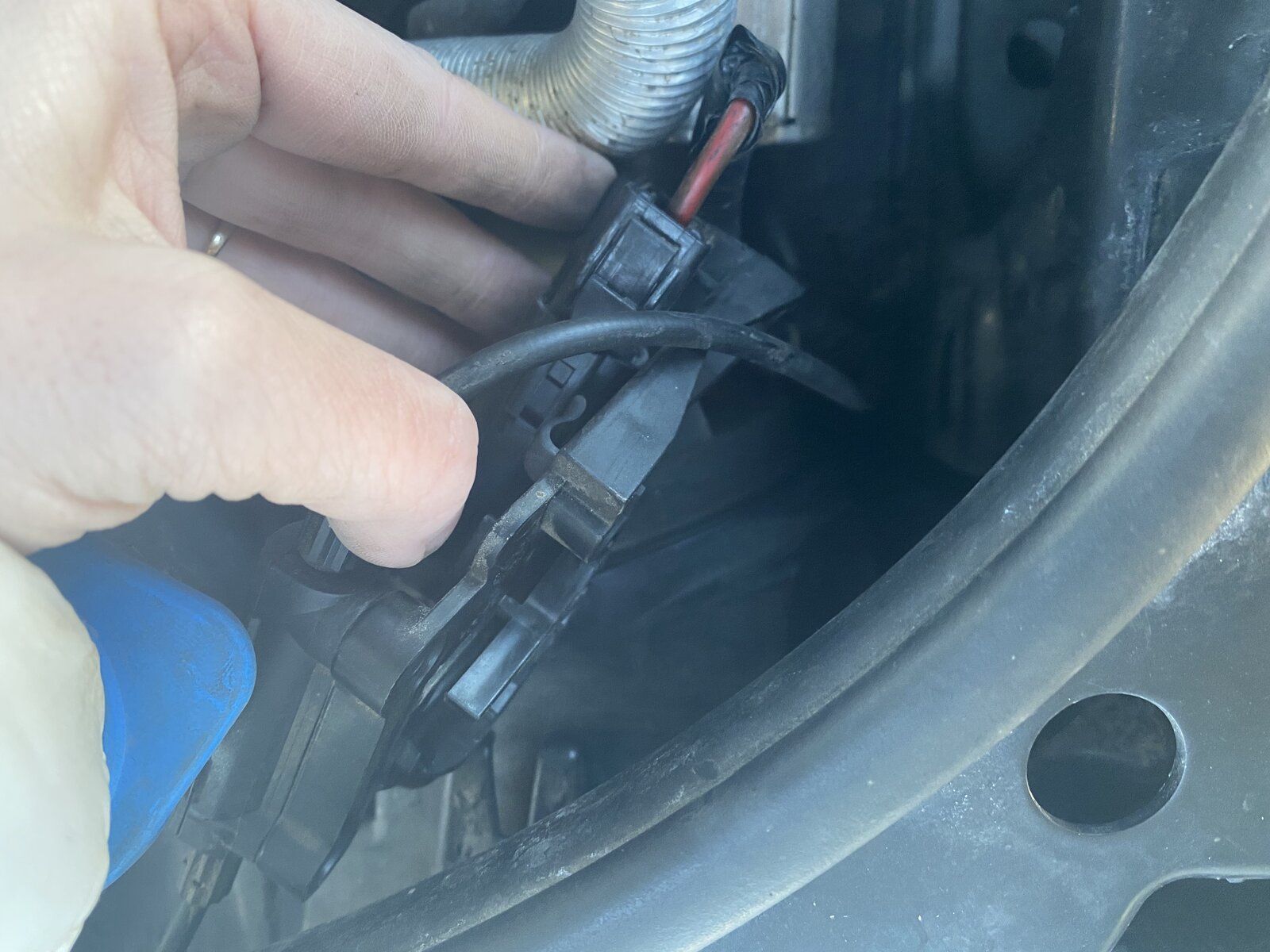

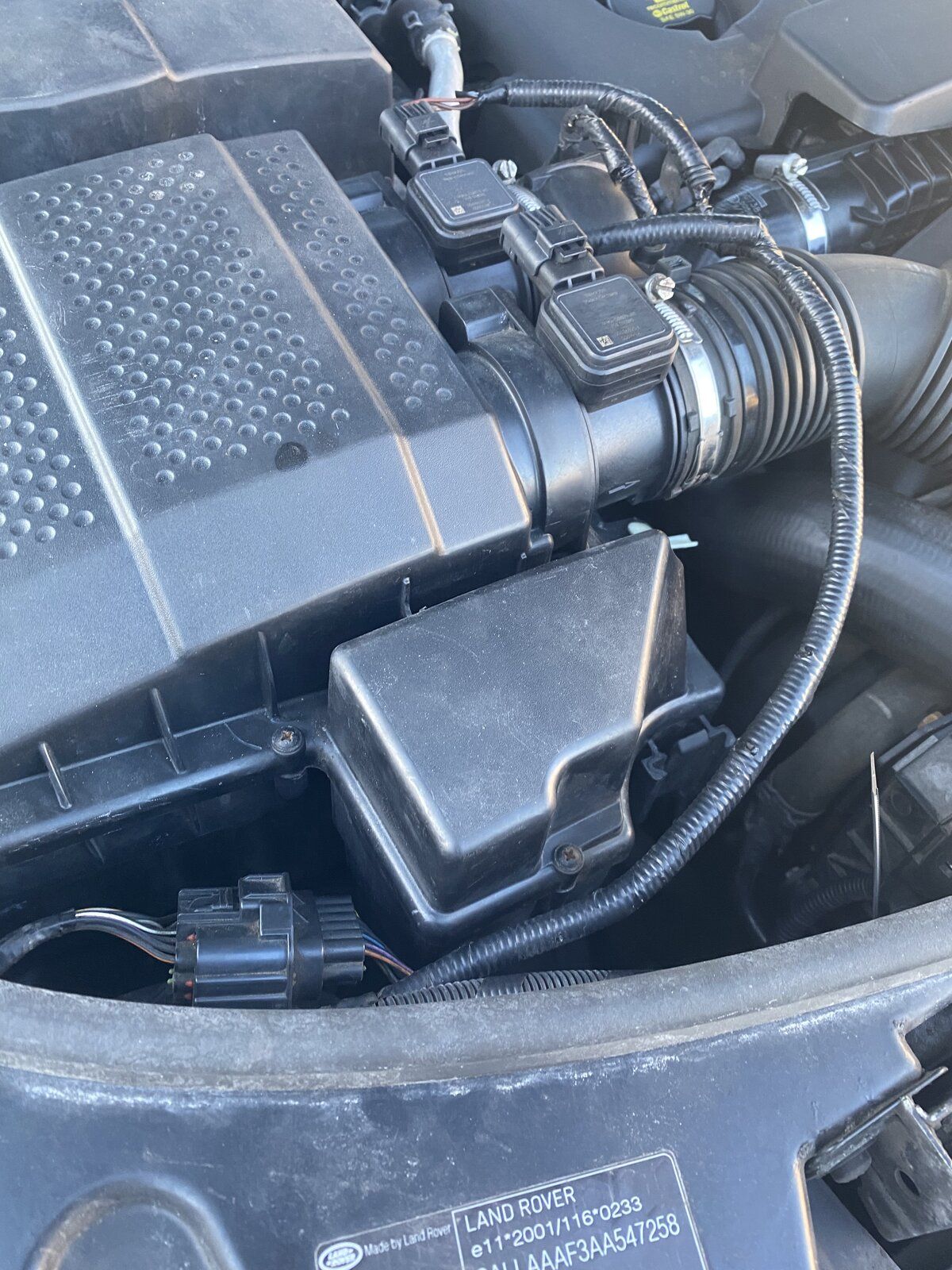

hi, many thks , indeed does look someone has done the wiring alteration already , fingers crossed simply getting the CCF changed will resolve the issues
think the quickest way is giving those garages a call , just ask them you’ve fitted new headlights and need the CCF files updated
if u get no joy please let us know , plus ref the labels I think u need to remove the headlights to see the label, have put a picture here of the type of thing ur looking for , at least then we know for sure which ones u have, hope there not the AFS , known as cornering lights
sorry I’m waffling lol, give the garages a call and plse let us know how u get on
hope that helps
So I’ve found someone who can do it in Kent for £100
but as far as in my area - I may as well be speaking a different language
The only garage that would even give me the time of day said only landrover direct can do the facelift lights as it’s a £10000 program so only Land Rover direct have it - Just called them and they said £180 to even look at it and go from there and it’s 8 weeks until I can get it in to them.
I mean who buys a car, hands over £10 000 and hasn’t even checked the headlights work I could string him up
but as far as in my area - I may as well be speaking a different language
The only garage that would even give me the time of day said only landrover direct can do the facelift lights as it’s a £10000 program so only Land Rover direct have it - Just called them and they said £180 to even look at it and go from there and it’s 8 weeks until I can get it in to them.I mean who buys a car, hands over £10 000 and hasn’t even checked the headlights work I could string him up
So I’ve found someone who can do it in Kent for £100
but as far as in my area - I may as well be speaking a different language
I mean who buys a car, hands over £10 000 and hasn’t even checked the headlights work I could string him up
alas I never go near a JLR dealer , there rates are eye watering , good to hear u found someone who can do it for u , indeed there talking rubbish , £10k , never heard such a thing
wow that’s some distance as I also live in Kent , assume the disco is there unless it’s another kent near u, lol
plse let us know how u get on and be gentle with ur other half , hopefully he doesn’t have to sleep in the shed for a few weeks , lol
there lovely motors , but so worth getting a full warranty that also covers the crankshaft , think some of them are around £1.5k per year but best to shop around , gives u peace of mind and look forward to see how u get on plse, thks
hiya
yikes 6 x hours and indeed a lot of fuel , the only diagnostics I know that works is the gap iid , basically with that ur be able to do anything on the discovery , including changing settings in the ccf , check and clear faults, live data, the list goes on and will pay for itself very quickly , your be able to virtually do the same that garages can do if not more , also customer service from gap iid is second to none , there based in Canada
https://www.gap-diagnostic.com/products/iidtool/
they’re normally around £500 but can get them from here for around £440
https://www.island-4x4.co.uk/tfiidb...agnostics-tool-bluetooth-tfiidbt-p-27303.html
know it sounds a lot but with the discovery being very complicated u won’t have the hassle of relying on garages , or waiting time , works via Bluetooth on ur iPad or iPhone , will also work on a Mac laptop
the cheaper one is indeed very basic , if u do get the gap iid there’s plenty of us here that can help u , with that on the headlights it’s a simple menu , select the relevant menu and it’s done, of course fingers crossed all the wiring is correct etc
personally can’t recommend it enough as I do all my own work and it’s paid for itself 10 x times over
hope that helps
Nodge68
Well-Known Member
It works on Android too Gary, actually the interface is better, as Droid isn't so restricted to 3rd party developers as Crapple is.
ur so welcome and indeed always a team effort , over the moon u got it all sorted
