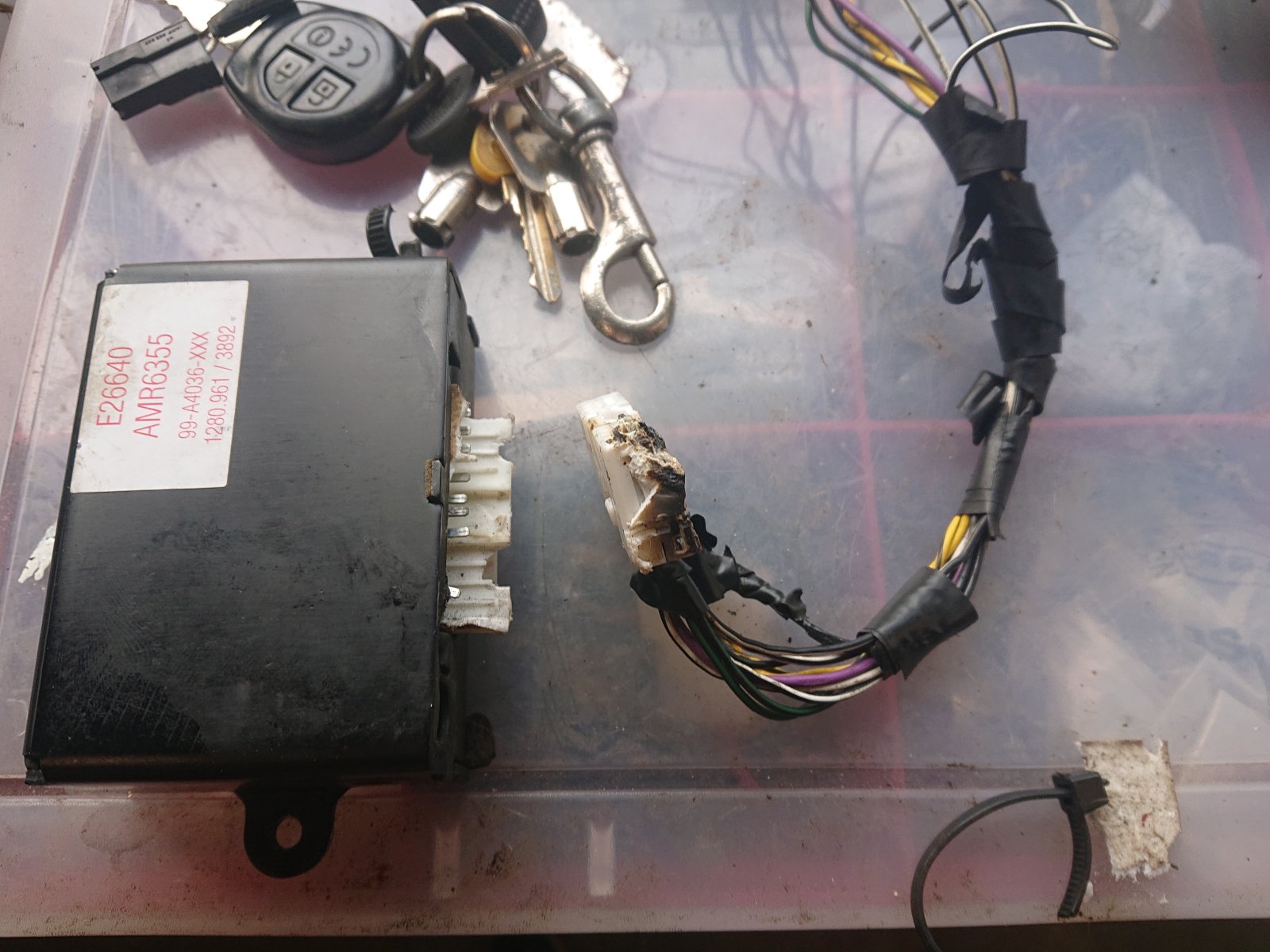

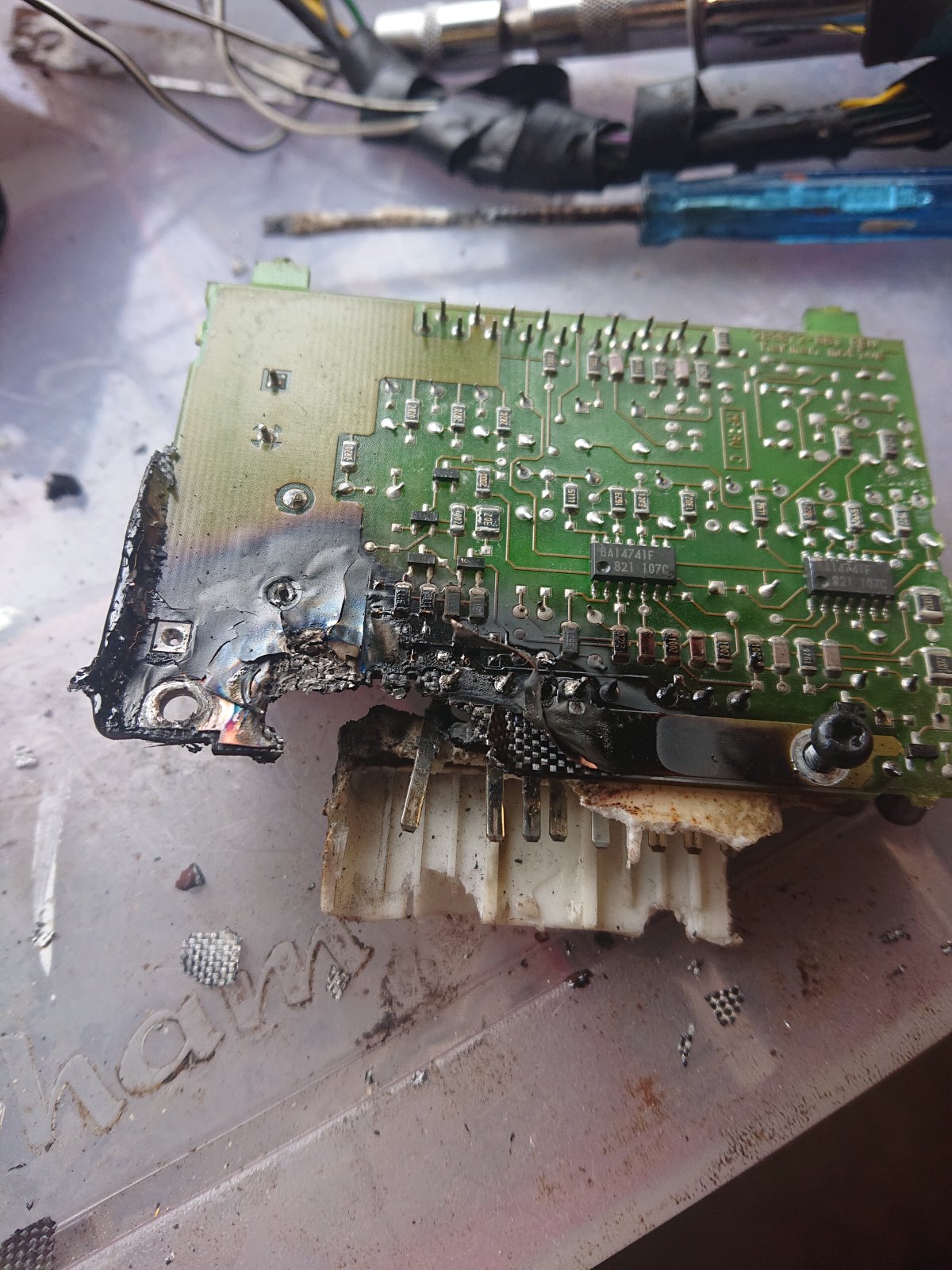

Opened up the car then locked it. Went into garage and coukd smell smoke. Smoke coming from drivers door-disconnected the battery and took off door cover quite quickly!! Amp unit was burnt out. Wires were fused into unit and so I cut them. No windows working and it keeps blowing fuse 9. Starts OK and everything apart from audio and windows not working. Took 10 years off my life! Any advice for a fix greatly appreciated!



Attachments

•

  238.9 KB · Views: 118
•

  345.7 KB · Views: 107

Tricky of York

Well-Known Member

• Aug 14, 2023

• #2

Looking at the picture someone has been in there before you with the electrical tape . Well spotted and another P38 stays alive. I’m not able to help as I don’t know that model but wanted to say good luck fixing it.
Tricky



stevebrookman

Well-Known Member

• Aug 14, 2023

• #3

I'll trace the loom back a bit see if its ****ed further back. Still stink of smoke!
Good thing though-disconnected the battery connected it again and it started!



stevebrookman

Well-Known Member

• Aug 14, 2023

• #4

stevebrookman said:

I'll trace the loom back a bit see if its ****ed further back. Still stink of smoke!
Good thing though-disconnected the battery connected it again and it started!

Click to expand...

Quick update - found the burnt shorted wires and isolated them. Fuse 9 now OK and windows working. Will get another amp and door loom and waterproof everything.



Datatek

Well-Known Member

• Aug 14, 2023

• #5

stevebrookman said:

Quick update - found the burnt shorted wires and isolated them. Fuse 9 now OK and windows working. Will get another amp and door loom and waterproof everything.

Click to expand...

It could have saved you a box of matches.



stevebrookman

Well-Known Member

• Aug 14, 2023

• #6

Datatek said:

It could have saved you a box of matches.

Click to expand...

Indeed-but I've grown attached to it after 17 years!!



Datatek

Well-Known Member

• Aug 14, 2023

• #7

stevebrookman said:

Indeed-but I've grown attached to it after 17 years!!

Click to expand...

Had one of mine for 14 years now, at my age it will last me out.



pete12345

Well-Known Member

Full Member

• Aug 16, 2023

• #8

Mine will see me out 23 years



Rubberknees

Well-Known Member

Full Member

• Aug 16, 2023

• #9

pete12345 said:

Mine will see me out 23 years

Click to expand...

I wish I had 23yrs



pete12345

Well-Known Member

Full Member

• Aug 16, 2023

• #10

Me to mate few year’s left at work thinking of buying a narrow boat and just sailing away nice and peaceful



Datatek

Well-Known Member

• Aug 16, 2023

• #11

pete12345 said:

Me to mate few year’s left at work thinking of buying a narrow boat and just sailing away nice and peaceful

Click to expand...

I looked at the narrow boat option but instead I bought a derelict water mill in France



pete12345

Well-Known Member

Full Member

• Aug 16, 2023

• #12

I think there’s a fella on here that’s got a narrowboat



stevebrookman

Well-Known Member

• Aug 23, 2023

• #13

All fixed-got a secondhand amp and complete door wiring loom from a fella on one of the forums for £25 delivered. Replaced the burnt out wiring using part of the new loom and connector - soldering the wires and using heat shrink. made sure everything was as waterproof as possible-now have music back!
