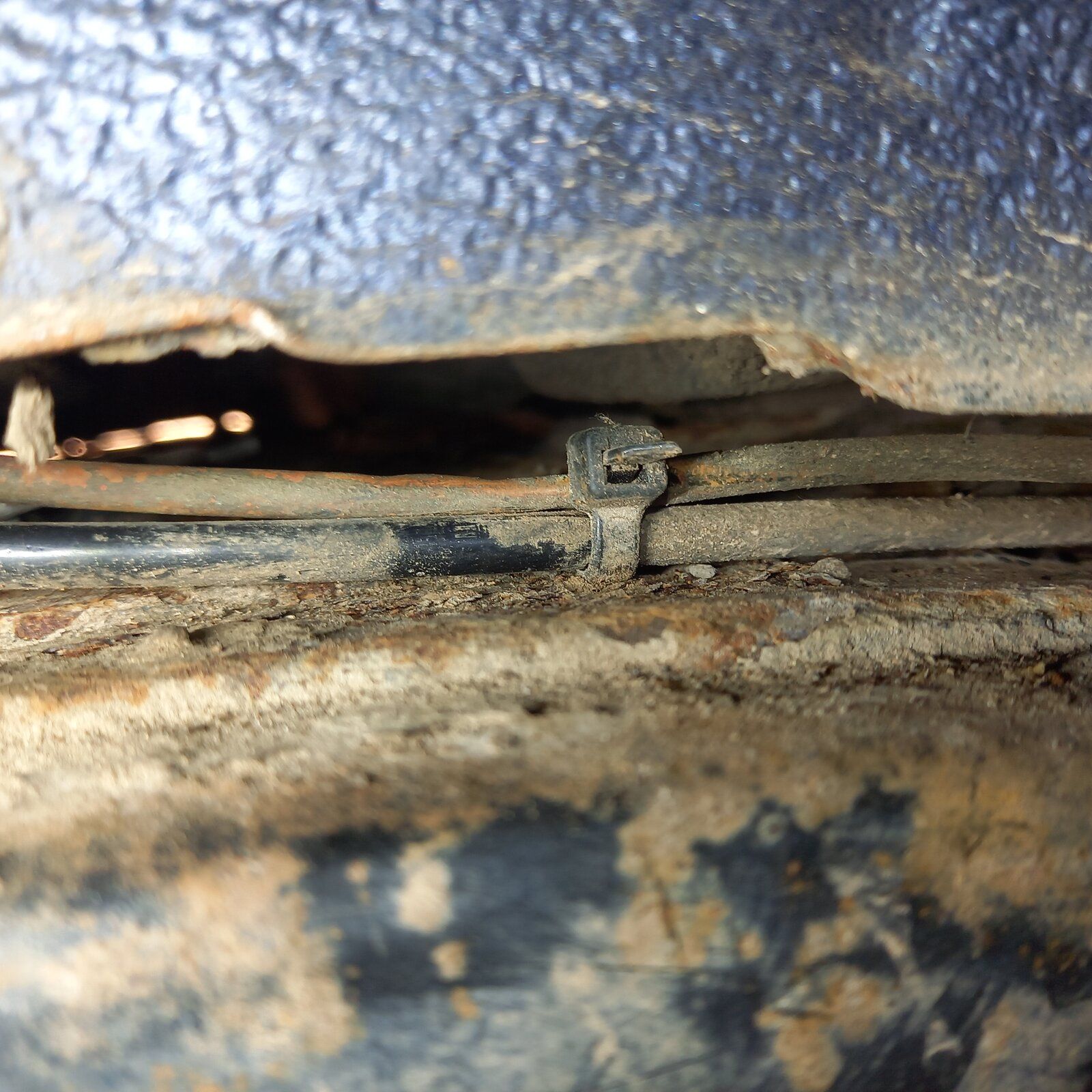

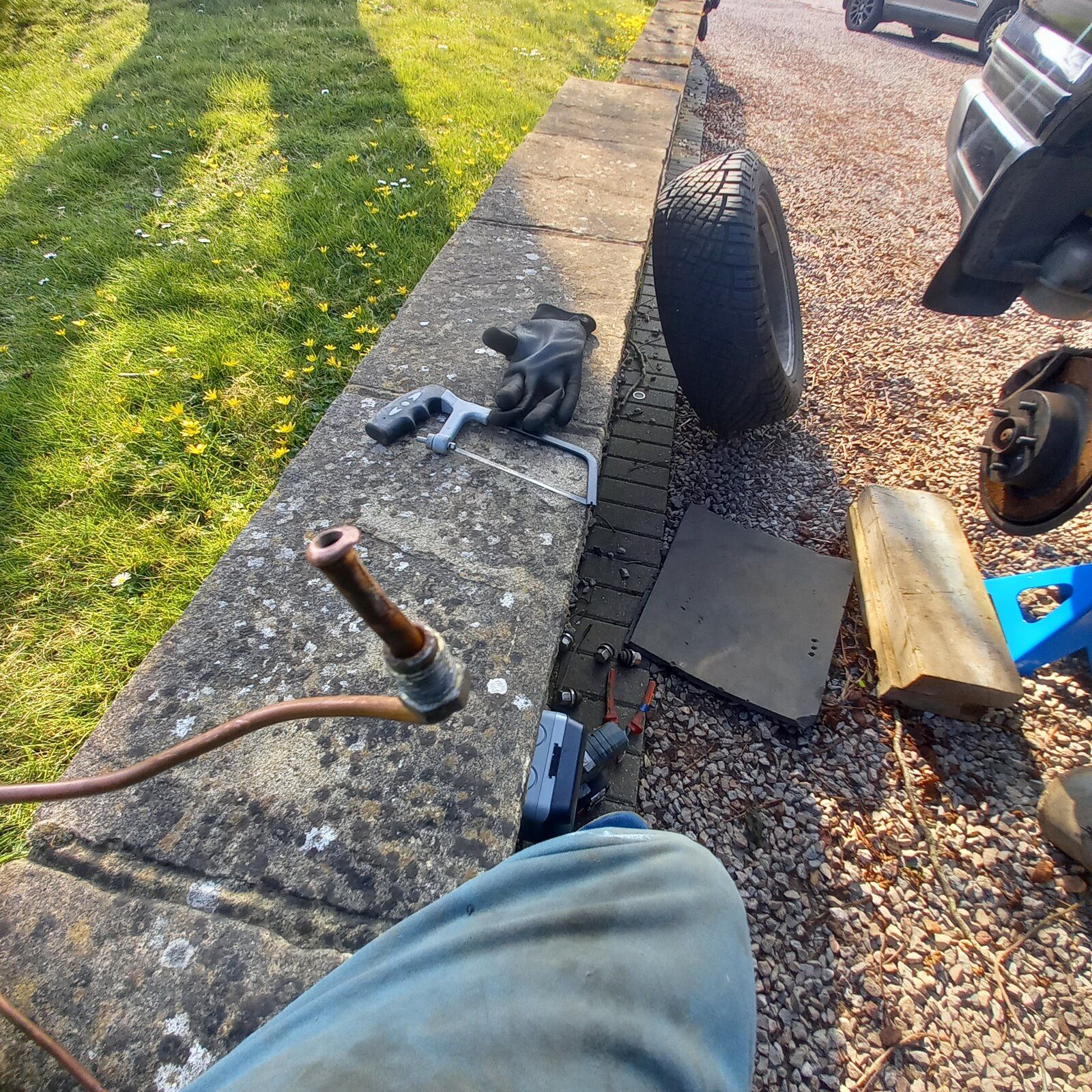

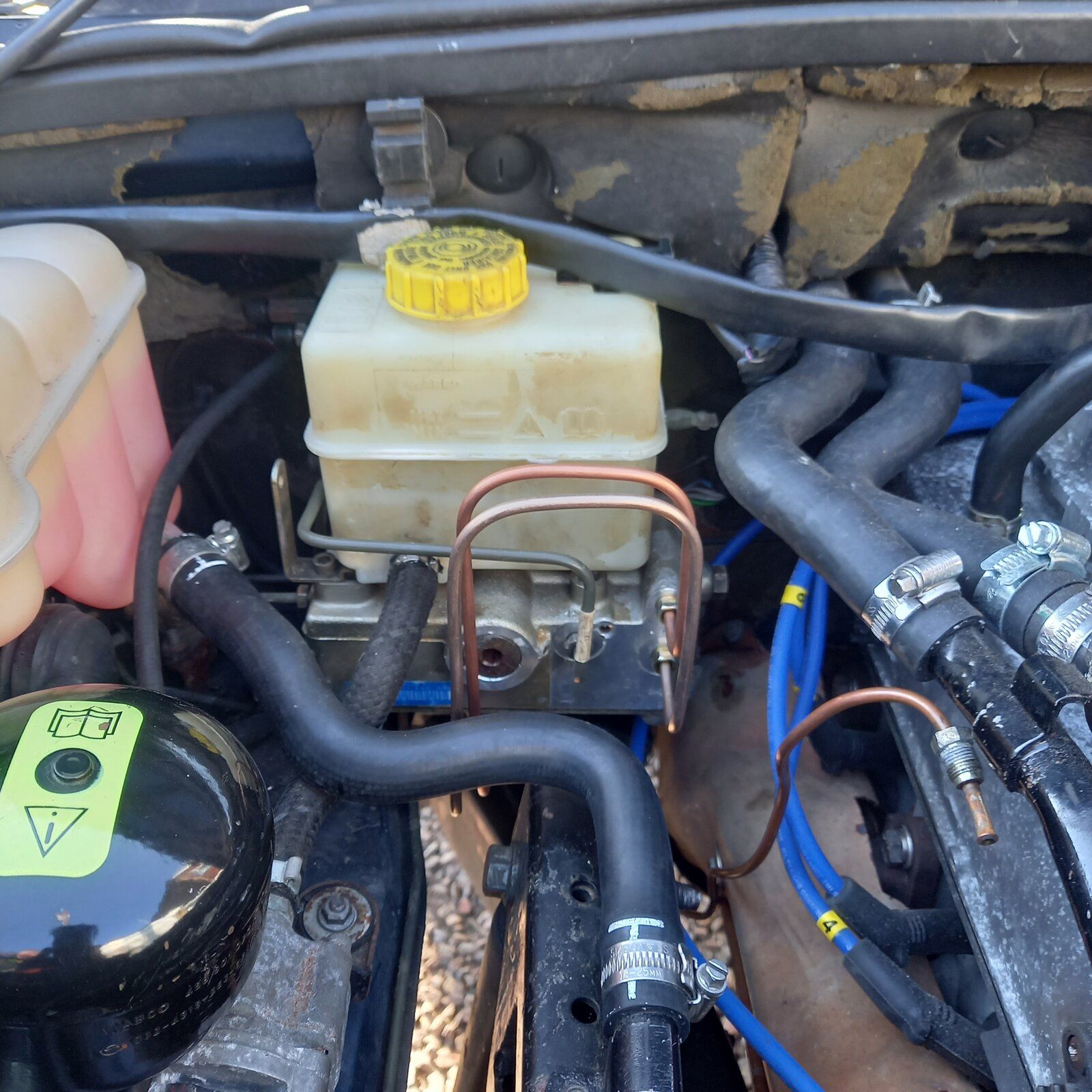

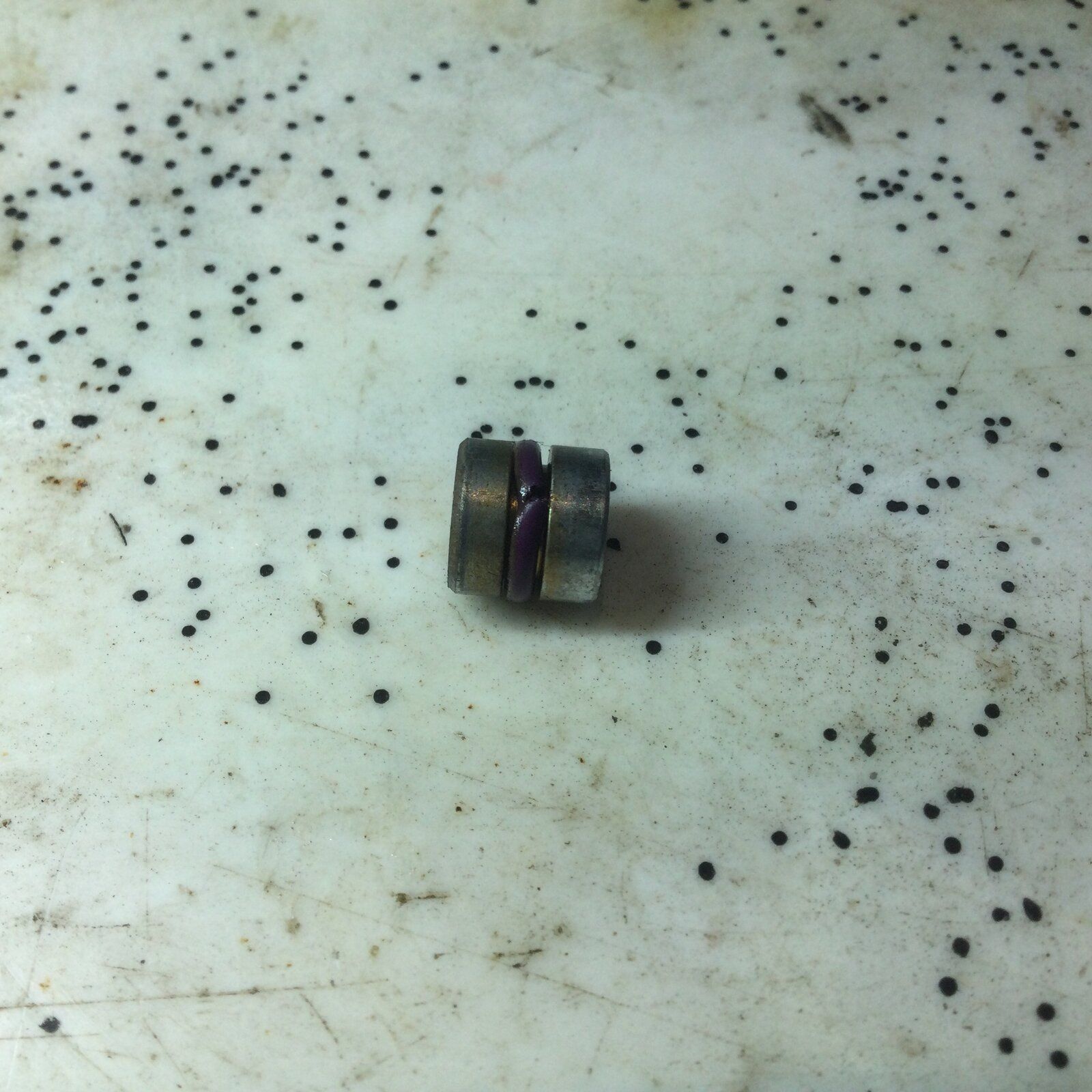

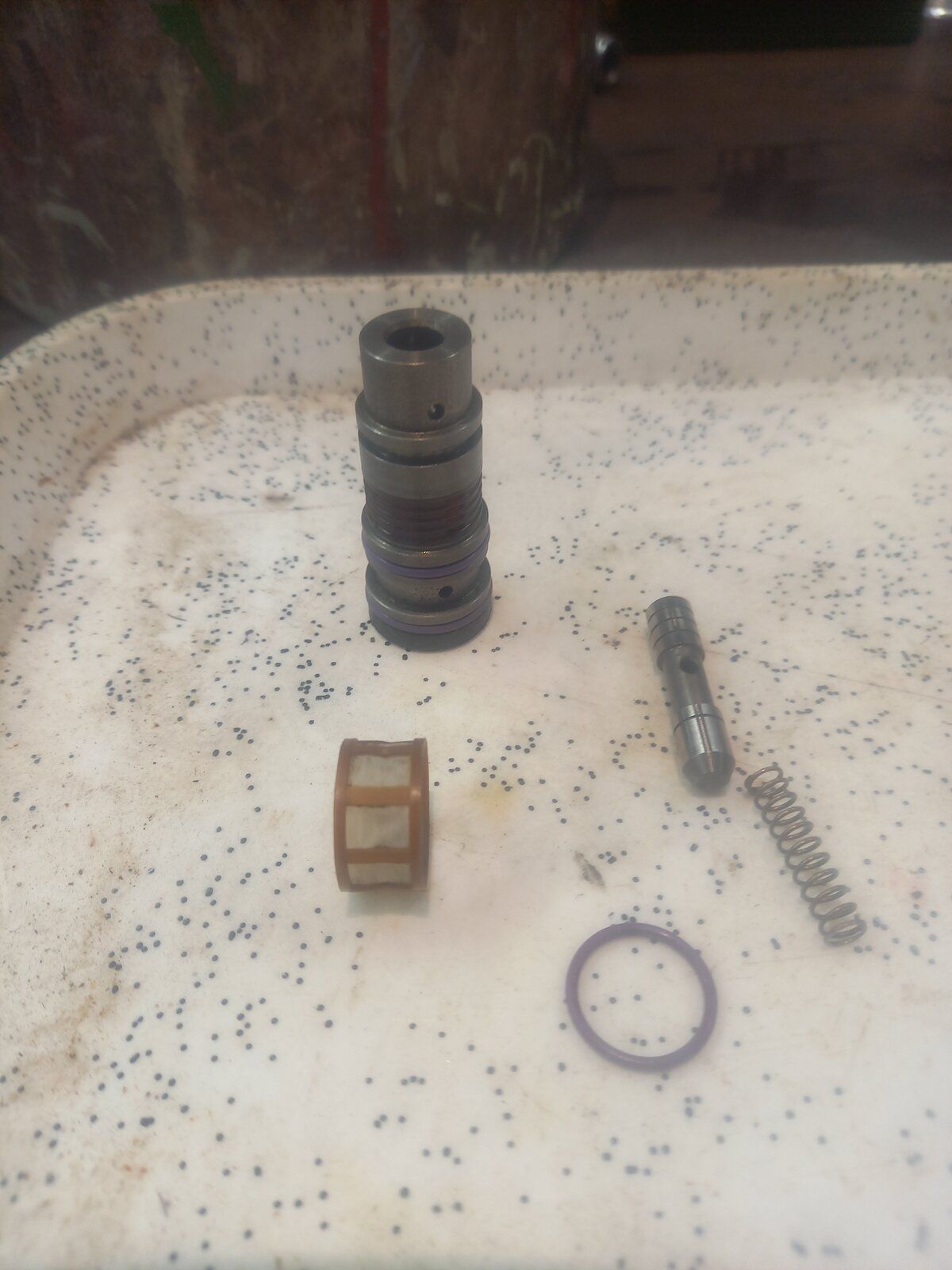

2001 4.0L. Has had a very occasional hard brake pedal. I initially replaced the accumulator, then tried a used abs pump but the problem would still reappear. Took it off the road this spring to get a long list of small jobs done. Rear brake lines had been replaced at some point, but as they looked rather clumsily done ( very polite ). I thought I would re-do them. Very glad I did, as some of the flares were dodgy. Top tip - it’s a lot easier to fabricate and fit new rear brake lines with the abs module and steering linkage removed. With the abs module out, I thought i would check it over and see if I could find anything wrong with it. Disassembly not too hard ( lots of photos taken, and measurements made ). I found one of the piston seals damaged so I replaced all of them, cleaned out the internal filter and also cleaned out the brake fluid reservoir. Re-assembly was fairly easy. Brakes were bled according to rave and then tested. I have driven about 100 miles so far with no hard brake pedal! Then again the p38 may be messing with my mind and it may suddenly appear again ( I hope not ).
tomcat59alan
Well-Known Member
Where did you get the replacement seal kit from?
Datatek
Well-Known Member
Probably the same guy who did the replacement valve parts.
Yes that’s the guy! His website is rangeroversolutions.com
The seals ( perhaps I should have used the words O rings? ) are to seal various parts of the abs piston.
tomcat59alan
Well-Known Member
I knew what you meant
You would
swerving you will be the day that gives in!!
