Enuff

Well-Known Member

• Feb 25, 2015

• #1

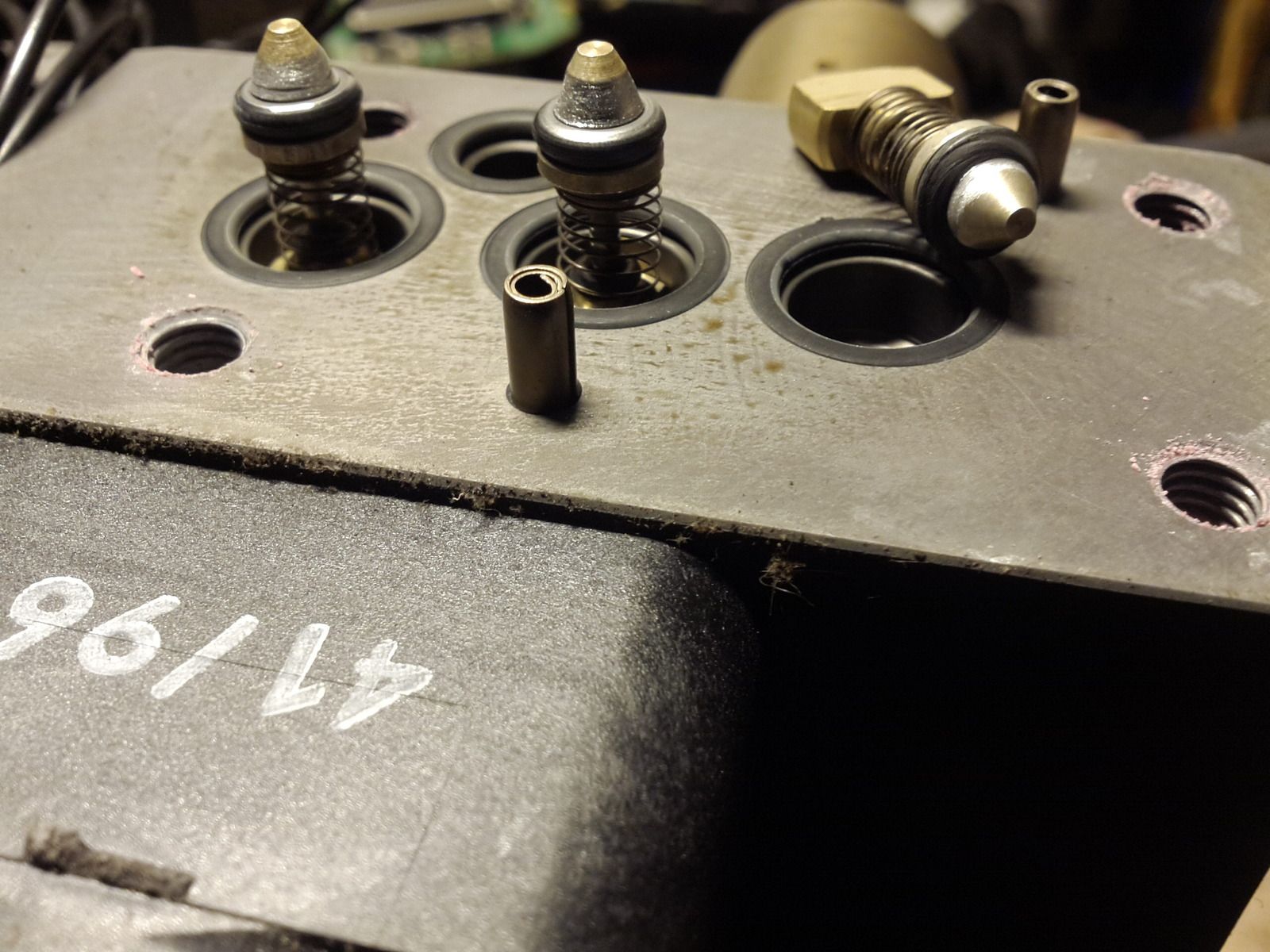

Hi, I thought I would post two pictures of the cone valves in the eas system...
One is from my 83k 4.6 and the other is my 186k 4.0.
Im refurbing them both at the same time and you can see how they wear out.
Is anybody making new ones yet ???



Attachments

•

  210.4 KB · Views: 153
•

  245.1 KB · Views: 136

wammers

No longer with us, RIP

Donater

• Feb 25, 2015

• #2

Easy enough to knock some up out of Dural if you have or know someone with a lathe. A CNC shop could knock them out for pennies. Surprised nobodies done it.



Castor

Trainee maniac

• Feb 25, 2015

• #3

Wow. Just wow.
I shall refrain from further comment; I've shot my mouth off enough today already.



wammers

No longer with us, RIP

Donater

• Feb 25, 2015

• #4

Castor said:

Wow. Just wow.
I shall refrain from further comment; I've shot my mouth off enough today already.

Click to expand...

Have you been a naughty boy?



Castor

Trainee maniac

• Feb 25, 2015

• #5

I've not dismantled one of these things - but correct me if I'm wrong here.
It looks to me like the conical element is just a leader that aligns the O ring in the receptacle - is that correct?



Castor

Trainee maniac

• Feb 25, 2015

• #6

wammers said:

Have you been a naughty boy?

Click to expand...

It would seems so sometimes..

Rant! mumble mumble mumble........



wammers

No longer with us, RIP

Donater

• Feb 25, 2015

• #7

Castor said:

It would seems so sometimes..

Rant! mumble mumble mumble........

Click to expand...

Have you really been a naughty boy or does someone just think you have?



Castor

Trainee maniac

• Feb 25, 2015

• #8



Datatek

Well-Known Member

• Feb 25, 2015

• #9

the cone is just a lead in. If they are not too bad they can be skimmed in a lath, but as Wammers said, new would be better.



Castor

Trainee maniac

• Feb 25, 2015

• #10

Quelle faff!



Datatek

Well-Known Member

• Feb 25, 2015

• #11

Castor said:

Quelle faff!

Click to expand...

Takes 5 minutes pas de probleme



Enuff

Well-Known Member

• Feb 25, 2015

• #12

So, worn cone, possible bad seating in receptacle then, slow leaks, head scratching , !?



wammers

No longer with us, RIP

Donater

• Feb 26, 2015

• #13

Enuff said:

So, worn cone, possible bad seating in receptacle then, slow leaks, head scratching , !?

Click to expand...

That's about the size of it. Do you never read the "How to" section?



Castor

Trainee maniac

• Feb 26, 2015

• #14

So if the cones are worn, they must have worn against something, yes?
Does that take damage too - I assume it must?



wammers

No longer with us, RIP

Donater

• Feb 26, 2015

• #15

Castor said:

So if the cones are worn, they must have worn against something, yes?
Does that take damage too - I assume it must?

Click to expand...

Yes the hole they locate in can become oval. That is why with worn locating cones and an oval seat, soft red O'rings supplied by some vendors tend to fail quicker than their harder black counterparts. Ok everywhere else just not on the NRVs.



Castor

Trainee maniac

• Feb 26, 2015

• #16

wammers said:

worn locating cones and an oval seat

Click to expand...

My wife has this.


I can feel a refurb in this area coming on (not the wife, the valve block & drivers) when Datatek has finished his driver thingy.



Last edited: Feb 26, 2015

wammers

No longer with us, RIP

Donater

• Feb 26, 2015

• #17

Castor said:

My wife has this.


I can feel a refurb in this area coming on (not the wife, the valve block & drivers) when Datatek has finished his driver thingy.

Click to expand...

Try an ham shank and pull the bone out. That may solve one of your problems.
