Pillar

Well-Known Member

• Dec 24, 2016

• #1

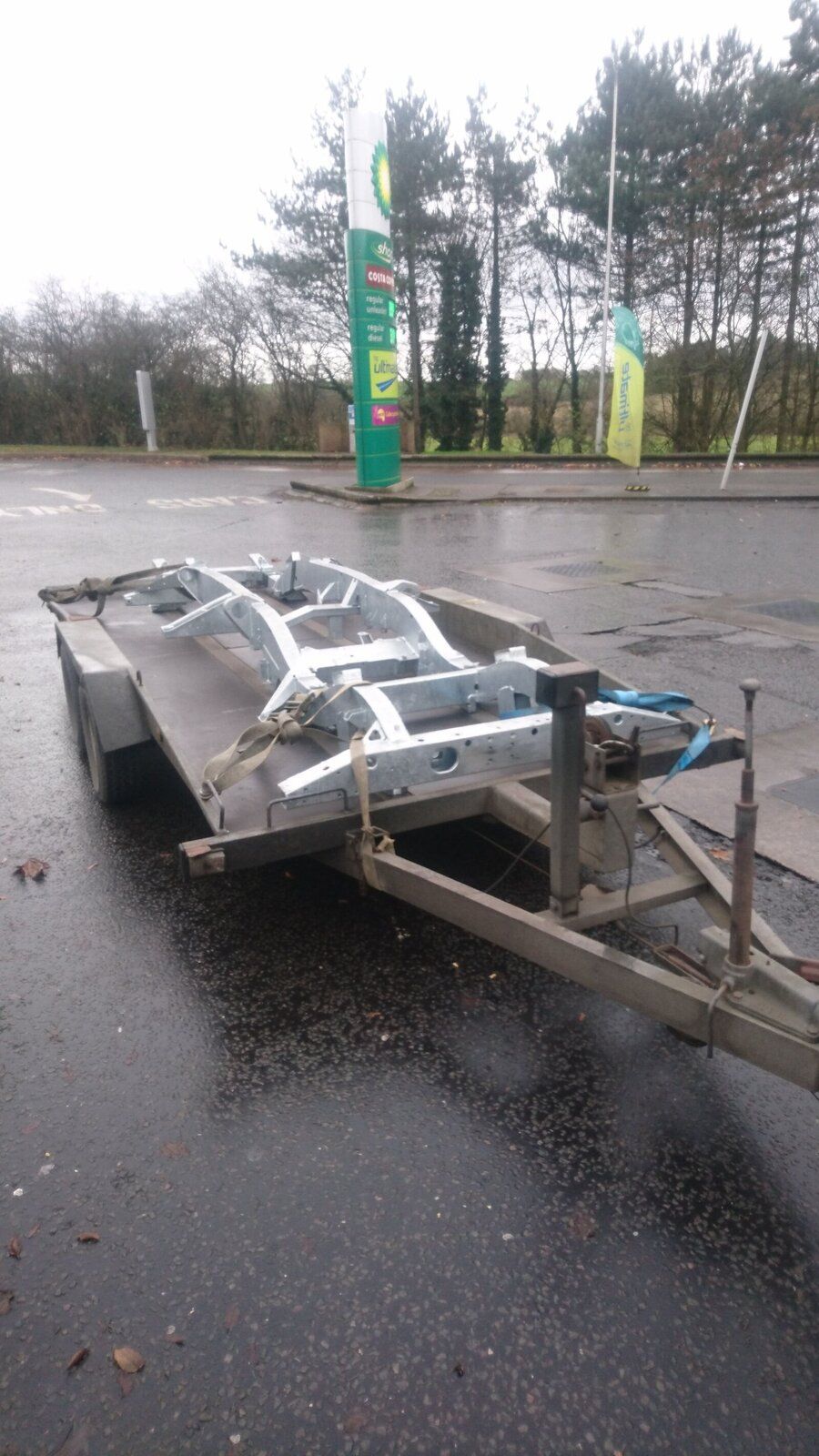

My brother and I are, as above; converting a LR 90 to a 300tdi and rebuilding on a new galvanised chassis whilst concurrently putting a galvanised chassis onto my 300tdi 110.

We will keep words to a minimum but post lots of pictures.

@Grem




Grem

Active Member

• Dec 24, 2016

• #2



Last edited: Dec 24, 2016

Grem

Active Member

• Dec 24, 2016

• #3



Grem

Active Member

• Dec 31, 2016

• #4

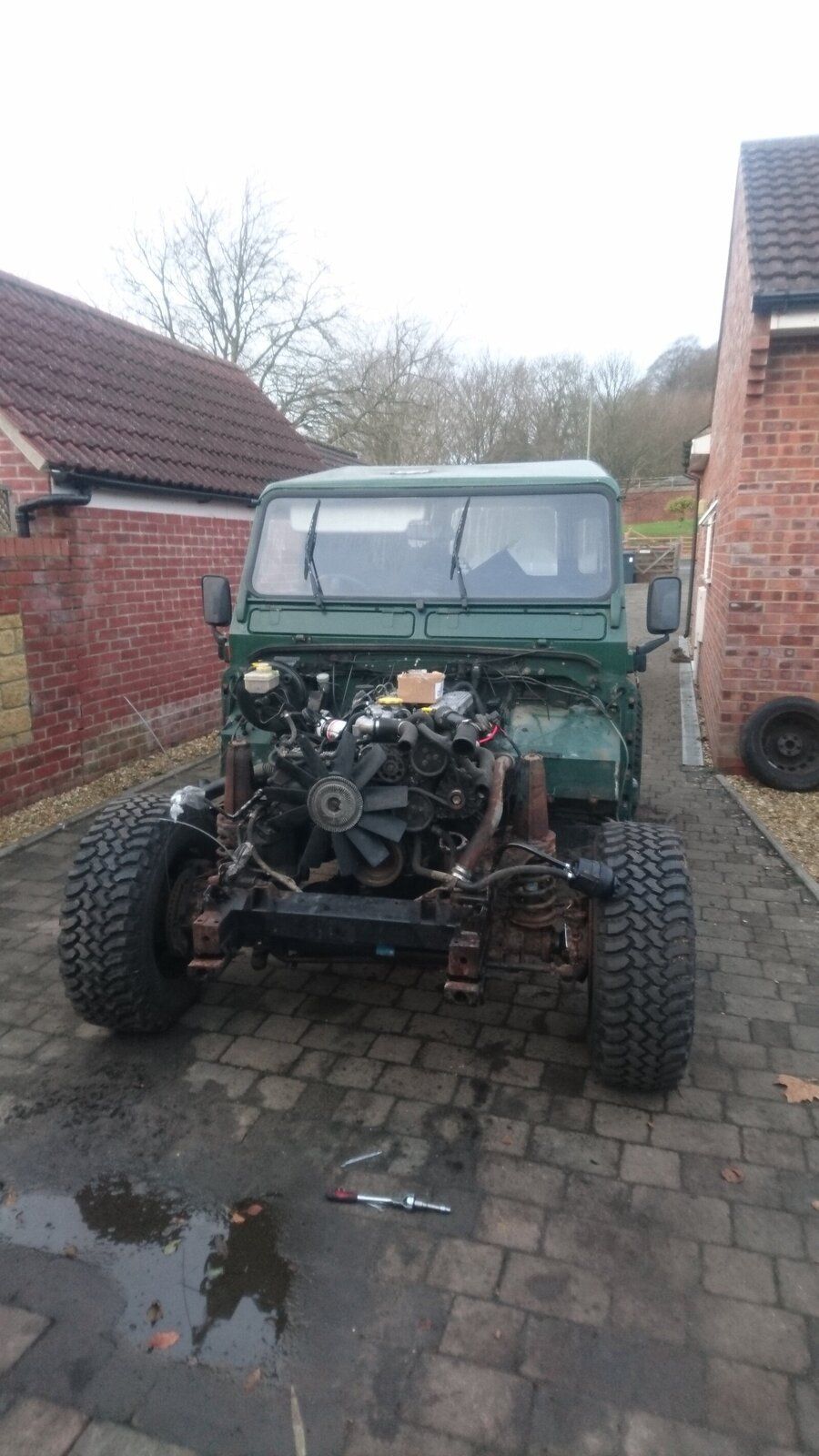

My 90 with axles just 'thrown' under so we can roll it about



Disco1BFG

Well-Known Member

Full Member

• Dec 31, 2016

• #5

Interesting project. Thanks for sharing. Watched!



Grem

Active Member

• Dec 31, 2016

• #6

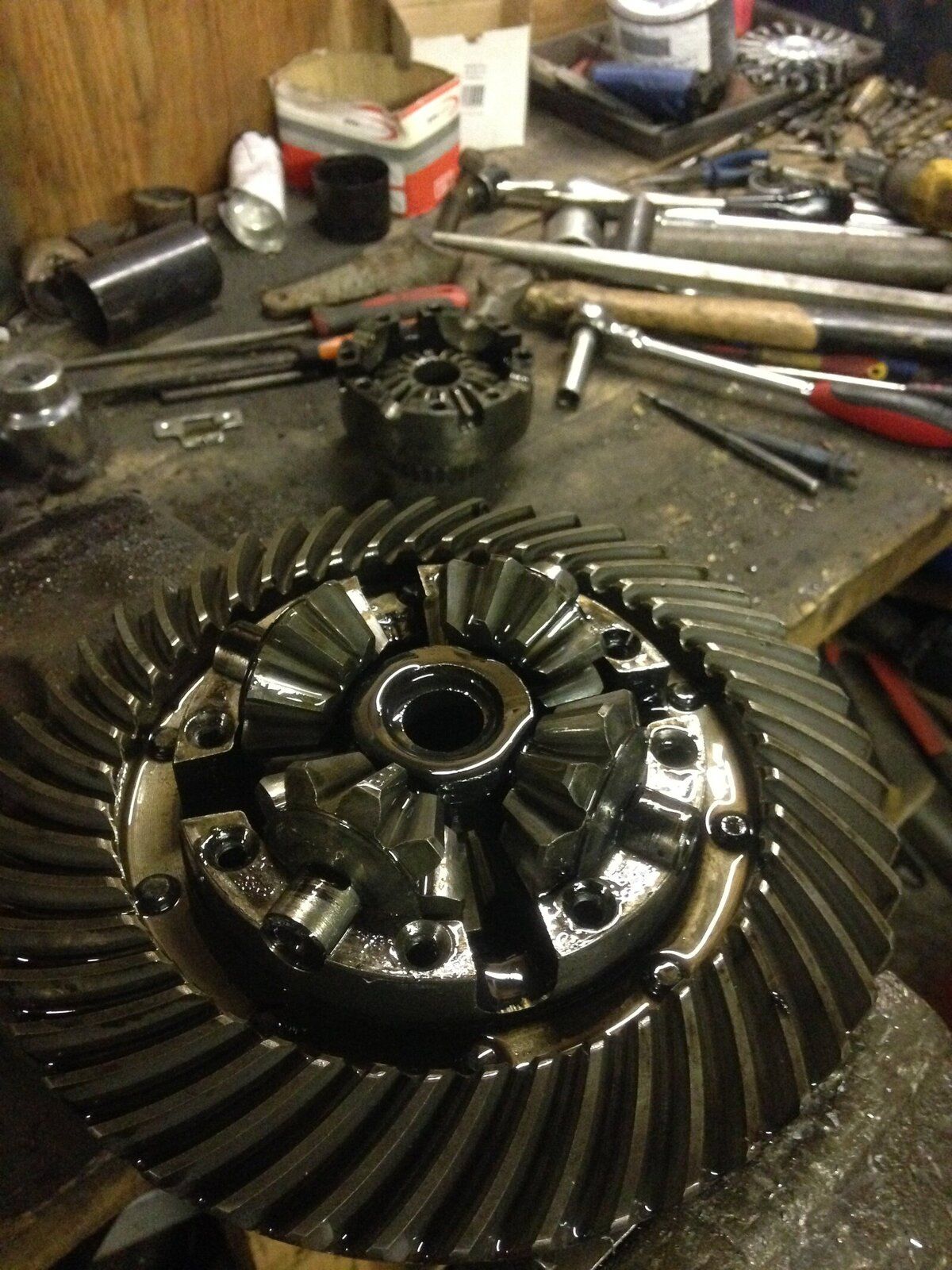

Cheers pal, Had a look in me rear diff this evening



Pillar

Well-Known Member

• Apr 13, 2017

• #7

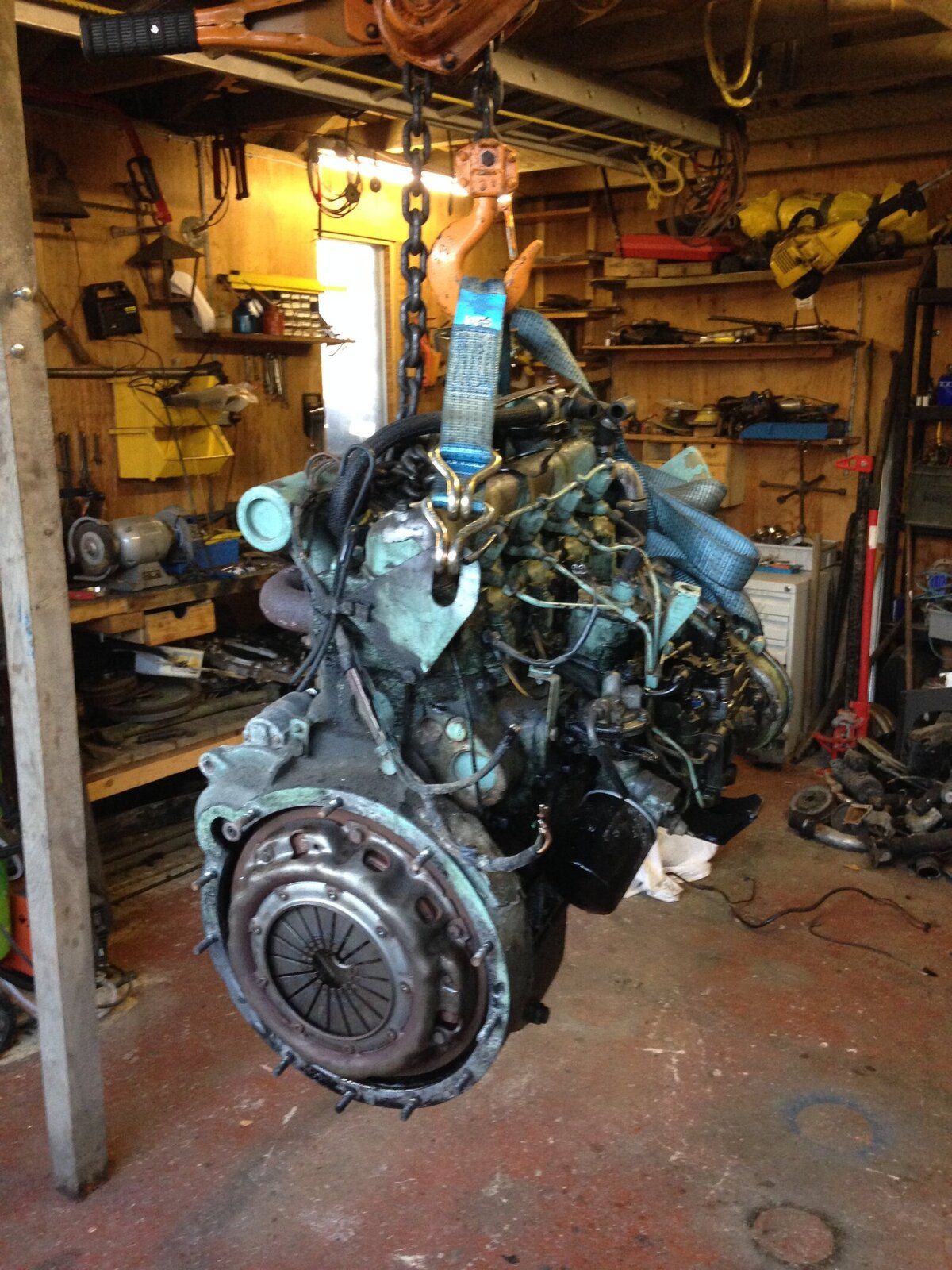

Some progress made this evening on the 110. Photos to follow tomorrow. Engine is now out, EGR blocked and a 74 degree thermostat fitted.

Tomorrow I plan to get the body off, and maybe even have a rolling polybushed chassis by COP.



Pillar

Well-Known Member

• Apr 14, 2017

• #8

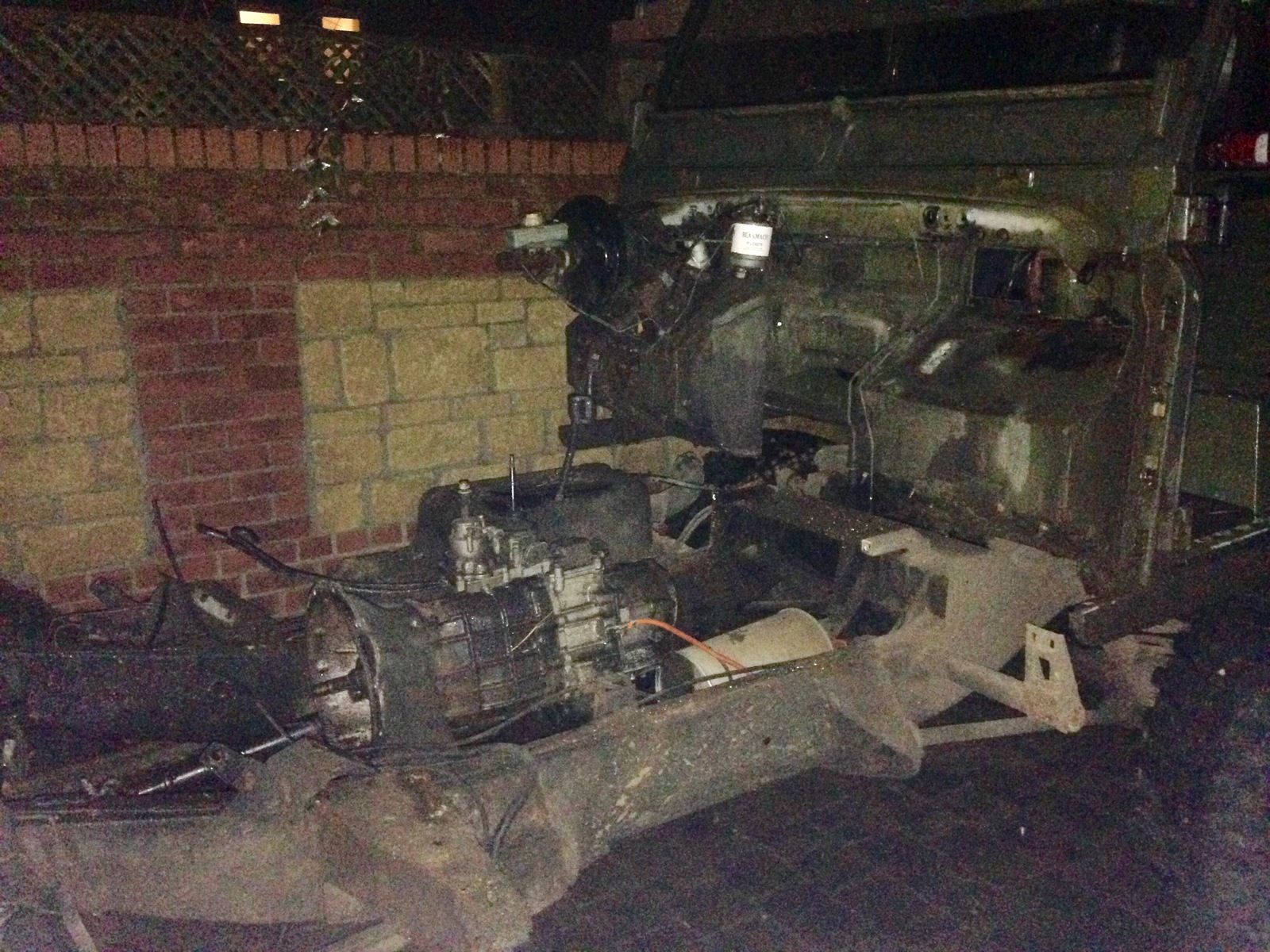

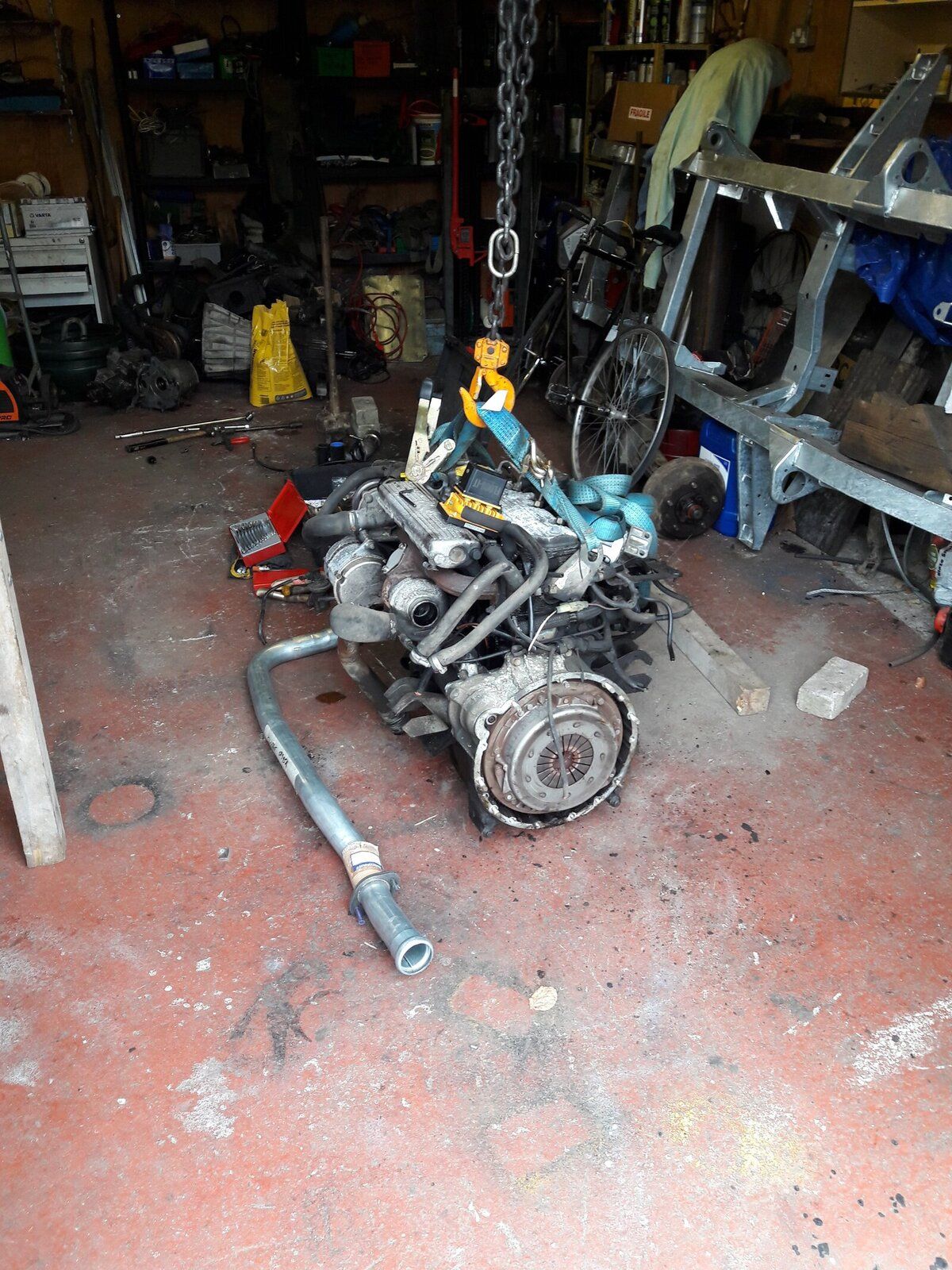

Engine out, roof and tub off, bulkhead removed on the 110.

Work on the 90 included mounting the accelerator pedal- bulhead required converting from LHD to R.

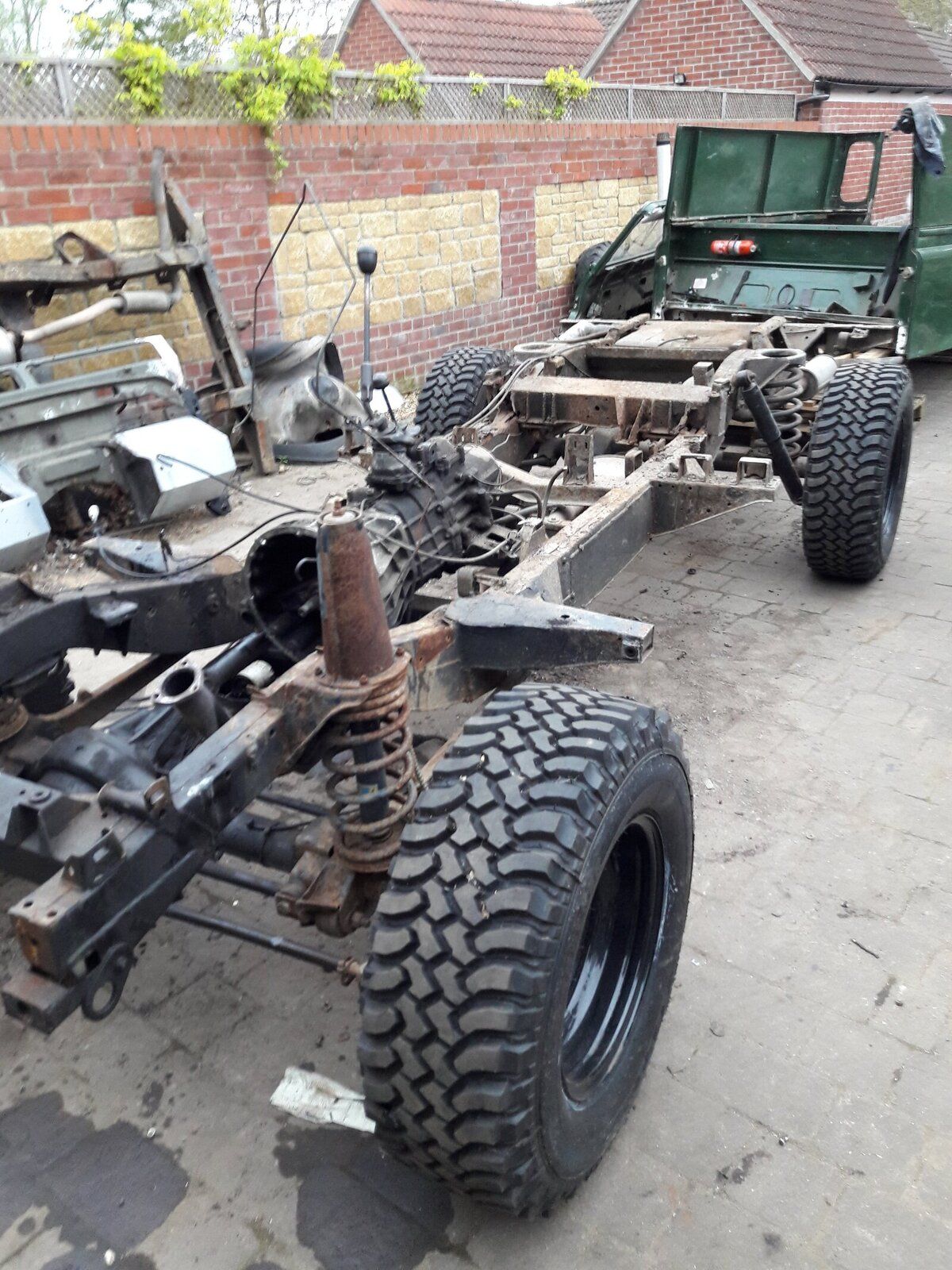

Tomorrow hope to get the the new chasis rolling with engine and gearbox back in, swapping the transfer box for one that came from an automatic discovery.



Pillar

Well-Known Member

• Apr 22, 2017

• #9

Big couple of days. Started with trailing arm and spring seat renewal- mine were buggered.

Worked some aluminium repair patches in preparation for refitting the tub.

Then all the rear suspension components got bolted on.

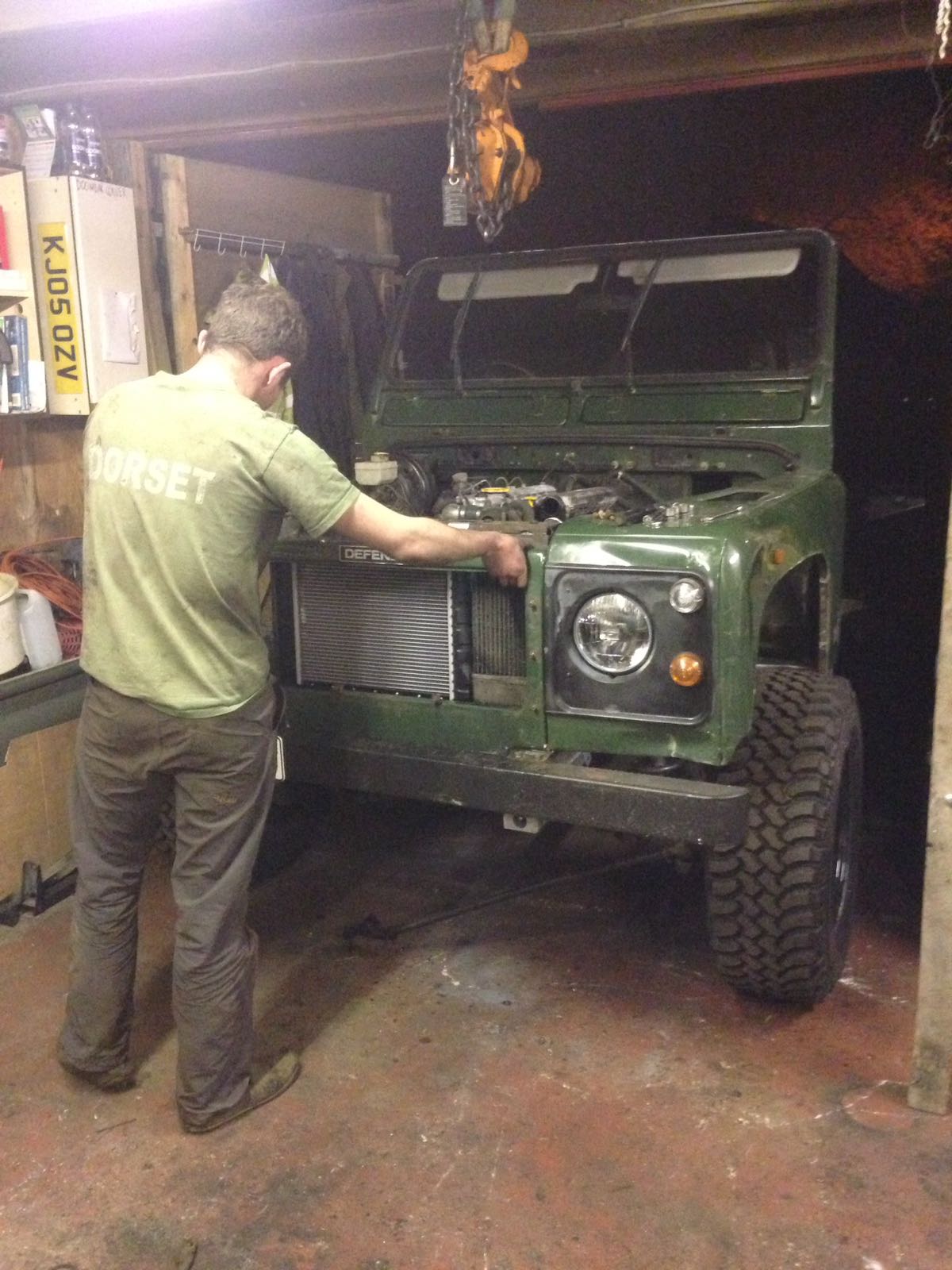

Last night the engine, gearbox and bulkhead went back on.

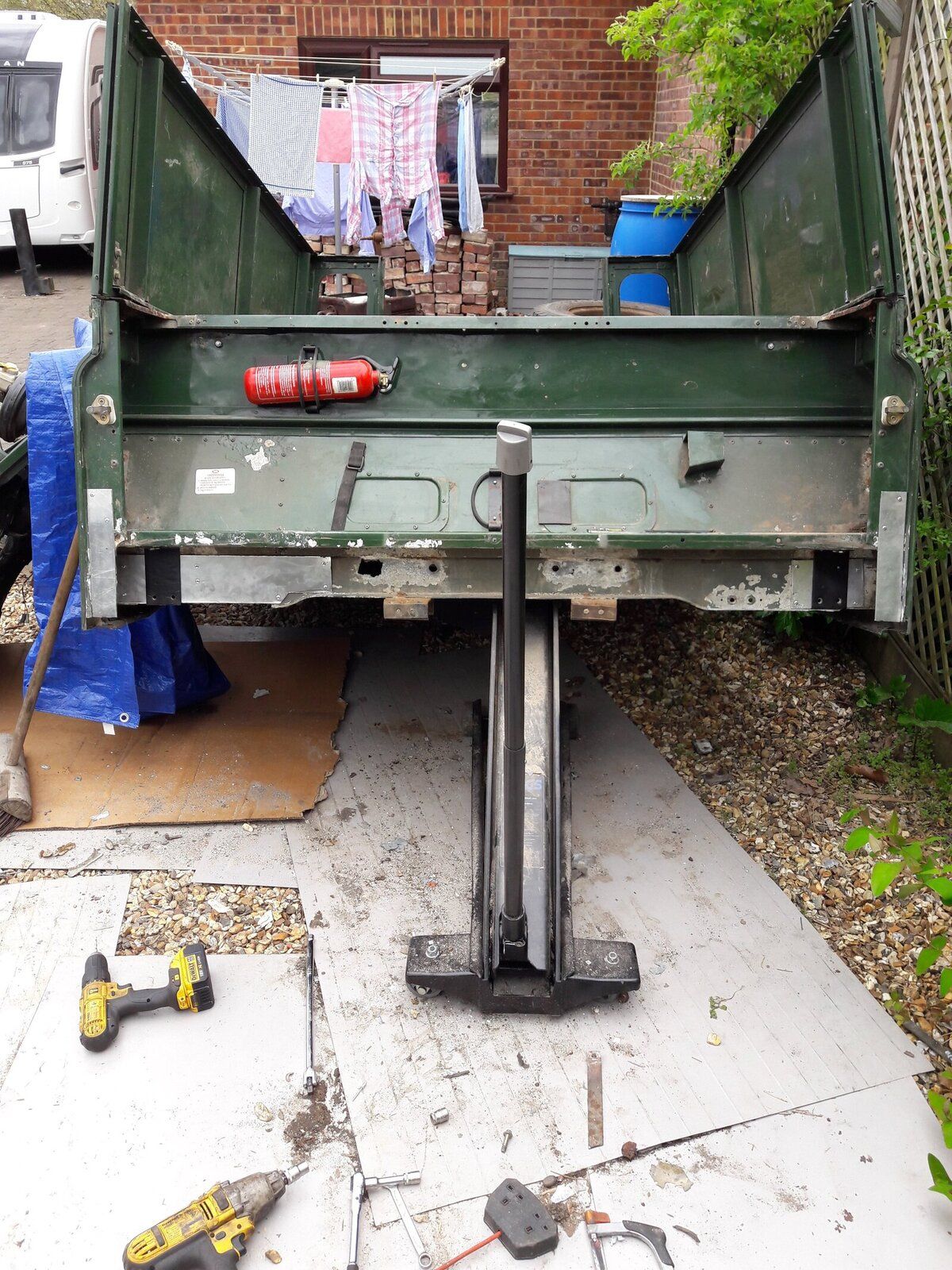

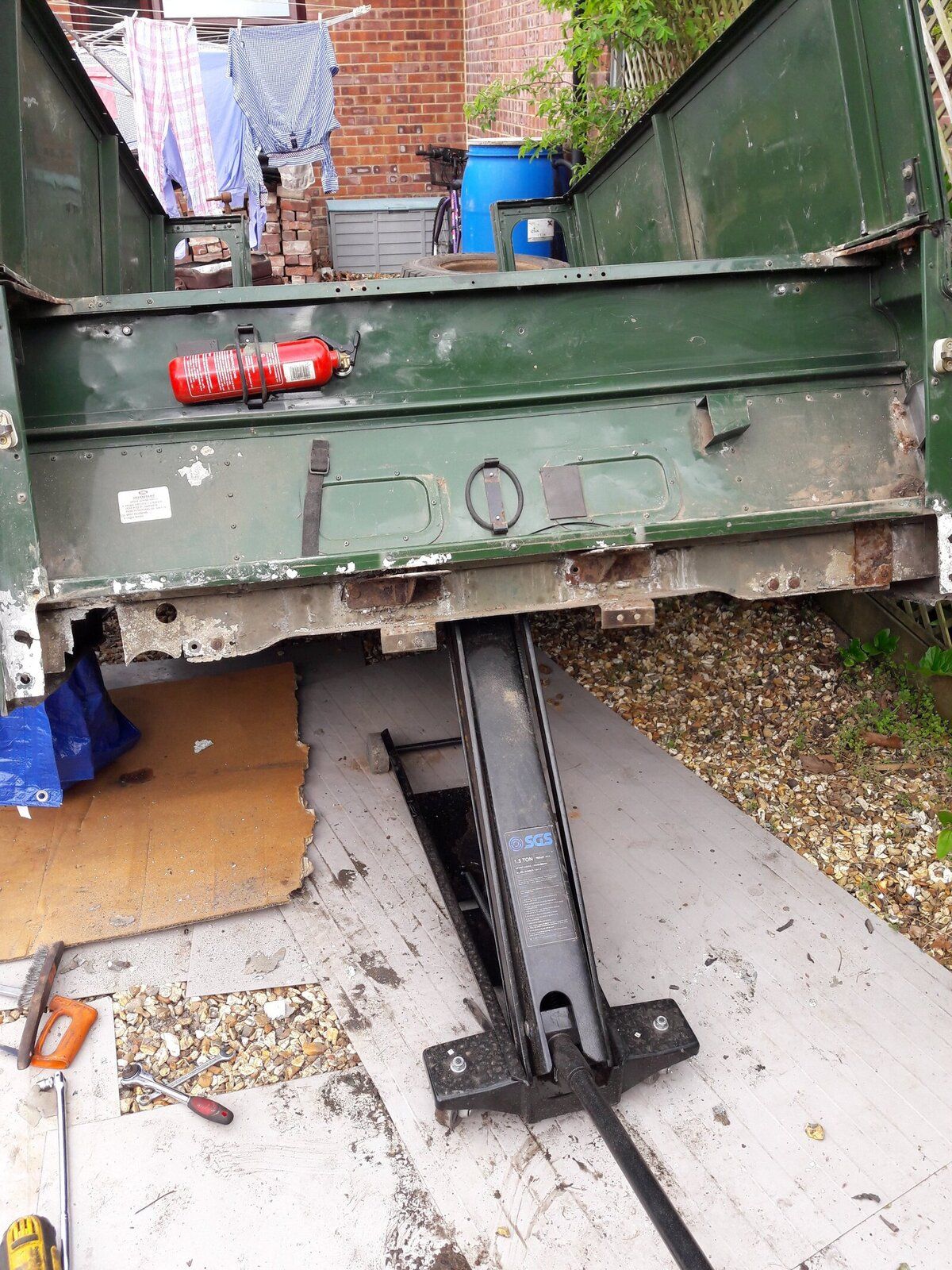

Today rear tub and roof.



Mark Piercy

Well fumbled member....

Full Member

• Apr 22, 2017

• #10

absolutely brilliant, the sense of achievement will be massive when you get behind the wheel!!



Pillar

Well-Known Member

• Apr 30, 2017

• #11

The 110 lives!

10 days after starting the real strip down tonight it started.

We completely rewired it after fabricating our own dashboard and loom.

Tomorrow morning we plan to finish the brake lines and take her out!

Photos to follow.
