Elliott Ray · Mar 3, 2018

Would appear that my Disco 2 is leaking oil or something. Checked all levels and everything appears to be ok. Was driving round all day yesterday and it was absolutely fine. Oil level does not seem to be dropping but when car is in use there is a trail of what looks like oil behind me on the floor which is a bit embarrassing.

Any one have any ideas on what it could be or what else to check?

Thank you in advance

neilly · Mar 3, 2018

Sounds like you need to get underneath it and have a look.

Could be from any number of places.

Cheers

jamesmartin · Mar 3, 2018

worth checking fuel pressure regulator on rear drivers side of head it drips on the bell housing then on to the floor

Elliott Ray · Mar 4, 2018

Thanks for the comments. I have had a look this morning, as soon as the engine is switched on there is a good size fuel leak coming from the rear around the tank area. Now to find exactly where it is coming from

jamesmartin · Mar 4, 2018

Elliott Ray said:
Thanks for the comments. I have had a look this morning, as soon as the engine is switched on there is a good size fuel leak coming from the rear around the tank area. Now to find exactly where it is coming from

it will be t\one of the hoses theres 4 run from pump/sender unit along the crossmember to filter and chassis leg, often the green pipe, you can check colour at sender unit end there is a repair piece if it is the green
https://www.steveparkers.com/product/yni500030k-discovery-2-fuel-pipe-repair-kit-for-wjp108110/

Elliott Ray · Mar 4, 2018

That's great. Thank you very much. I will go and have a look now.

Elliott Ray · Mar 4, 2018

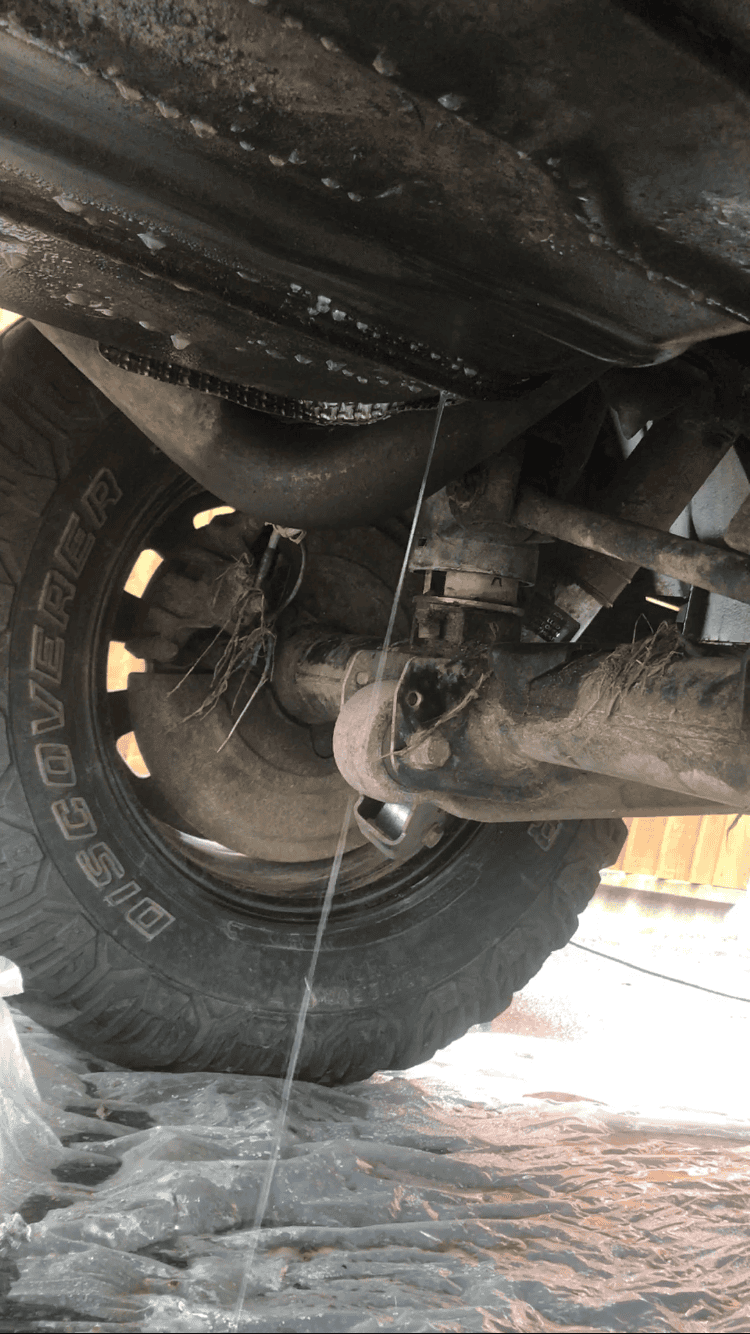

Diesel pouring out the back. Pipe does appear to be ok

jamesmartin · Mar 4, 2018

Elliott Ray said:
Diesel pouring out the back. Pipe does appear to be ok

all pipes and were they secure to pump/sender unit

Elliott Ray · Mar 4, 2018

They seek to be. Need to have a closer look. Would appear it's coming from the bottom of the tank. If it was the pipe would this still look like it's coming from the tank? Thank you

jamesmartin · Mar 4, 2018

Elliott Ray said:
They seek to be. Need to have a closer look. Would appear it's coming from the bottom of the tank. If it was the pipe would this still look like it's coming from the tank? Thank you

does it only leak with ignition on or running or all the time ,the latter would suggest a tank leak or if rammed full a leaky seal on pump/sender unit

Elliott Ray · Mar 4, 2018

jamesmartin said:
does it only leak with ignition on or running or all the time ,the latter would suggest a tank leak or if rammed full a leaky seal on pump/sender unit

Seems to be leaking as soon as the ignition is turned on

jamesmartin · Mar 4, 2018

Elliott Ray said:
Seems to be leaking as soon as the ignition is turned on

it must be a pipe or were the pipe enters the sender/pump unit,have you pulled the rear cargo bay carpet back and removed the access cover to pump unit

Elliott Ray · Mar 4, 2018

Elliott Ray said:
Seems to be leaking as soon as the ignition is turned on

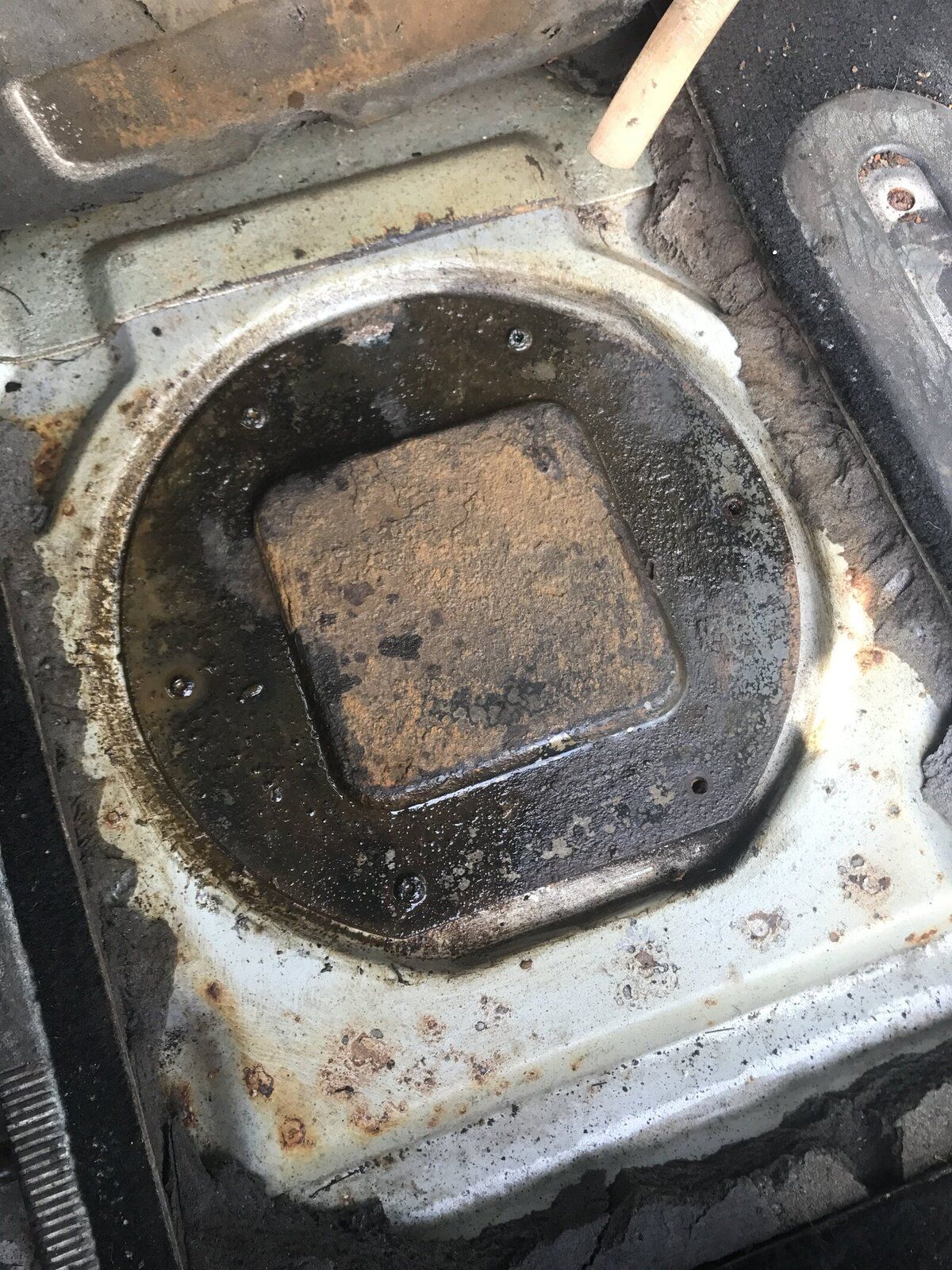

Do you mean this cover?

jamesmartin · Mar 4, 2018
